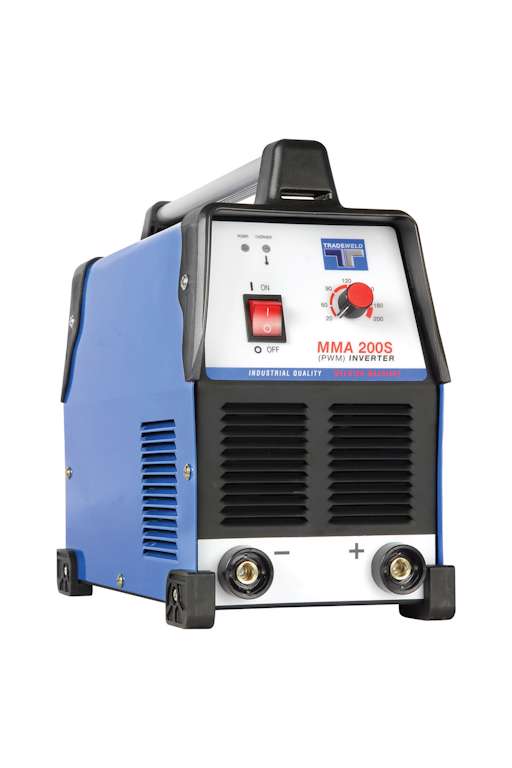

Inverter series is manufactured to the highest standards using cutting edge PWM & Mosfet Technology.
- DC current output
- Suitable for MMA & Argon TIG welding
- Excellent welding characteristics
- Light weight and portable
- Less power consumption
- Robust construction
- Industrial
Technical Specifications
Output |
Amperage | 20-160 |
Voltage | 26.2 |
Duty Cycle | 60% @ 160 amps |
Open circuit Voltage | 20 |
Input |
Voltage | 220V +- 15% 50/60Hz |
Amperage | 24.5 |
PGEN | 6.8kVA |
General |
Min Max Electrode | 1.6mm 3.2mm |
IP | 21 |
Dimensions (lxwxh) mm | 230 x 142 x 315 |
Weight | 5.6kg |
Included
Hand shield
Welding Cable Set
Optional Extras
SR17V TIG Torch
Argon Flowmeter
Prices excludes delivery.
Send us a request for quotation if you want us to deliver.
Our fleet of bakkies and rigging trucks enables us to provide a comprehensive range of delivery and rigging services.
We also work with other reputable transport companies for all long distance transport and export services.
Finance option available for new and used machinery with a turnaround time on credit applications of 3 – 5 days subject to getting all the relevant documentation.
Minimum amount to be financed: R 100 000 after deposit
Please note we unfortunately can’t finance any Individuals or Sole Proprietors.
