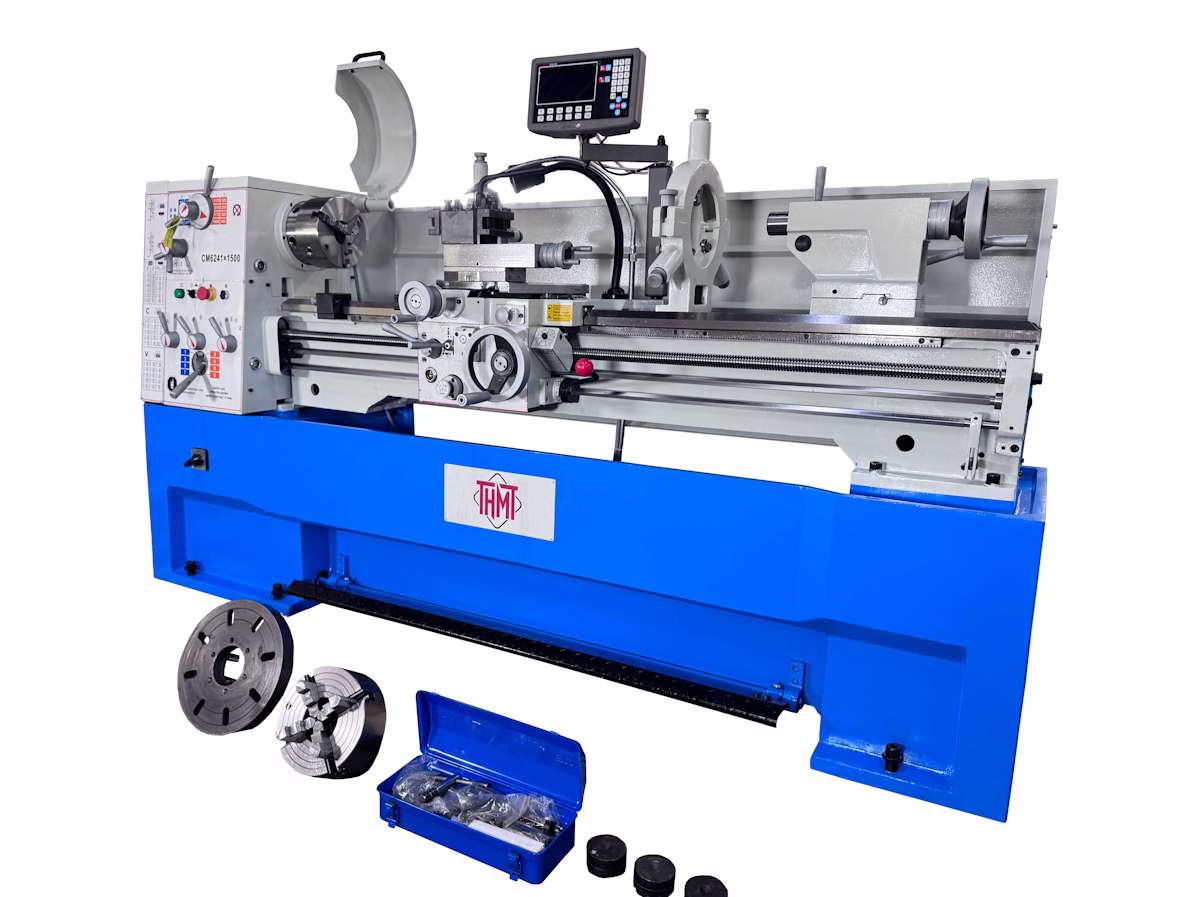

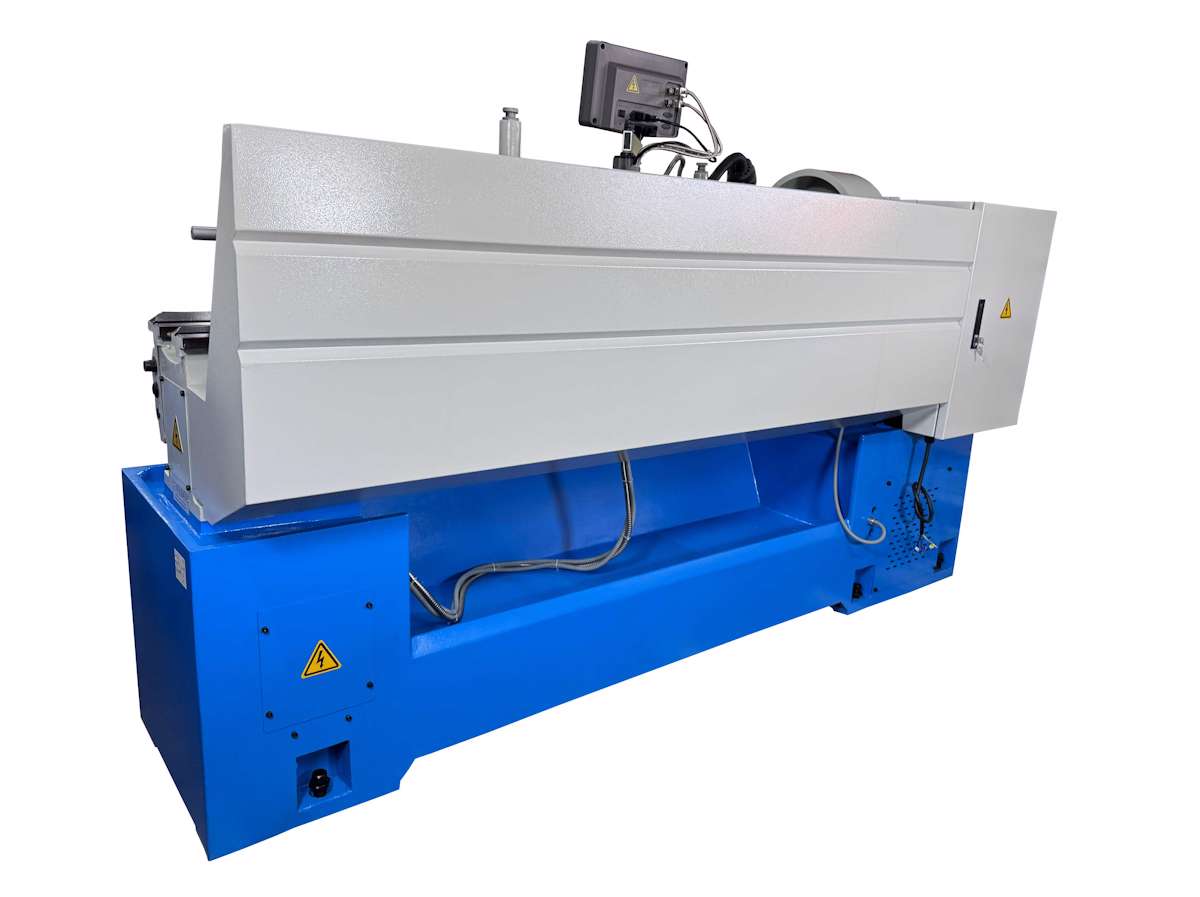

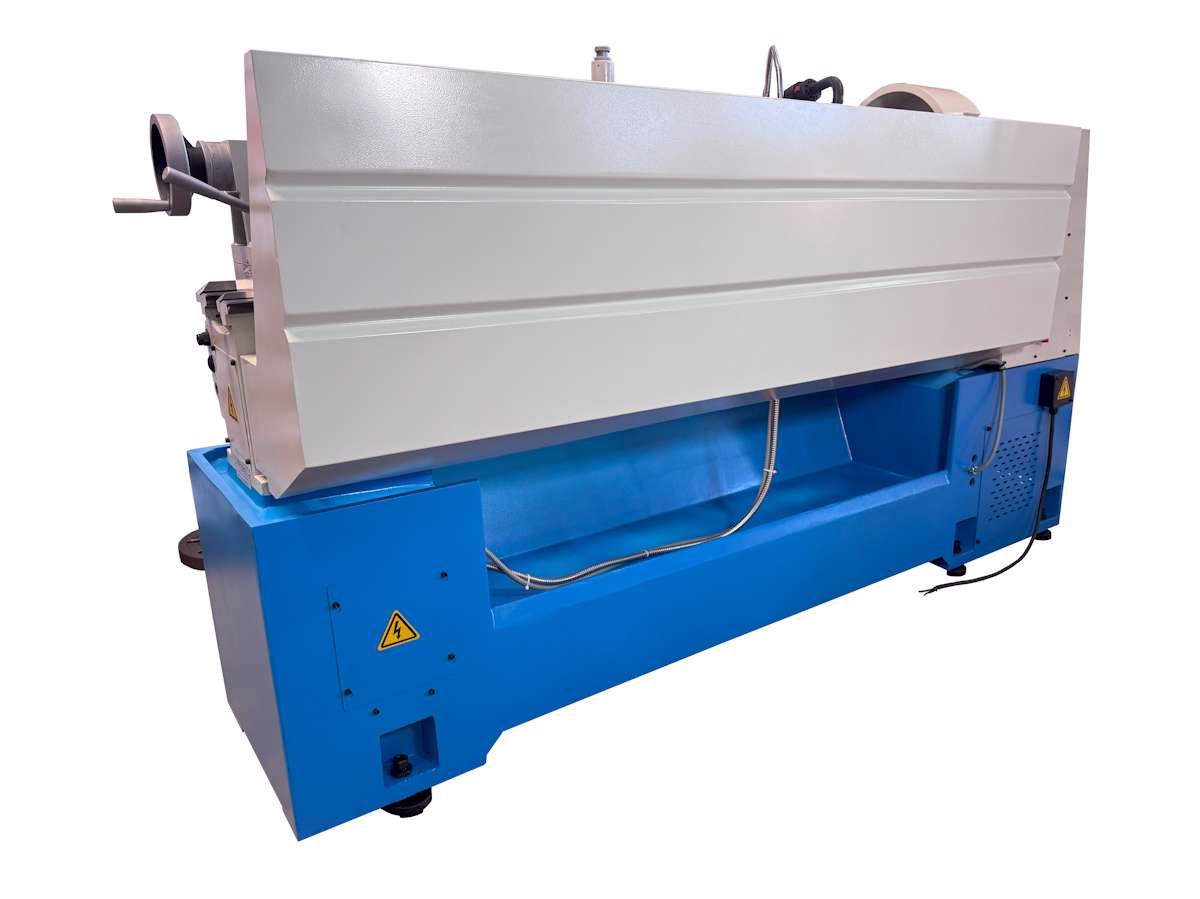

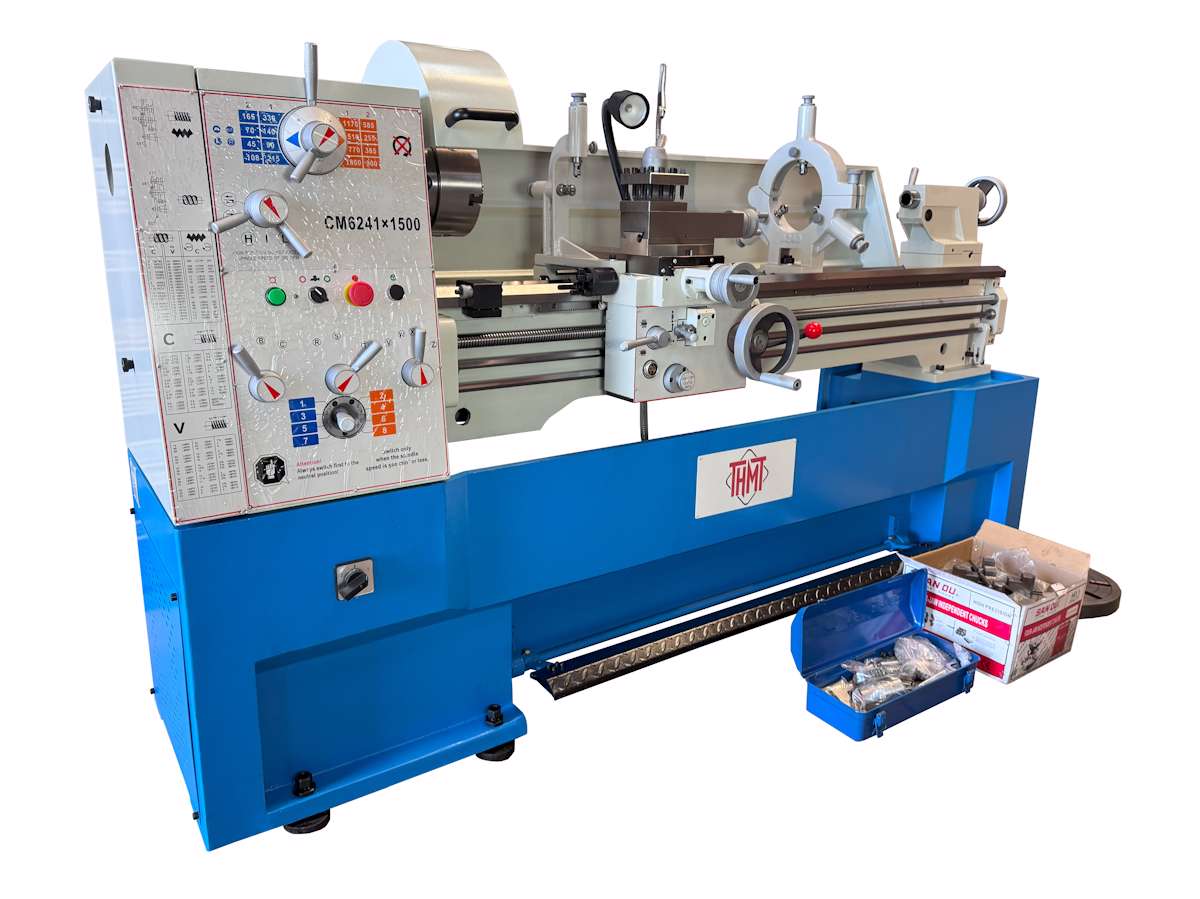

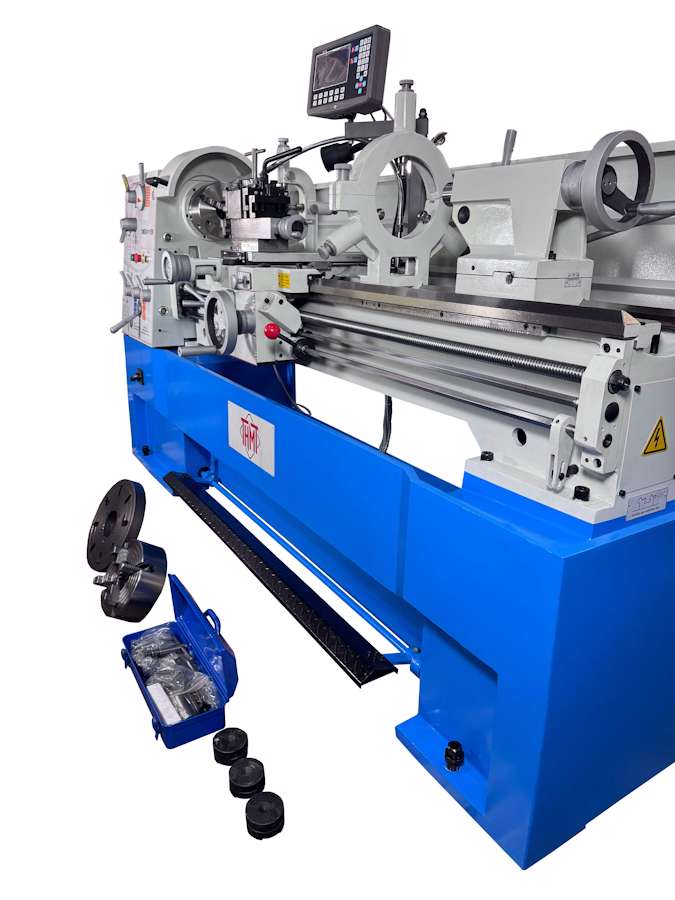

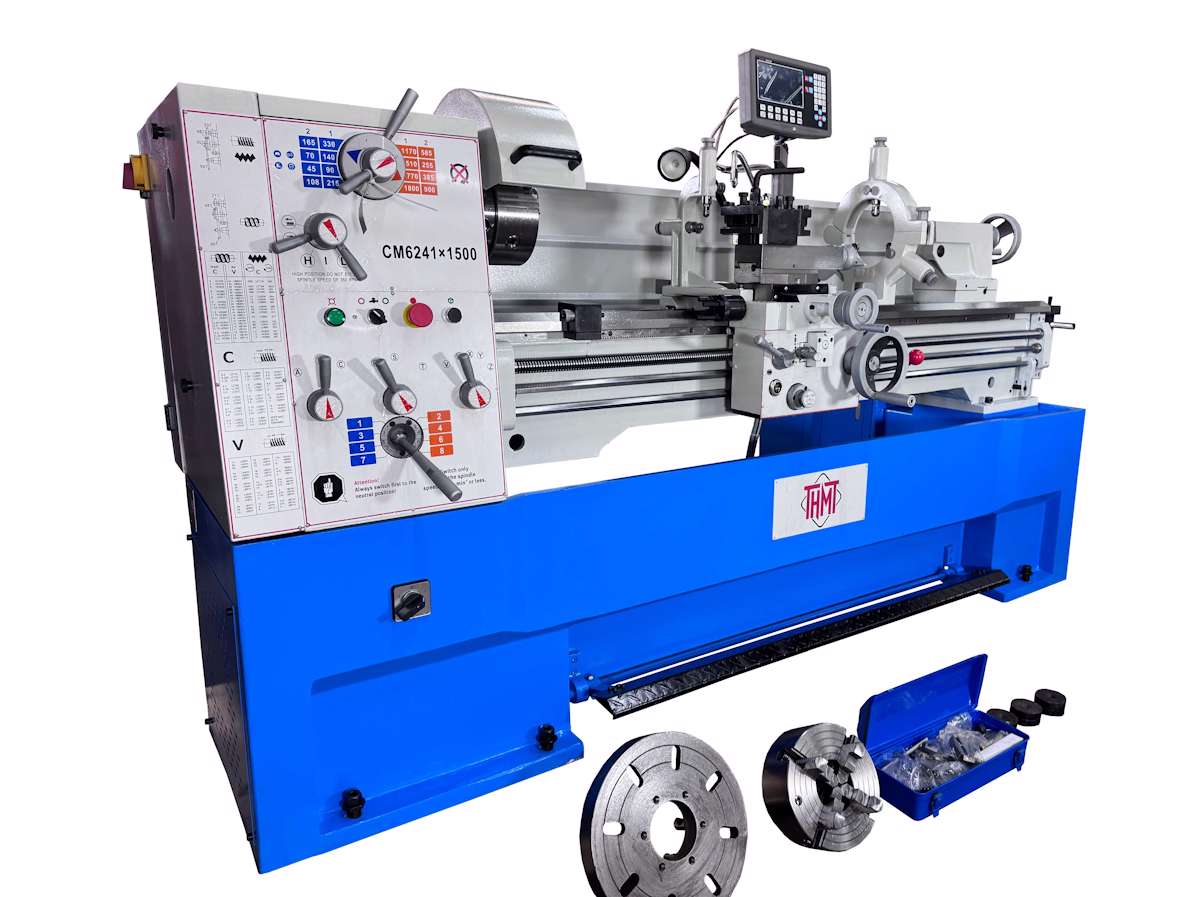

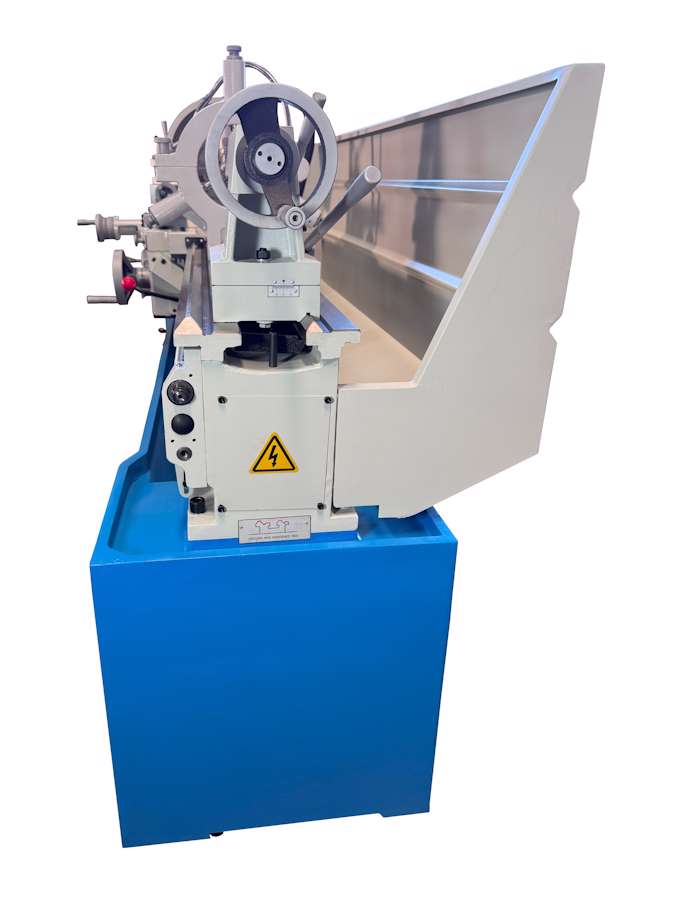

THMT CM6241 1500b/c + DRO Centre Lathe (3869)
New THMT CM6241 1500b/c + DRO Centre Lathe (3869)
swing Ø 410, gap Ø 580, bore Ø 52, 2-axis DRO,QCTP
Availability: In Stock (TBC)
Price: R 179 900.00 excl.
Machine Accessories

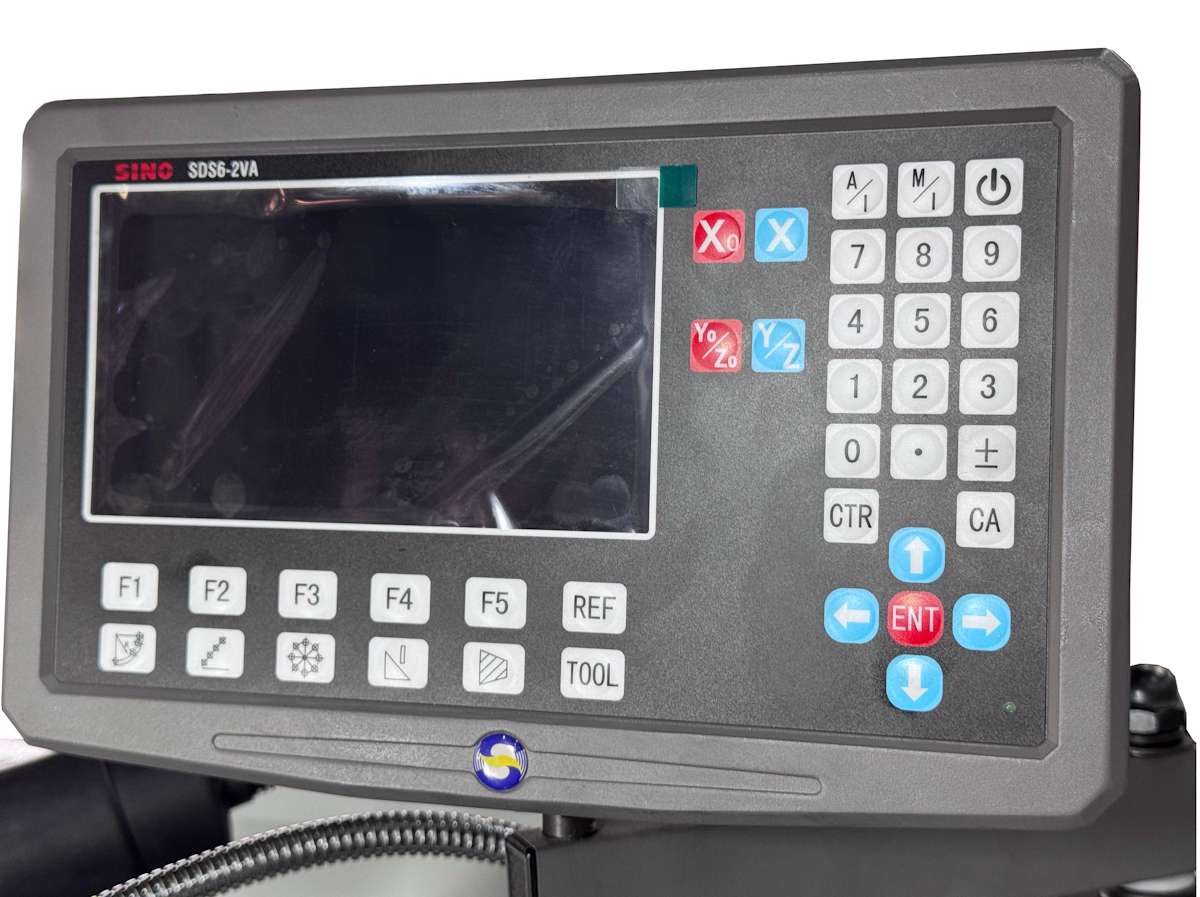

3-Axis DRO
Quick Change Tool Post
3-jaw chuck - Ø200mm
4-jaw chuck - Ø250mm
Reverse jaws for 3-jaw chuck
Faceplate - Ø350mm
Fixed Steady
Traveling Steady
Changegears
Worklight
Coolant System
Levelling Pads
Adjustable Feed Stopper
Distance between centers: 1500mm
Max swing Ø over bed: 410mm
Max swing Ø over saddle: 255mm
Max swing Ø in gap: 580mm
Max Ø of spindle bore: 52mm

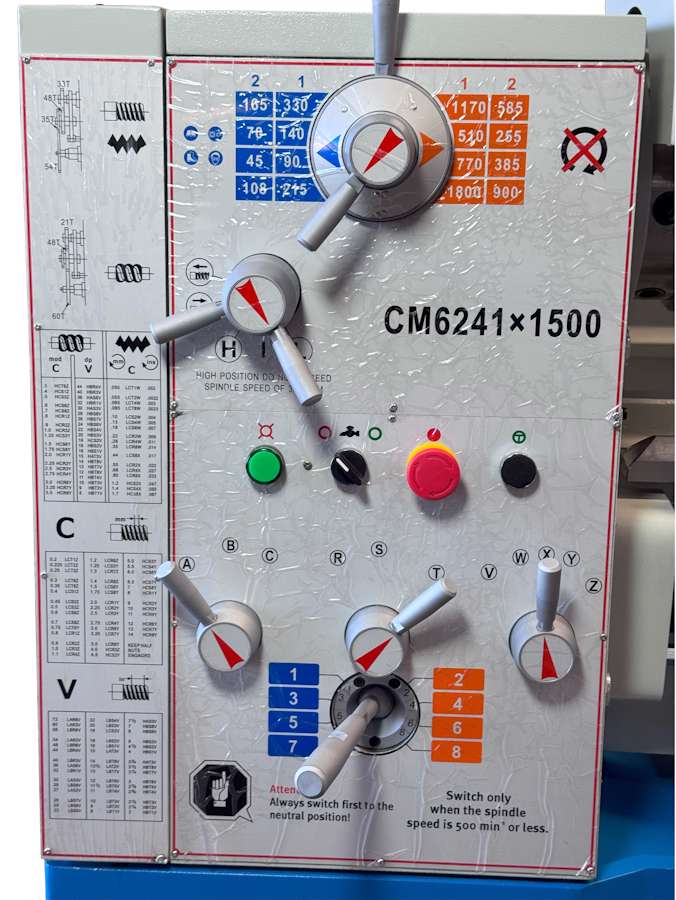

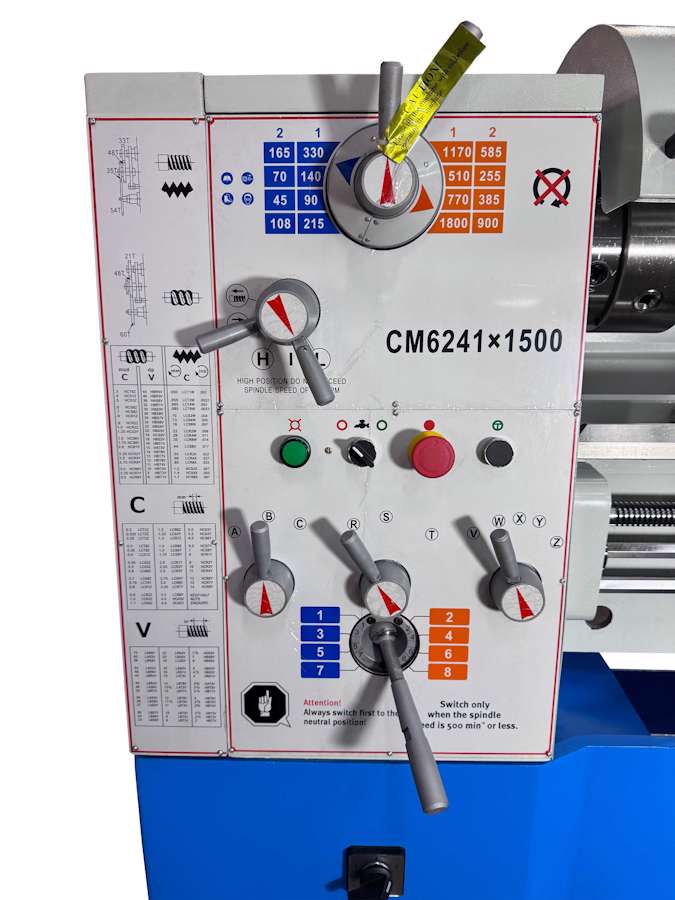

Spindle speed ranges: 16
Spindle speed range: 45~1800rpm
Travel of crosslide: 225mm
Travel of topslide: 140mm
Taper of tailstock: Morse No.4
Approx max workpiece weight: 550kg
Power of main motor: 2.8/3.3kW
Dimensions: 2440 x 850 x 1320 (LxWxH)
Weight: 1500kg
