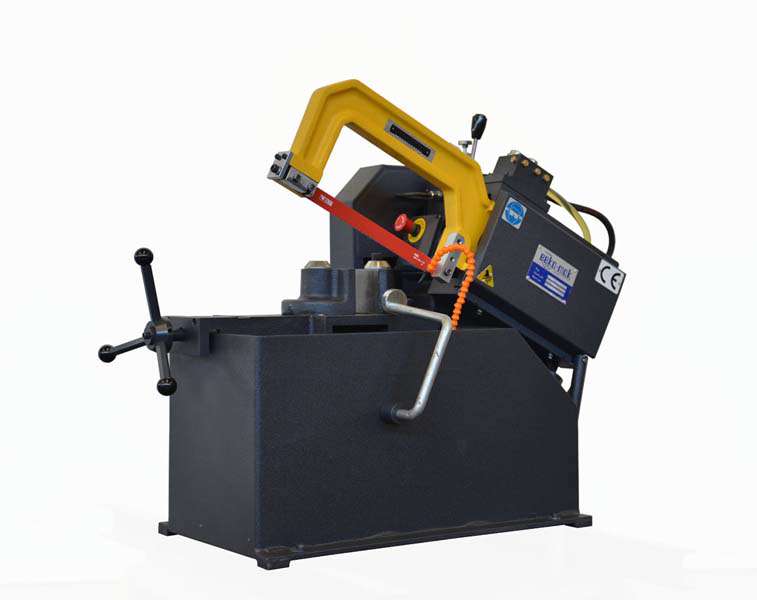

Bekamak BMH-170 Power Saw (4699)
New Bekamak BMH-170 Power Saw (4699)
Ø170, 200 x 120, 0.75kW
Availability: In Stock (TBC)
Price: R 49 900.00 excl.
The model which cuts with hydraulic pressure by the "forward-back movement" of the flat blade, is ideal with its price and dimensions for the non-high cutting quantities.
Technical Details
| Height | 810mm |
| Width | 600mm |
| Length | 1100mm |
| Weight | 265kg |
| Working Height | 430mm |
| Band Dimensions | 350x30x1,5mm |
| Cutting Speeds | 120m/min |
| Coolant Pump | 0,12kW |
| Hydraulic Motor | 0,37kW |
| Main Drive Motor | 0,75kW |
| +45° Square Cutting Capacity | 120mm |
| +45° Flat Cutting Capacity | 110 x 110mm |
| +45° Round Cutting Capacity | 110mm |
| 0° Square Cutting Capacity | 145mm |
| 0° Flat Cutting Capacity | 200 x 120mm |
| 0° Round Cutting Capacity | 170mm |
Standard Features
Adjustable material length stop
Control Panel
Coolant Pomp
Cutting Speed Control
Cylinder
Electrical Panel
High Adjustment
Material Limit Shaft
Roller Table
Saw Blade
Vice
0° Round Cutting Capacity: 170mm
0° Flat Cutting Capacity: 200 x 120mm
0° Square Cutting Capacity: 145mm
+45° Round Cutting Capacity: 110mm
+45° Flat Cutting Capacity: 110 x 110mm
+45° Square Cutting Capacity : 120mm
Working Height: 430mm
Band Dimensions: 350x30x1,5mm
Cutting Speeds: 120m/min
Coolant Pump: 0,12kW
Hydraulic Motor: 0,37kW
Main Drive Motor: 0,75kW
Dimensions: L/W/H: 110 x 600 x 810mm
Weight: 265kg
 Beka-Mak BMH-170 Power Saw.png)
