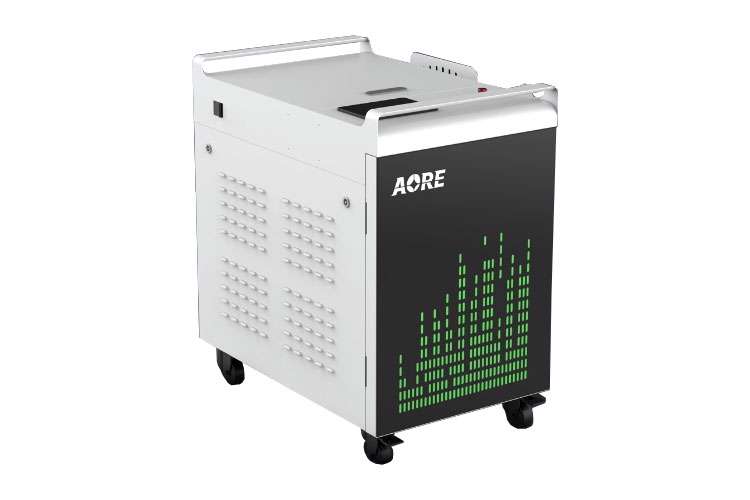

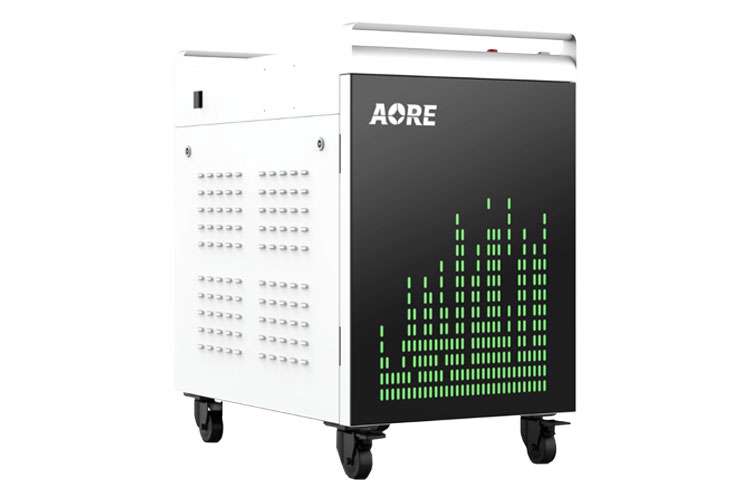

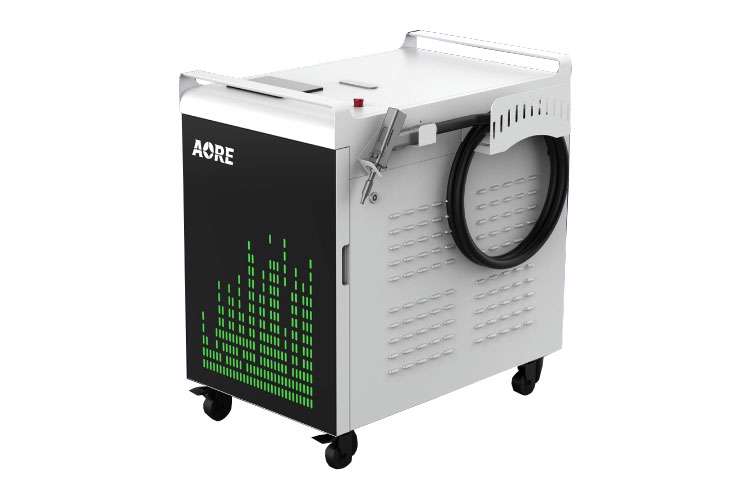

Aore HW-D/3000W Laser Welding Machine (14061)

New Aore HW-D/3000W Laser Welding Machine (14061)

3kW, Handheld, Water-cooled

Availability: E.T.A. 10 Jul 2025

Price: R 146 400.00 excl.

Handheld Laser Welding Machine
HWD series is an intelligent, efficient, stable and flexible handheld laser welding machine, which is widely used in chassis cabinets, metal furniture, door and window guardrail, medical equipment and other fields.
New water cooling temperature control technology
Using the second generation of water-cooled temperature control technology and surround three-dimensional heat dissipation design, high heat dissipation, constant temperature, continuous light more stable
Flexible processing and efficient welding
The equipment is flexible and portable, small in size, and the welding speed is 3-10 times that of traditional argon arc welding and plasma welding.
Professional systems are simple to operate
Professional welding system, set welding, cutting, cleaning, weld cleaning four functions as one, easy to operate.

Our products are suitable for the industry
Our products are widely used in engineering machinery, petroleum pipeline, steel structure construction, building materials decoration, elevator manufacturing, fitness equipment, furniture kitchen and bathroom, advertising road signs and other industries.

Specifications:

Model	HW.D-3000W
Power	3000w
Laser wavelength	1080±10NM
Working mode	Continuous/Modulation
Protective gas	Nitrogen/Argon
Shielding gas pressure	≤10bar
Swing width	0-8mm
Total power	13.5kw
Fiber optic cable length	10m or customized
Working ambient temperature range	5-40℃
Working environment humidity range	＜70％ no condensation
Welding speed	0-120mm/s
Packing size	14007701200mm
Packaging weight of the whole machine	330kg
Equipment size	1100660970mm
Voltage	Three phase 380V±5％/
	50-60Hz
Maximum welding thickness	8mm carbon steel / stainless steel & 6mm aluminum

Standard Configuration:
Chaoqiang Welding Head
Max Laser Source
S&A Water Cooler
Double Wire Feeder

Optional Accessories:
Double wire feeding for non-aluminium material
Single graphite wire feeding tube for aluminium, 5 meter
U shape wheel for Single aluminium wires 0.8 / 1.0 / 1.2 / 1.6 / 2.0
Double graphite wire feeding tube for aluminium, 5 meter ( Welding gap > 1mm)
U shape wheel for Double aluminium wires 0.8 / 1.0 / 1.2 / 1.6 / 2.0 ( Welding gap > 1mm)
