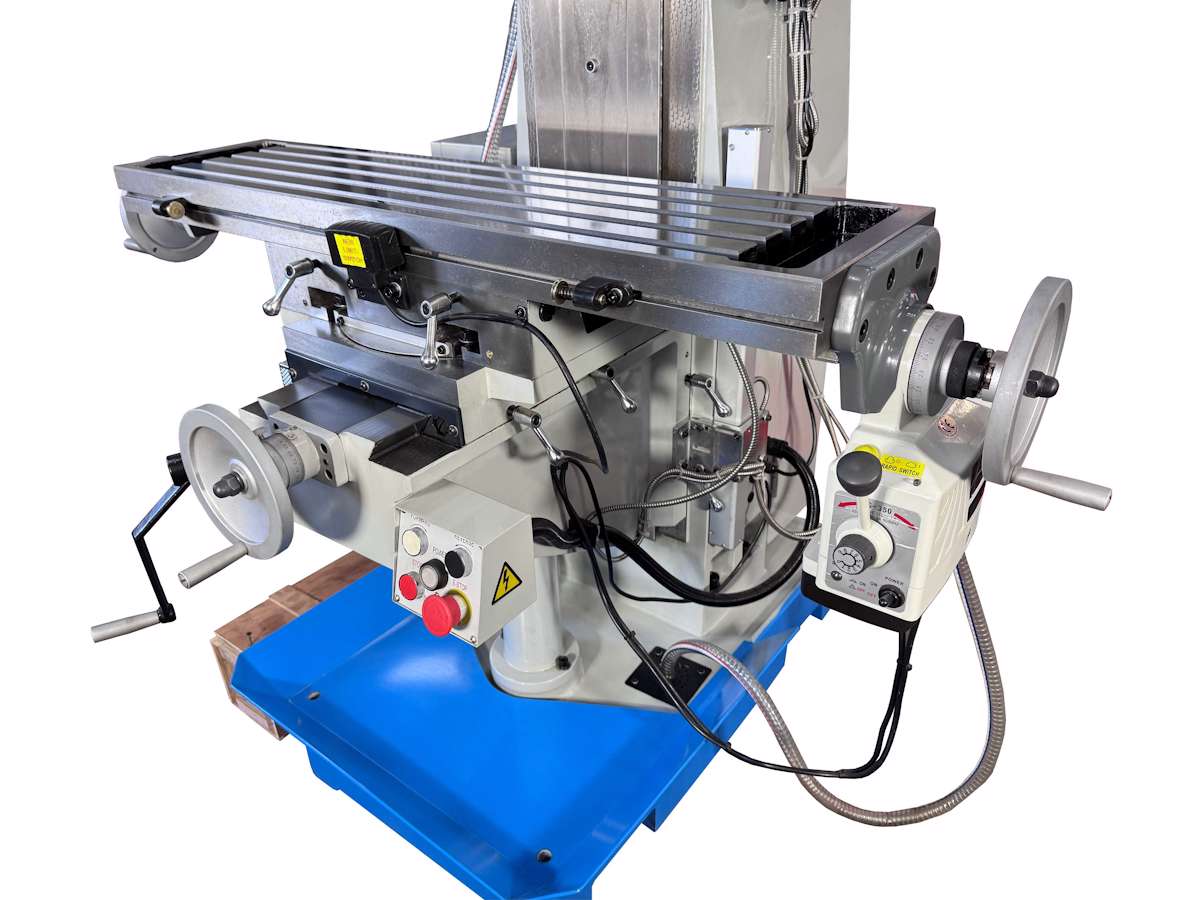

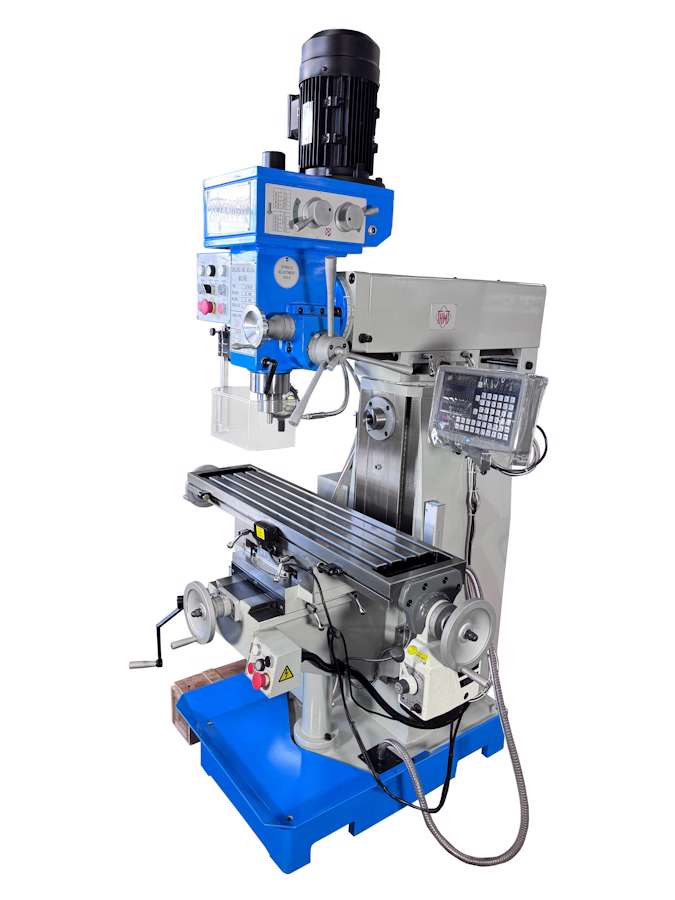

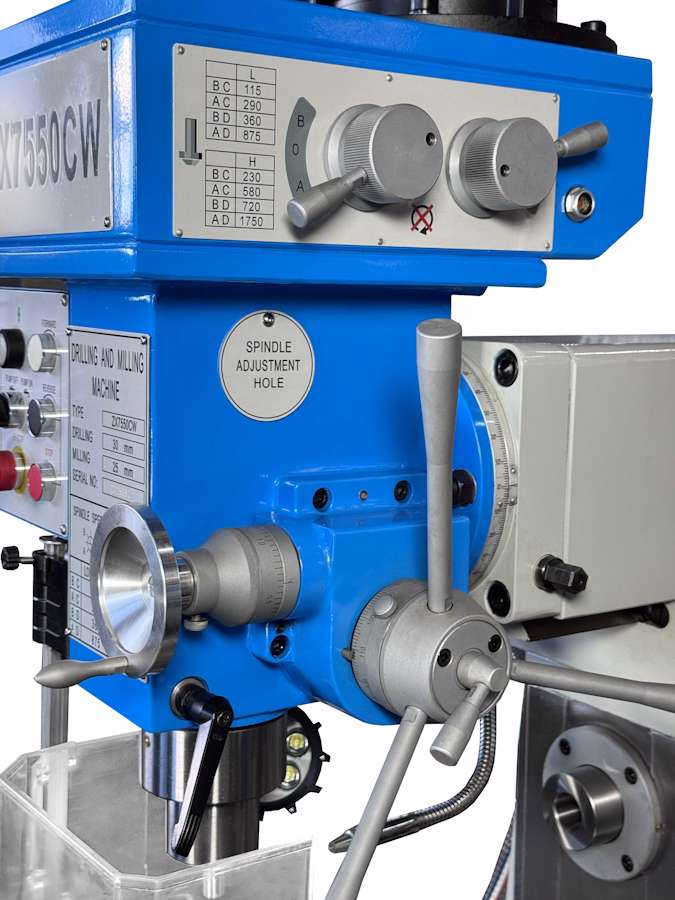

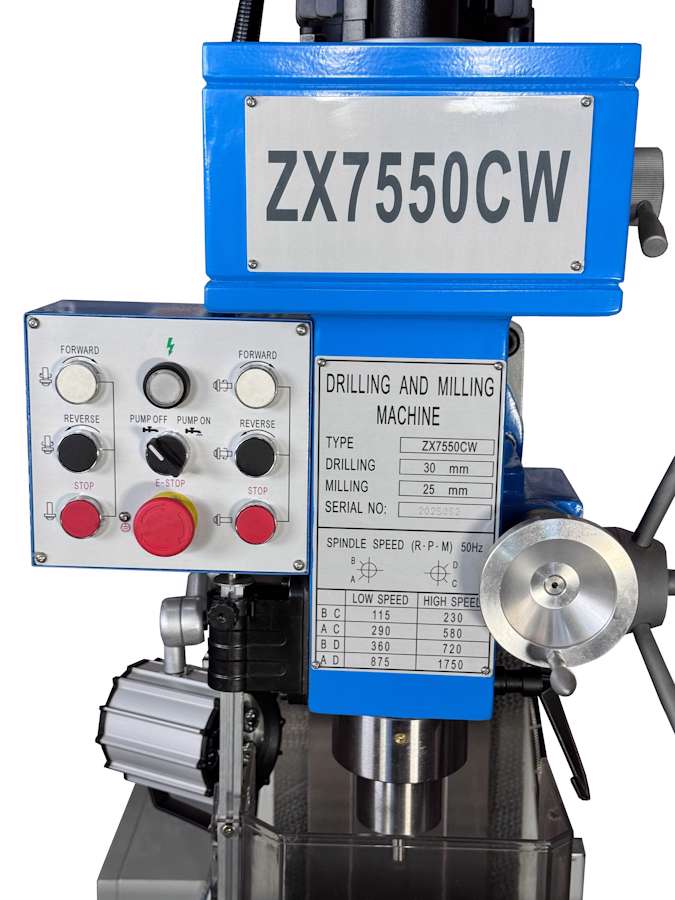

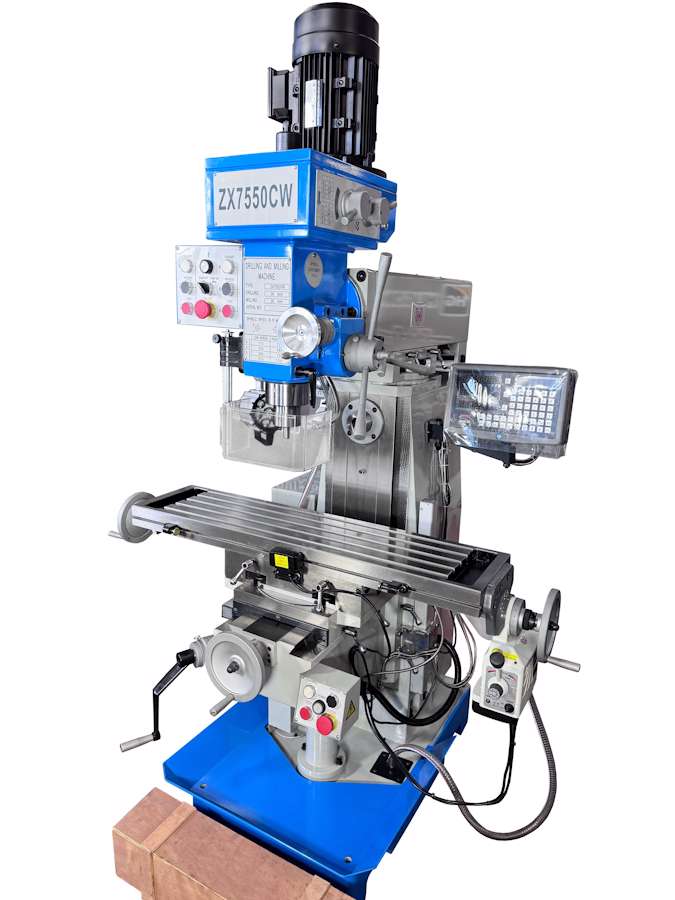

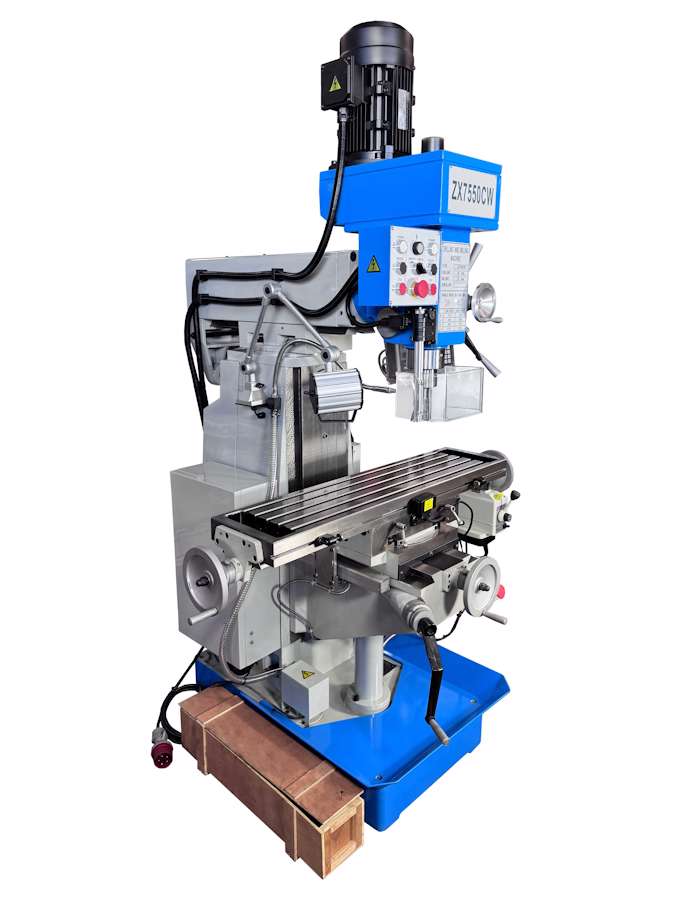

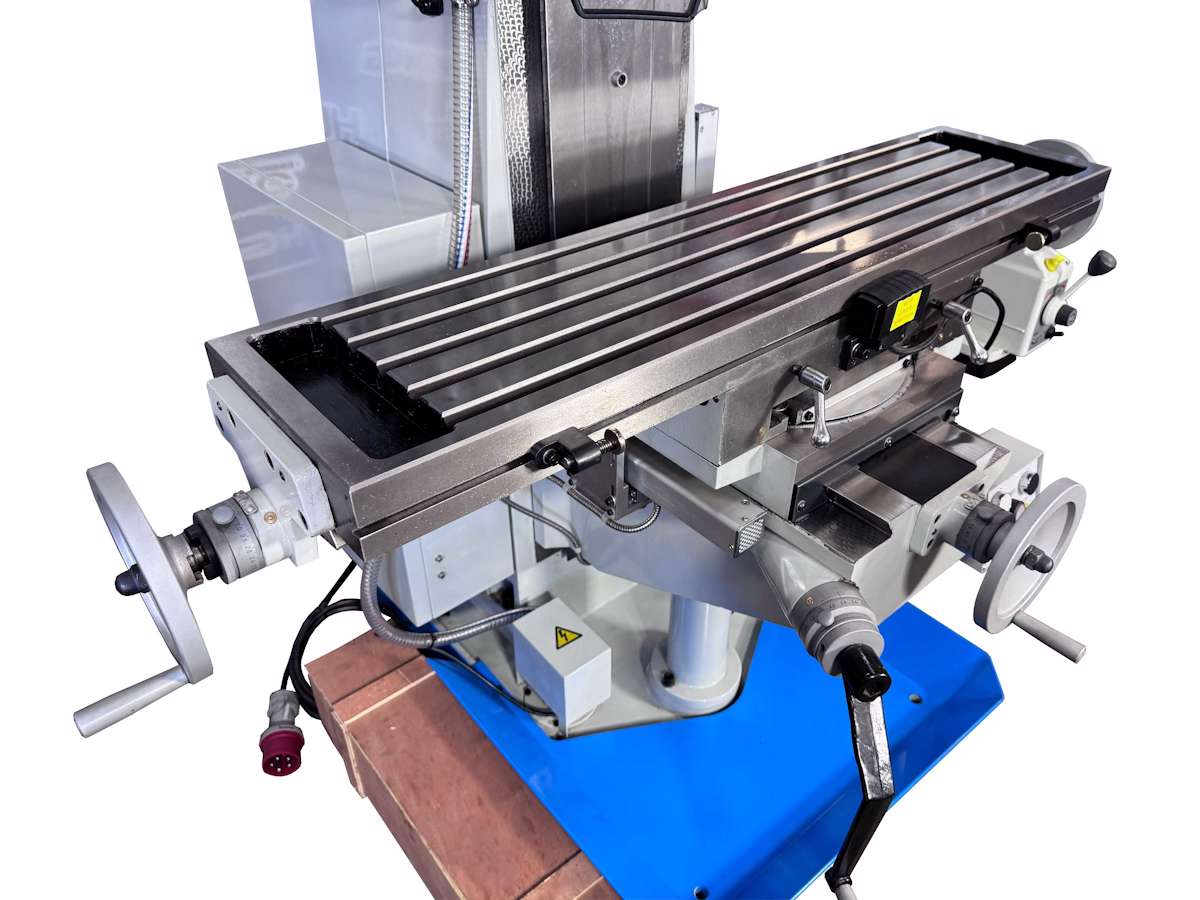

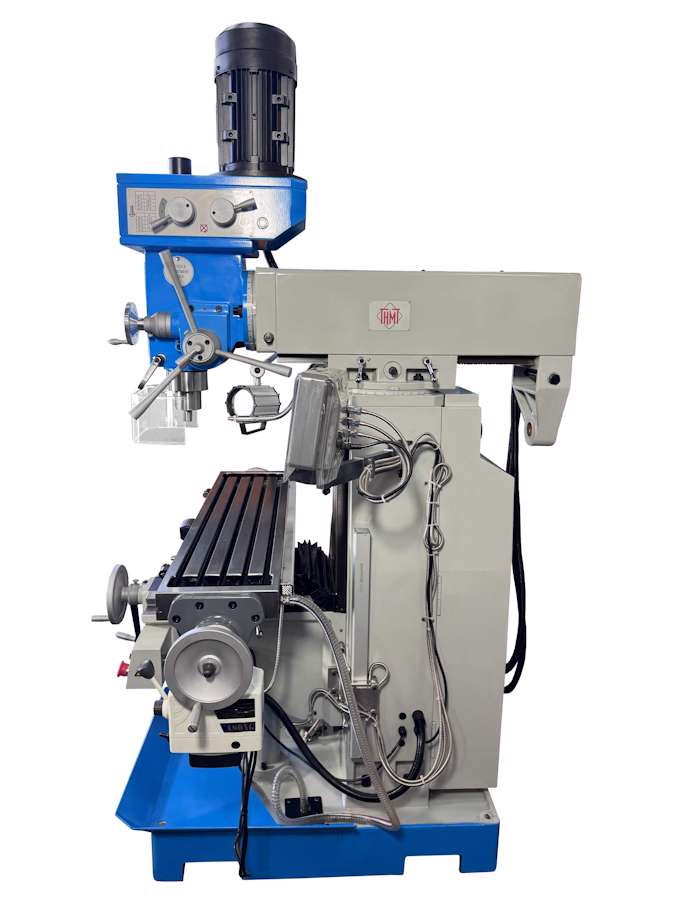

THMT ZX7550CW Mill & Drill Milling Machine (4636)
New THMT ZX7550CW Mill & Drill Milling Machine (4636)
R8, Bed 1000 x 240, X-axis powerfeed, 3-axis DRO
Availability: In Stock (TBC)
Price: R 110 700.00 excl.
Vertical Spindle: R8
Horizontal Spindle: R8
Vertical spindle to column distance: 250-650mm
Vertical spindle to table distance: 250-650mm
Horizontal spindle to table distance: 70-370mm
Vertical spindle travel: 120mm
Table size: 1000 x 240mm
Table travel: 600 x 230mm
Motor size: 1.5kW
Dimensions: 1380 x 1220 x 2100mm
Weight: 850kg
Standard Accessories:
Coolant system
Worklight
Drawbar
X-axis powerfeed
3-axis DRO
Long arbor
Arbor ram support
Drill chuck + arbor
TERMS OF SALE.
- Commissioning, hydraulic oil and transportation for new and used machine(s) are for the buyers account unless otherwise specified in writing by TH MACHINE TOOLS CC.
- All goods must be paid in full before collection or delivery, unless otherwise specified in writing by TH MACHINE TOOLS CC, who reserves the right to charge interest on all overdue amounts.
- All goods remain the property of TH MACHINE TOOLS CC until paid in full.
- ALL DELIVERIES are at the cost of the buyer.
- ALL DELIVERIES exclude foundation preparation, anchoring and electrical connection unless otherwise specified in writing by TH MACHINE TOOLS CC.
- GOODS DELIVERED remain the property of TH MACHINE TOOLS CC until fully paid for and we retain the right to repossess and remove any goods supplied at our own discretion, holding the buyer liable for any additional costs deriving directly from such removal and or damages inflicted to the goods while such goods were used by the buyer.
- GOODS TRANSPORTED in any other way than our own transport are in transit at the buyer’s risk which hereby does indemnify and hold us blameless against any claim which he may have in respect of damages or any other cause whatsoever.
- One day machine operational training is included with all new CNC / NC machine purchases plus an extra two days application training with new HURCO machine purchases. Additional training is available at the cost of the buyer.
- A warranty is offered on all new machines from date of collection / delivery against faulty material and/or workmanship excluding electrical components and hydraulic seals.
- Industrial machines: Twelve (12) months warranty.
- Light-duty machines: Six (6) months warranty.
-
The warranty will be invalidated under the following conditions:
- Breakdown /malfunction caused while operating machine outside factory capacity specifications.
- Breakdown /malfunction caused by third party electrician / technician.
- Breakdown /malfunction caused by operator error.
- Breakdown /malfunction caused by fair wear and tear.
- In case of a warranty call-out the buyer will be responsible for all traveling expenses exceeding a 100 kilometer radius as well as all accommodation expenses.
- All out of warranty call-outs are charged Rand per hour + Rand per kilometer. Time begins at the point of departure and ends upon point of return.
- All used / reconditioned machines are sold “As Is”, unless otherwise specified and a Working Warranty is issued in writing by TH MACHINE TOOLS CC.
- TH MACHINE TOOLS CC does not warrant to the buyer that the tooling are fit for the purpose sold and/or are free from any defects whether latent or patent.
- TH MACHINE TOOLS CC will endeavor to pass on the benefit of any manufacturer’s guarantee but apart there from there shall be no liability whatsoever attaching to TH MACHINE TOOLS CC.
- Prices are subject to change due to currency fluctuations and/or increases imposed by our supplier.
