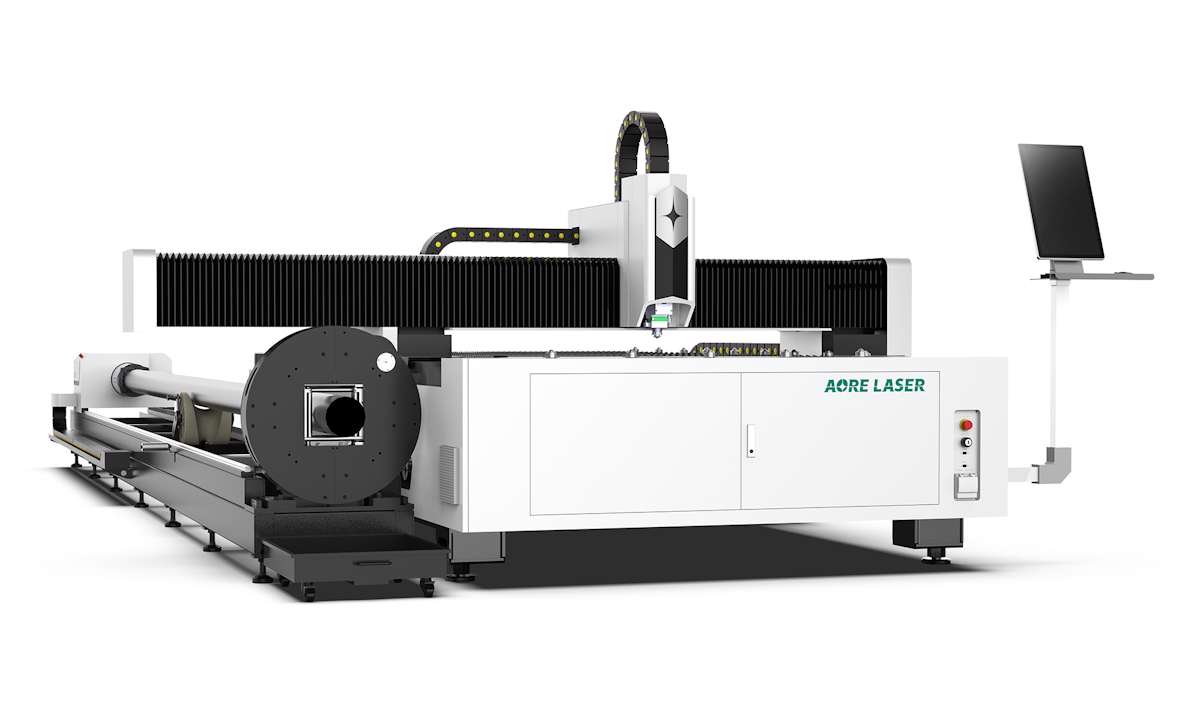

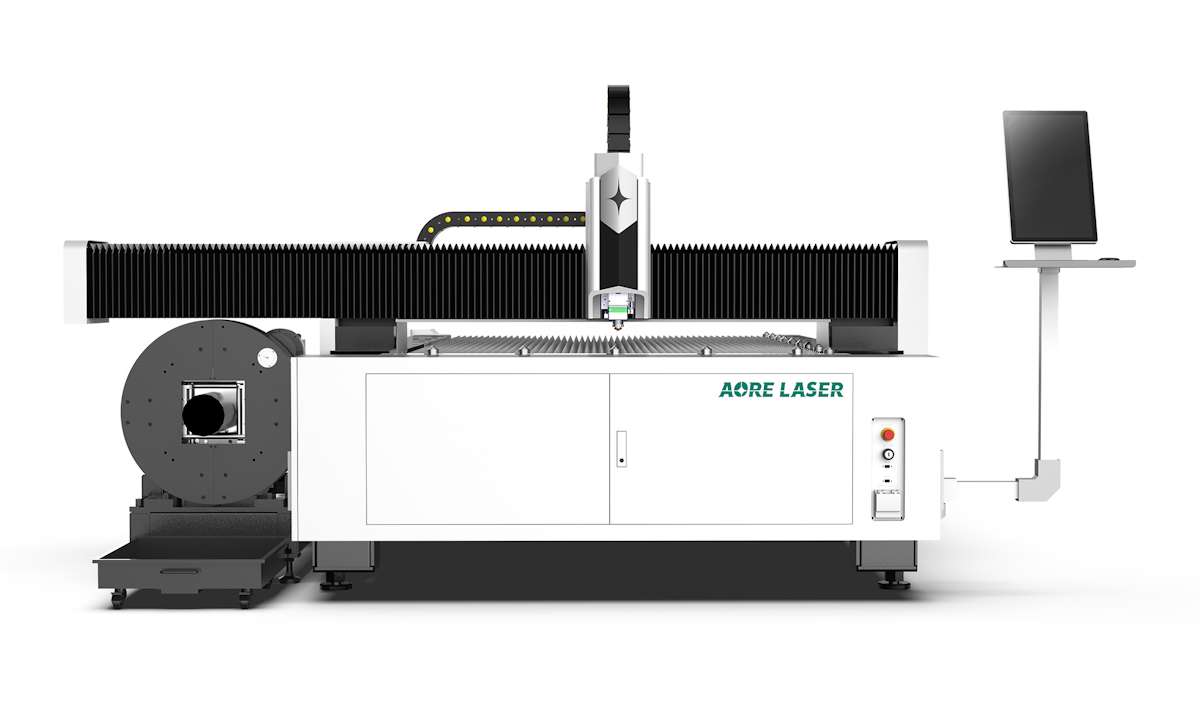

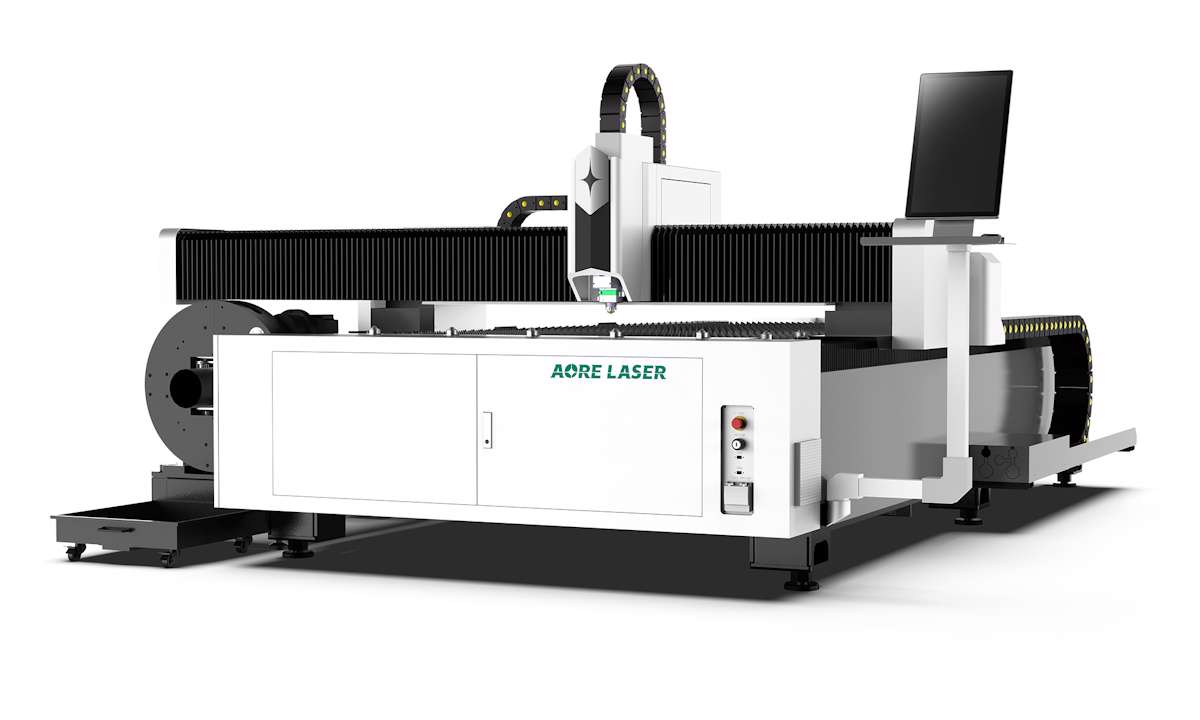

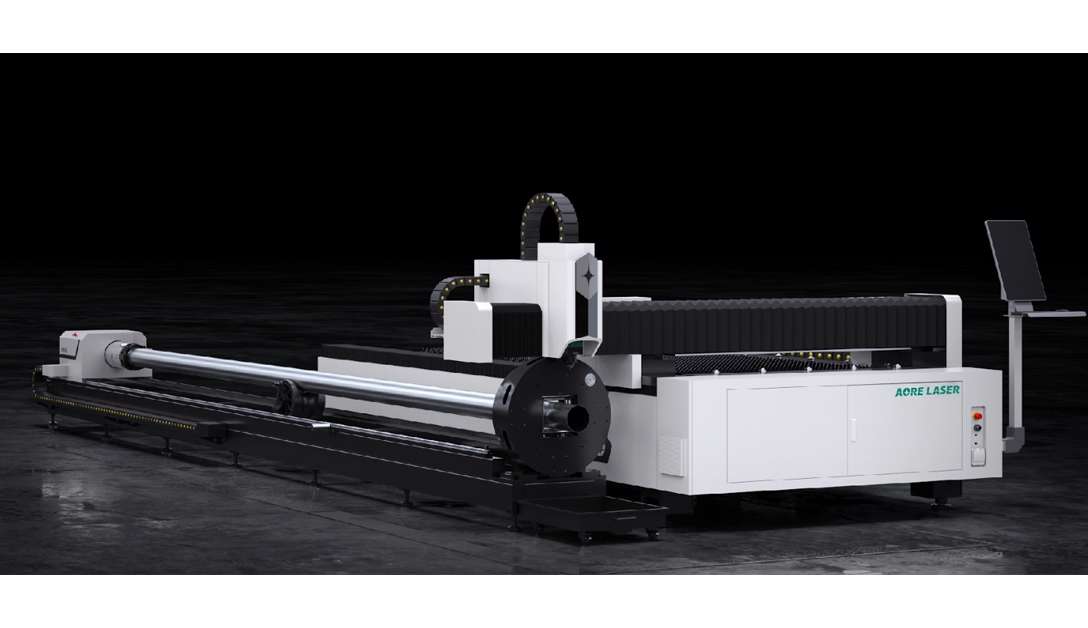

Open Type, Sheet and Tube Fiber Laser Cutting Machine
Efficient And Practical
Sheet And Tube Integrated For Efficient Cutting
Brand New Double Crossbeam Bed Structure

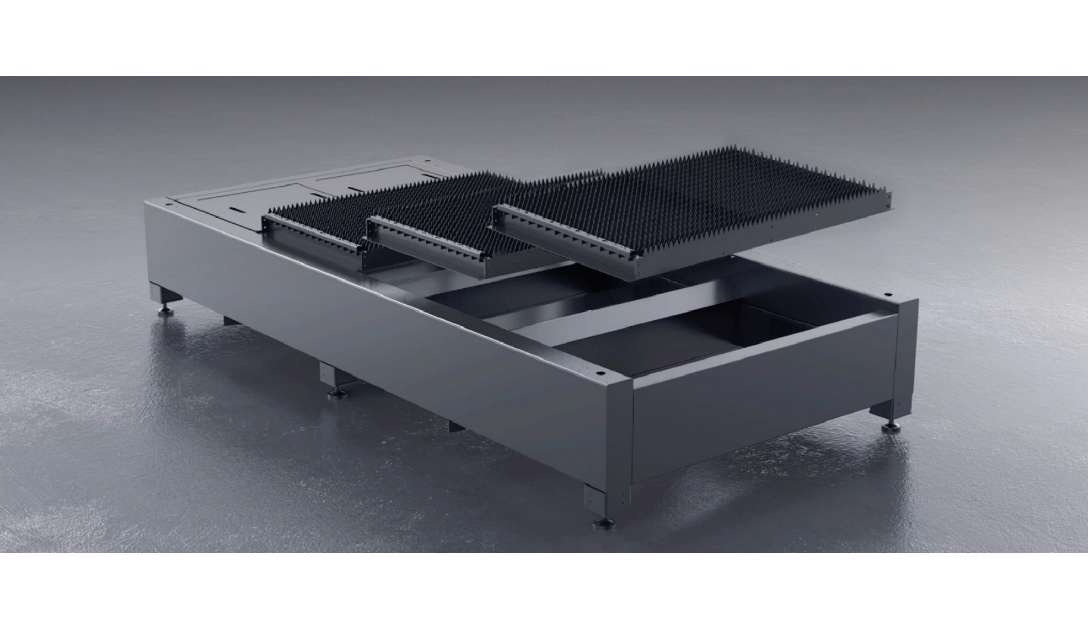

Modular Worktable Design
Configuration:
MAX Laser Source
FSCUT 3000DE-M Control System
Raytools BM110 Cutting Head
Inovance Servo Motors
KOFON Reducers
SMC Gas Valves
HANLI Water Chiller
Specifications:
Models: FT3015
Laser power: 3kW
Working area: 3050*1530mm
Round/Square Tube: 15-230Ø x 6200mm
Angle / Channel: up to 230 x 6200mm
Cutting Thickness:
Material | 3kW |
Carbon steel | 1-16 |
Stainless steel | 1-8 |
Brass | 1-5 |
Aluminium | 1-4 |
Positioning accuracy: 0.05mm
Repeated positioning accuracy: 0.03mm
Max. running speed: 115m/min

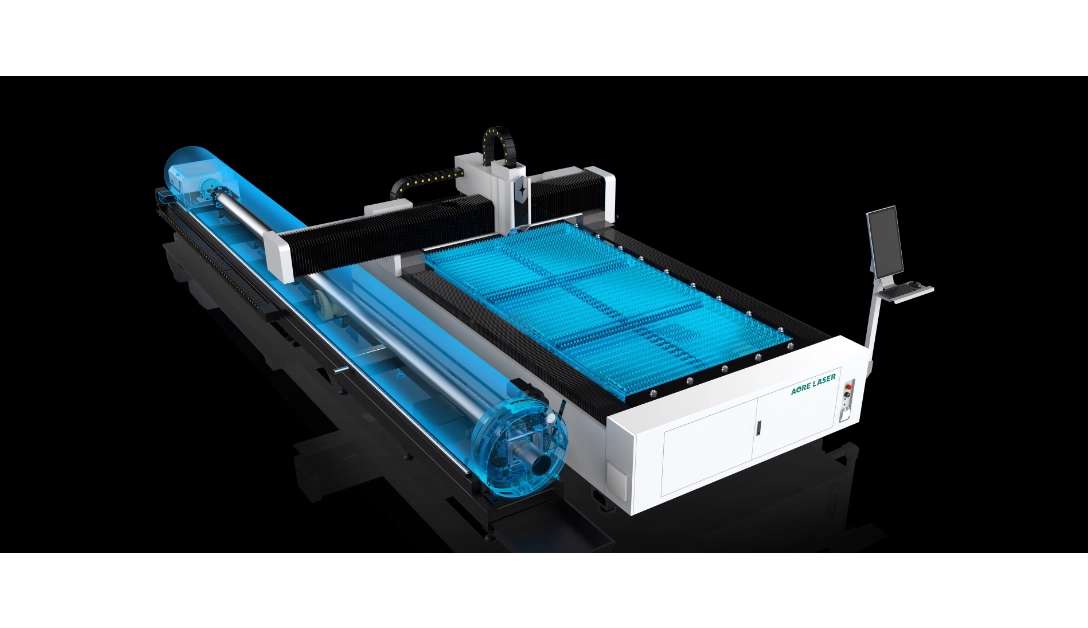

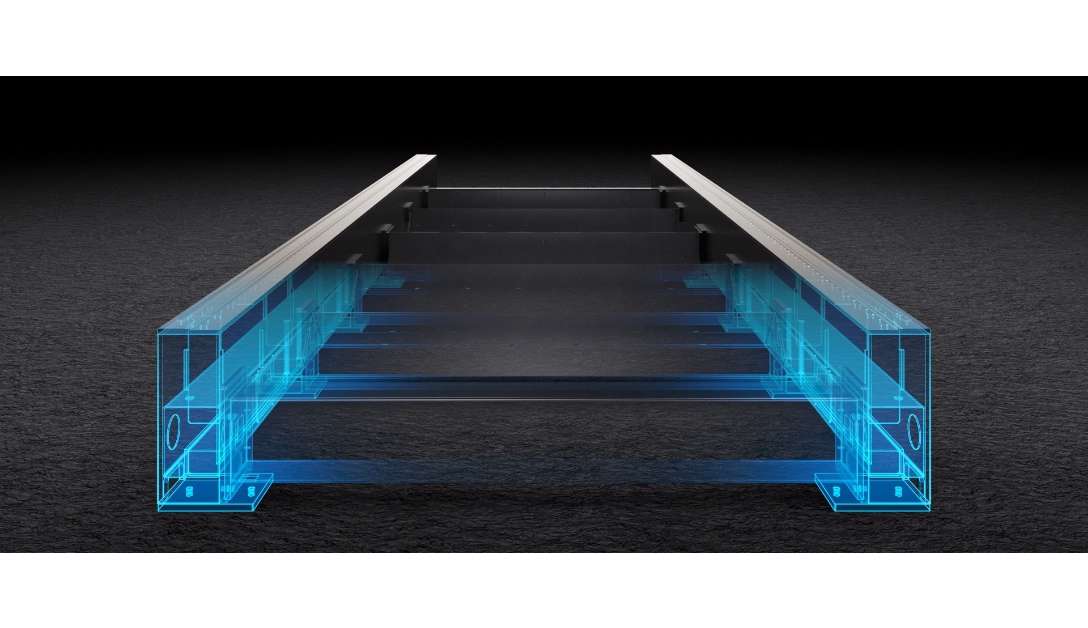

Double Bed Structure
Designed for high-efficiency processing needs.
Self-developed stopper plug-in double bed design.
No deformation in long-term cutting, ensuring stable operation.
New Heat Insulation Technology
Adopting new fire-resistant and heat-insulating technology.
Improving equipment lifespan.

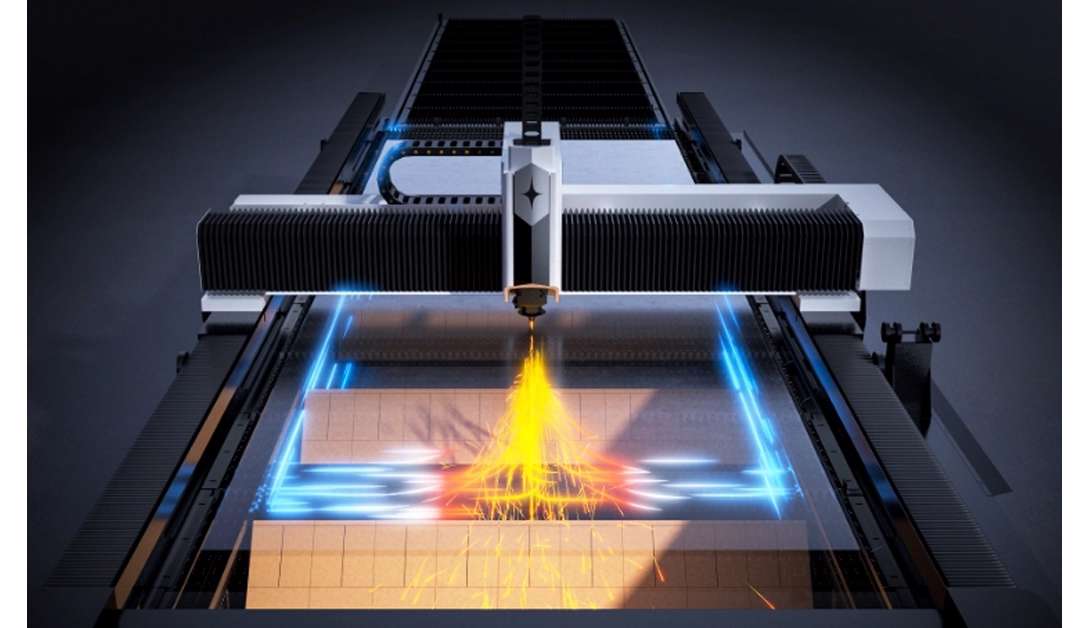

Intelligent Dust Removal for Clean Production
Large-diameter air duct design.
Independent control, sectional dust removal.
Improves smoke and heat removal effectiveness.

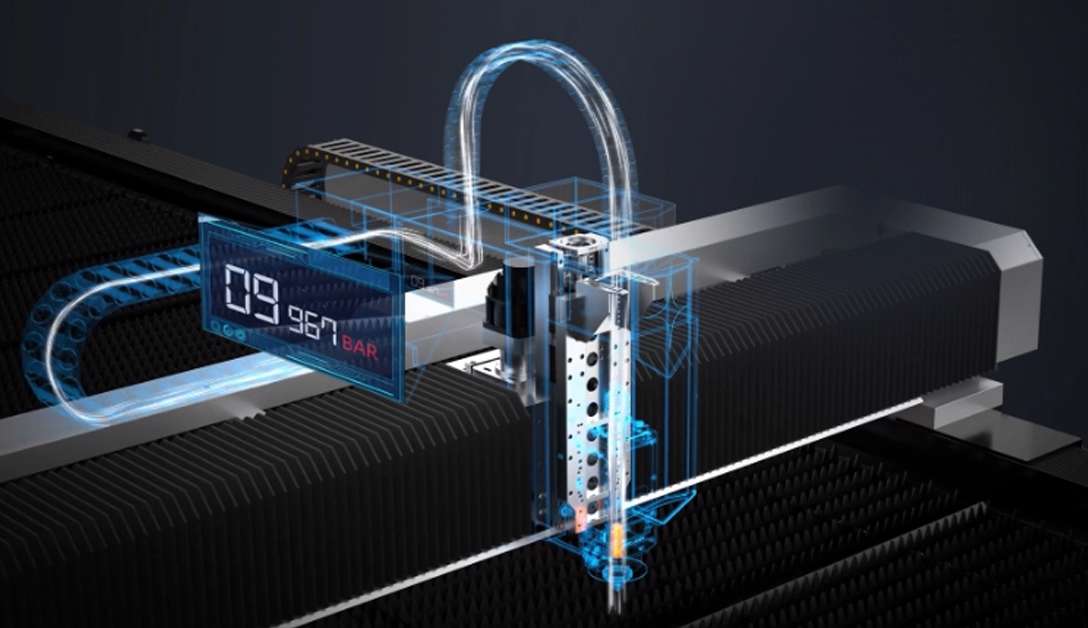

Dynamic collision sensing
Detects potential warping of the sheet in advance, automatically avoids obstacles and reducing maintenance costs on the laser head.
Optional
Screw compressor
Voltage stabilizer
Dust collector
