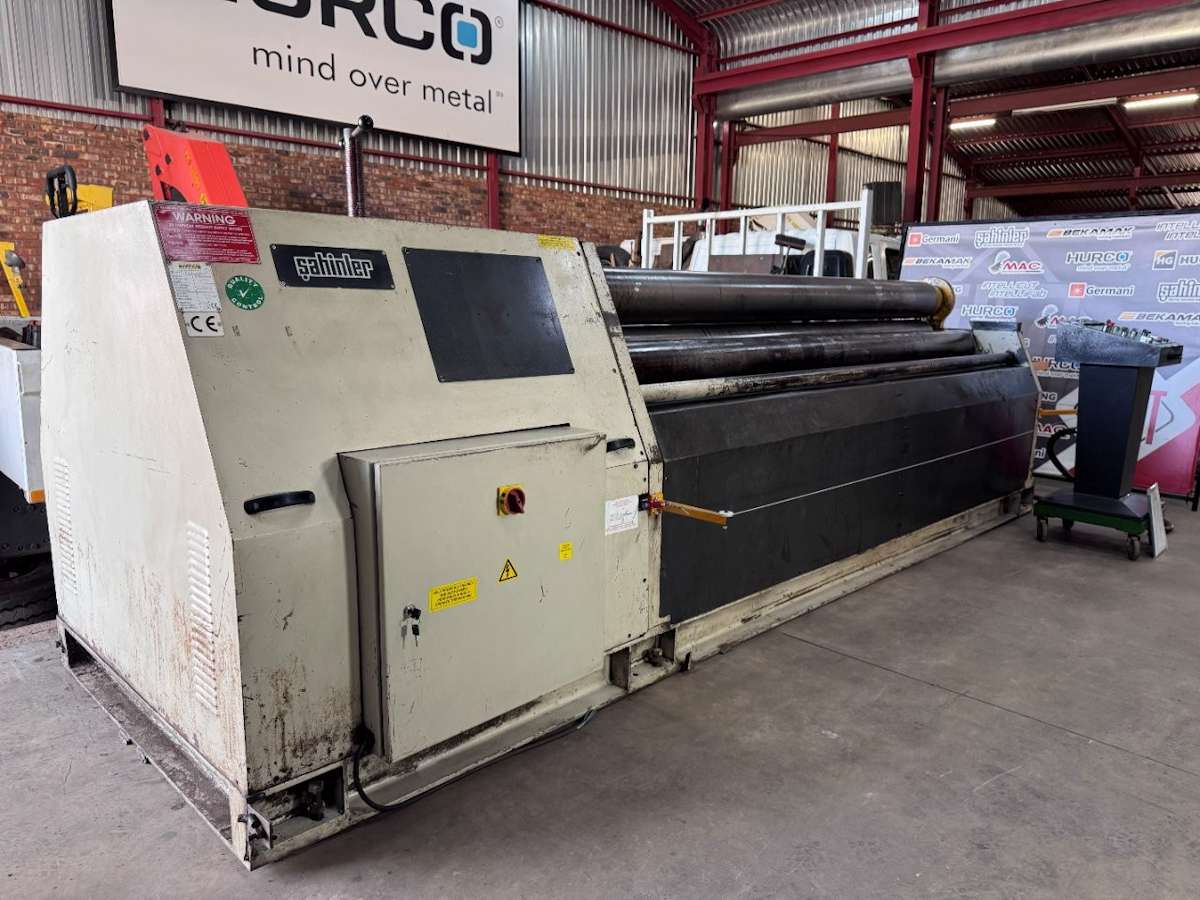

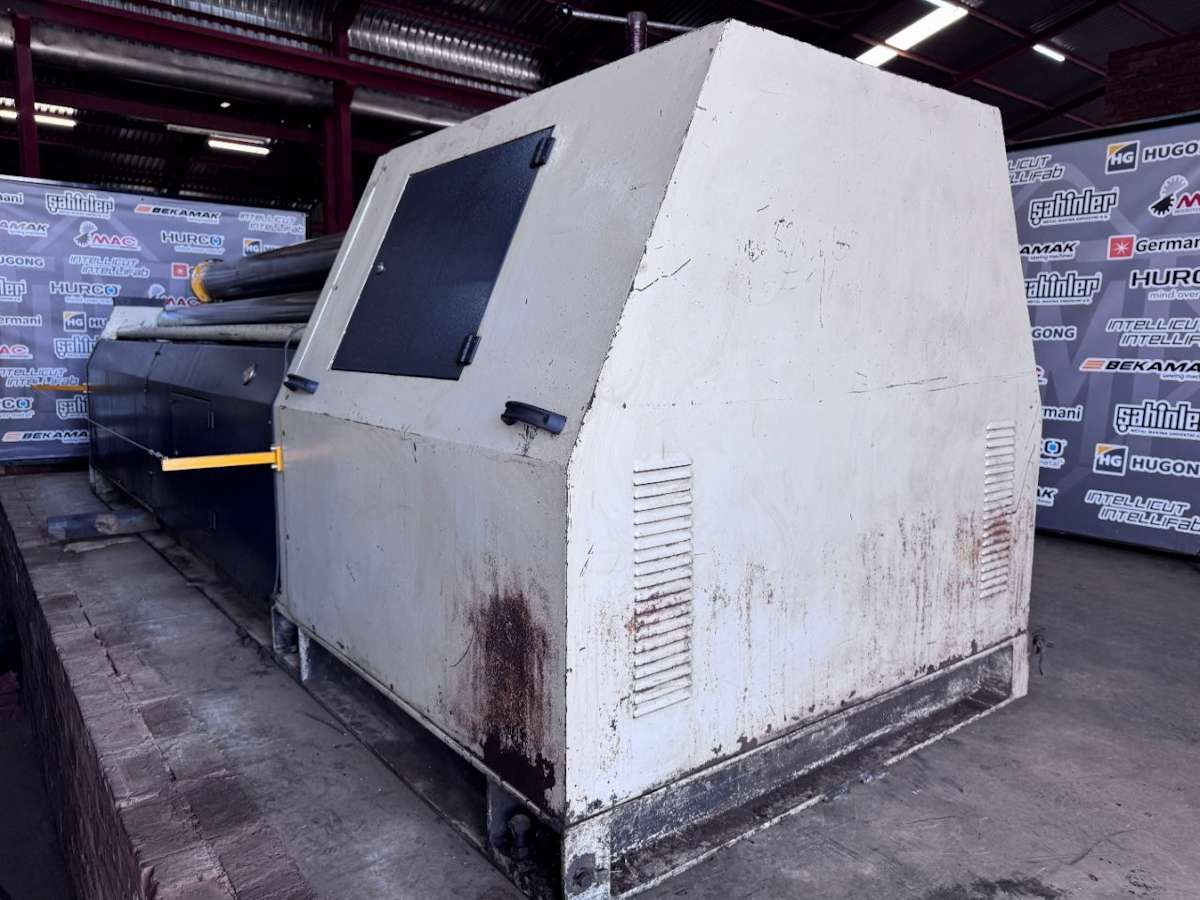

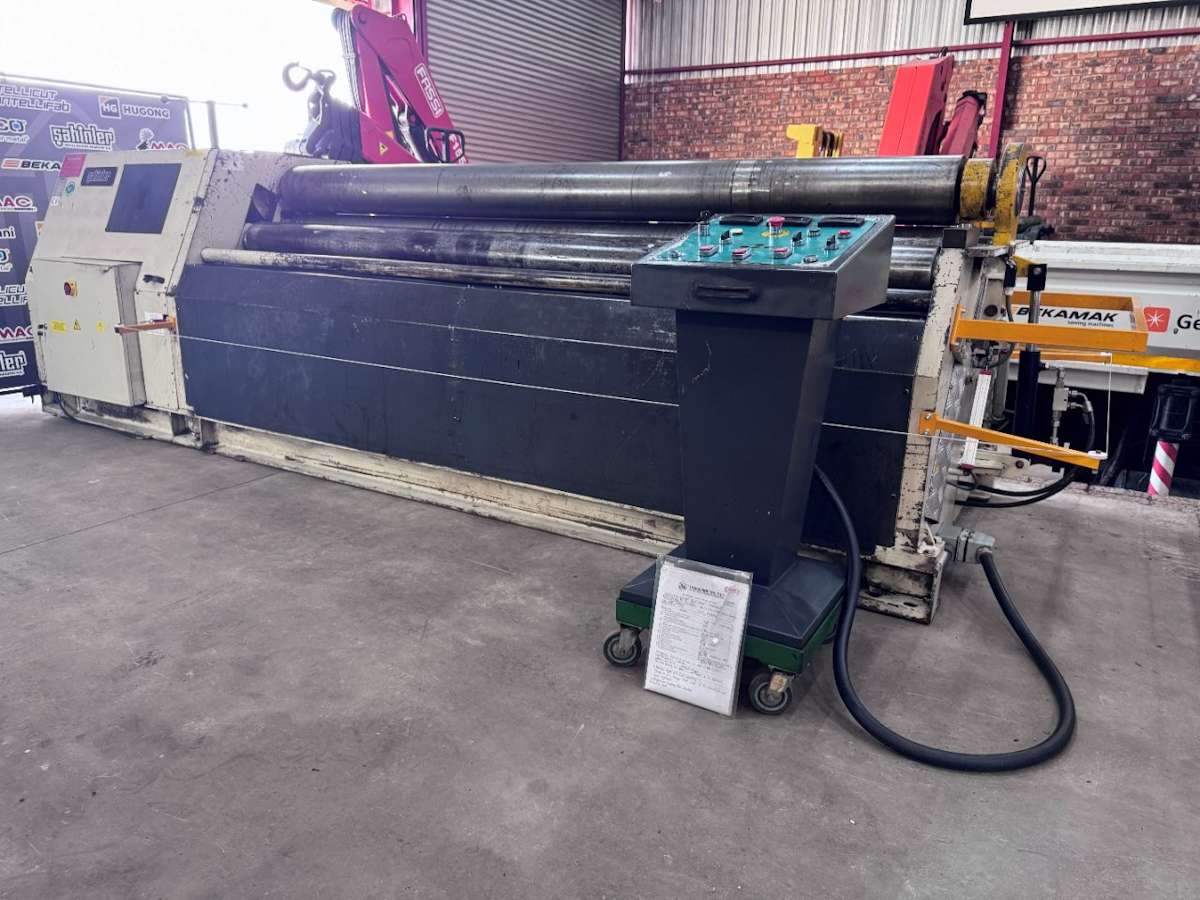

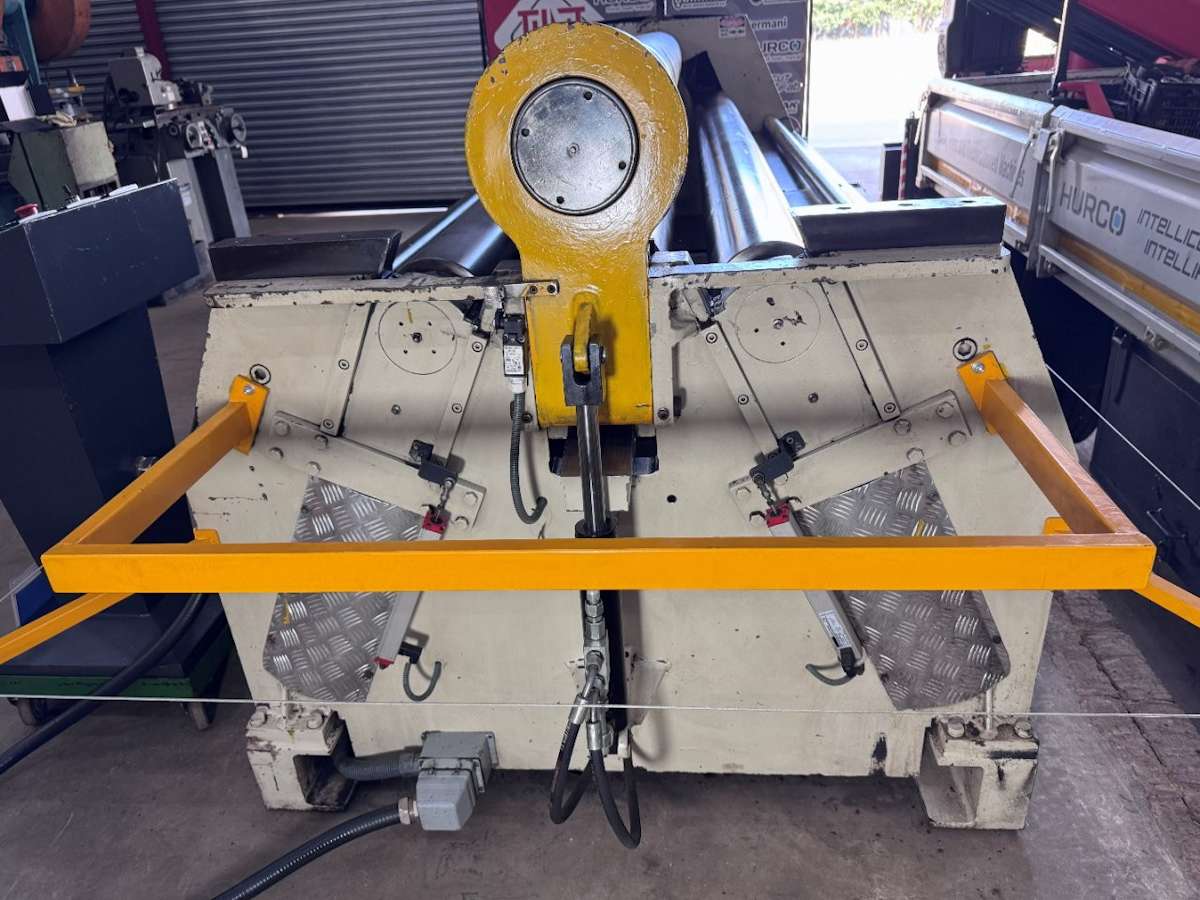

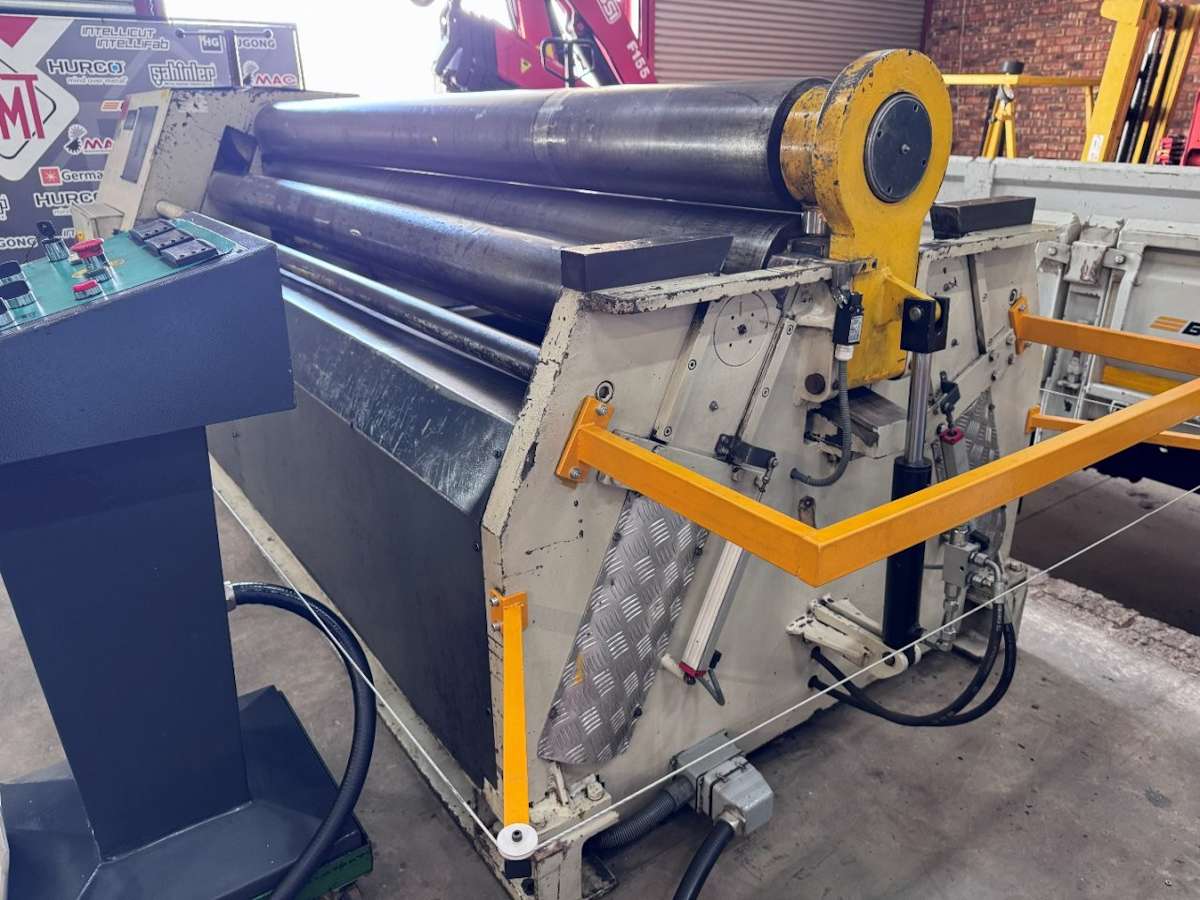

Sahinler 4R HS 30-220 Hydraulic Plate Roll (14371)
Used Sahinler 4R HS 30-220 Hydraulic Plate Roll (14371)
7x3100, 4 Roll
Availability: In Stock (TBC)
Price: R 249 000.00 excl.
Technical Details
| Usefull length | 3100mm |
| Capacity @ 1100 Ø without prebending | 8 x 3100mm |
| Capacity @ 1100 Ø with prebending | 6 x 3100mm |
| Capacity @ 330 Ø without prebending | 6 x 3100 mm |
| Capacity @ 330 Ø with prebending | 4 x 3100 mm |

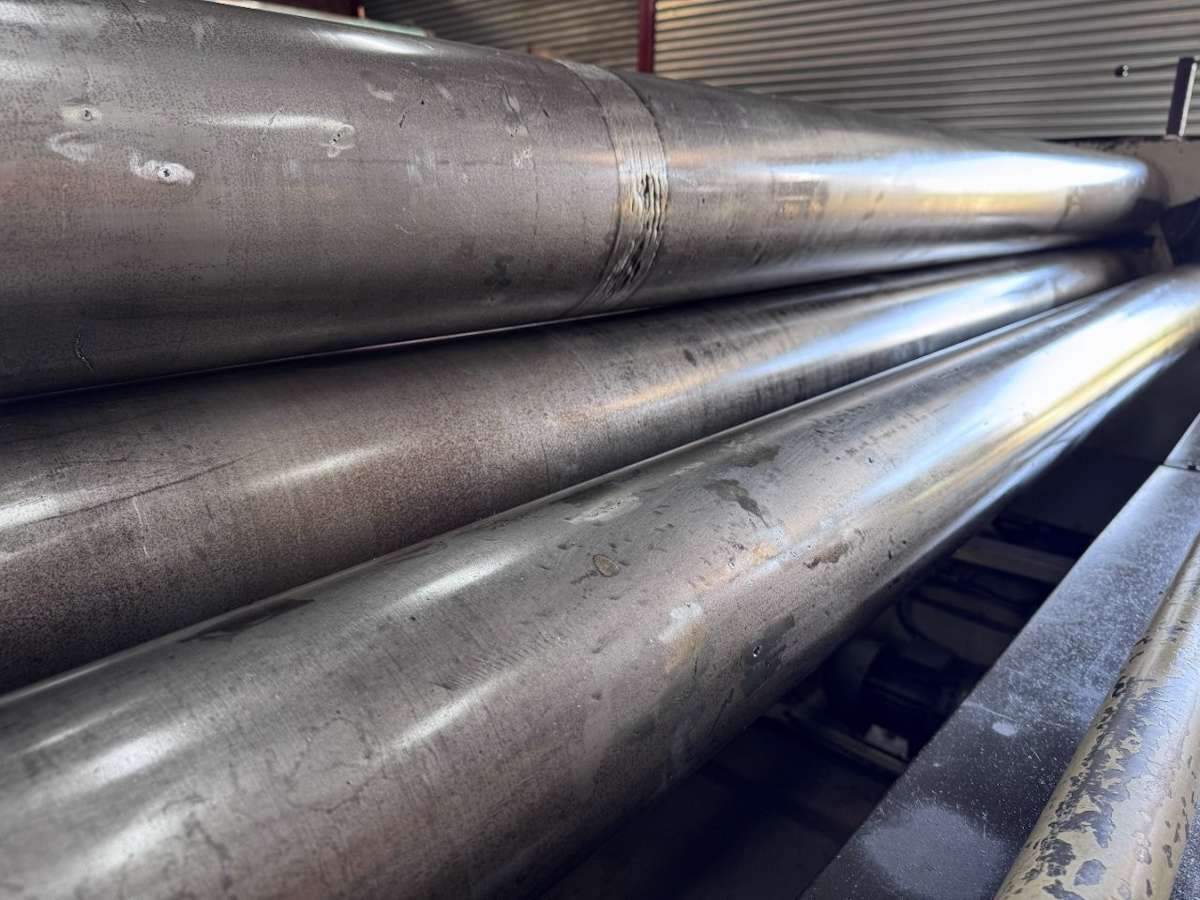

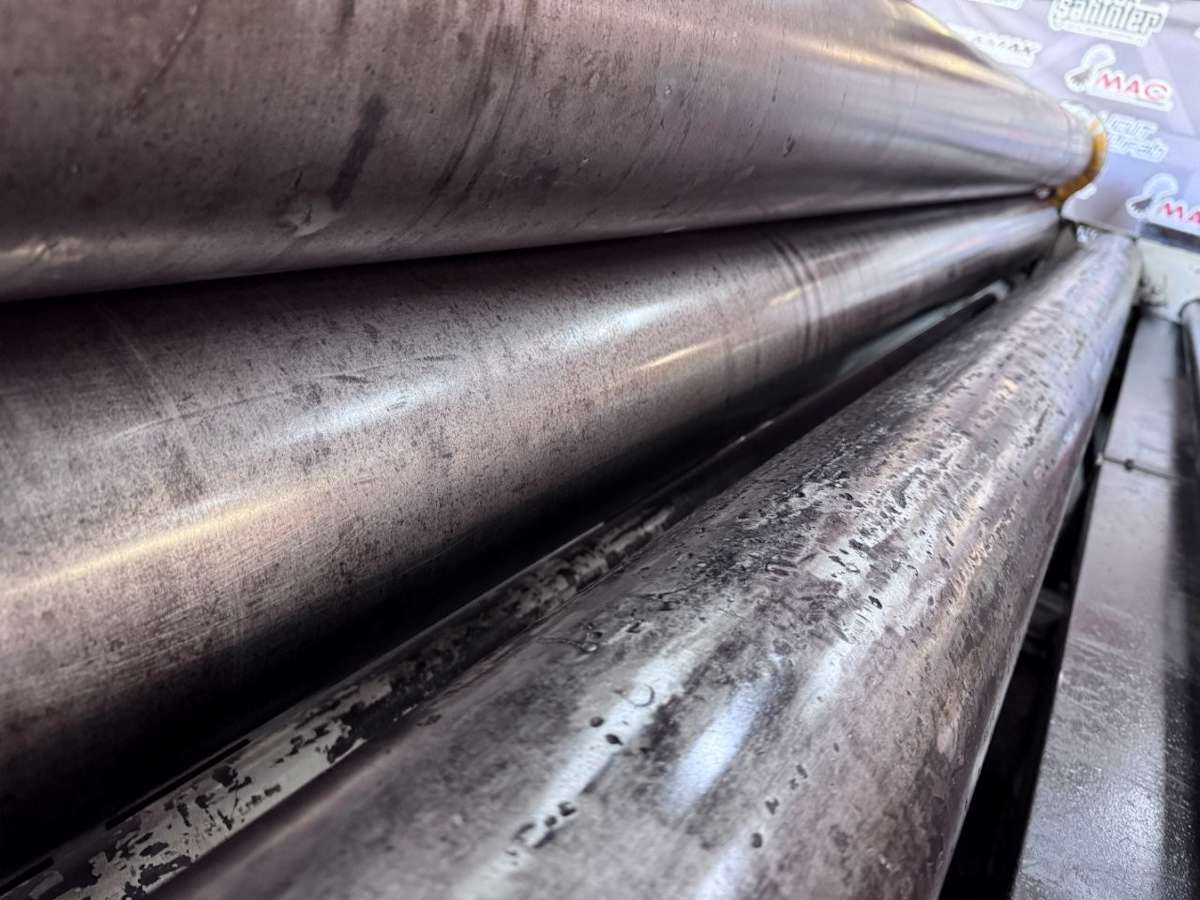

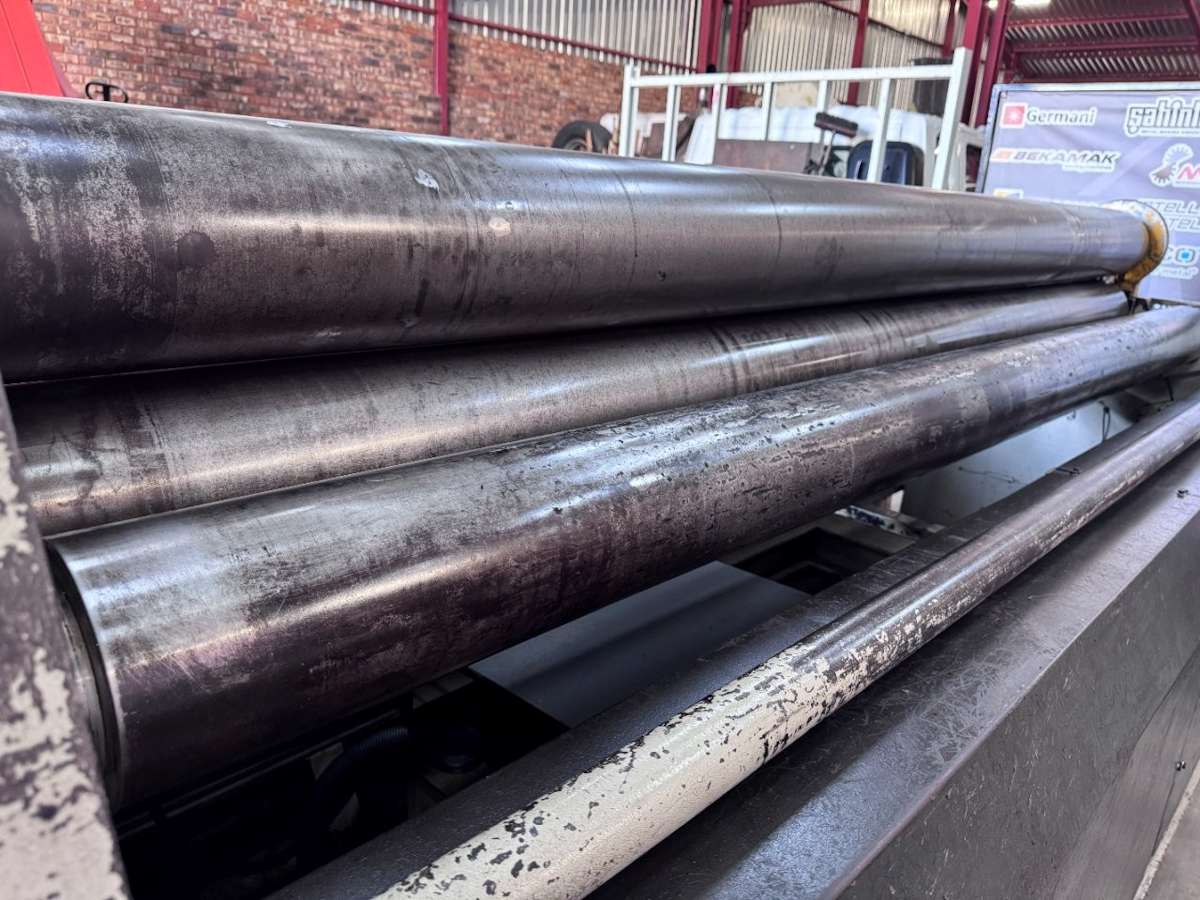

| Central rolls Ø | 220mm |
| Side Rolls Ø | 160mm |
| Motor Power | 5,5kW |
| Working speed | 1,5-6m/min.(dk.) |
| Machine dimensions(LxWxH) | 5450x1100x1250mm |
| Weight | 5200kg |
