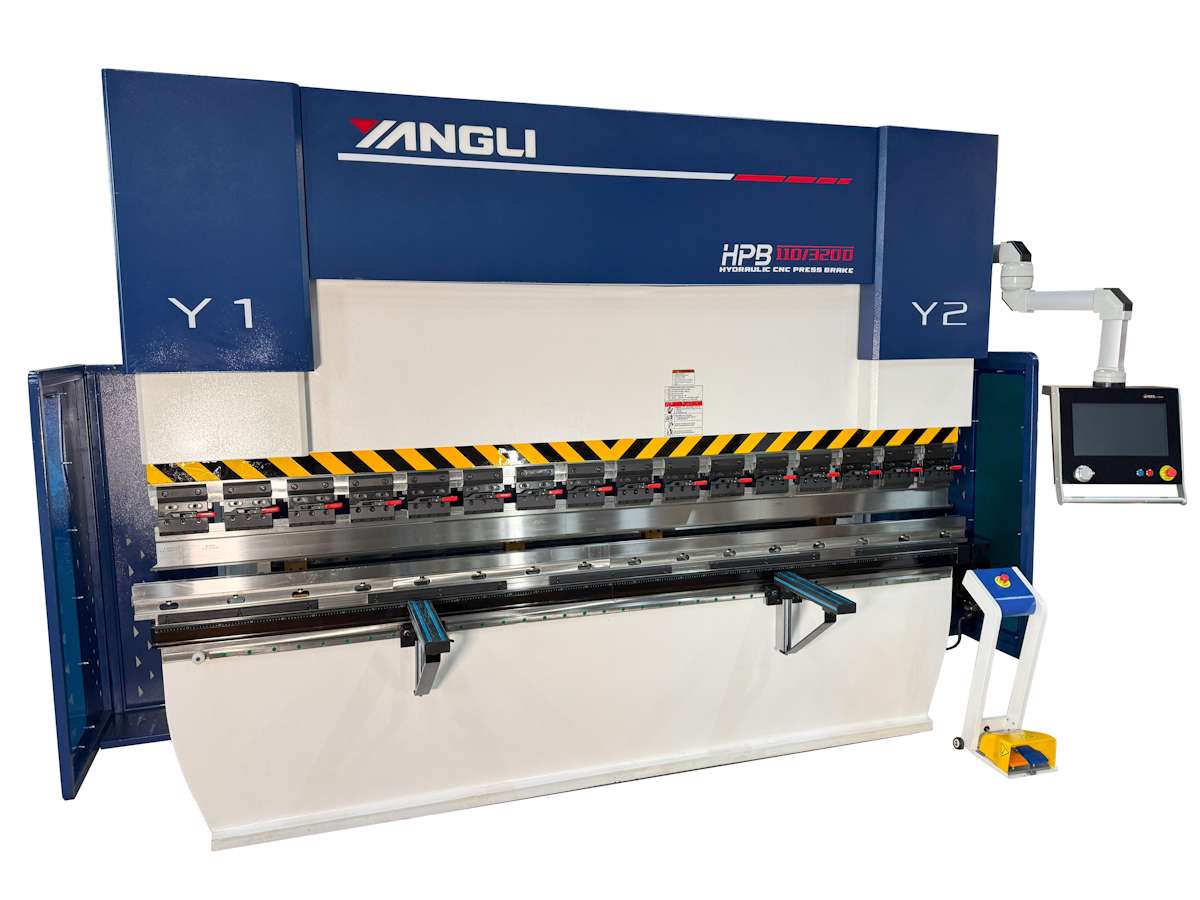

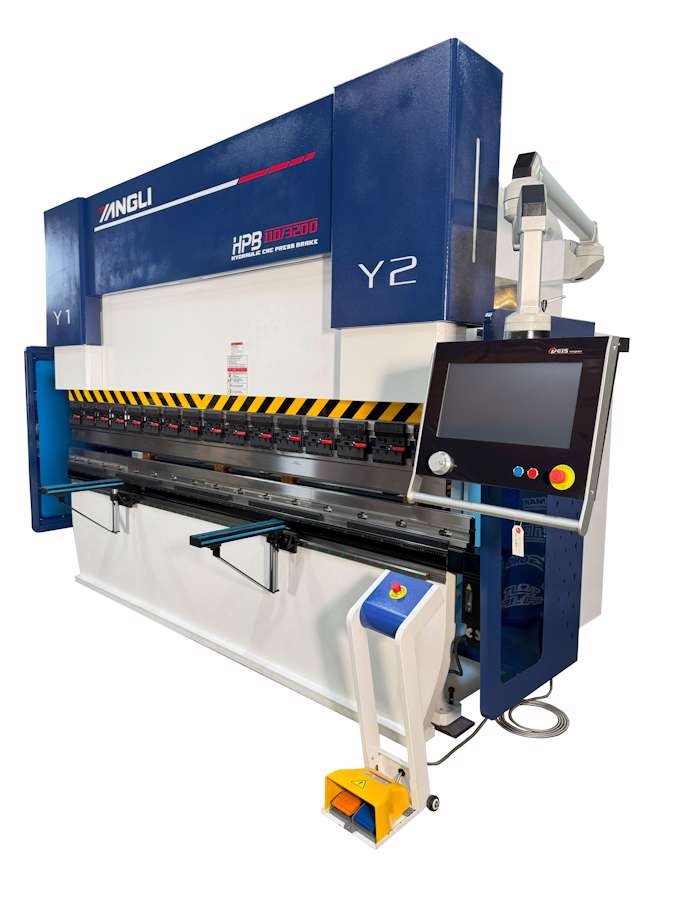

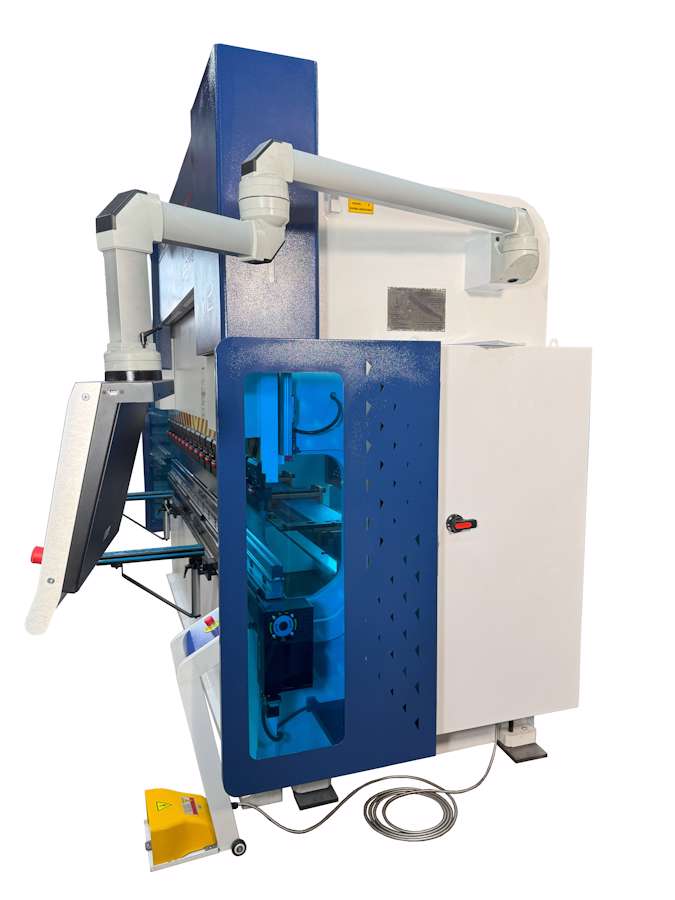

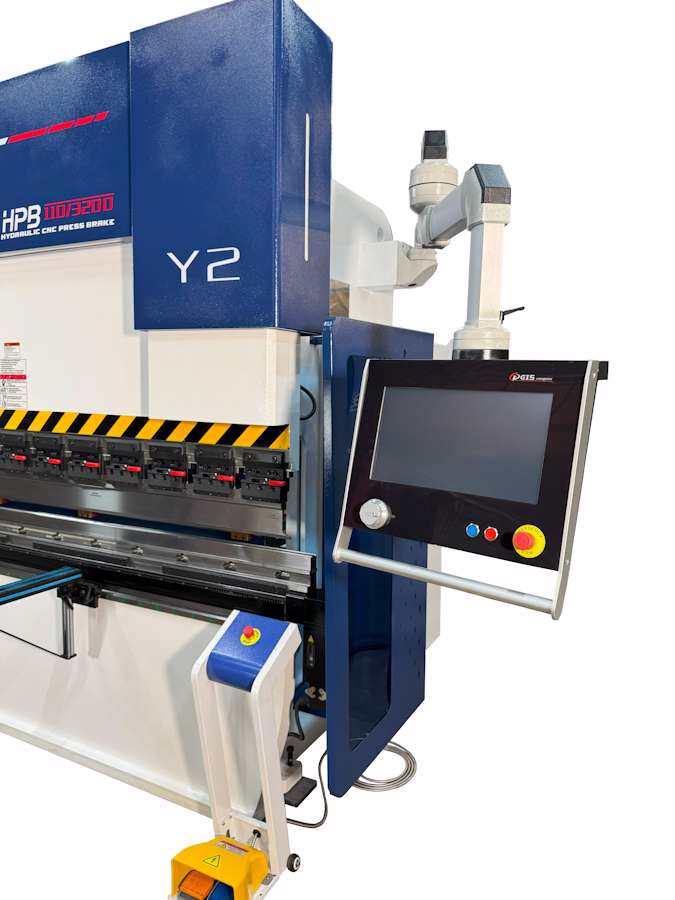

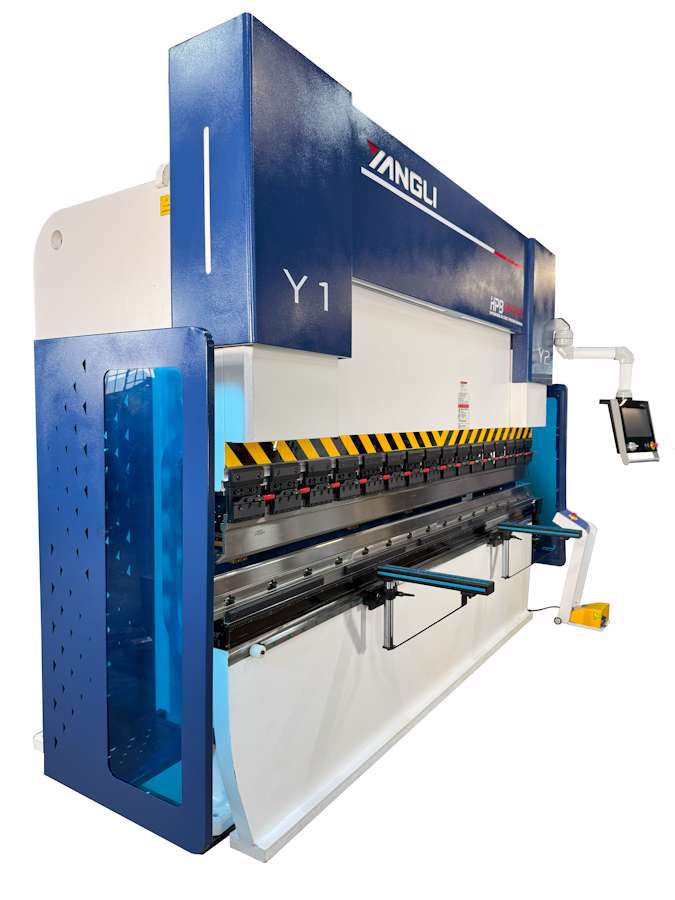

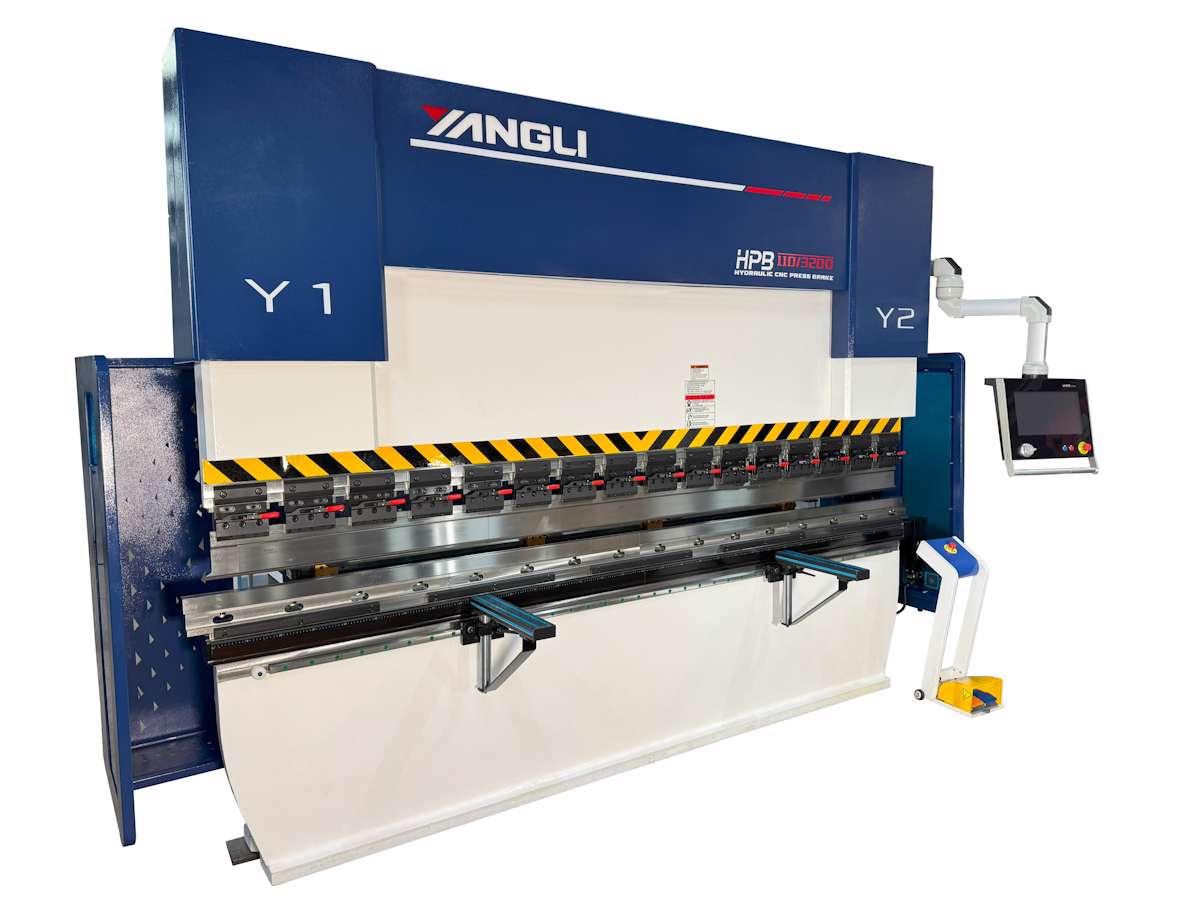

Yangli HPB-110x3200 CNC Hydraulic Press Brake (14107)
New Yangli HPB-110x3200 CNC Hydraulic Press Brake (14107)
110 Ton x 3200, DE15 4+1 Axis, Servo, Mech Crown
Availability: In Stock (TBC)
Price: POA
Yangli delivers quality you can trust and lasting performance you can rely on.
Press brakes designed to deliver maximum performance through quality features and robust built strength durability.
Specifications:
Nominal Force: 1100 kN
Table Length: 3200mm
Slide travel stroke: 130mm
Axis: Y1, Y2, X, R + Crowning
Throat depth: 320mm
Max Opening Height: 390mm
Slide stroke adjustment: 100mm
Return Speed: 150mm/s
Loading Speed: 11mm/s
Main Motor: 7.5kW
Standard Features:

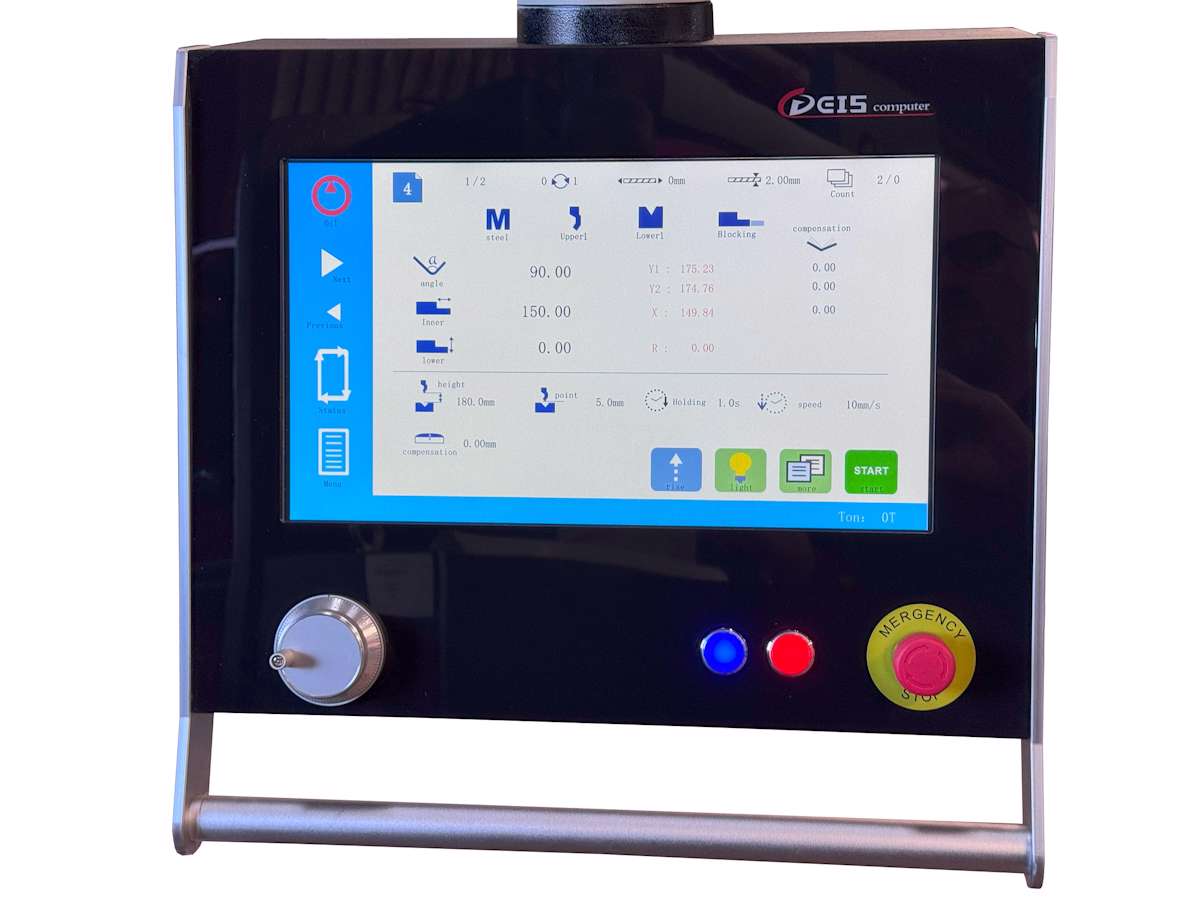

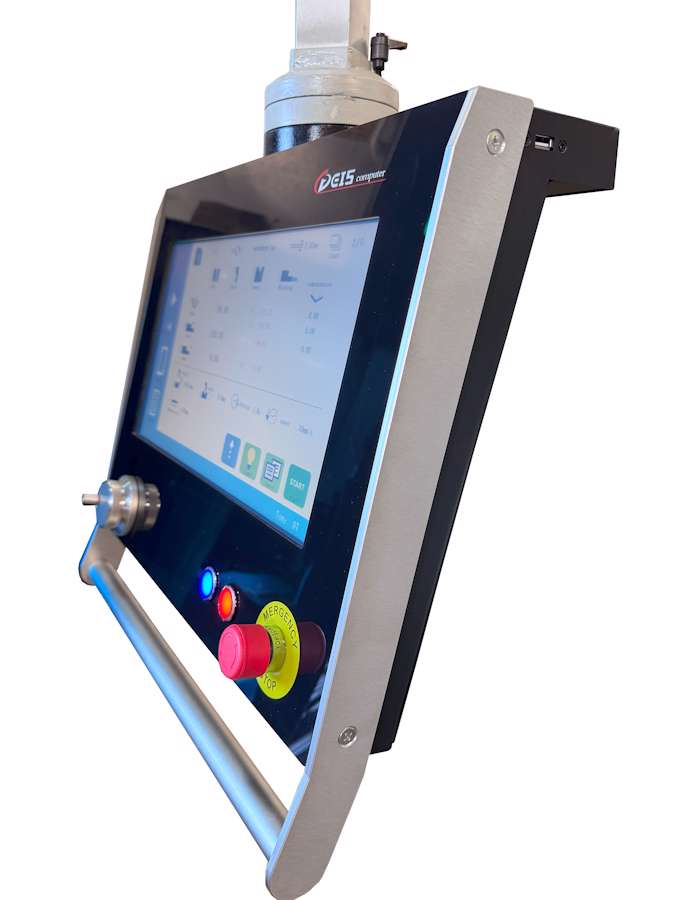

DE15 CNC controller with 15.6 inch touch screen.

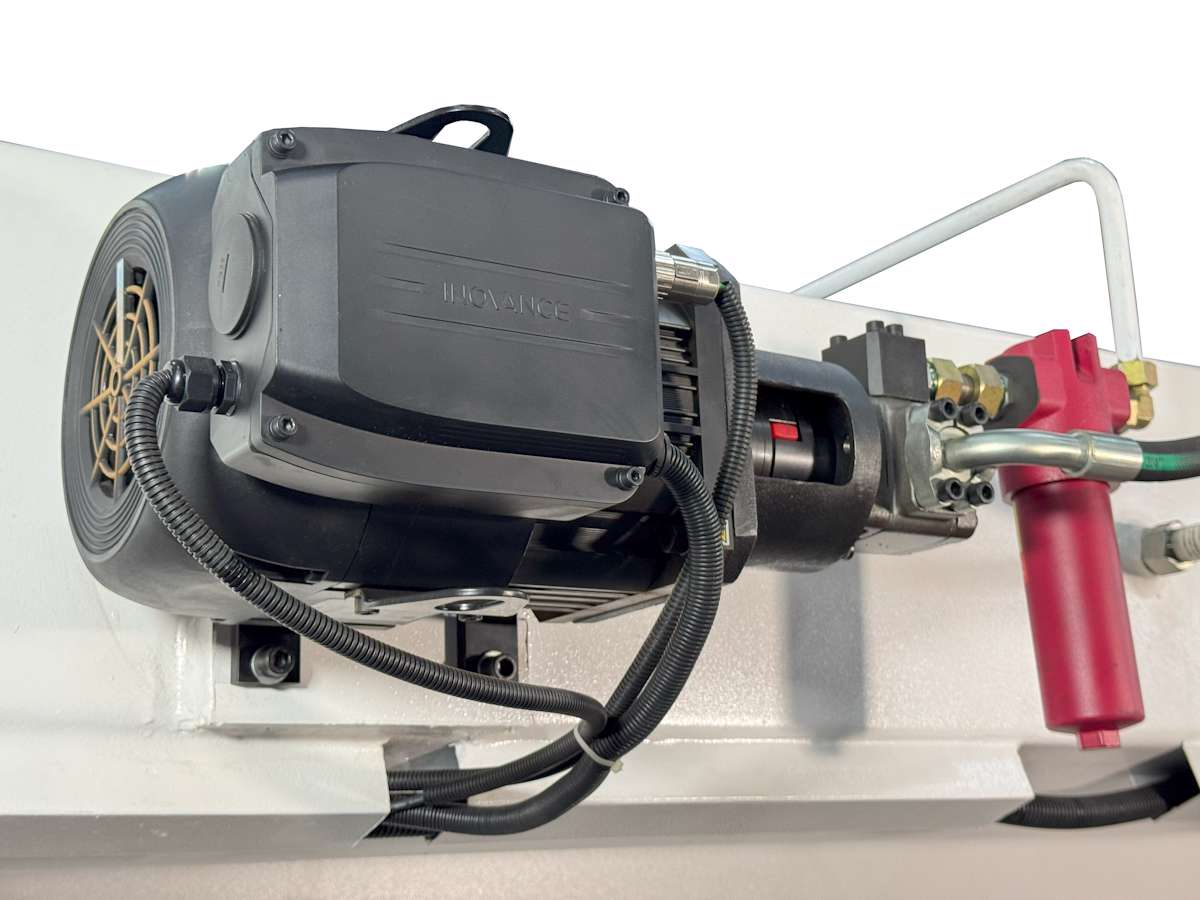

Servo Hybrid Drive & gear pump with energy saving and environmental protection features.

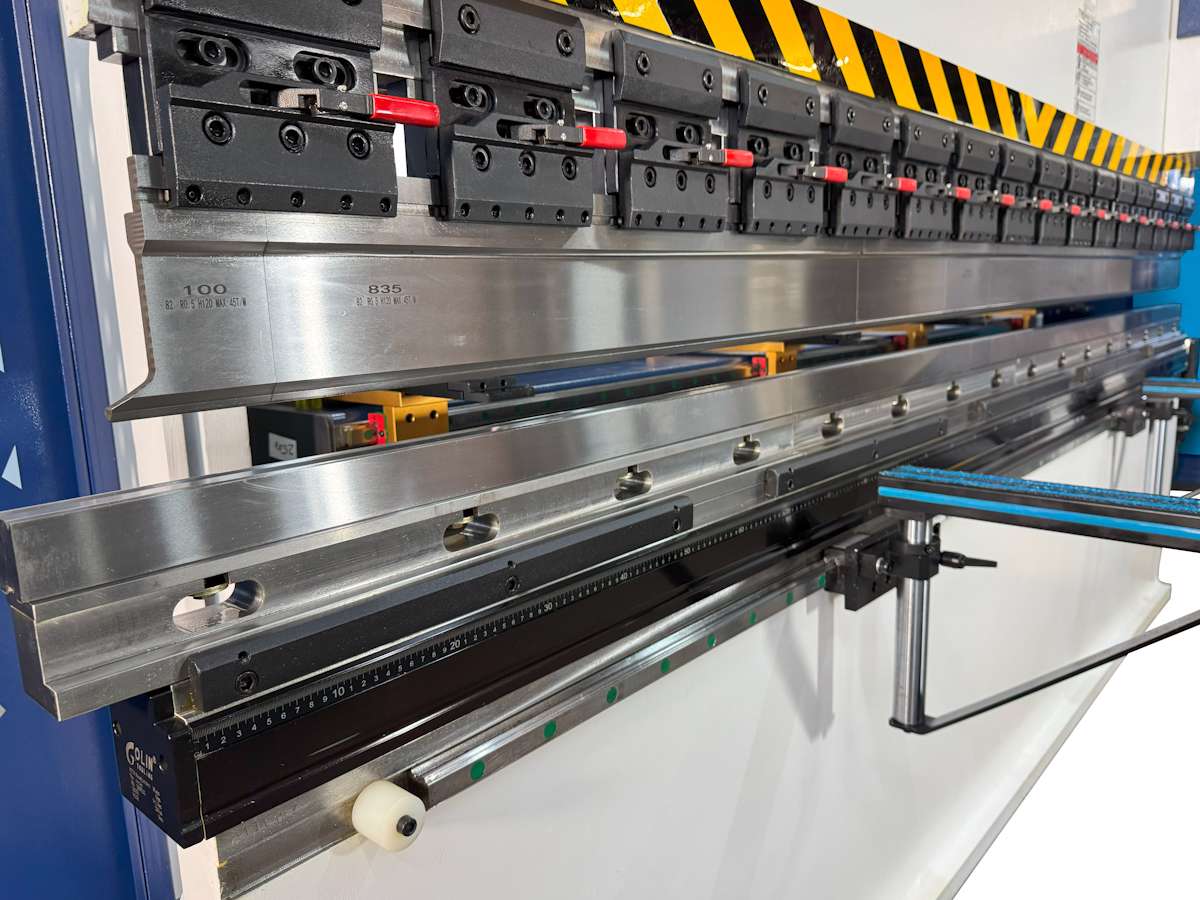

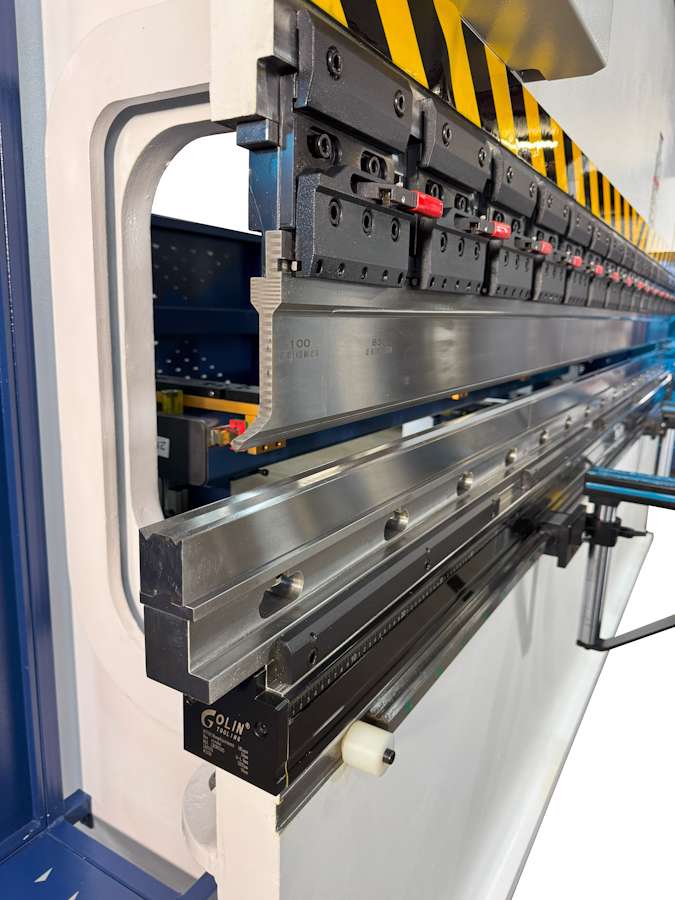

Proportional valve synchronous control, equipped with three-stage rapid clamping device.
Y1; Y2; X; R + Electric Crowning Axis.
Mechanical Anti-deflecting Automatic Worktable.

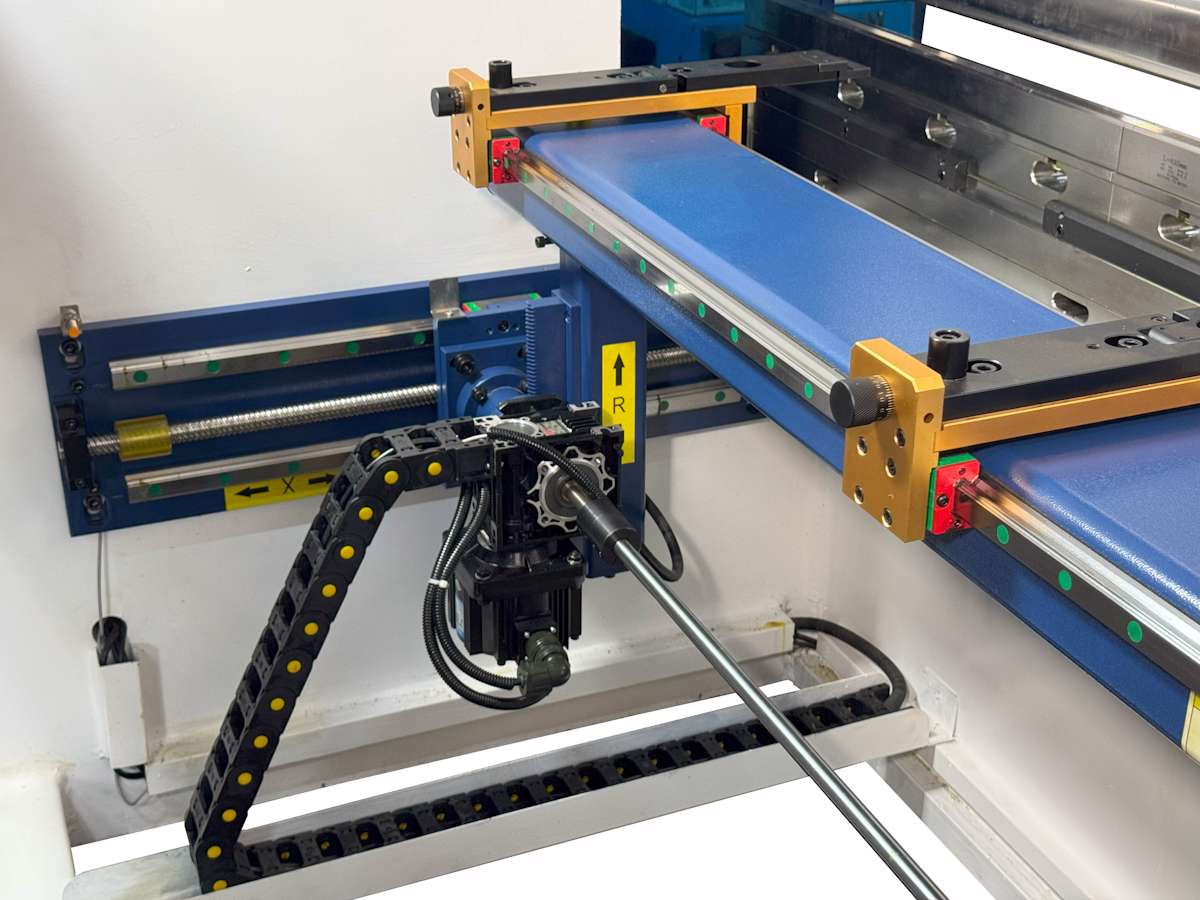

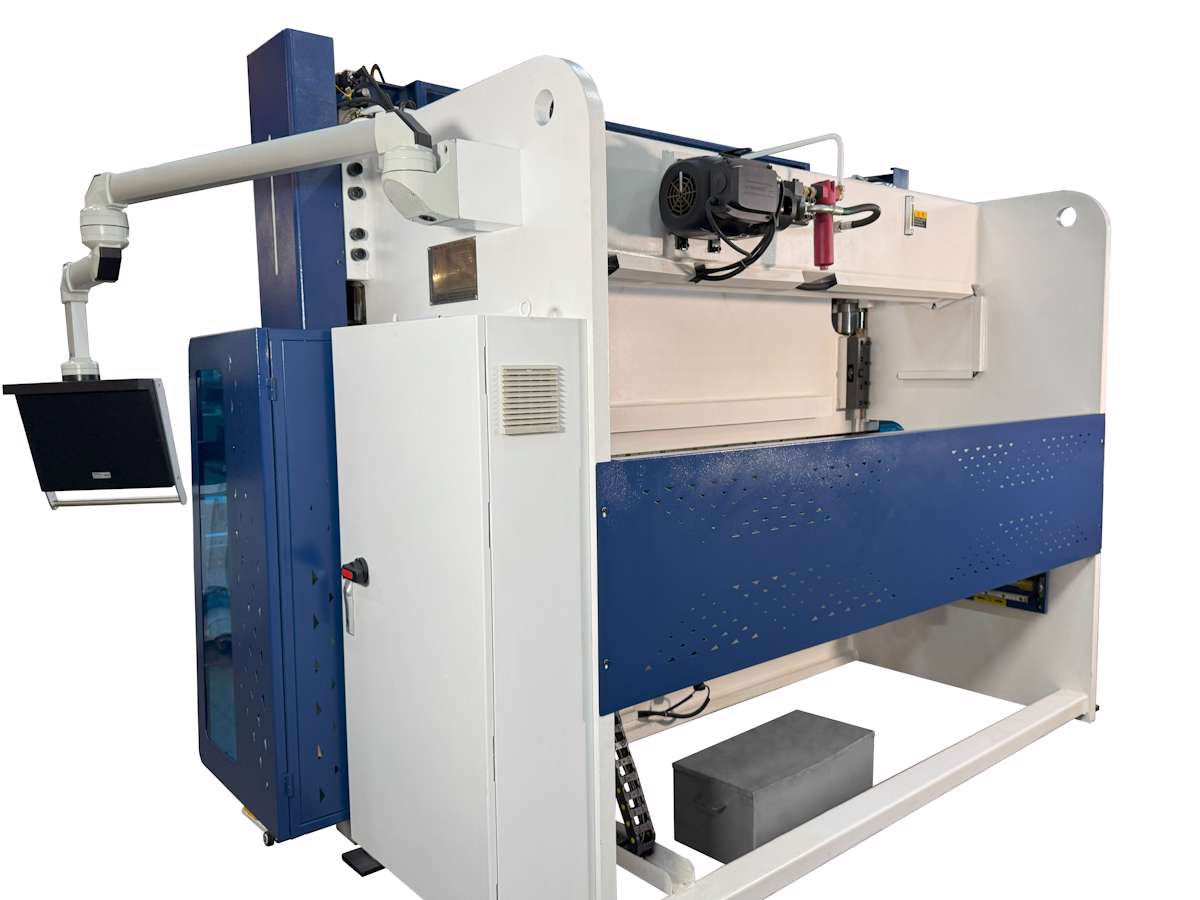

Backgauge with Servo motor, ball screw and Linear guide rail providing X axis and R axis automatic adjustment with accurate positioning and repeatability.

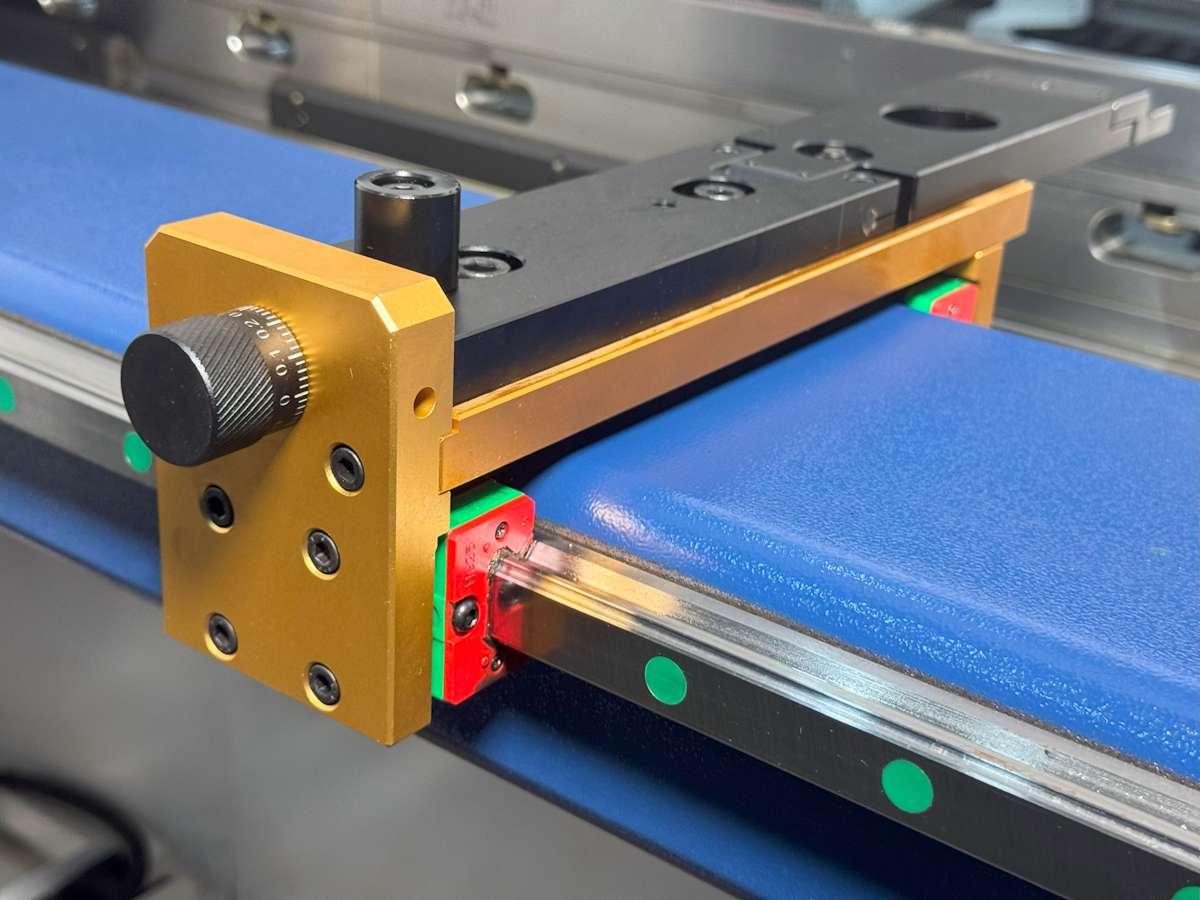

The rear material-stopping crossbeam is equipped with dual linear guides + fine adjustment stop fingers, allowing for the adjustment of the overall height and fine adjustment of the rear stop fingers.
