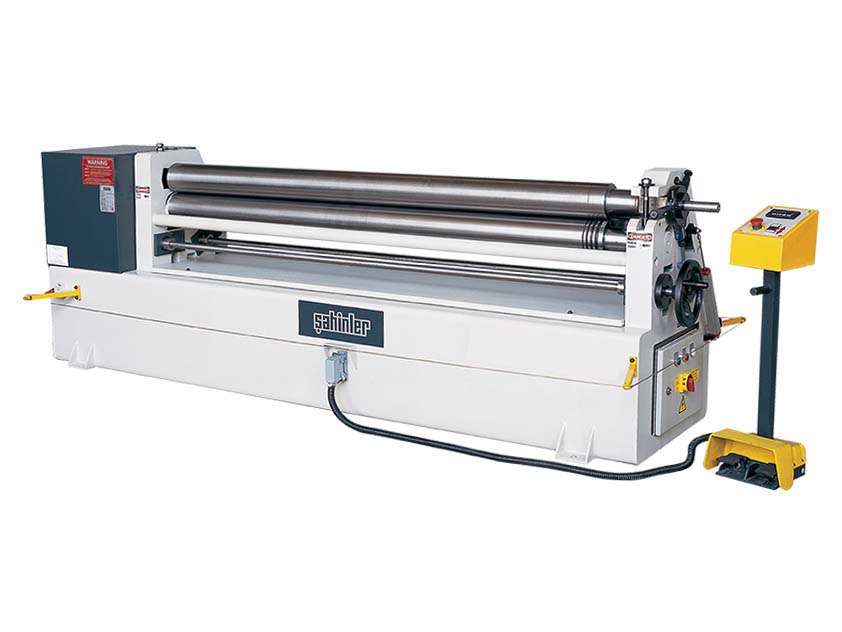

Sahinler IRM 2550x140 Motorised Plate Roll (4941)
New Sahinler IRM 2550x140 Motorised Plate Roll (4941)
2.5 x 2550
Availability: Ex-import
Price: POA
This IRM mechanical plate roll model is designed for light to medium jobs. It is used in Aluminium Bendings, Air Conditioning Channels, Advertising Panels and Sheet
Metal Covers. Its ideal price makes it very attractive for small workshops.
Technical Details
| Useful length | 2550mm |
| Bending Capacity | 2.5mm |
| Roll Diameter | 140mm Ø |
| Motor Power | 2.2kW |
| Wire grooves dia | 4/7/9/13 |
| Back roll motor | 0,75kW |
| Machine dimensions(LxWxH) | 3700x750x1000 |
| Weight | 1850kg |
Standard Features:
Two rolls powered by a single gearbox and gear system for top and bottom rolls.
SAE 1050 Quality certificated steel rolls with high tensile strength.
Spheroid cast iron main frames.
Mobile control panel by foot pedal.
Conical Bending Device.
Manual Drop-End.
Top roll support system.
Wire grooves at the end of the rolls (4/7/9/13)
Precision bending with brake motor
Model IRM 2550x140 produced standard with motorised back roll.
Optional Equipment
Motorised back roll adjustment
Digital readout for motorised rear roll
Induction hardened rolls
Adjustable stepless speed
