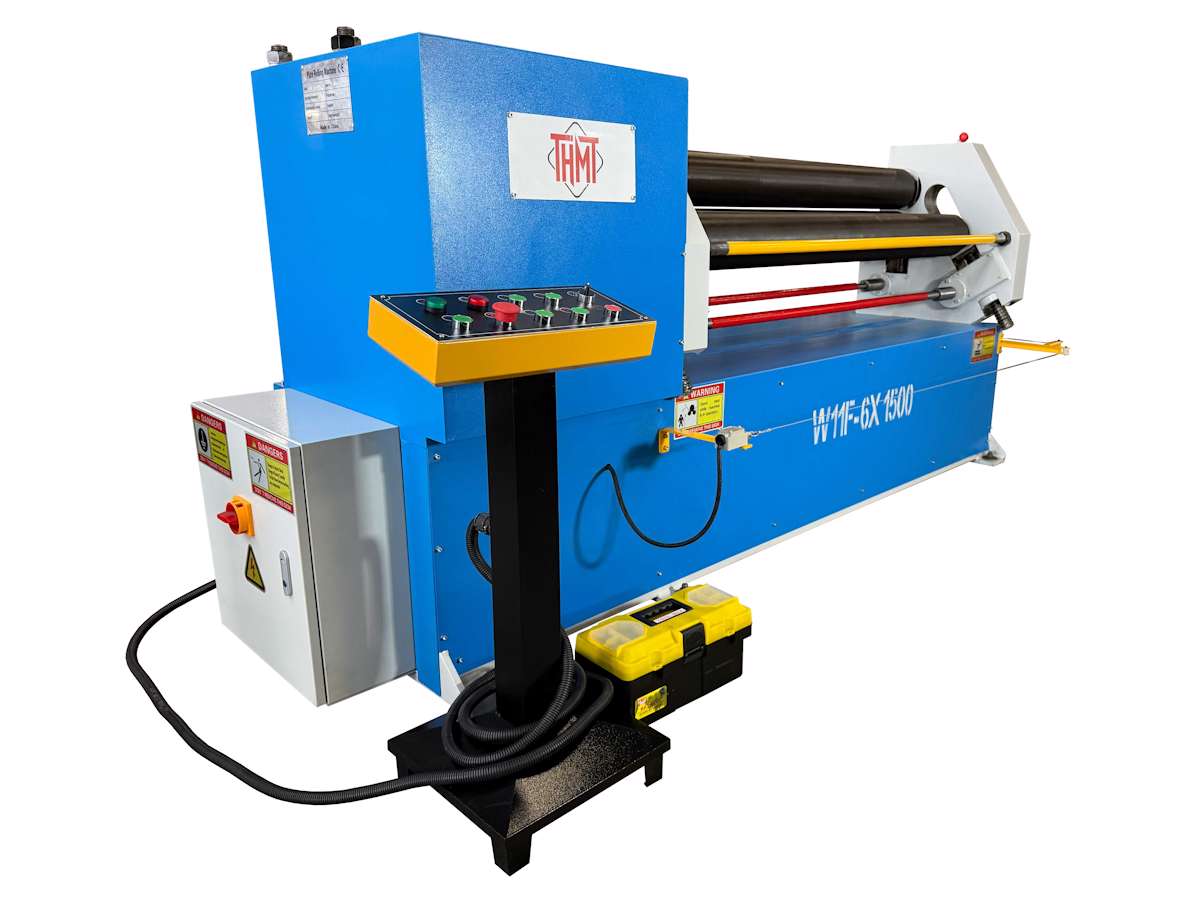

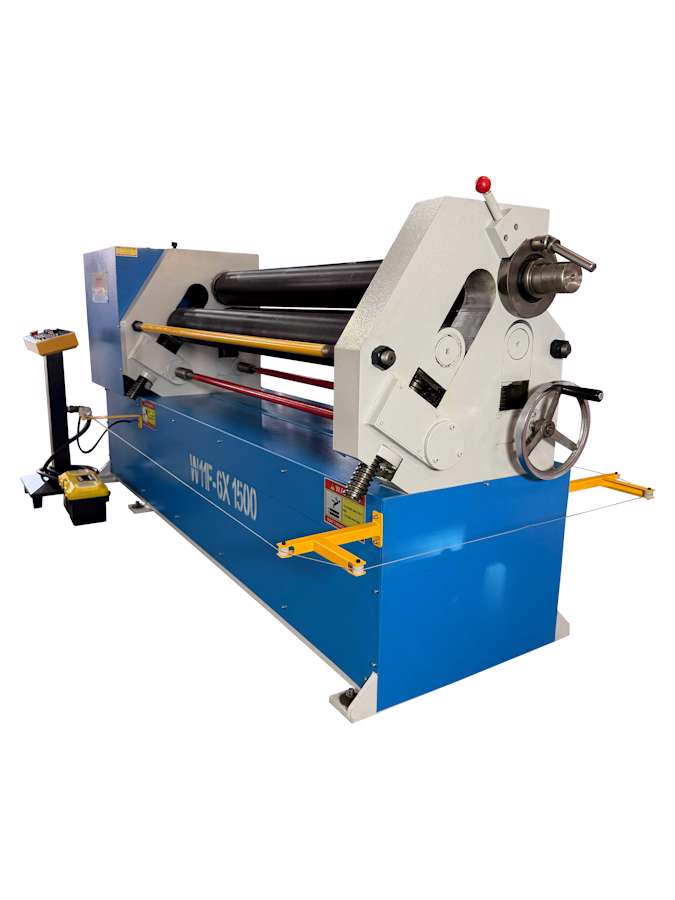

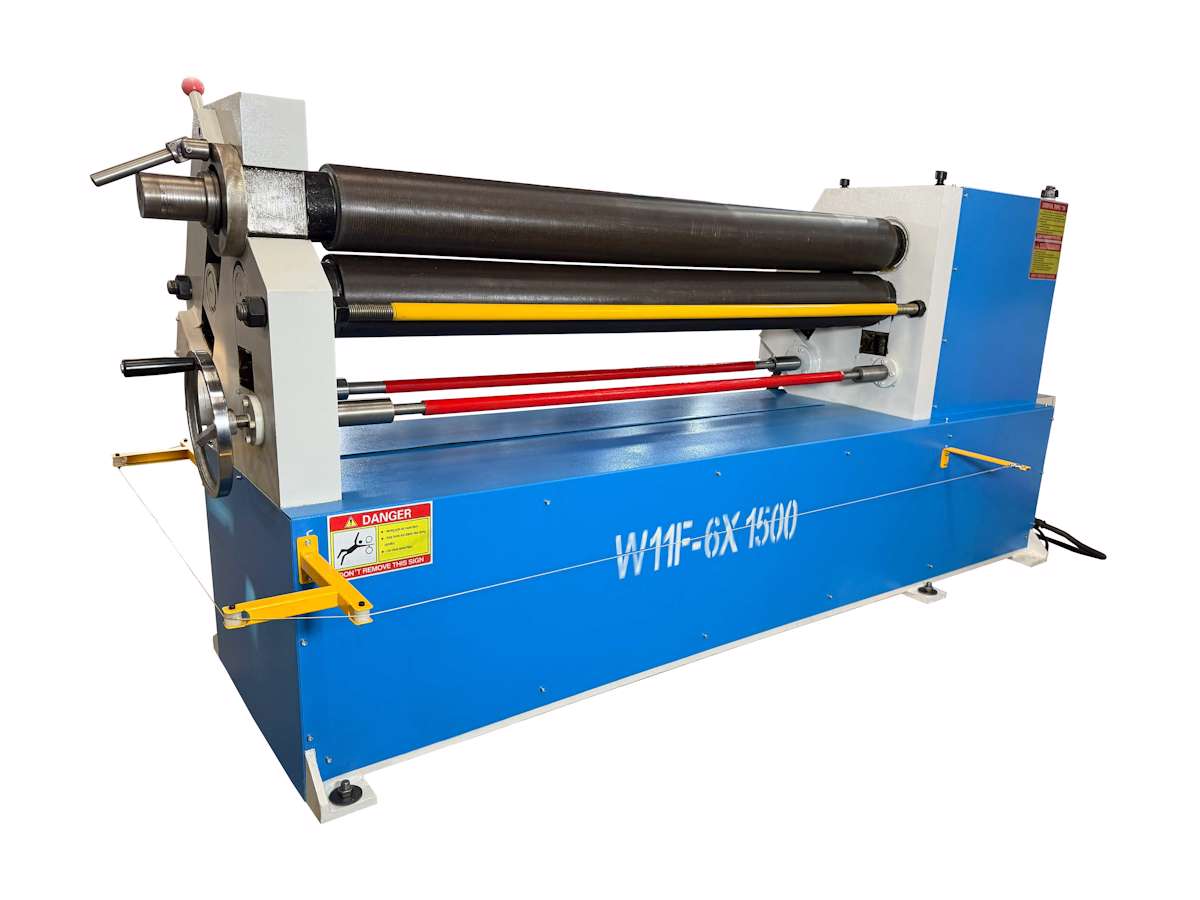

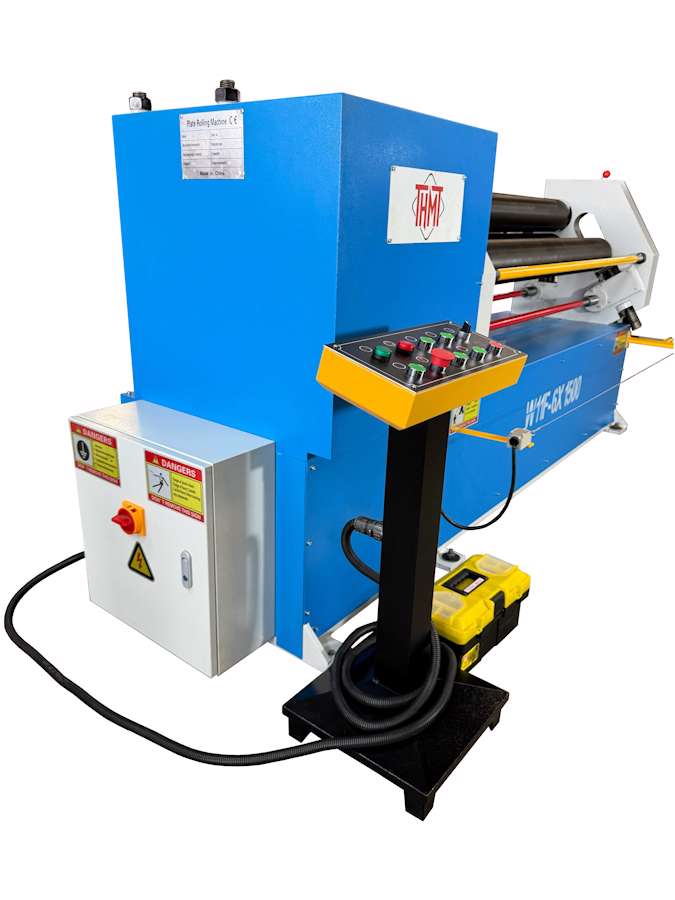

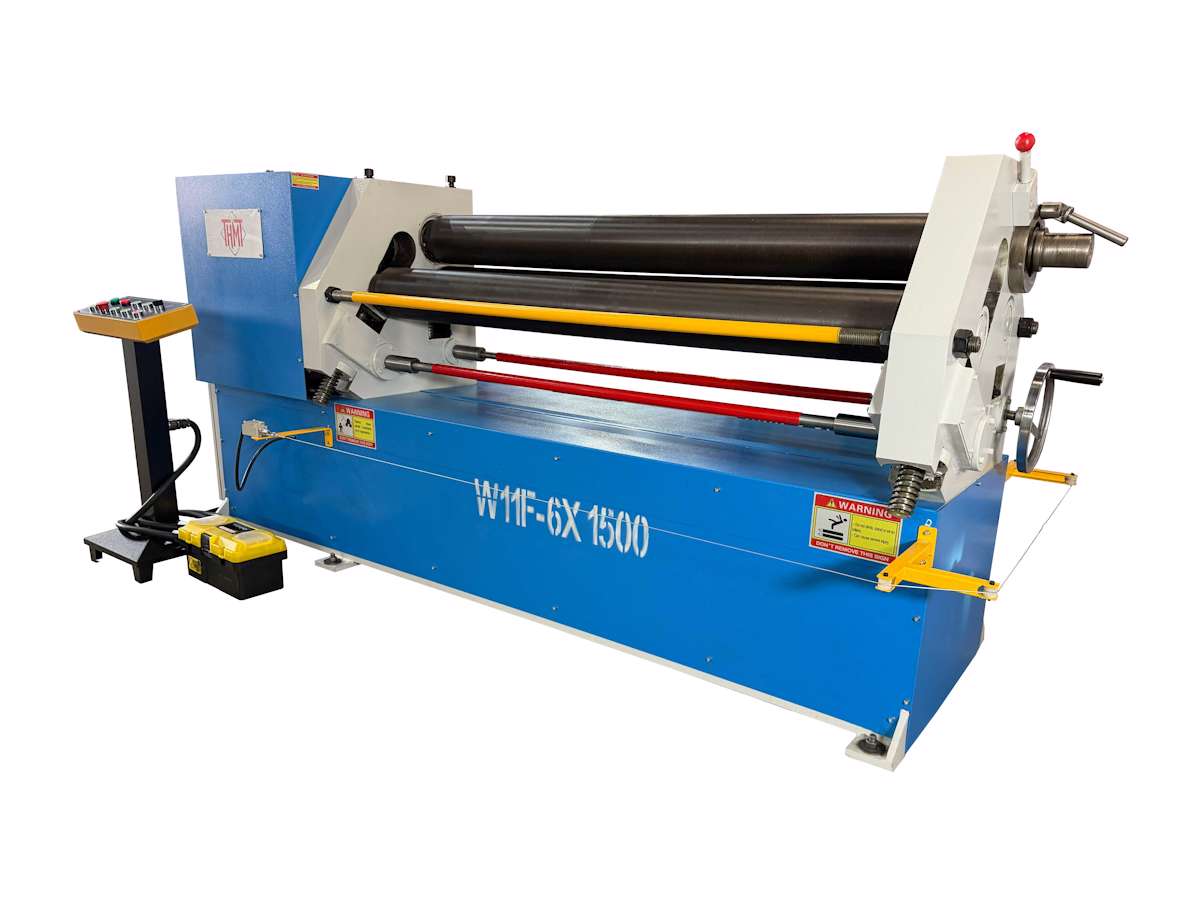

THMT W11F-6x1500 Motorised Plate Roll (14789)
New THMT W11F-6x1500 Motorised Plate Roll (14789)
6 x 1500mm, Pinch
Availability: In Stock (TBC)
Price: R 194 100.00 excl.
The W11F is a mechanical three-roll asymmetrical plate-rolling machine with initial pinch and pre-bending capability.
Main Specifications:
| 1. | Max bending thickness | 6 | mm |
| 2. | Max bending width | 1500 | Mm |
| 3. | Yield limit | 245 | Mpa |
| 4. | Minimum bending diameter | 200 | Mm |
| 5. | Upper roller diameter | 150 | Mm |
| 6. | Down roller diameter | 150 | Mm |
| 7. | Side roller diameter | 150 | Mm |
| 8. | Bending speed | 4.5 | M/min |
| 9. | Main power | 5.5 | KW-6 |
| 10. | Auxiliary power | 1.5 | KW |
| 11. | Voltage | 380 | V |
Main features:
Upper and lower rolls are driven for positive plate feeding.
Lower roll moves vertically to pinch the plate.

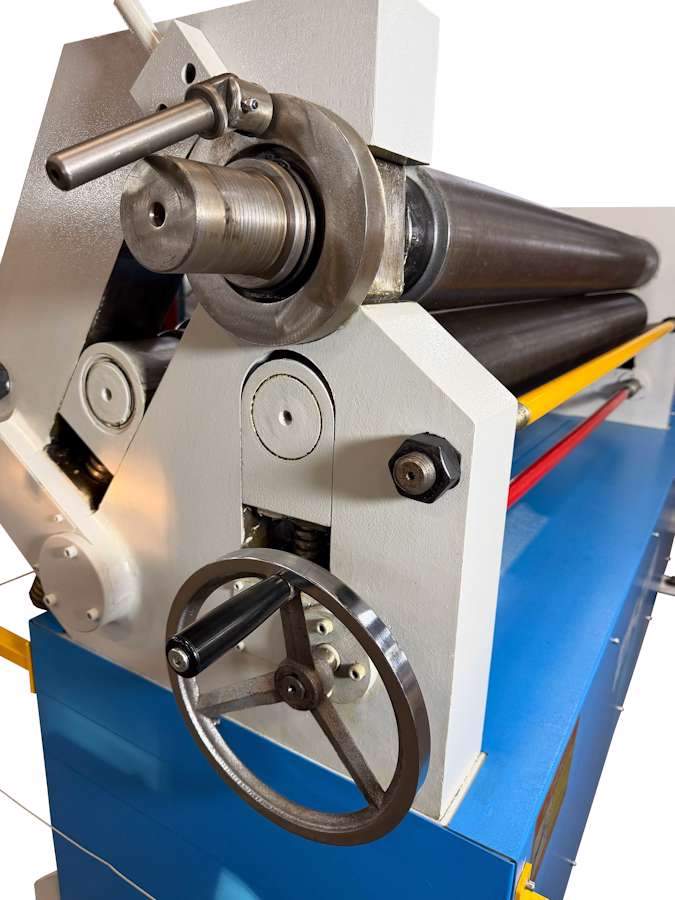

Side roll movement performs pre-bending and diameter adjustment.
Suitable for producing cylinders and curved sections from thin sheet.
Welded steel machine frame.
