SYIL R1 KUKA Robot Automation (14725)
New SYIL R1 KUKA Robot Automation (14725)
Machine Tending System for X7
Availability: Ex-import
Price: POA
SYIL R1 - Powered by KUKA and Siemens
Discover the next level of productivity

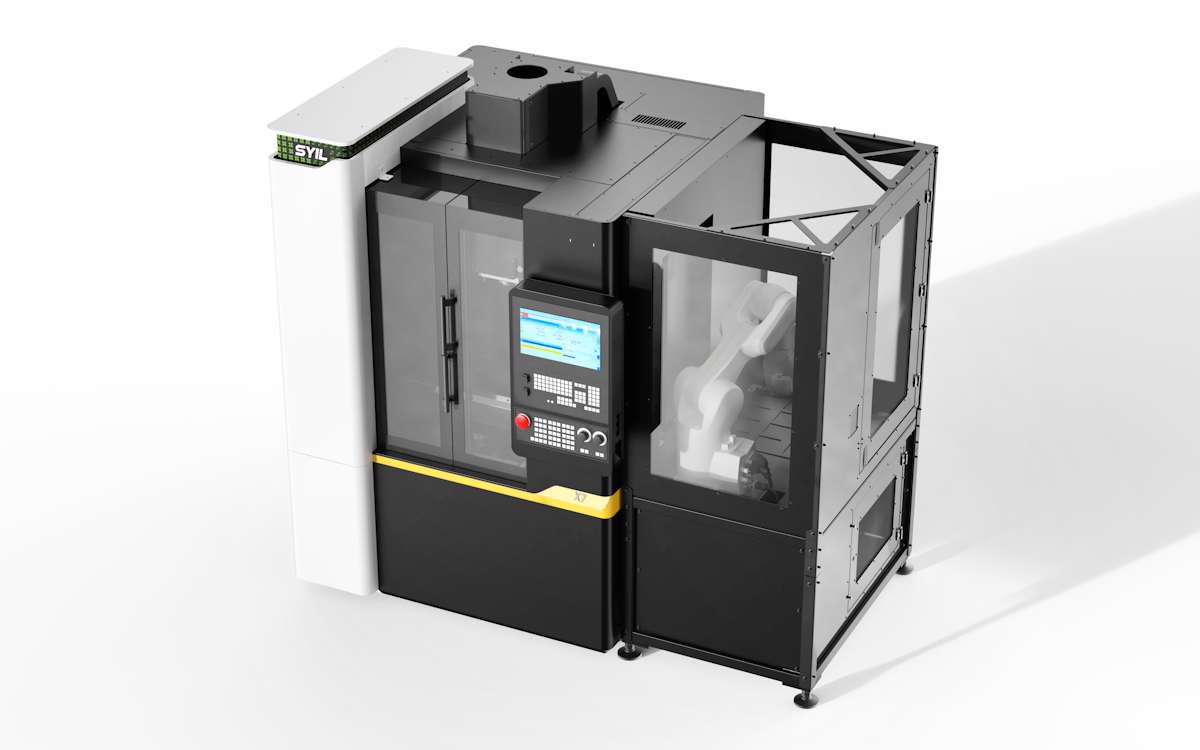

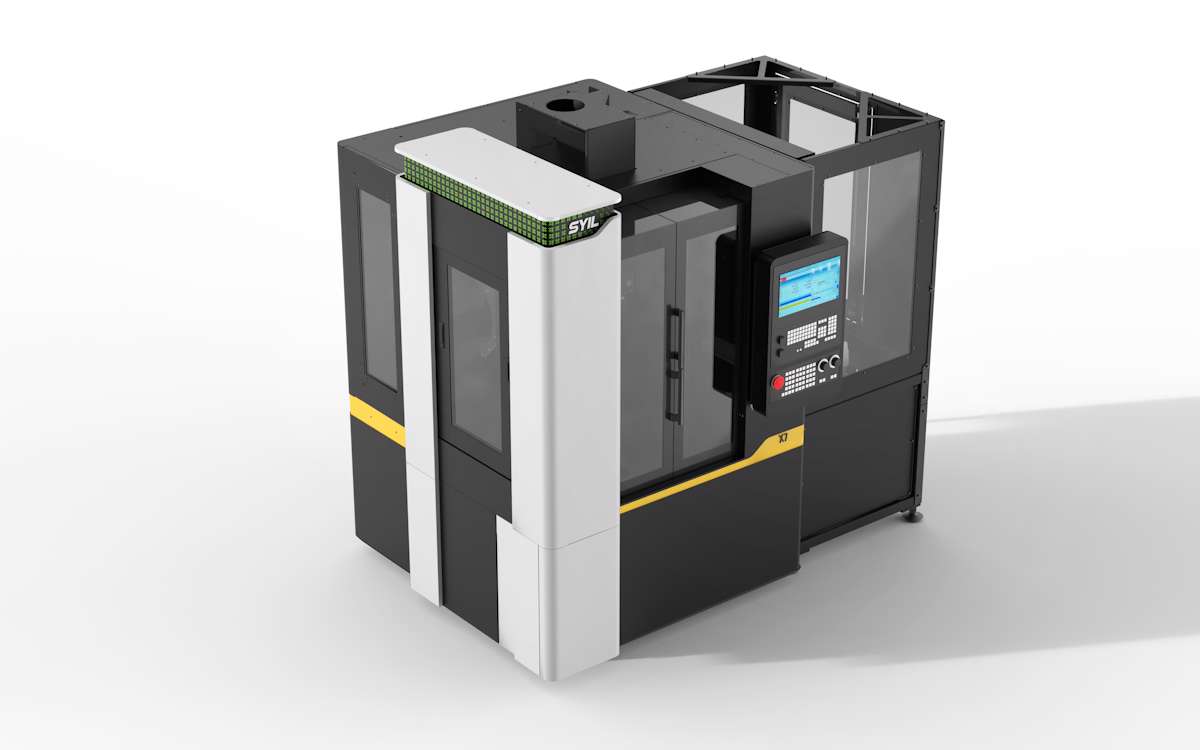

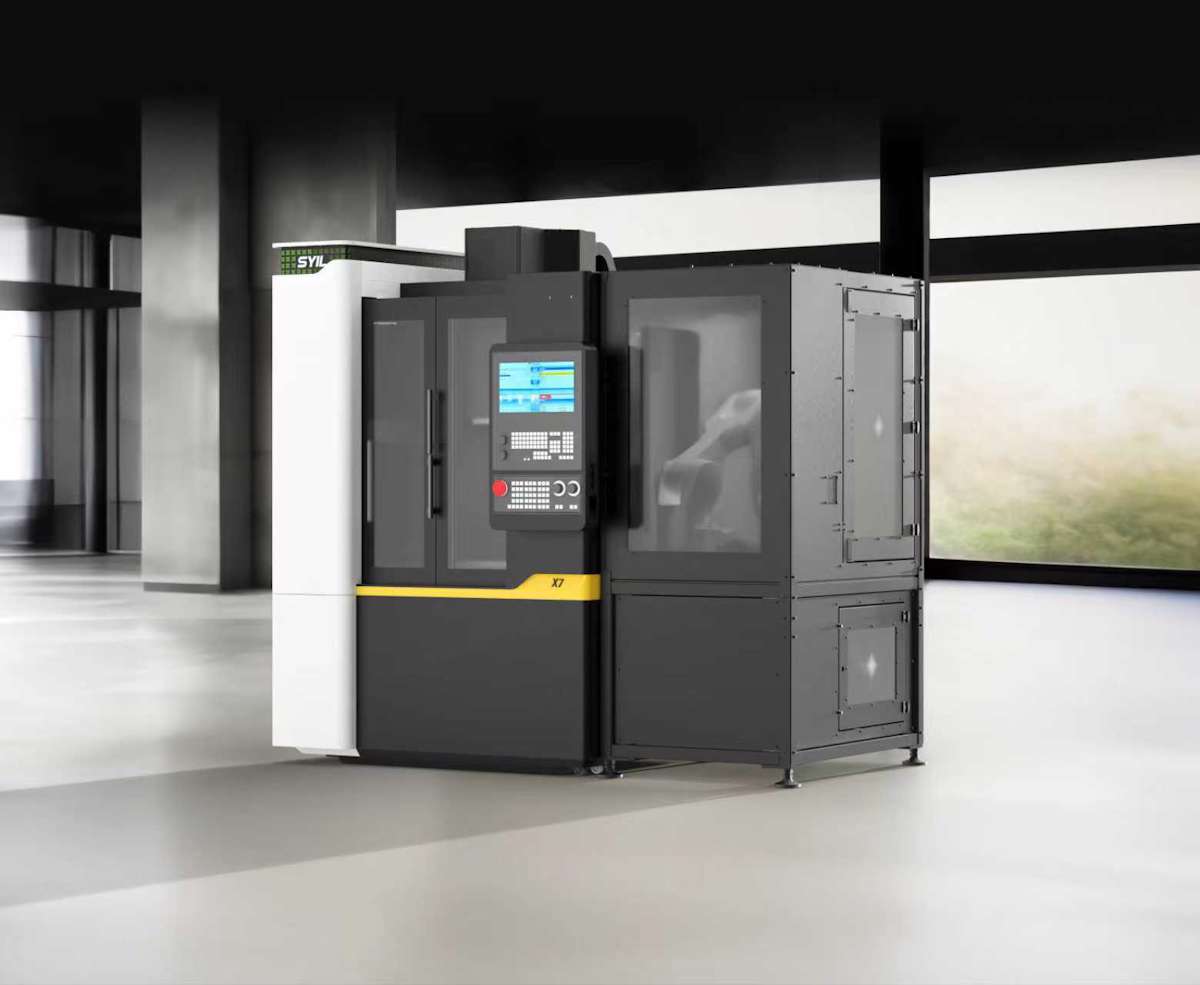

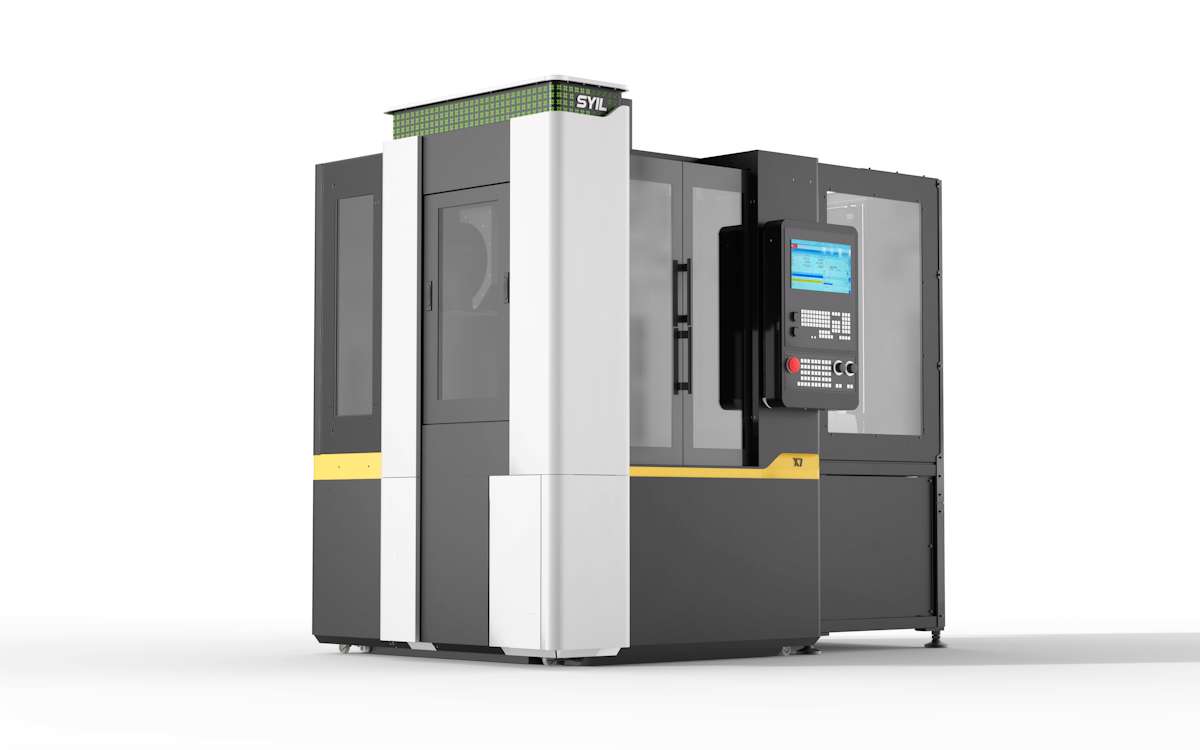

Experience the benefits of simplified automation with the SYIL R1 Machine Tending System. A complete automation solution that is quick to install and easy to operate from your SINUMERIK 828D. The R1 removes manual and repetitive tasks from your CNC operations by automating the loading and unloading process.

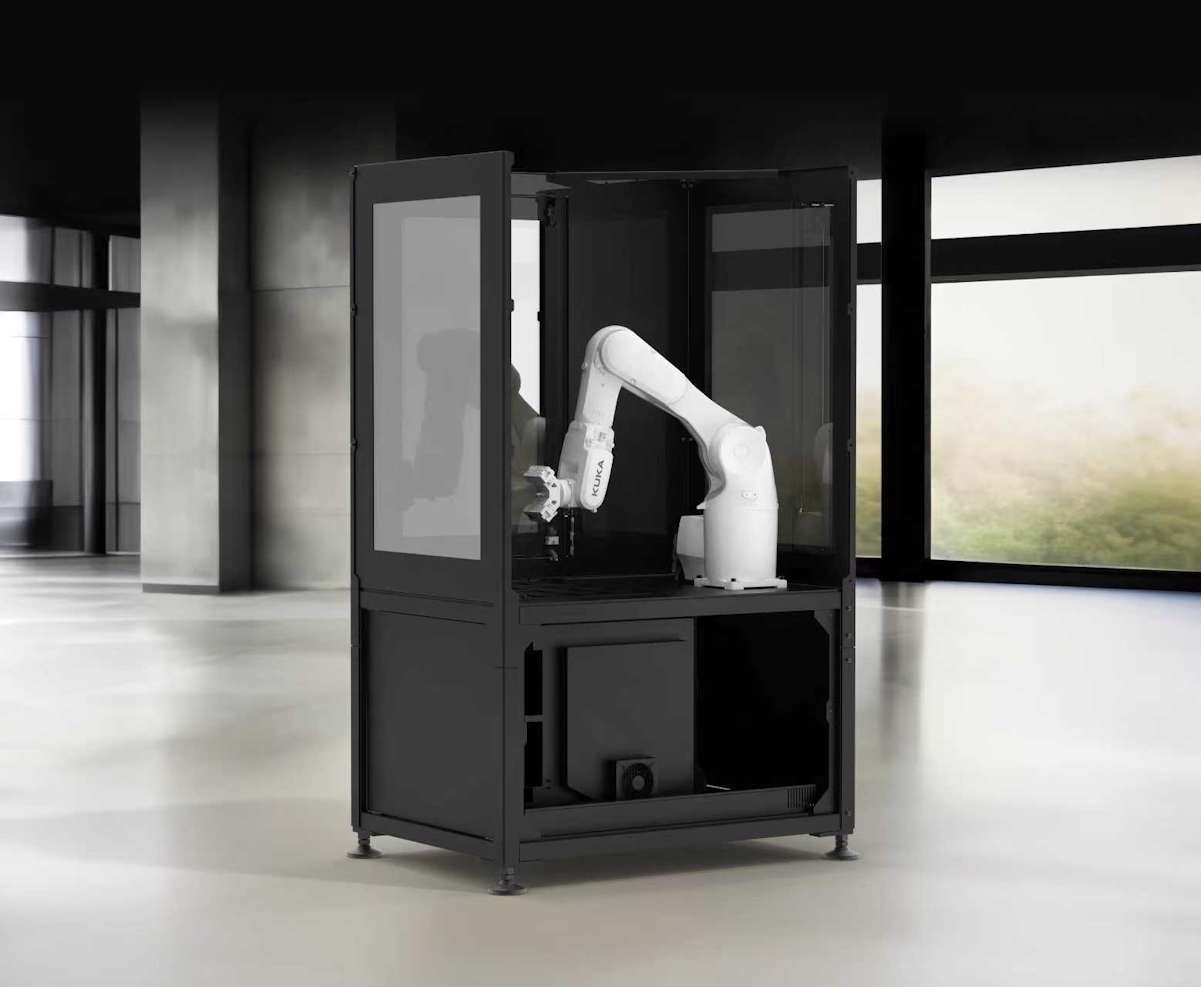

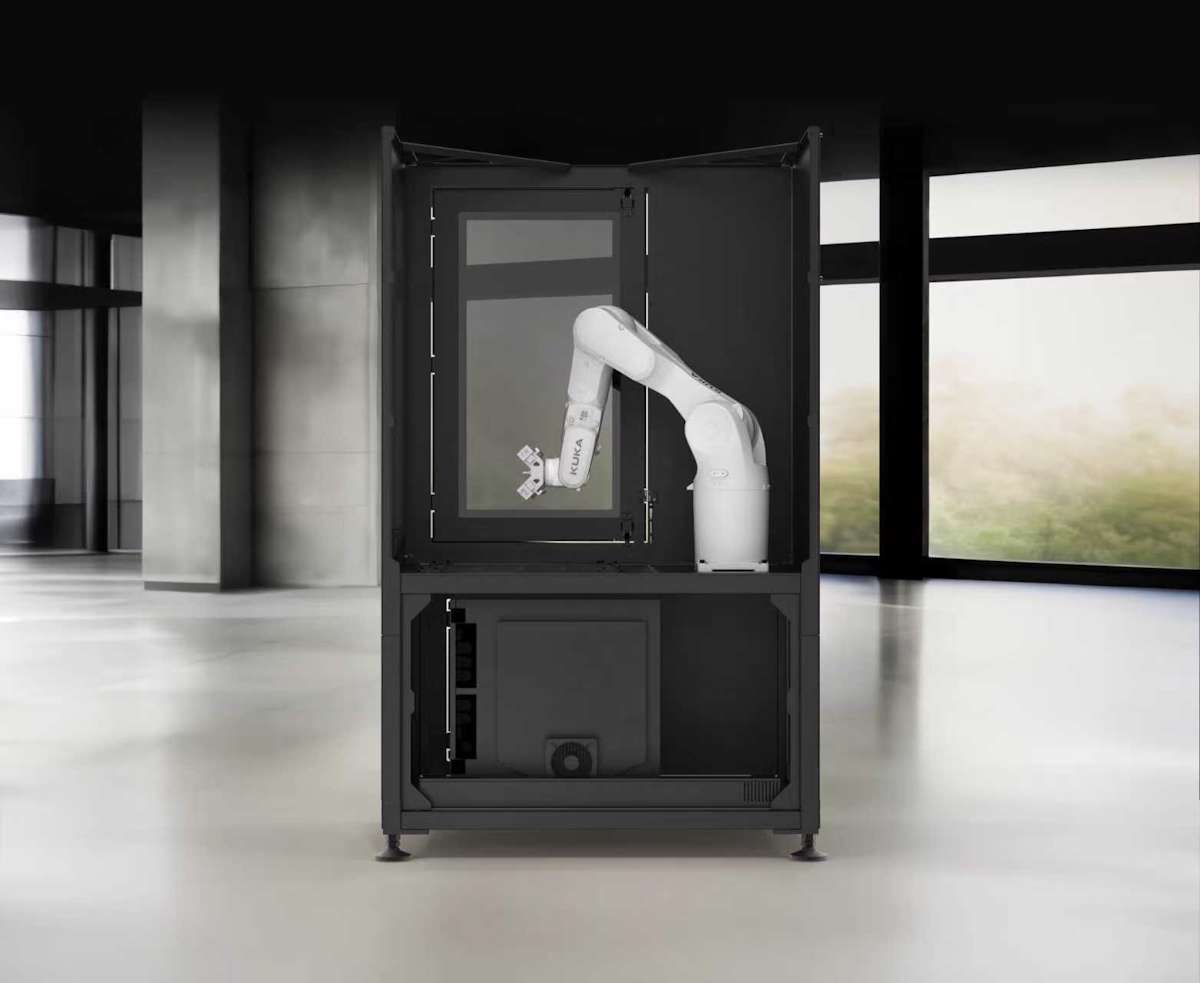

Built with KUKA's reliable 6-axis robot, the SYIL R1 Machine Tending System is the perfect solution for high-mix, low-volume tasks.
Now you can spend your time growing your business instead of doing repetitive tasks!
Why choose SYIL automated machine tending?
The R1 Machine Tending System is a practical and accessible solution for small job shops looking to automate their machine tending processes, improve efficiency, and reduce reliance on manual labor.
Let us sum up the key benefits of the SYIL R1 Machine Tending Cell:

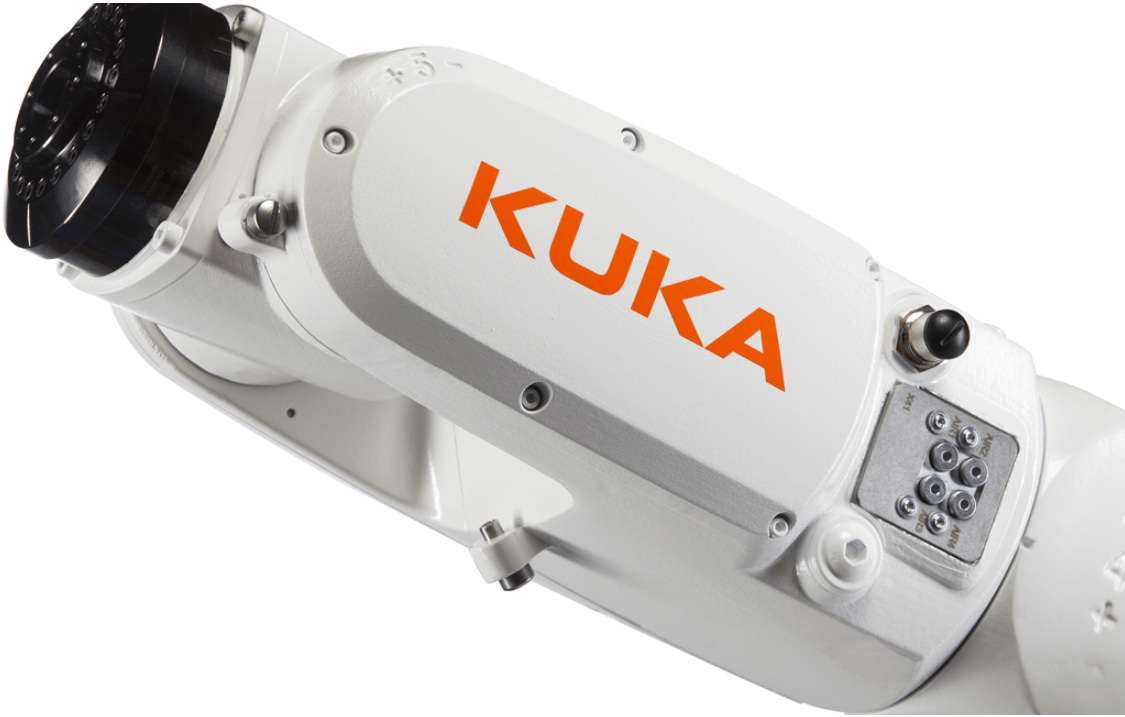

The KUKA robot offers long reach, repeatable precision, and the ability to handle loads up to 6.7 kg, ensuring reliable performance.
Integration: Siemens' SINUMERIK 828 CNC and KUKA robots are seamlessly integrated, ensuring a unified control system.
Simplified Operation: Operators can program and control both the CNC machine and the robot using a single interface, eliminating the need for separate robot programming pendants.
Familiar Programming: The system uses G-code programming and robot teach-in functions, so users familiar with CNC machines will easily adapt.
Simplified Automation: The R1 system simplifies automation for small job shops by offering a pre-packaged solution that can be installed quickly (in a day) and requires basic engineering skills.
Compact and Portable: The R1 system's compact, portable design is its most impressive feature.

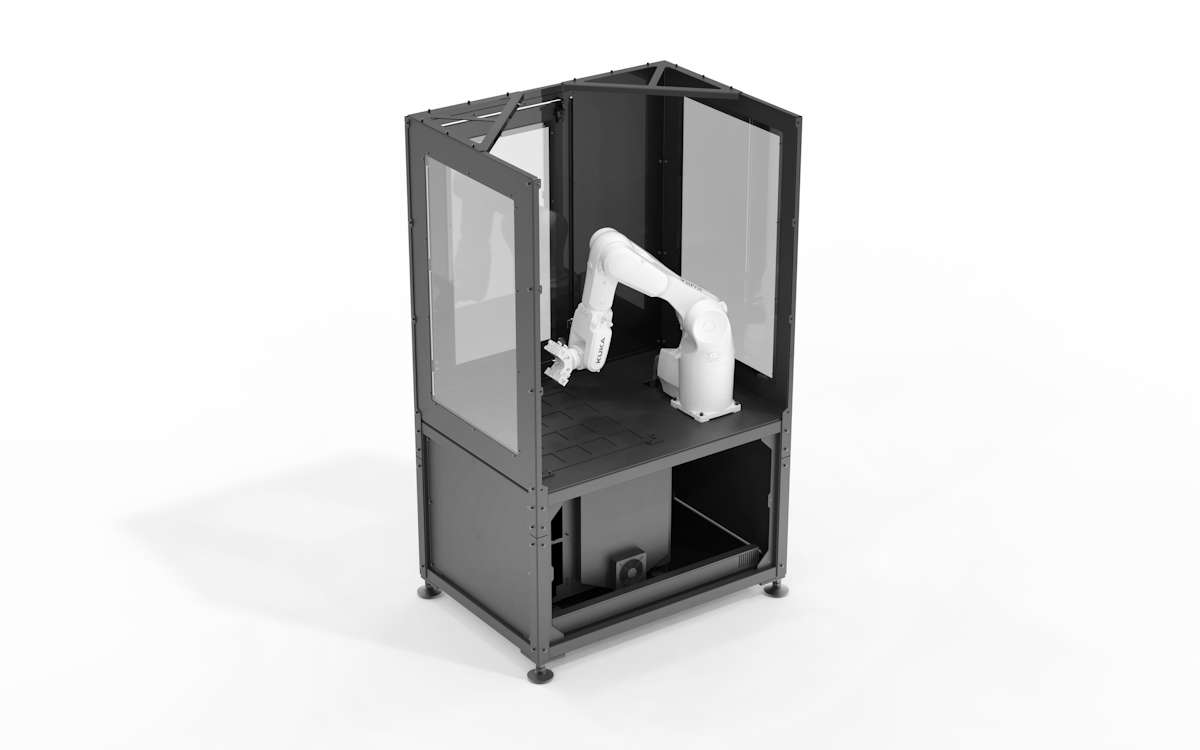

The R1 cell is designed to automate repetitive tasks associated with machine tending, such as loading and unloading parts into CNC machines. The robot autonomously retrieves parts from the flat table, loads them into the machine, removes the finished part, and places it on the flat table again, or on any other outfeed mechanism.
The R1 package includes:
Compact frame, with a flat table for handling materials
KUKA robot arm
Robot tooling
Additional workholding and dual gripper options available

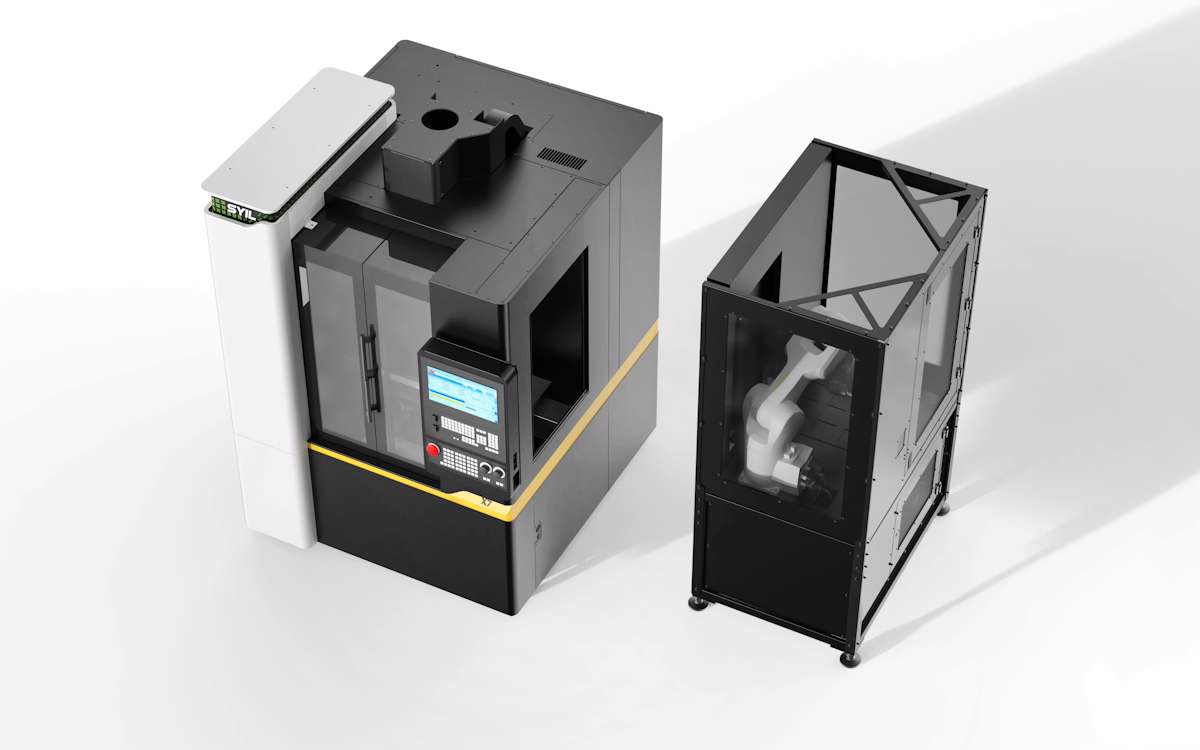

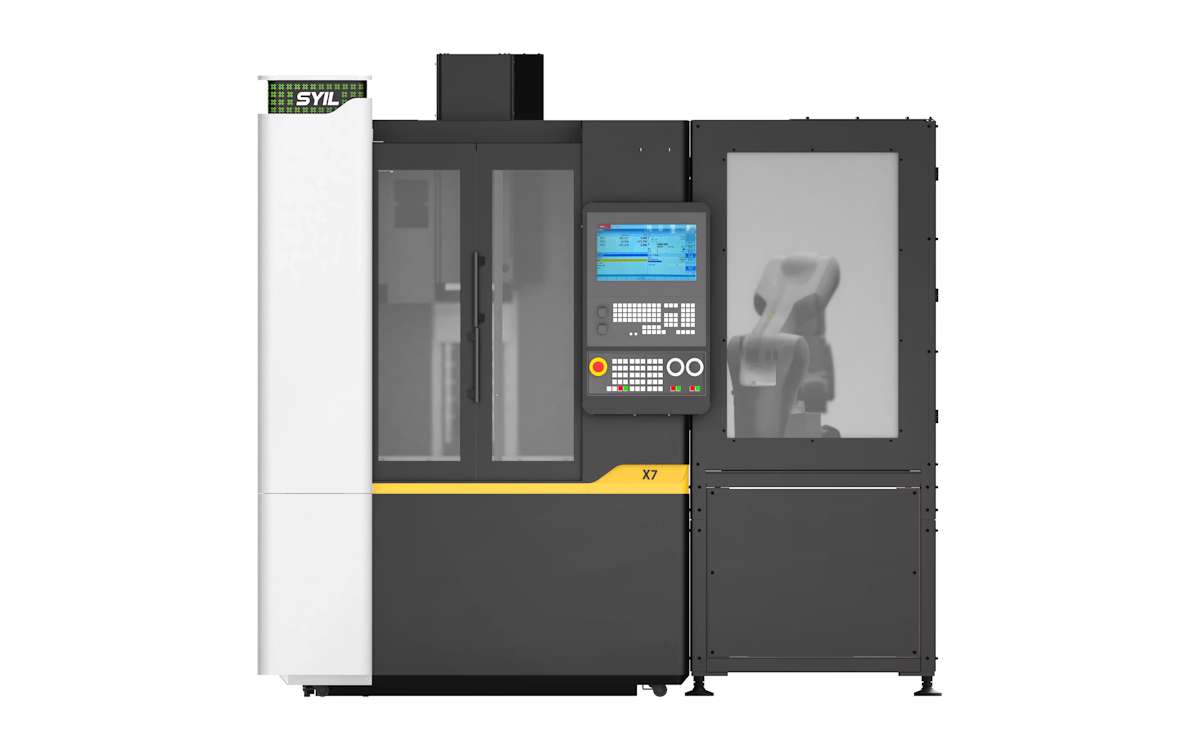

The cell is prepared for plug-and-play integration with any SYIL X7 Siemens Sinumerik 828D PPU2x0.5
Auto door (if R1 is purchased together with a SYIL X7 machine)
Specifications:
Part Weight:
Maximum weight [kg] 3
Robot arm:
Payload [kg] 6.7
Reach [mm] 901
IP level [arm|wrist] IP65|IP67
Pose repeatability (ISO 9283) [mm] ± 0.02
Robot tooling:
Parallel pneumatic gripper 1
Set of universal fingers 1
Cleaning nozzle 1
Stroke per jaw [mm] 8
Closing force [N] 550
Opening force [N] 610
Other data:
Material handling method Grid pattern
Available space [mm] 600 x 520 x 150
Unit Size [mm] 850 x 1200 x 2000
Electrical requirement 200-240 VAC - 16 Amp
Pneumatic requirement [psi] 90-120
Optional:
Pneumatic Workpieceholding package
Dual Gripper
Siemens Software
