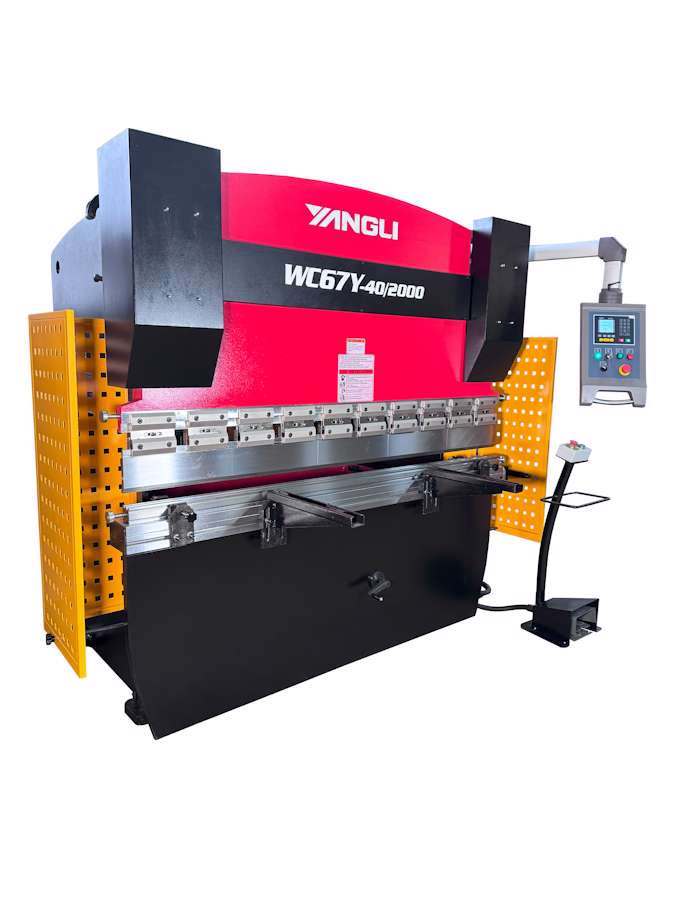

Yangli WC67Y-40x2000 NC Hydraulic Press Brake (13008)

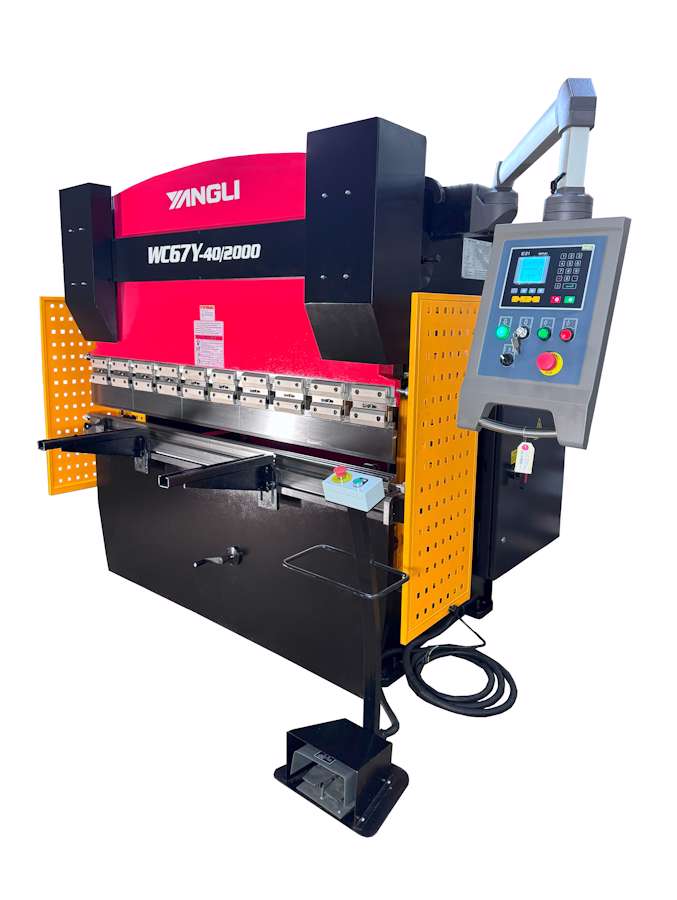

New Yangli WC67Y-40x2000 NC Hydraulic Press Brake (13008)
40 Ton x 2000, Estun E21 2-axis NC Control
Availability: Ex-import
Price: POA
Yangli delivers quality you can trust and lasting performance you can rely on.
Press brakes designed to deliver maximum performance through quality features and
robust built strength durability.
Standard Features:

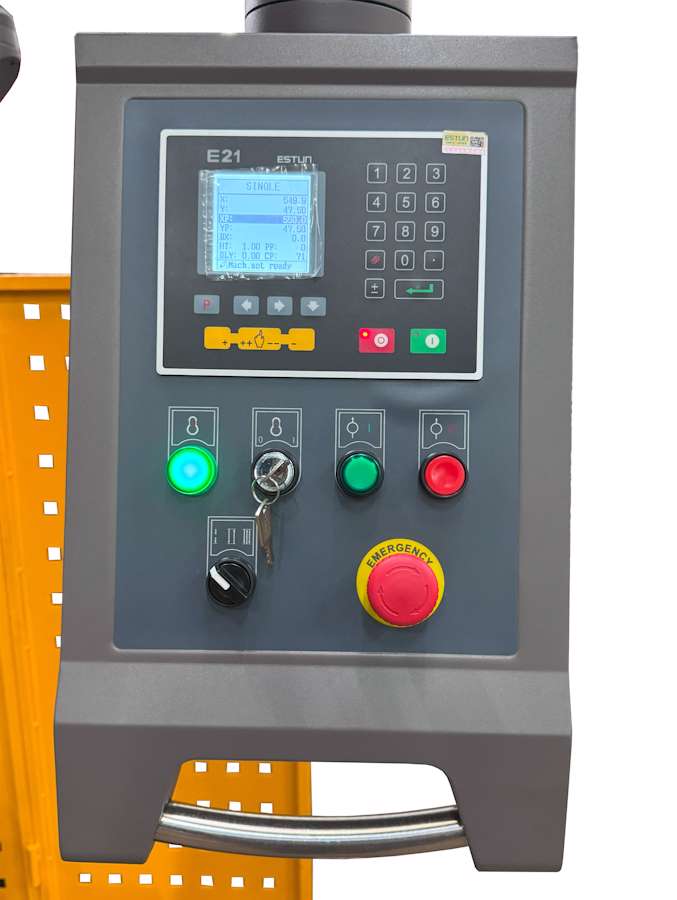

Control: Estun E21 NC
Crowning: Mechanical
Foot pedal: Up and down, with safety switch.

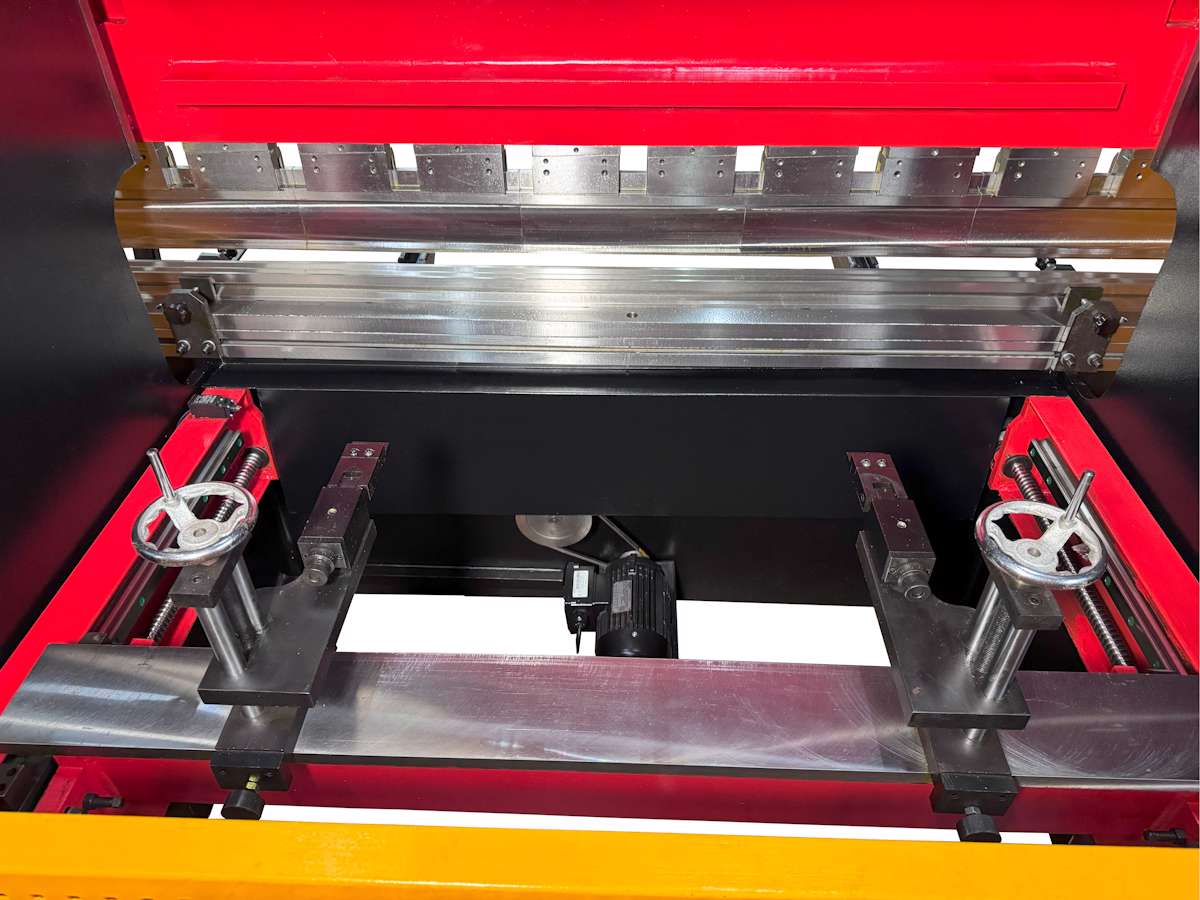

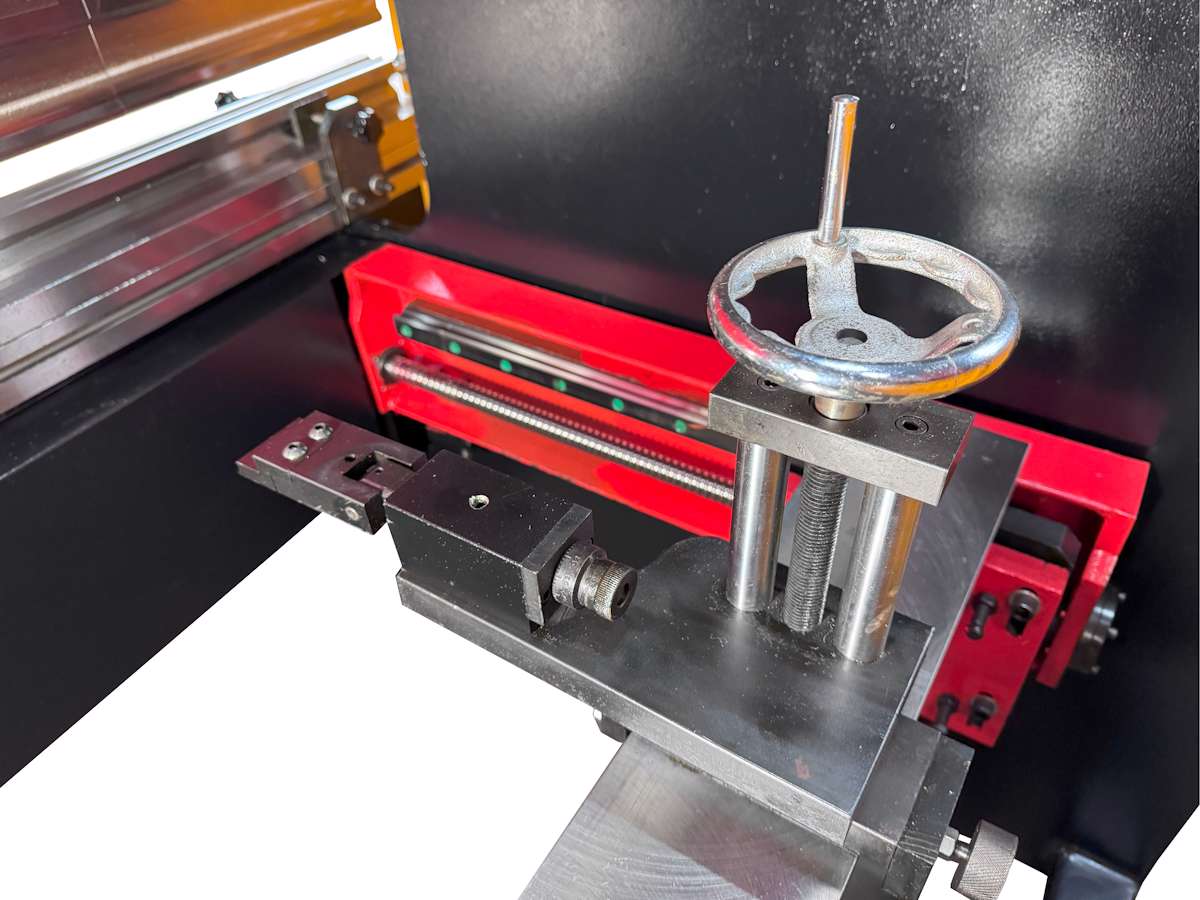

Backstops: Running on ball screws with linear guides.
Fingers: Quick release, flip up, multi-level backgauge fingers with R axis height adjustment.

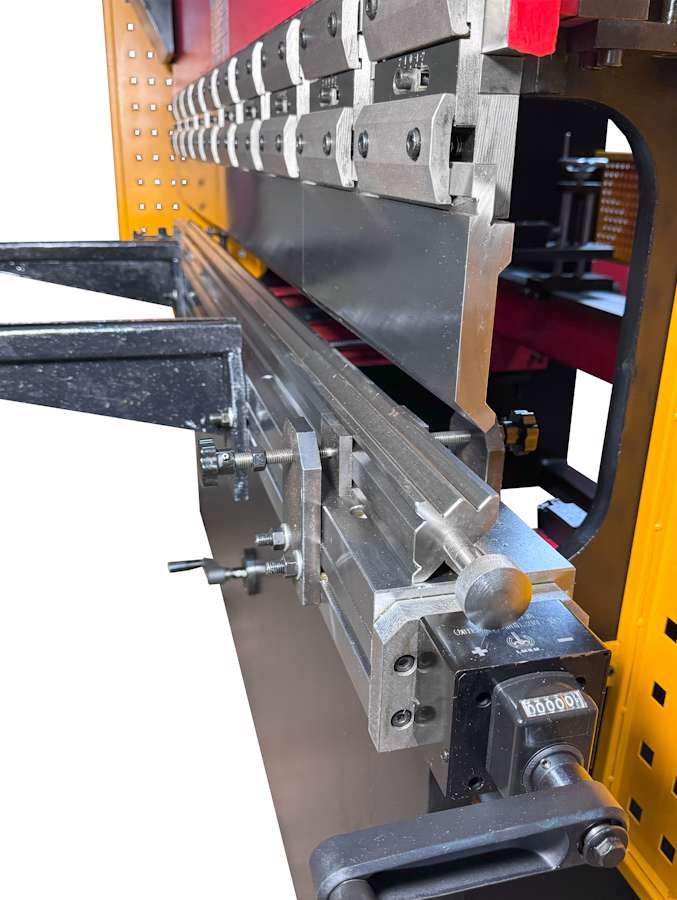

Bottom tools: Multi-vee die.
Top tools: Semi goose neck top tooling.
Clamping: Adjustable wedge quick release top tooling clamps.
Workpiece support: Adjustable left, right, up and down front support arms.
Inverter: Controls X & Y axis.
Safety rear: Rear cage safety system.
Safety side: Side safety guards.
Entire welded frame, press with tempering.
Hydraulic top drive, stepless pressure adjusting, imported seals with high quality to ensure reliability.
Mechanism synchronous with up and down composite compensation to increase machining accuracy.
Slide stroke adjusting device & back gauge device: electric quick adjusting, manual micro adjusting, numeric display.
Inch, single & continuous mode, time relay: control reversing time, pressurizing time.
| Specification | WC67Y-40/2000 | |
| Nominal force | kW | 400 |
| Table length | mm | 2000 |
| Between columns | mm | 1650 |
| Throat depth | mm | 200 |
| Slide stroke | mm | 100 |
| Stroke adjustment | mm | 80 |
| Max. Open height | mm | 330 |
| SPM | min-1 | ≥16 |
| Main motor power | kW | 4 |
| Net weight | kg | 2663 |
| Overall dimensions (LxWxH) | mm | 2210 x 1250 x 2240 |
