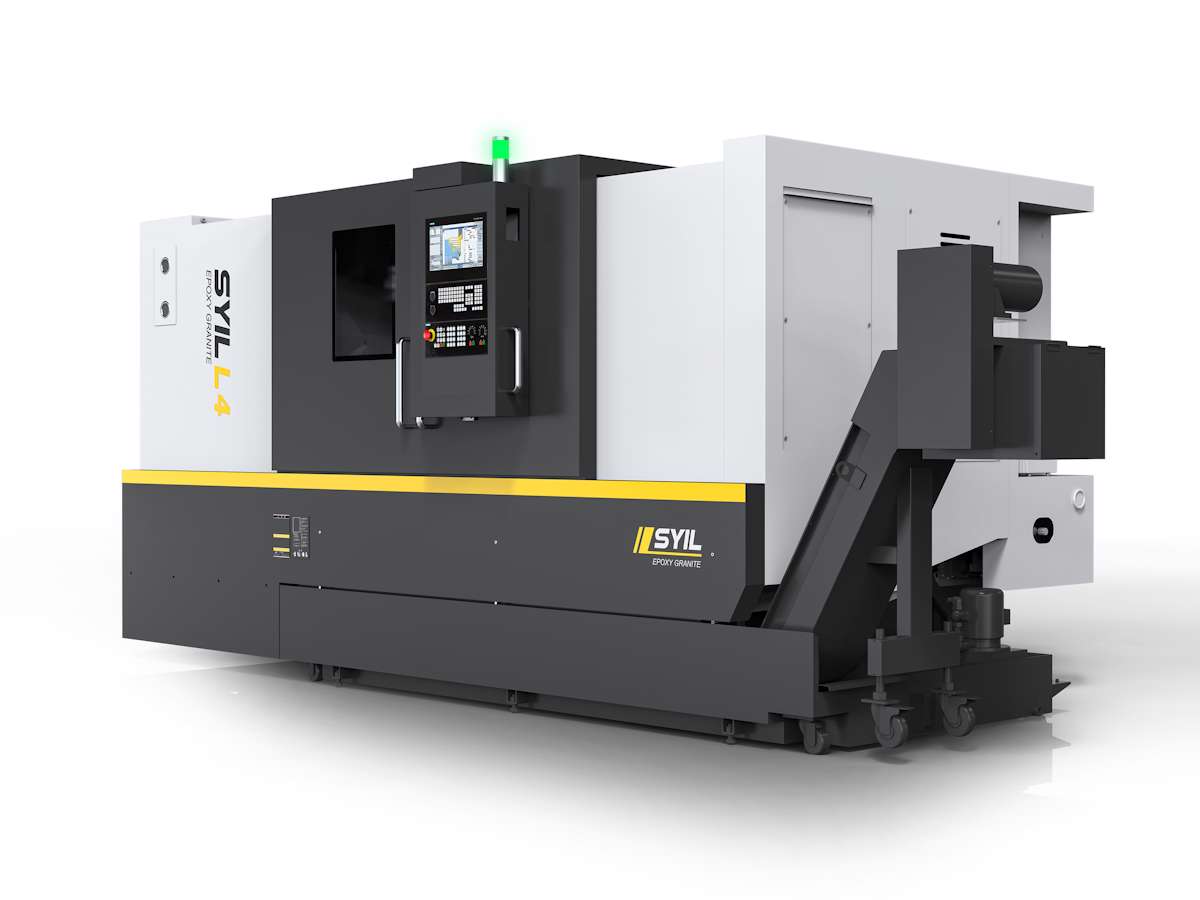

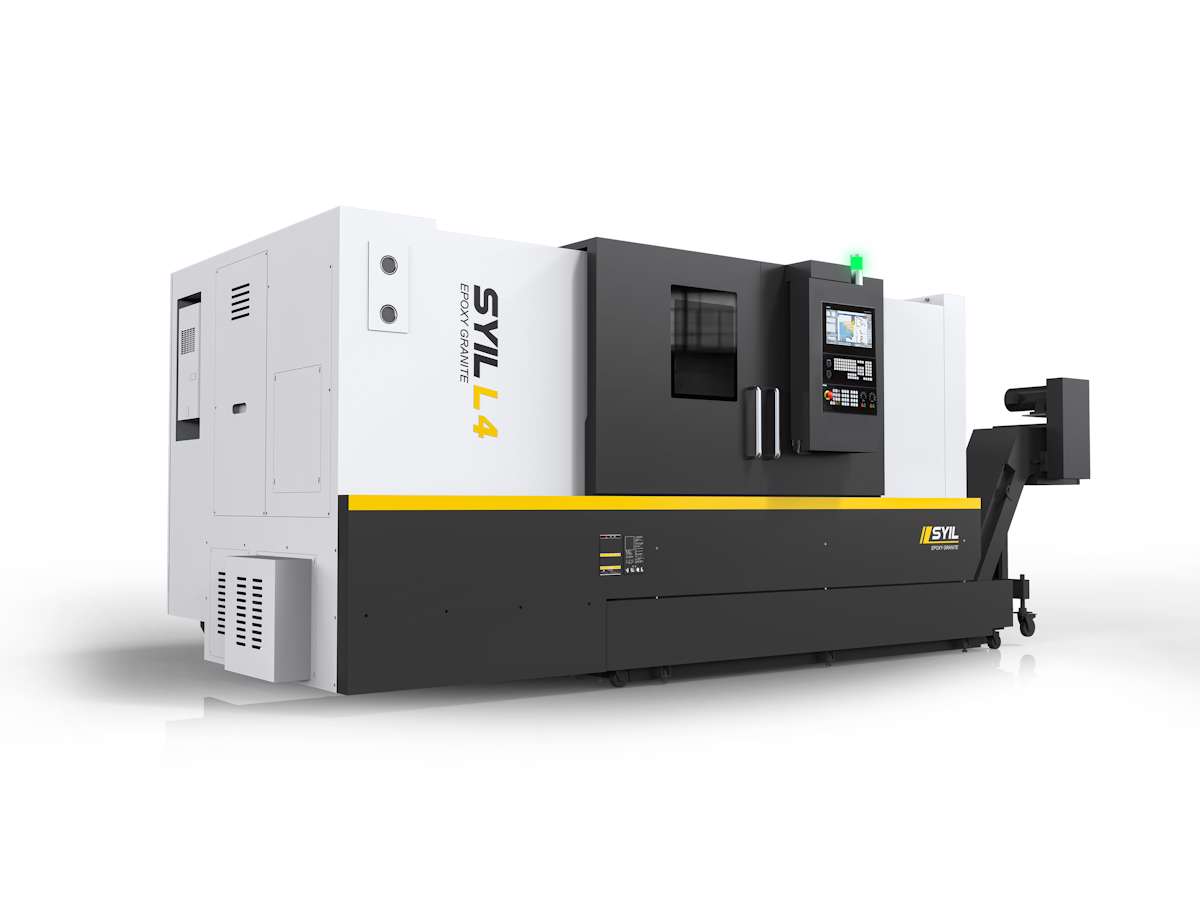

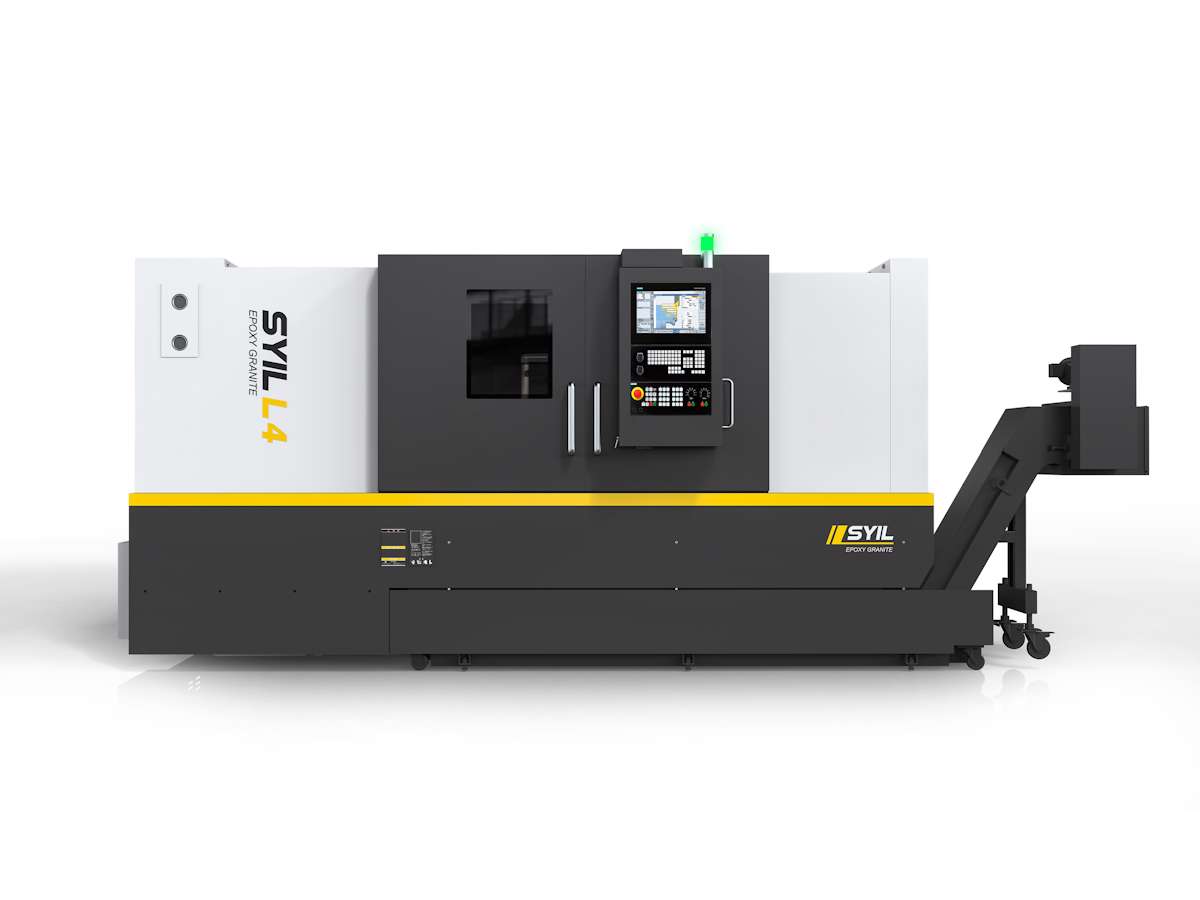

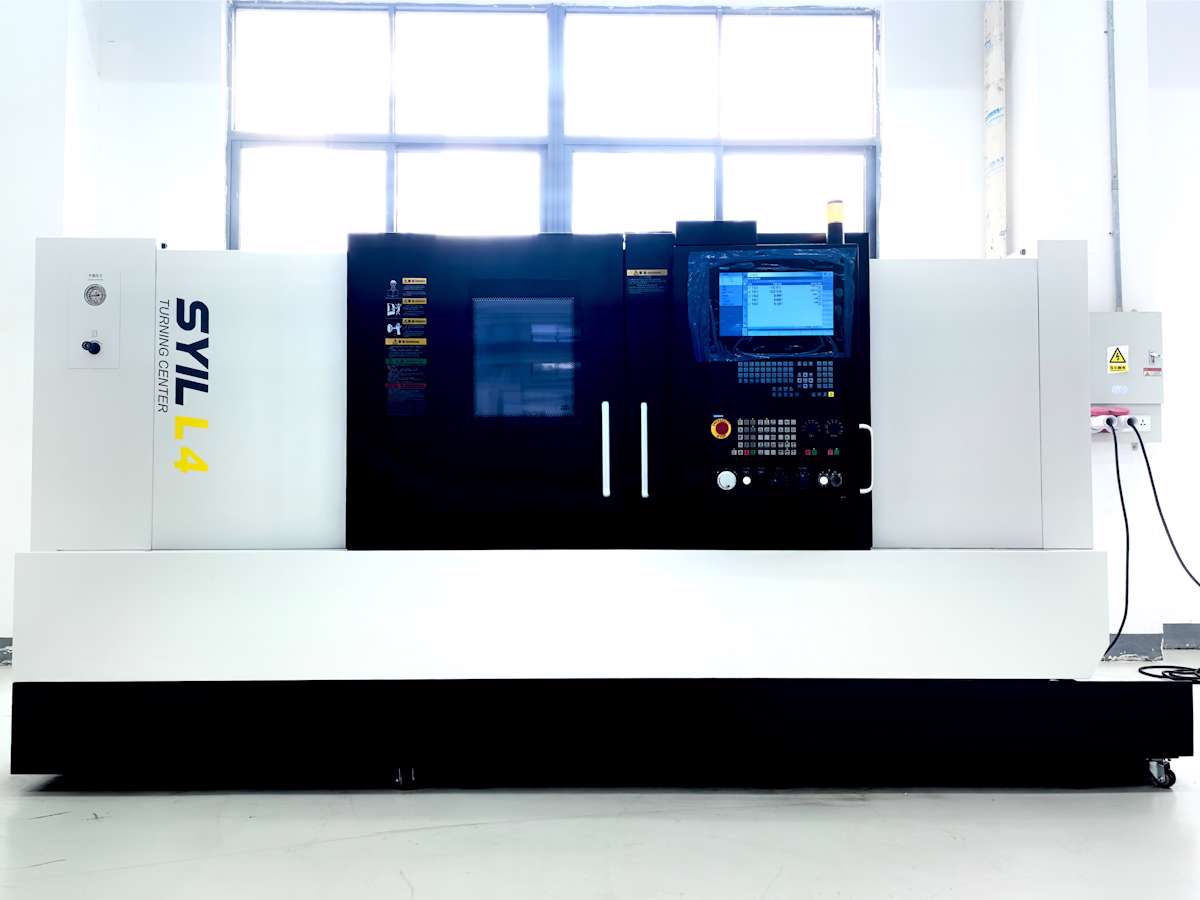

SYIL L4 10" Siemens 828D 2-Axis CNC Turning Centre - Slant Bed (14204)
New SYIL L4 10" Siemens 828D 2-Axis CNC Turning Centre - Slant Bed (14204)
800 t/l, swing Ø 630, bore Ø 75, 15kW, 3,500rpm
Availability: In Stock (TBC)
Price: R 1 279 000.00 excl.
The SYIL L4 CNC Lathe ideal for large-sized parts, high-volume and high-production environments
Standard Features:

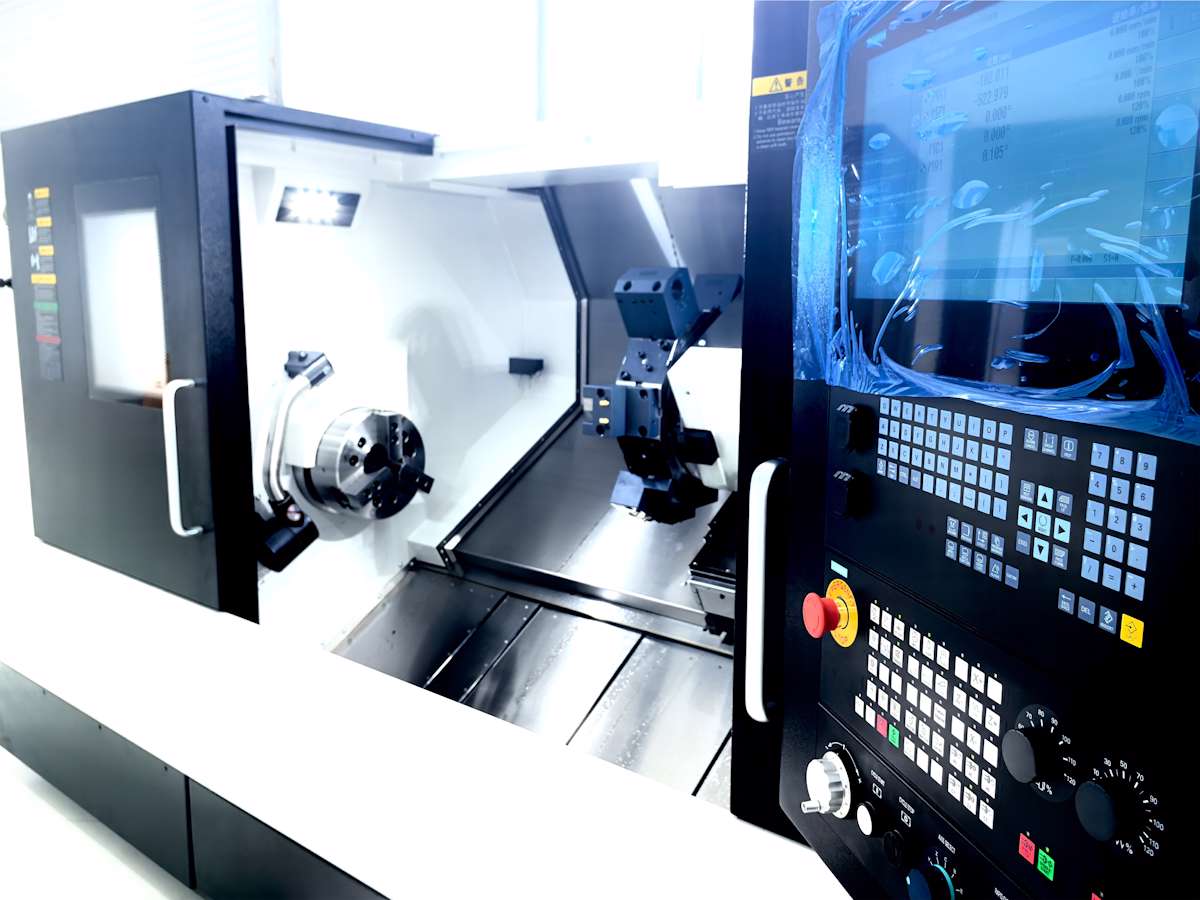

Siemens SINUMERIK 828D 15" Control

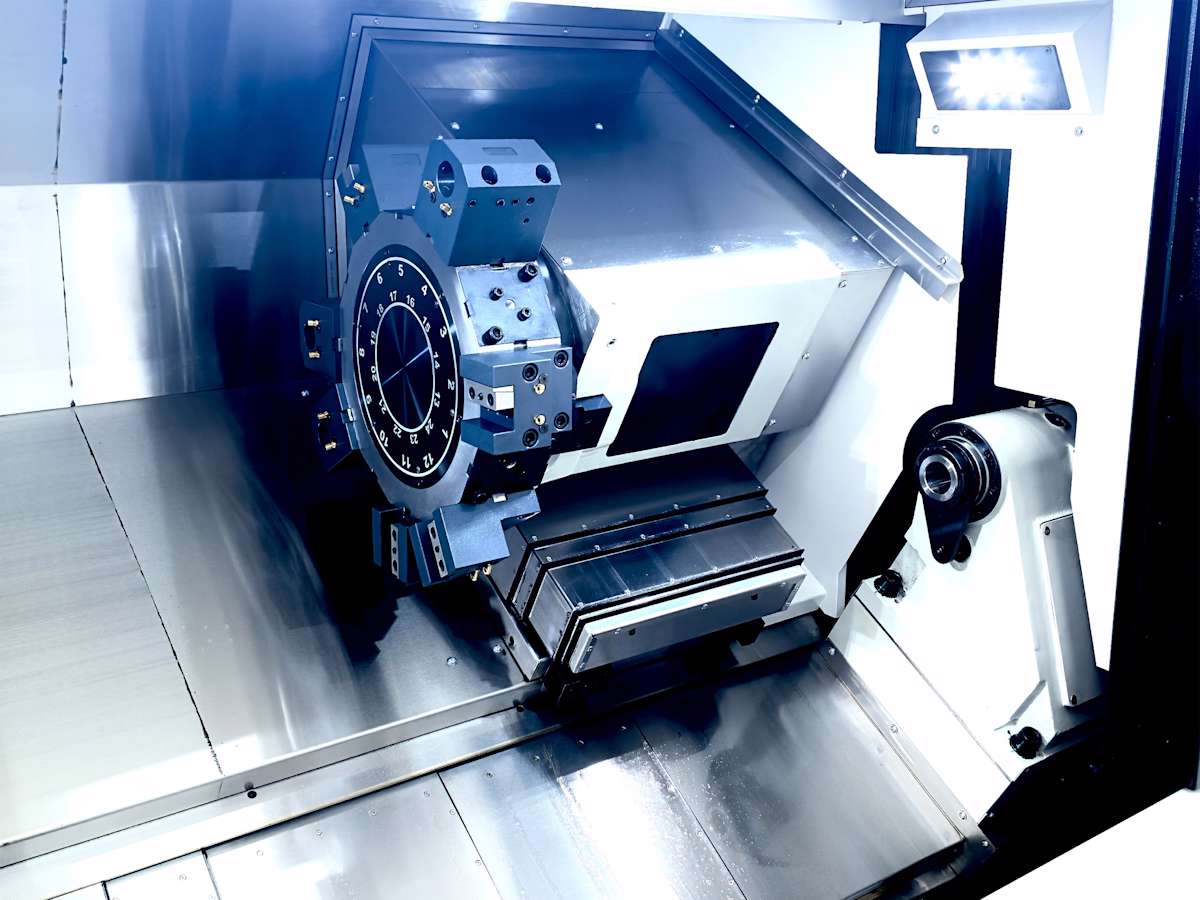

12-station servo turret (including 4 boring tool holders, 2 end face tool holders, 8 pairs of pressure tool)
10-inch hollow hydraulic three-jaw chuck
A2-8 spindle
Hydraulic tailstock
Maximum processing length 800mm
Specifications:
Processing Capacity
Chuck size: 10 inches
Max. swing diameter over bed: ø630 mm
Max. swing diameter over carriage: ø330 mm
Max. workpiece length: 800 mm (1100 mm/ 1500mm)
Max. workpiece diameter: ø520 mm
Spindle:
Max. speed: 3500 rpm
Spindle nose: A2-8
Spindle bore diameter: ø91 mm
Through spindle bore diameter: ø75 mm
Spindle power: 15 kW
Tool Holder:
Type: Servo Turret
Tools: 12
Min. Tool to Tool: 0.2 s
Max. Tool to Tool: 0.5 s
Max tool shank size: 25x25 mm
Max tool shank diameter: ø40 mm
Max. Live Tooling Speed: 5000 rpm
Live Tooling Model: BMT55
Travels:
X Rapid traverse: 30 m/min
Z Rapid traverse: 30 m/min
X Travels: 260+10 mm
Z Travels: 850mm (1150 mm/ 1550 mm)
Tail Stock:
Tail Stock Rapid Traverse: 10 m/min
Sleeve taper: MT5
Accuracy:
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003 mm
Position accuracy (?Ø): 0.005 mm
Position accuracy (Z): 0.008 mm
Repeat accuracy (?Ø): 0.002 mm
Repeat accuracy (Ｚ): 0.004 mm
Dimensions and Weight:
Dimensions(LxWxH): 2500x1720x1740 mm
Weight: 6200 kg/ 6800 kg/ 7220 kg
Options:
FANUC 0iMF Plus / SYNTEC 22TA Control
Power Turret (BMT65)
Y-axis
Sub-spindle
Processing length extended to 1.1m
Processing length extended to 1.5m
Chain type automatic chip conveyor
Center column
