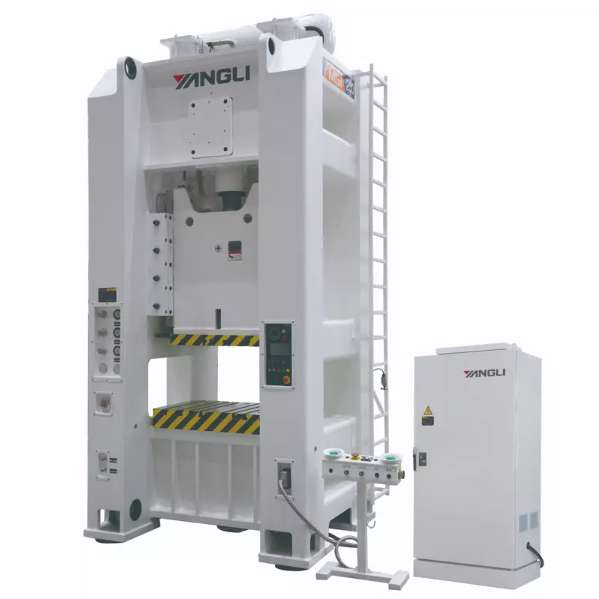

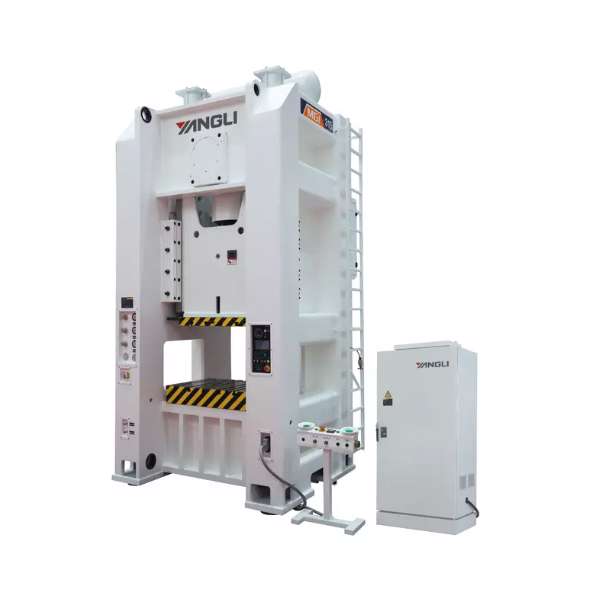

Yangli MG1 Single Point Series Hydraulic H-Frame Press (14091)

New Yangli MG1 Single Point Series Hydraulic H-Frame Press (14091)

Gantry Type

Availability: Ex-import

Price: POA

MG1 Series Gantry Type Single Point Press Features:
·High precision.
·Complete steel welded frame construction.
·Combination of dry friction clutch.
·Extended guide with eight sides.
·Hydraulic overload protection.
·Electrical adjustment with digital display.
·Cylinder for maintaining lifting balance.
·Imported dual solenoid valve.
·Electrical lubrication with grease.
·II: Utilizing electrical circulation for oil lubrication.
·Manual oil lubrication for balance cylinder.
·Integrated control panel with electronic cam and touch screen.
·PLC control system.
·Set blowing device.
·Optional: wet clutch, air cushion, light curtain, NC feeder, inverter motor, slide knockout device, safety door.

Specification				MG1-110	MG1-125	MG1-160	MG1-200	MG1-250
				I	I	I	I	I
Nominal force			kN	1100	1250	1600	2000	2500
Nominal stroke			mm	6	6	6	6	8
Slide stroke			mm	180	180	200	200	250
SPM	Fixed		min-1	50	50	45	35	30
	Variable (Optional)			30-60	30-60	25-50	20-50	20-40
Max die height			mm	350	350	400	450	500
Die height adjustment			mm	90	90	110	110	120
Bolster area (F-b x L-R)			mm	680 x 1000	680 x 1000	740 x 1050	760 x 1130	800 x 1200
Bolster thickness			mm	140	140	150	160	180
Slide area (F-B x L-R)			mm	600 x 800	600 x 800	650 x 800	650 x 850	700 x 900
Shank hole (Dia x Depth)			mm	Ø60 x 80	Ø60 x 80	Ø65 x 90	Ø65 x 90	Ø70 x 90
Between columns			mm	1100	1100	1150	1200	1320
Side opening (F-B x H)			mm	700 x 400	700 x 400	760 x 450	800 x 500	820 x 550
Main motor power			kW	11	11	15	18.5	18.5
Air cushion (Option)		Eject forcexStoke	kNx mm	60x70	60x70	100x90	100x90	160x90

Specification				MG1-315	MG1-400	MG1-500	MG1-630	MG1-800
				I	I	I	I	I
Nominal force			kN	3150	4000	5000	6300	8000
Nominal stroke			mm	8	10	10	10	10
Slide stroke			mm	250	250	250	250	250
SPM	Fixed		min-1	30	25	25	20	18
	Variable (Optional)			25-40	25-30	20-30	20-25	15-20
Max die height			mm	550	600	650	700	700
Die height adjustment			mm	120	120	120	120	120
Bolster area (F-b x L-R)			mm	850 x 1250	900 x 1350	1000 x 1500	1200 x 1700	1300 x 1800
Bolster thickness			mm	200	200	220	220	240
Slide area (F-B x L-R)			mm	750 x 950	800 x 1050	900 x 1200	1100 x 1450	1200 x 1600
Shank hole (Dia x Depth)			mm	Ø70 x 90	Ø80 x 90	Ø80 x 90	Ø90 x 100	Ø90 x 130
Between columns			mm	1370	1550	1700	1900	2000
Side opening (F-B x H)			mm	880 x 600	920 x 650	1020 x 650	1100 x 700	1200 x 700
Main motor power			kW	30	37	45	75	75
Air cushion (Option)		Eject forcexStoke	kNx mm	160 x 90	160 x 90	160 x 90	160 x 90	160 x 90

Specification				MG1-1000
				I
Nominal force			kN	10000
Nominal stroke			mm	10
Slide stroke			mm	250
SPM	Fixed		min-1	15
	Variable (Optional)			18-22
Max die height			mm	800
Die height adjustment			mm	120
Bolster area (F-b x L-R)			mm	1400 x 2000
Bolster thickness			mm	250
Slide area (F-B x L-R)			mm	1300 x 1800
Shank hole (Dia x Depth)			mm	Ø90 x 130
Between columns			mm	2200
Side opening (F-B x H)			mm	1300 x 800
Main motor power			kW	110
Air cushion (Option)		Eject forcexStoke	kNx mm	160 x 90
