S-Power S50 Portable Line Boring Machine (13713)
New S-Power S50 Portable Line Boring Machine (13713)
50x1600mm, Ø300mm, 3.1kW, Welding Attachment
Availability: E.T.A. 15 Jun 2026
Price: R 83 300.00 excl.
Welding converter head
Boring Bar 35*1200mm
Boring bar 50*1600mm
Standard Features:

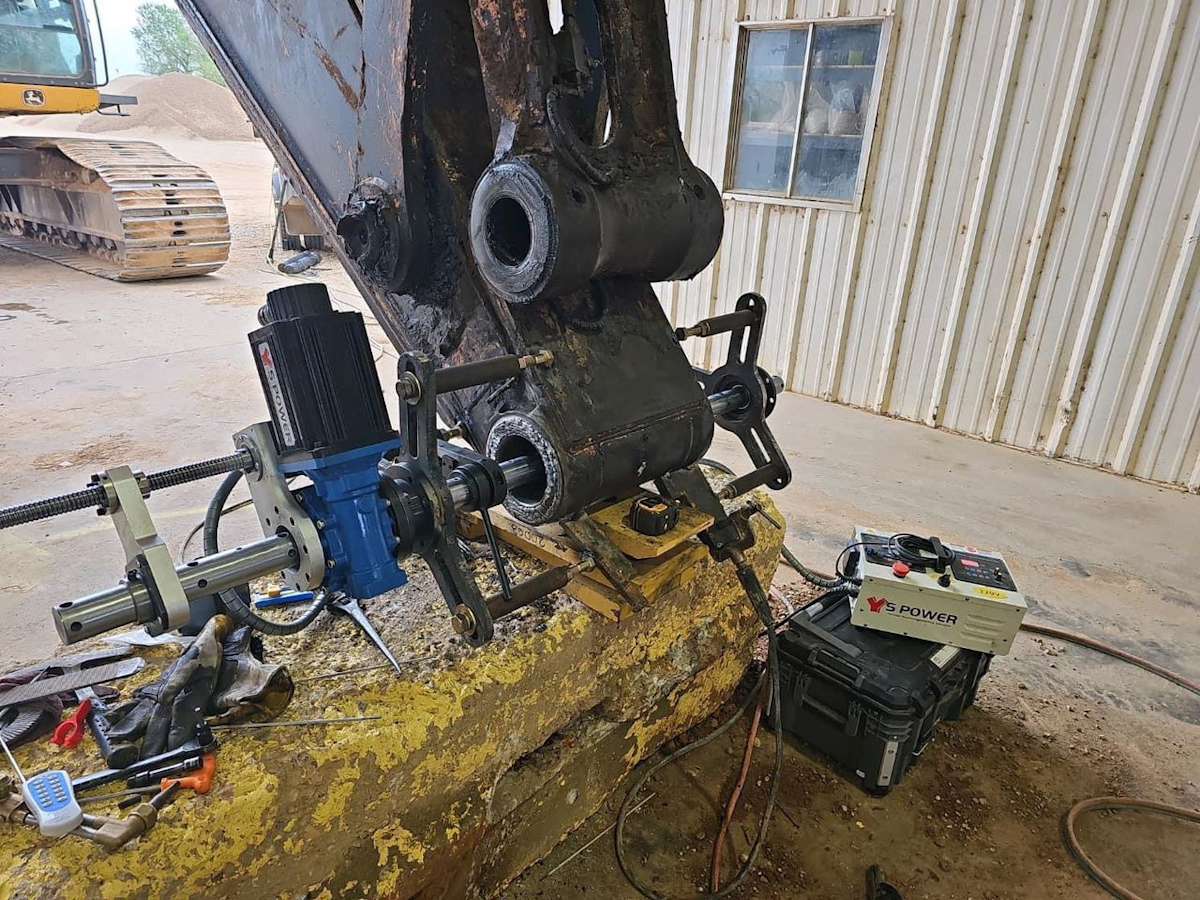

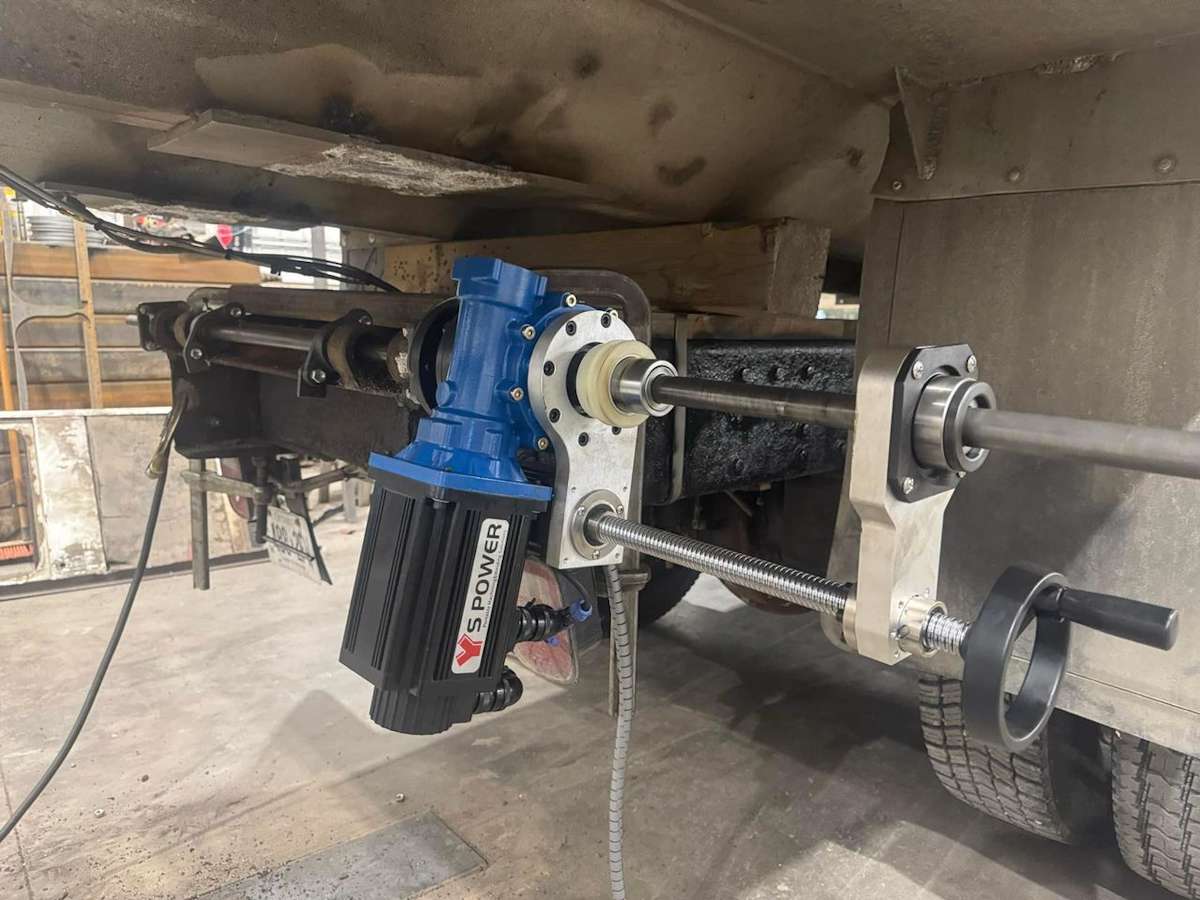

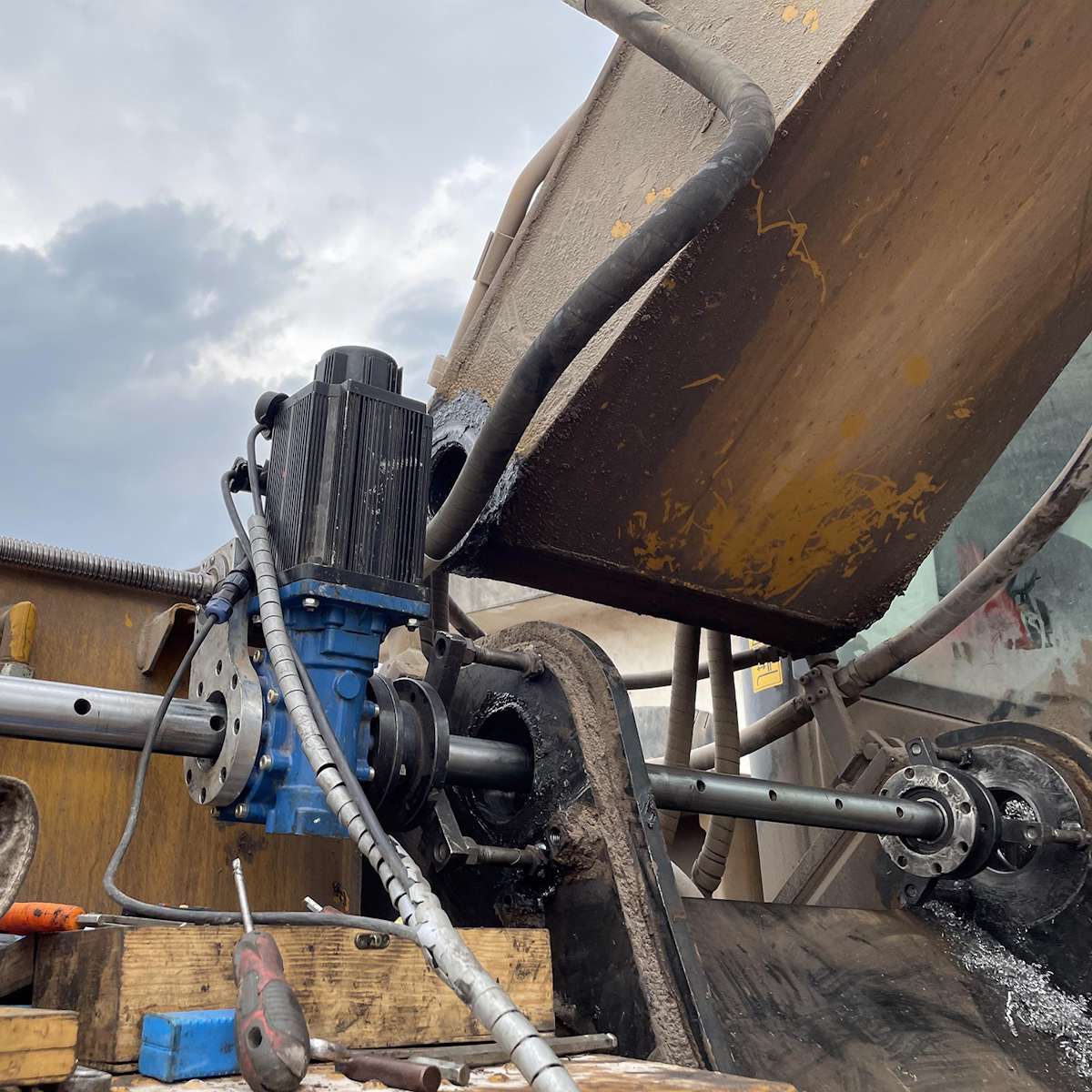

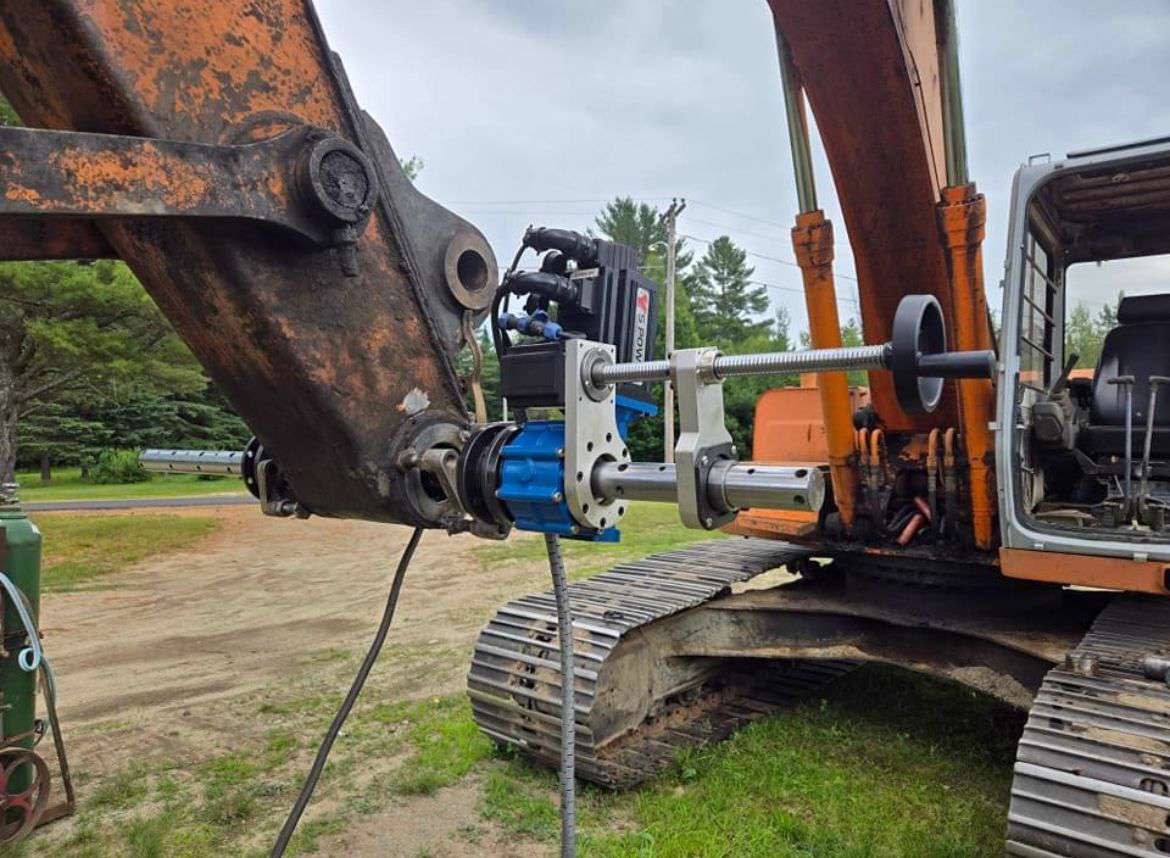

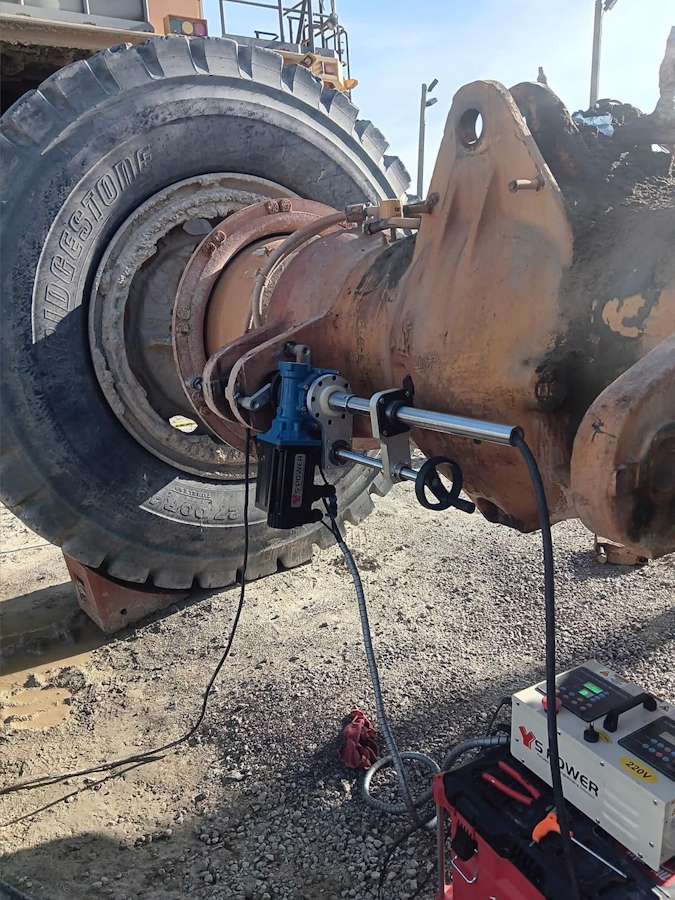

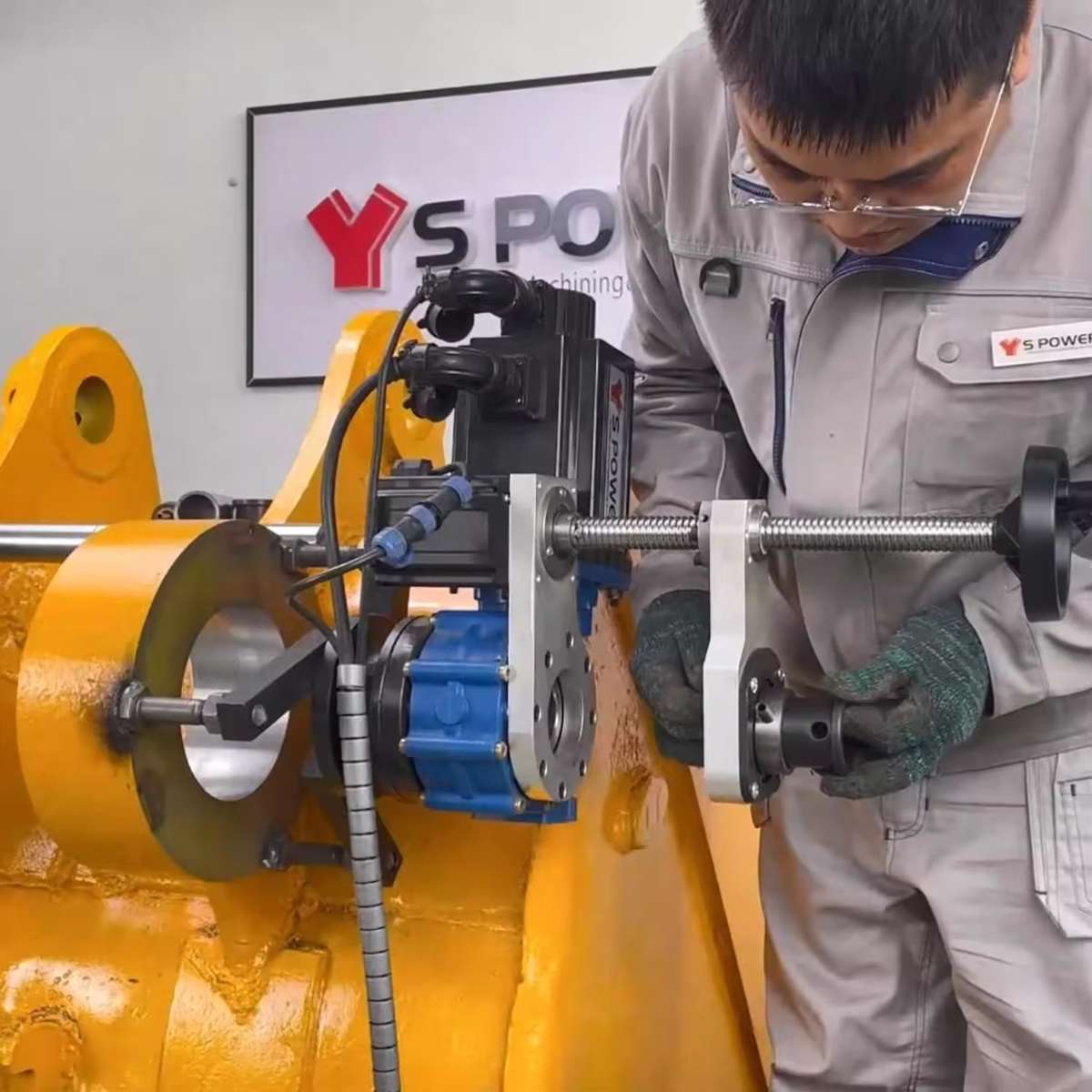

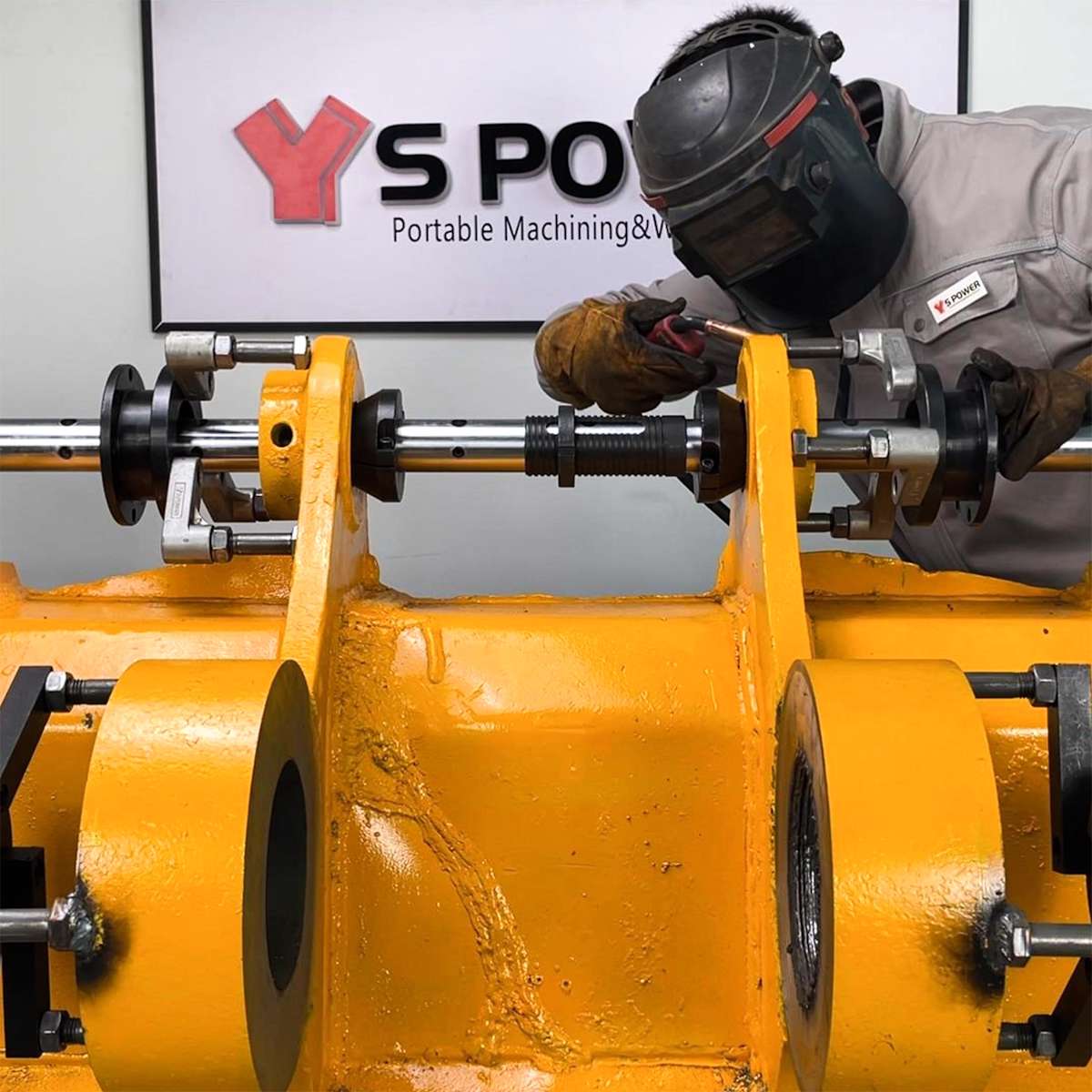

Line boring - Automatic and manual line boring with customized diameters

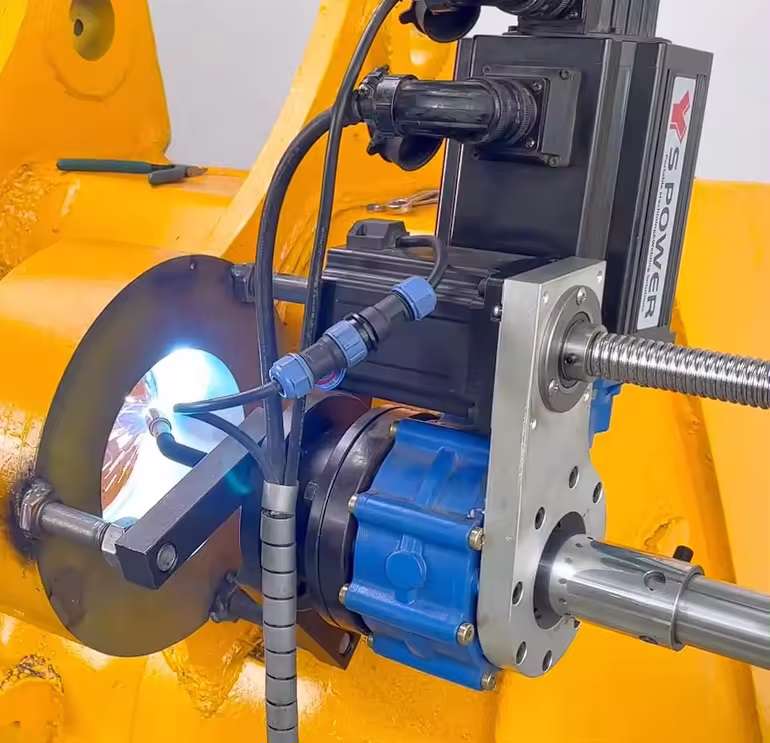

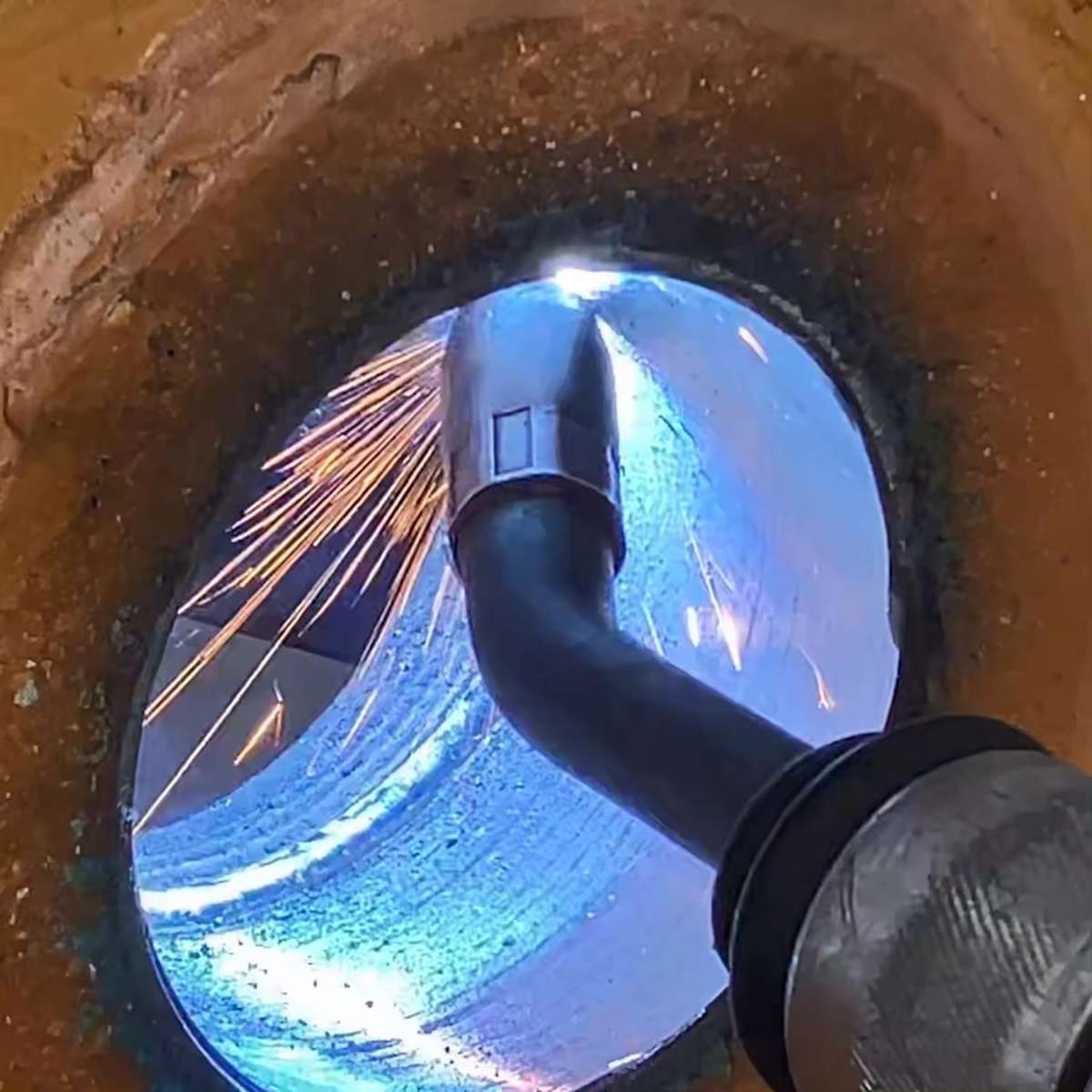

Automatic Welding - Easy operation, enter hole diameter and weld
Sector Welding - Elliptical hole repairs
Jump Welding - Skip grooves / keyways
Line Boring Specifications:
Boring bar diameter: 50mm
Main engine weight: 27KG
Boring bar length: 1600mm
Feeding lenth: 280mm
Working range: 55-160mm(Max 40-300mm)
Rated output power: 3.1KW
RPM: 50-255rpm
Output torque: 105N.m
Speed control mode: Stepless speed
Voltage selection: 220V/380V 50-60Hz
Feeding mode: Manual/Auto
Bore Welding Specifications:
Welding bar diameter: 40mm
Applicable welding machine: MIG
MIG mode: 200-500 type
Welding electrode dia: 0.8/1.0/1.2mm
Welding bar lenth: 200/240/300/800mm
Bore welding range: 045-160mm
Welding wire lenth: 4540mm

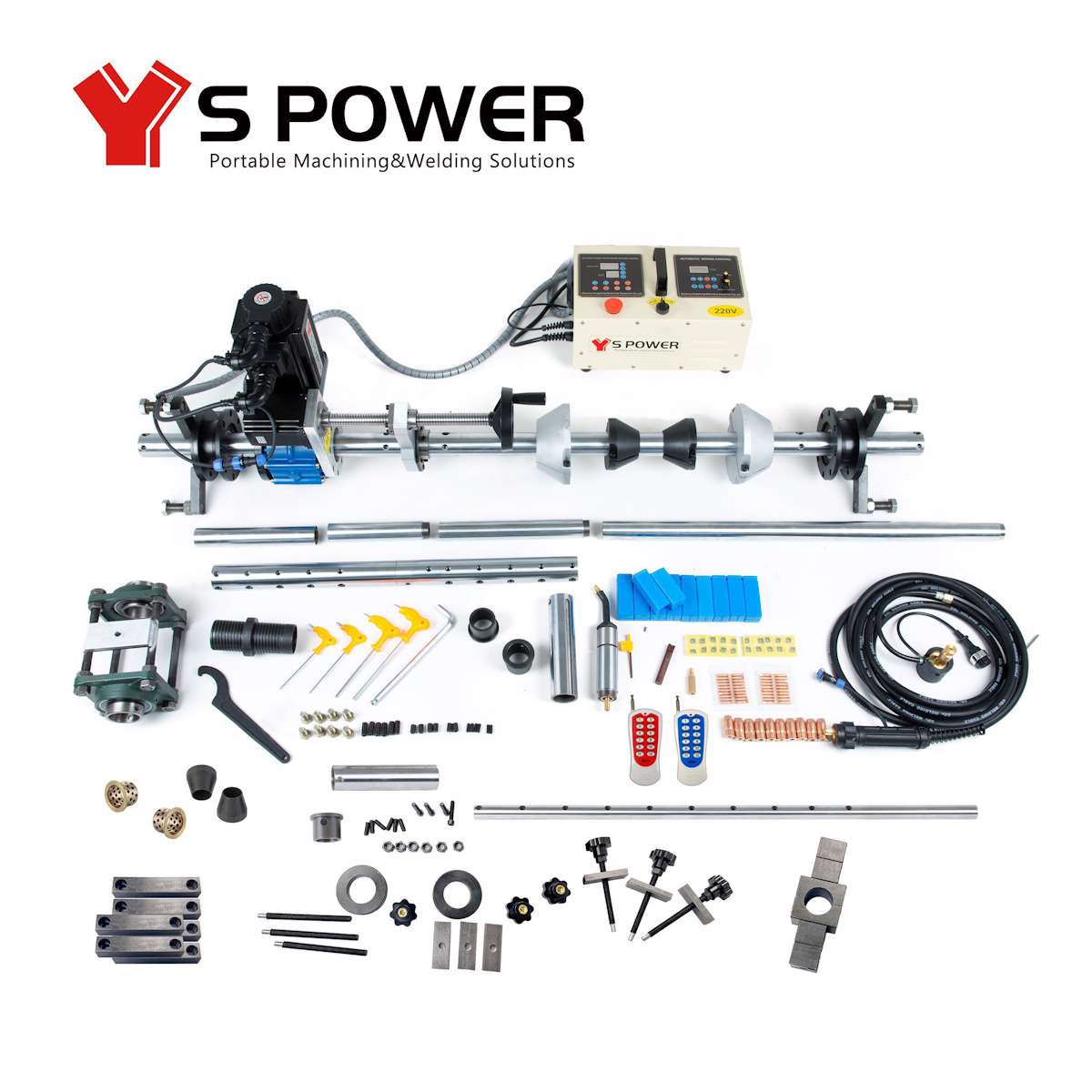

Standard Accessories:
Tool holder 300mm
Reducing sleeve
Axial feed unit
Welding Cable
Calipers
Welding converter head
Boring Bar 35*1200mm
Boring bar 50*1600mm
Welding bar 40*800mm; 40*350mm, 40*240mm, 40*200mm
Bearing bracket
Insert holders
Boring inserts
Allen wrench
Anti-vibration bracket
Welding extension
Protective nozzles
Conductive nozzle
Positioning auxiliary
Graphite copper sleeves
Short reducing sleeves
Centering cones 50
Centering cones 35
Hexagon socket screws
Bearing seat screws
Nuts
Optional Accessories:
Flange facing tool F50 120-300mm
Boring Bar 50 x 2500mm / 35 x 2000mm
Shipping Dimensions & Weight:
1st: 53*36*28cm, 31kg
2nd: 56*36*51cm, 18kg
3rd: 125*7*7cm, 12kg
4th: 165*7*7cm, 25kg
5th: 106*21*21cm, 68kg
