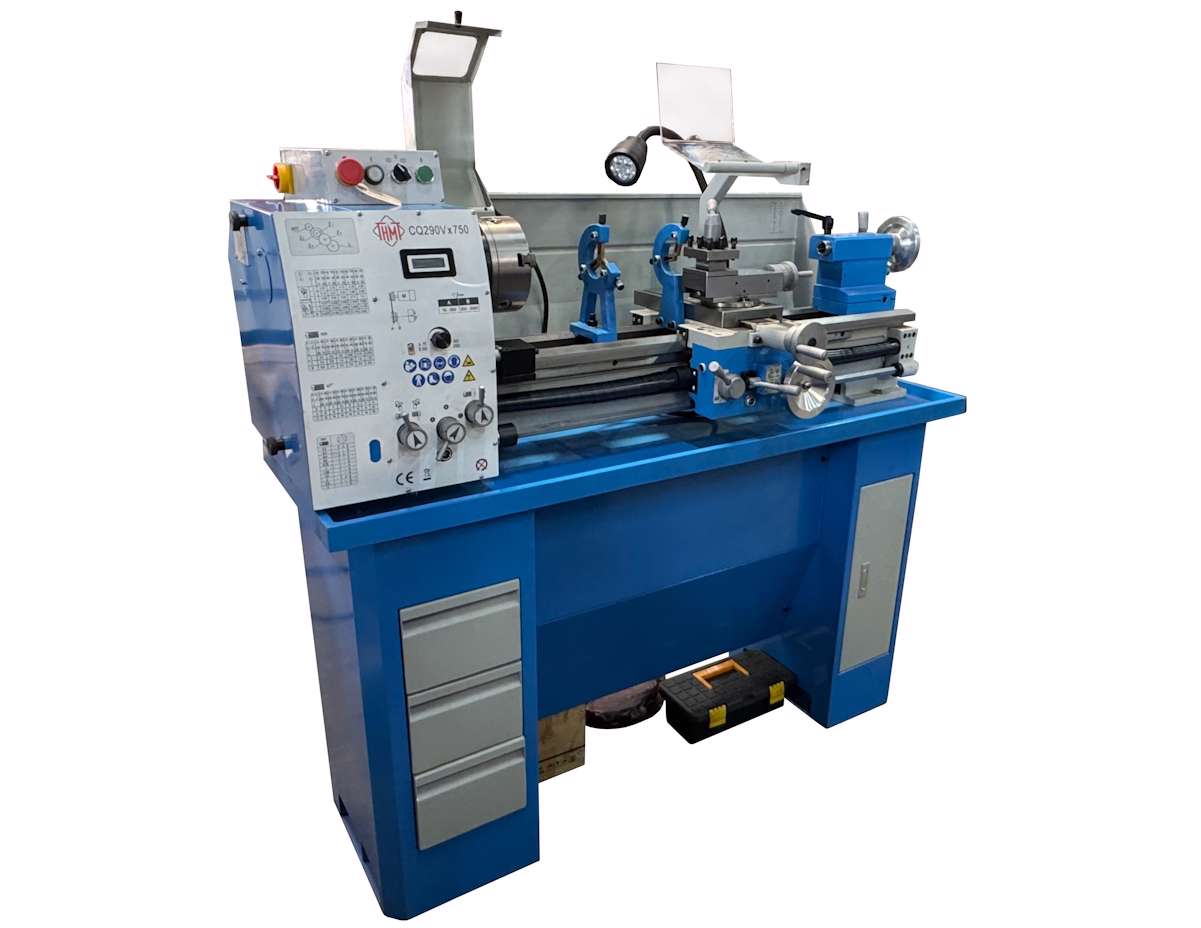

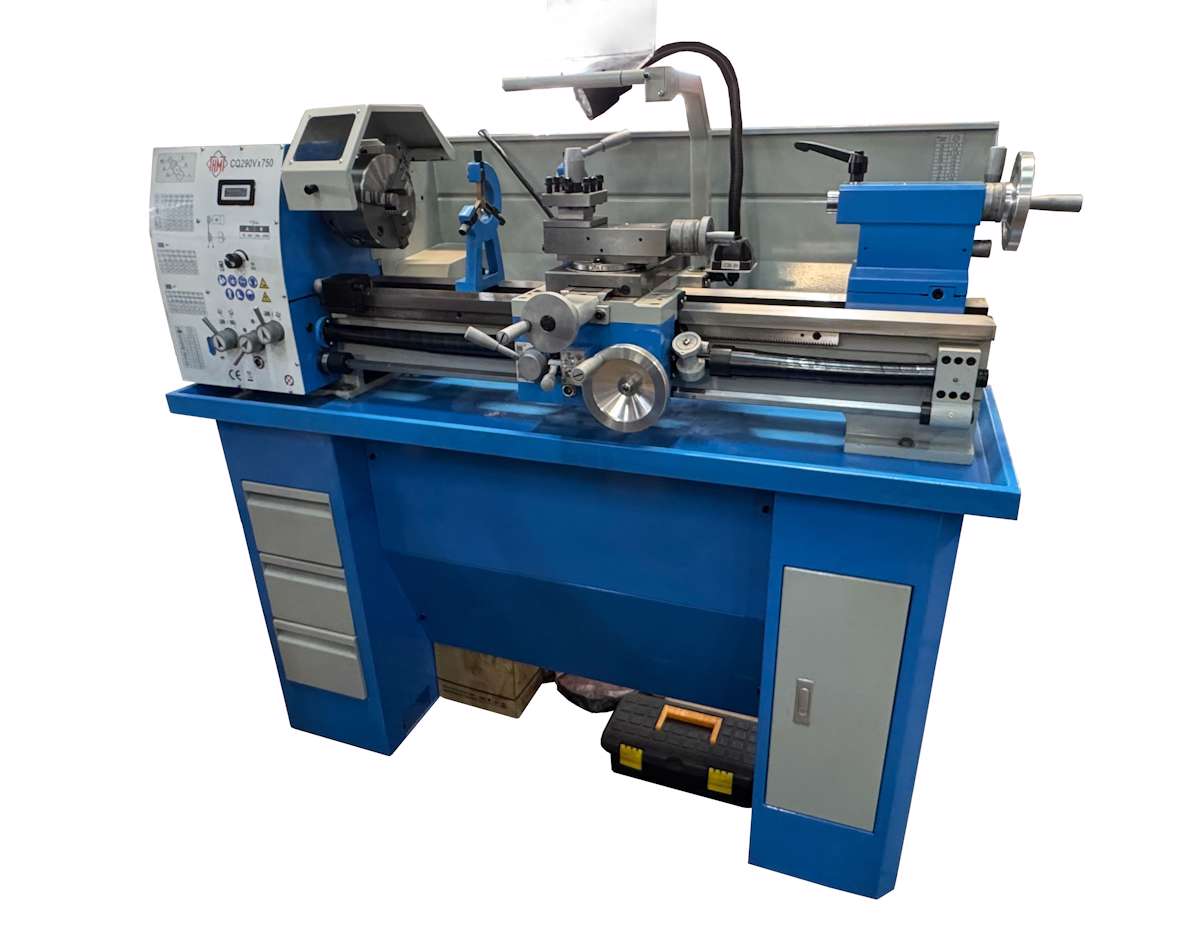

THMT CQ290V/750 Centre Lathe (14201)
New THMT CQ290V/750 Centre Lathe (14201)
750b/c, swing Ø290, bore Ø38, VFD
Availability: In Stock (TBC)
Price: R 59 900.00 excl.
Distance between centers: 750mm
Swing over bed: Ø290mm
Swing over cross slide: Ø185mm
Headstock spindle bore: Ø38mm
Tool post: 16x16mm
Tailstock spindle: MT3
Tailstock quill: Ø32mm
Tailstock quill travel: 80mm
Spindle speeds: 75-500/300-2000rpm, Delta VFD
Imperial Threads: 8~56TPI
Metric Threads: 0.2~3.5mm
Motor: 220V,1.5kW
Packing Dimensions: 1500 x 750 x 1350mm
Weight: 210kg
Standard Accessories
Ø160mm 3-jaw chuck
Ø160mm 4-jaw chuck
Fixed steady
Running steady
Change gears
Stand with drawers
LED worklight
Leadscrew cover
Tool post guard
Chuck cover
Thread chasing dial
Splash guard & chip tray
