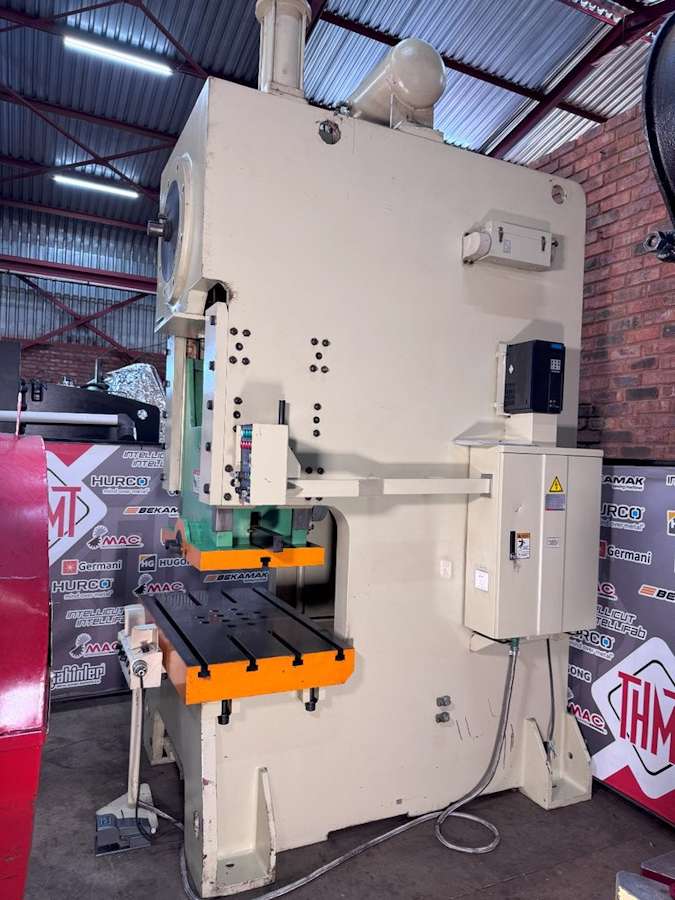

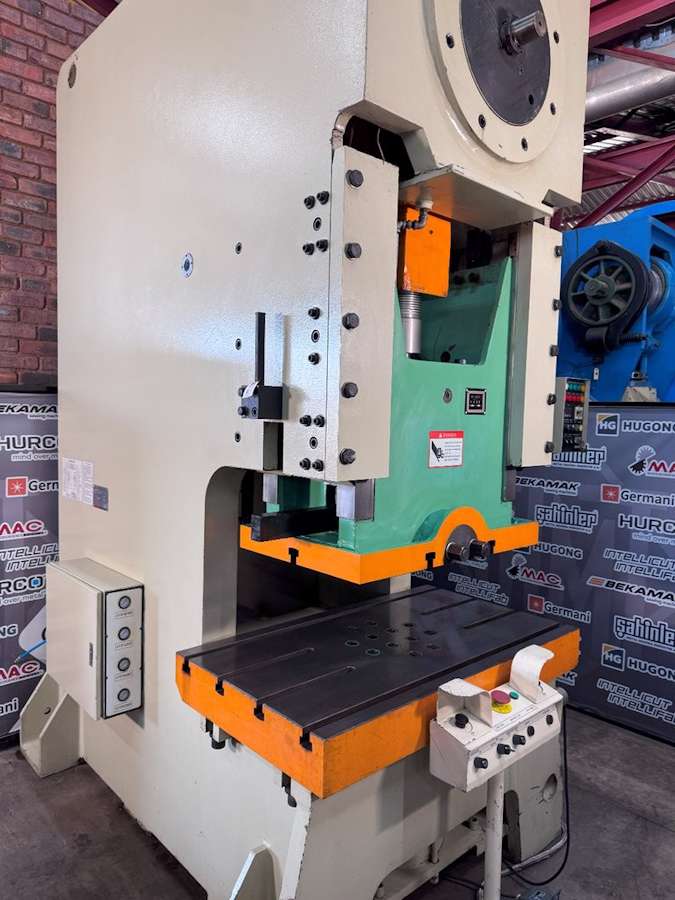

Yadon JL21-160 Eccentric C-Frame Press (14245)
Used Yadon JL21-160 Eccentric C-Frame Press (14245)
160 Ton, Adjustable Stroke, Air Clutch
Availability: Consignment (TBC)
Price: R 699 000.00 excl.
Like New!!
Year manufactured 2018
Tonnage 160 Ton

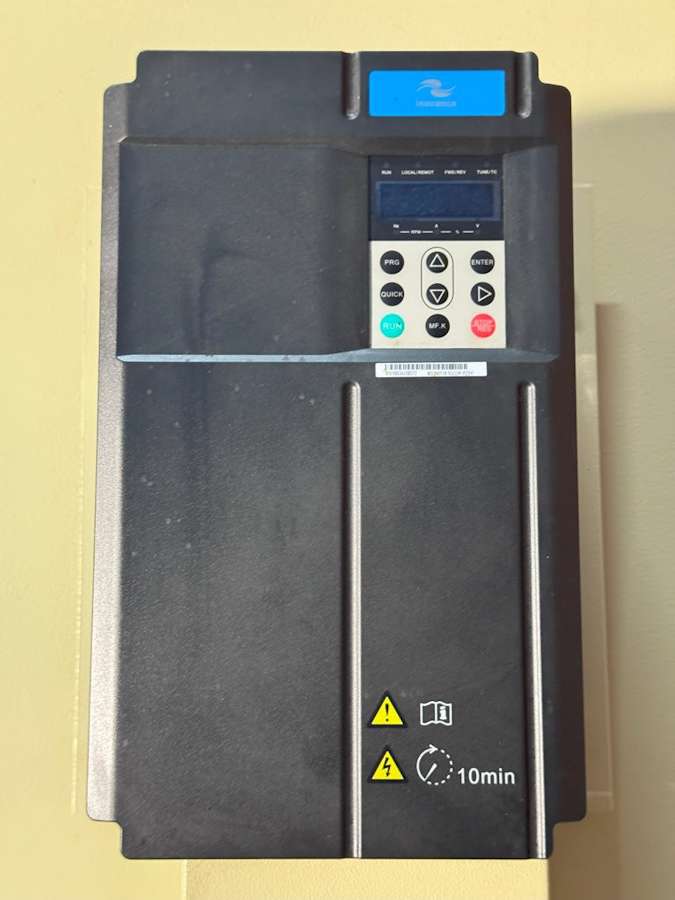

No of strokes per minute 35 - 55 (Variable Speed Motor)
Stroke adjustment 16.5mm – 160mm
Shut height adjustment (Motorized) 100mm
Maximum Die set height (Shut Height) 460mm
Maximum opening height (Daylight) 620mm
Depth of Throat 330mm

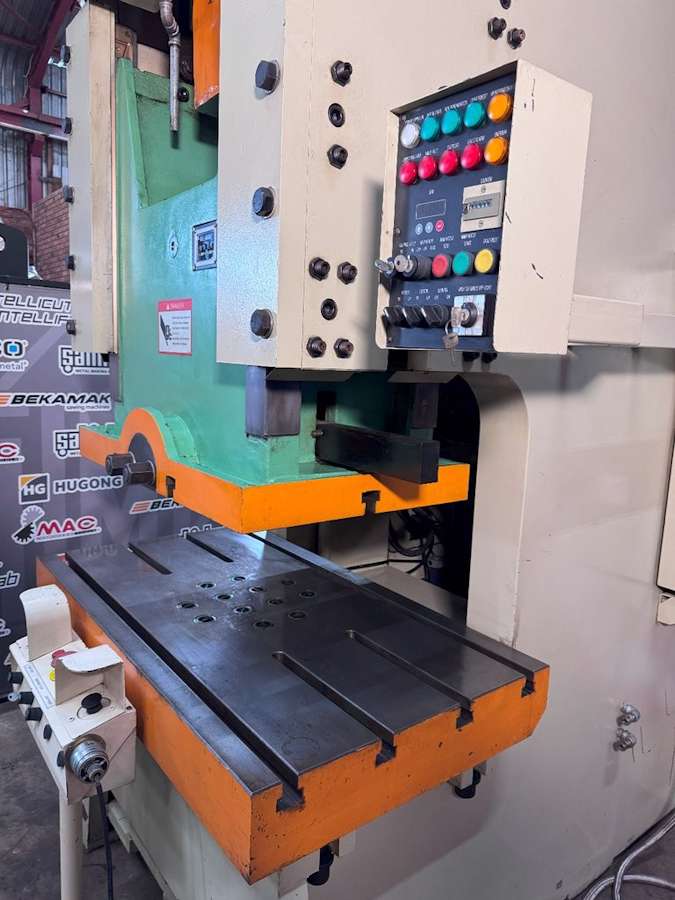

Worktable dimension 1200mm x 650mm
Distance between columns 690mm
Thickness of Bolster 180mm
Net weight 14300Kg
Main Structure Features:

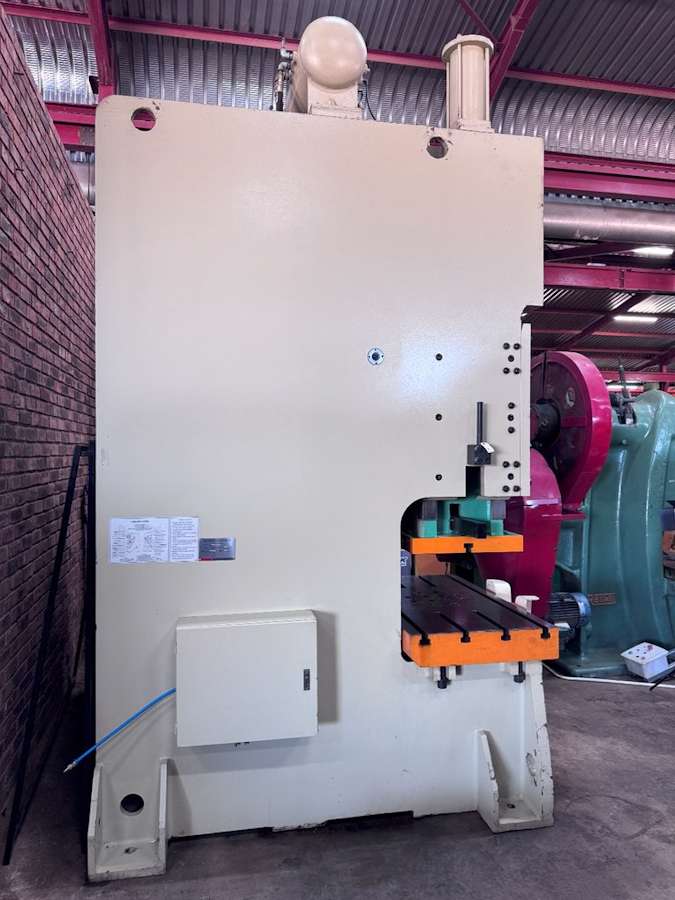

Rigid Steel welded frame
Adjustable stroke (Air assisted +/-20 – 30 seconds to change the stroke)
Guided on Eight sides to ensure high accuracy and precision, extending the life of the dies

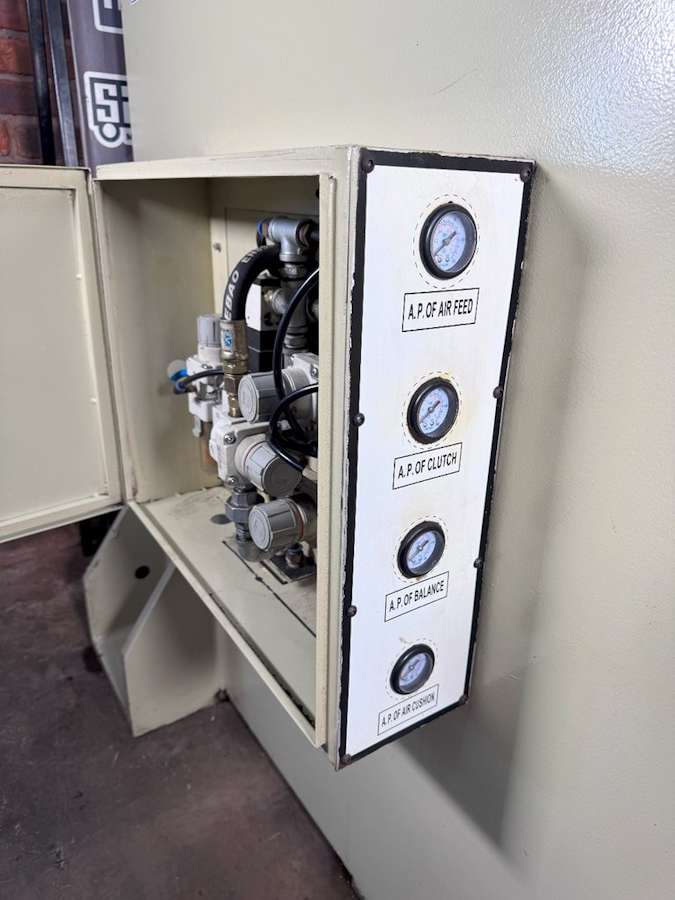

Pneumatic clutch – “OMPI” - imported from Italy
Automatic oil lubricator, to ensure smooth operation
Hydraulic overload protection device – “SHOWA” from Japan
Motorized shut height adjustment

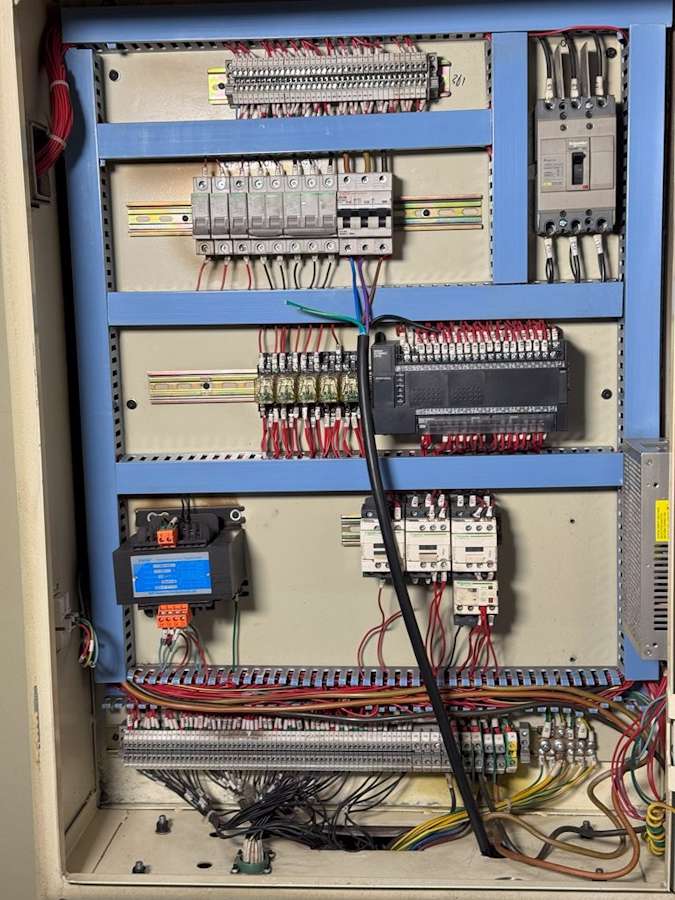

“OMRON” PLC electrical control system allows various feeders to be fitted according to the various requirements.

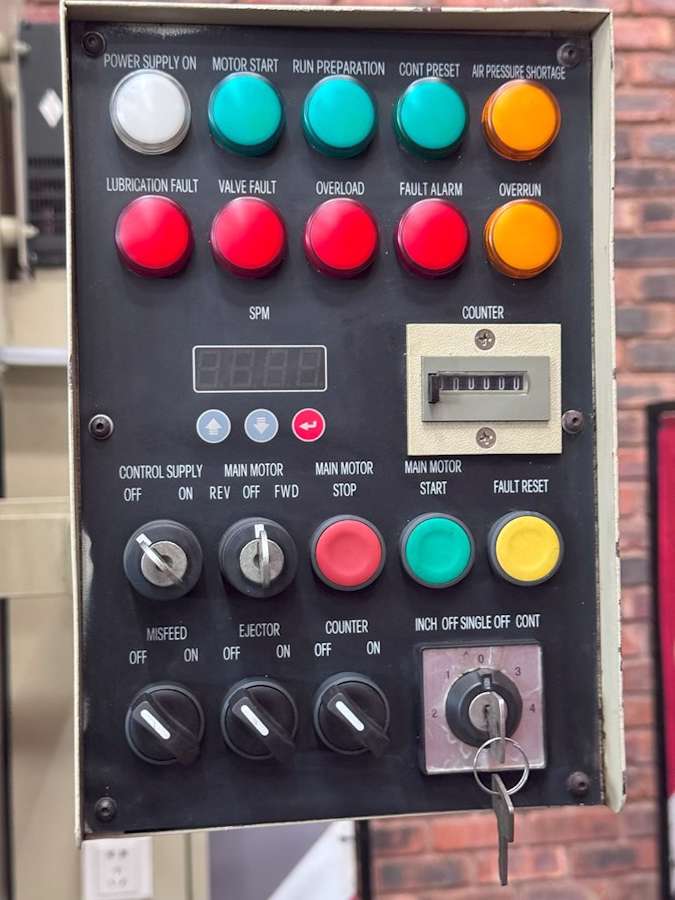

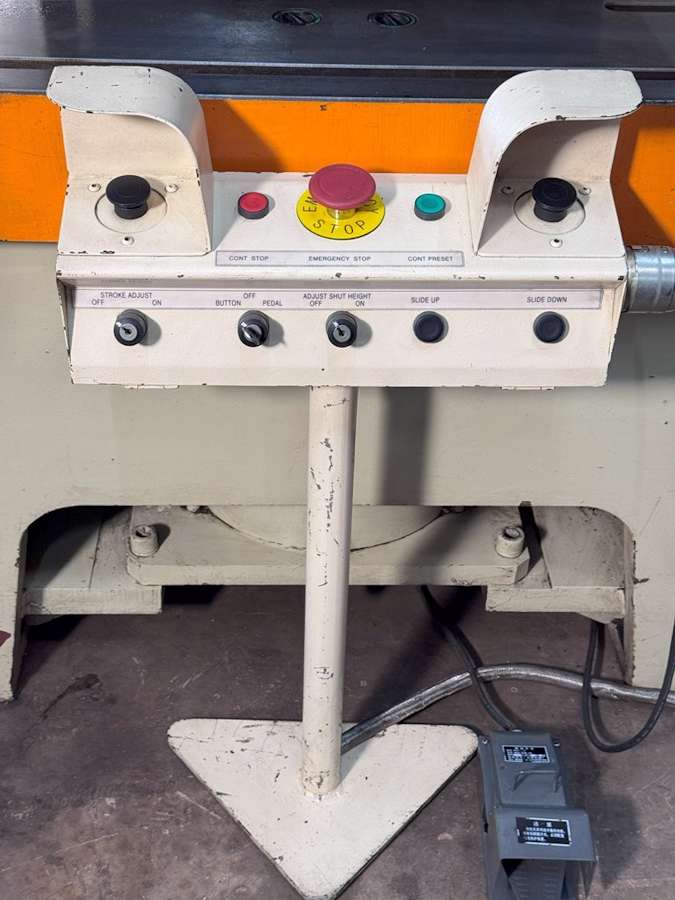

Emergency stop, inch, single and continuous stroke.
Gears run in an oil bath
Air cushion is a standard accessory
