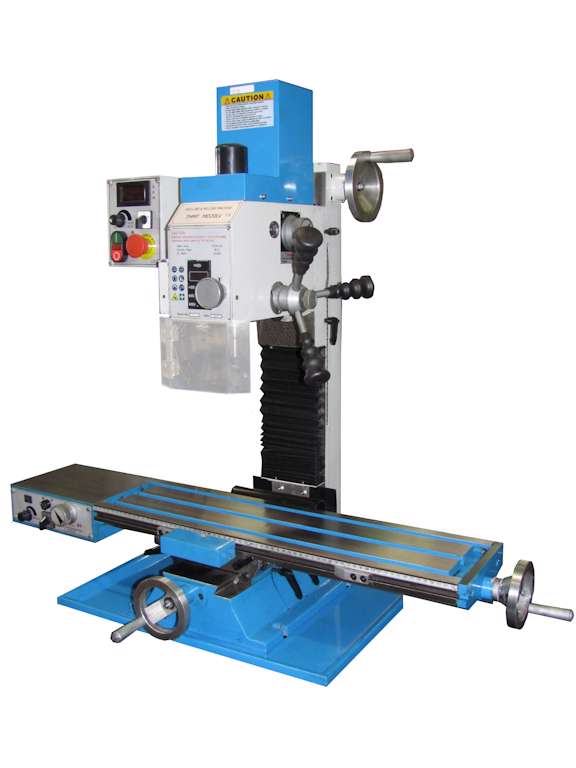

THMT MD20LVPF Mill & Drill Milling Machine (3784)
New THMT MD20LVPF Mill & Drill Milling Machine (3784)
MT2, Bed 700 x 180, Variable Speed, 1 x powerfeed
Availability: In Stock (TBC)
Price: R 35 500.00 excl.
Bed size: 700 x 180mm
Longitudinal travel: 480mm
Cross travel: 175mm
Longitudinal auto feed
Spindle taper: MT2
Max spindle to table distance: 380mm
Drilling Capacity: 20mm
End Milling capacity: 16mm
Spindle travel: 50mm
Spindle speed: 50~2250rpm
Spindle motor: 600W 220V
Head tilt left & right: ±45°
Weight & Dimensions
Dimensions: 870x550x860(LxWxH)
Weight: 113kg
