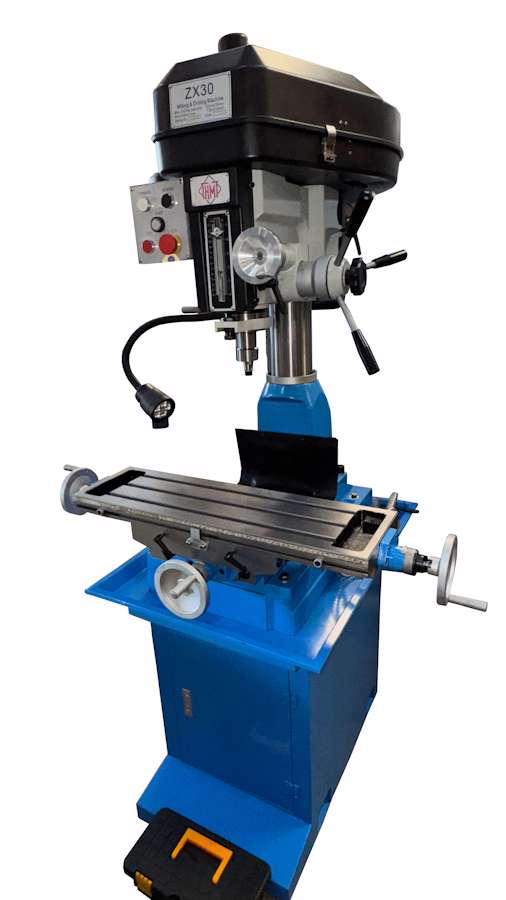

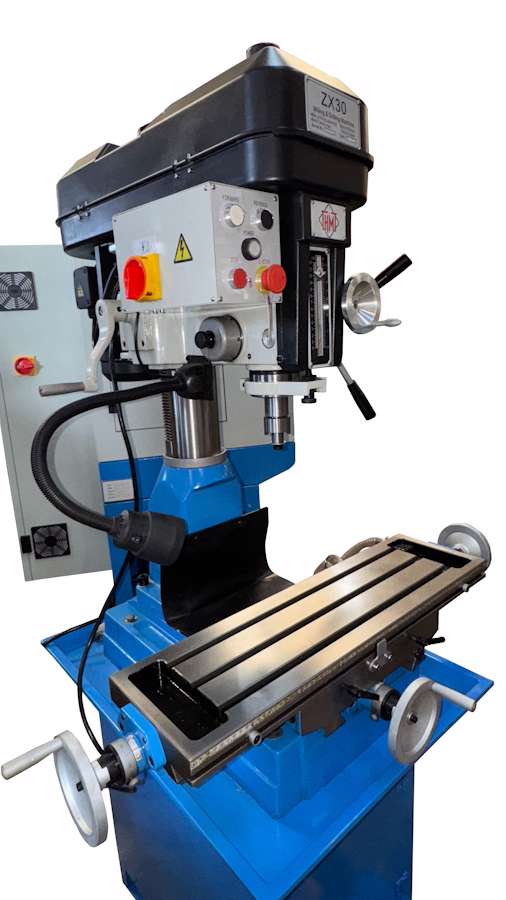

THMT ZX30 Mill & Drill Milling Machine (14199)
New THMT ZX30 Mill & Drill Milling Machine (14199)
R8, Bed 730 × 210
Availability: In Stock (TBC)
Price: R 36 600.00 excl.
Bed:
Bed size: 730 x 210mm
Bed travel: 500mm
Cross travel: 210mm
Approx max workpiece weight: 120kg
Spindle
Spindle taper: R8
Max spindle to table distance: 440mm
Drilling: 25mm
Spindle travel: 120mm
Spindle speed: 100~2080rpm
Spindle motor: 1.5kW
380V / 220V
Weight & Dimensions
Dimensions: 1150 x 760 x 1700(LxWxH)
Weight: 280kg
Standard Accessories:
Sheetmetal base with chip tray
LED worklight
Drawbar
