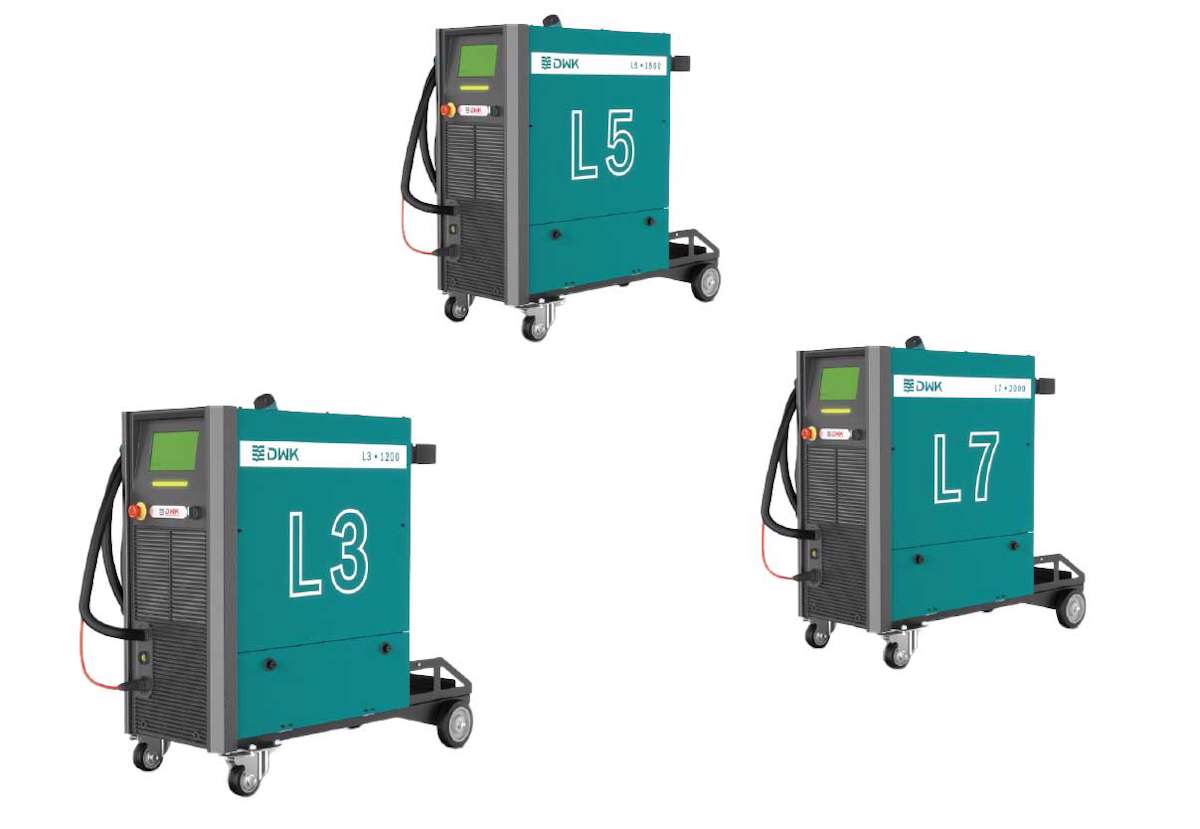

DWK L5-1500 Laser Welding Machine (13851)
New DWK L5-1500 Laser Welding Machine (13851)
1500W, Single wire feeder, Air-cooled, 220V
Availability: In Stock (TBC)
Price: R 109 000.00 excl.

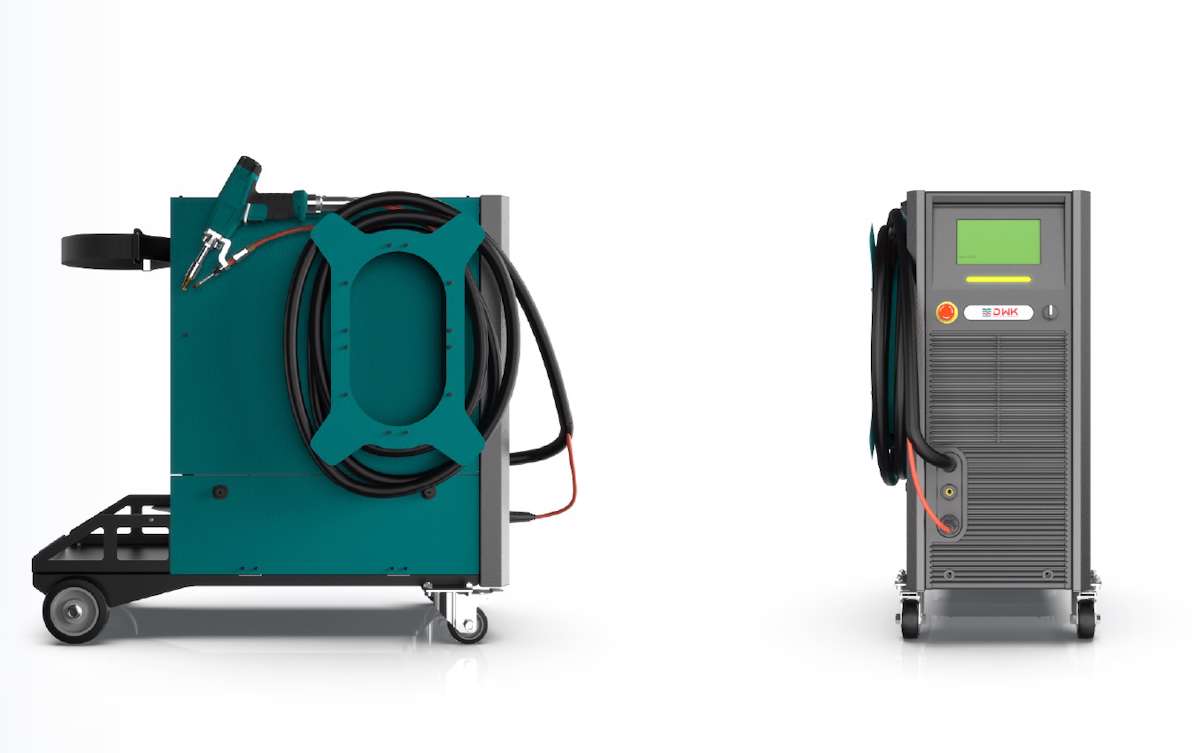

DWK L5-1500W Laser Welding Machine
Standard built-in single wire feeder design
STABLE
Thanks to the integrated temperature cooling and welding gun insulation material, the heat generated during long-term use is minimal and the machine does not stop.
PORTABLE
Integrated design, plug and play, lightweight design, easy to transport and carry.
GENERIC
Integrated design of cooling, wire feeding, welding gun and other functions, small footprint and higher work efficiency
User Friendly
The design of the welding gun and touch screen is ergonomic, which can effectively reduce operating fatigue and improve welding consistency.
The optical fiber part adopts advanced optical transmission technology and is composed of high-quality optical fiber materials to ensure that laser energy can be transmitted to the welding area in a highly stable and low-loss manner.
The gas pipe is used to guide protective gas, surround the welding area, reduce the presence of oxygen, thereby preventing oxidation and other adverse reactions and improving welding quality.
Specifications:
Dimensions（mm): 900x395x840
Storage temperature（℃): -10℃~60℃
Operating voltage（V): 220V±10%
Operating frequency（Hz): 50Hz/60Hz
Rated output power （w): 1500W
Maximum output power（w): 1530W
Maximum power（KW): 4.5KW
Supply voltage: 220V
Operating mode: Continuous/Modulated
Center wavelength（nm): 1070
Power adjustment range（%): 10~100
Output power fluctuation（%): 2
Excellent beam quality: <1.1
Power consumption（w): ≤2200（≤DC48V46A)
Cooling mode: Air cooling
Operating temperature（℃): -10℃~40℃
Operating humidity: <70%
Output interface: QBH or QCS
Output cable length (m): 3~5
Cable bending radius（cm): ＞15
Output fiber core diameter (um): 25
Output mode: Continuous or discontinuous
Control mode: Touchscreen/Button/Knob
Quality reliability: Military-grade design
High power stability: <2%
Continuously Adjustable Power, Rapid Switching Response: 10us
Electro-Optical Conversion Efficiency (%): >30%
Modulation frequency MAX: 50kHz
Fiber optic cable length (m): 10
Gas pressure（Mpa): ≤0.7
Core component: Laser source, laser weldinghead, control panel, automatic wire feeder, consumable pack (item 13850)
Welding Capacity:
Single side welding penetration
Stainless Steel: 4mm
Carbon Steel: 3mm
Galvanized sheet: 3mm
Aluminium: 3mm
Double-sided welding penetration
Stainless Steel: 7.2mm
Carbon Steel: 5.4mm
Galvanized sheet: 5.4mm
Aluminium: 5.4mm
