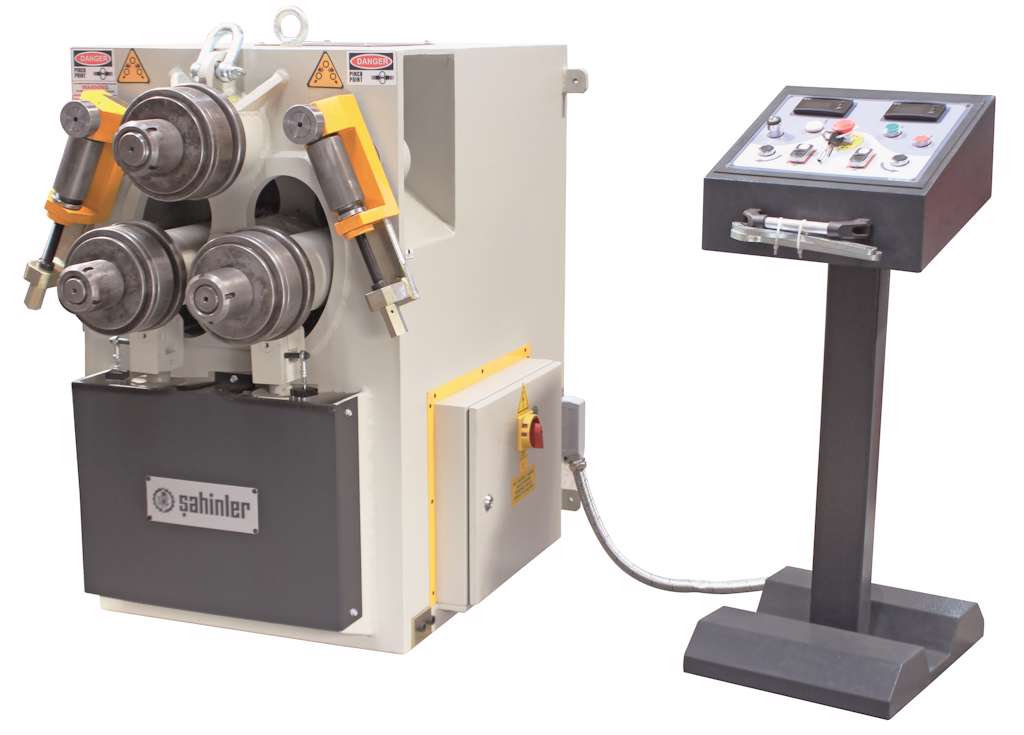

Sahinler HPK 65 Hydraulic Section Bender (1537)
New Sahinler HPK 65 Hydraulic Section Bender (1537)
Flat bar (easy way): 80 x 20 @ 500 Ø
Availability: In Stock (TBC)
Price: R 318 700.00 excl.
Technical Specifications
Upper roll shaft: 60 mm Ø
Bottom rollers shaft: 50 mm Ø
Roll diameter: 180 mm Ø
Working speed: 5 m/min
Motor Power: 3 kW
Dimensions: 1200 x 850 x 1200 mm
Weight: 1000 kg
Flat bar (flange): 60 x 10 @ 500 Ø / 20 x 5 @ 250 Ø (Standard rolls)
Flat bar (easy way): 80 x 20 @ 500 Ø / 50 x 5 @ 250 Ø (Standard rolls)
Square Bar: 32 x 32 @ 400 Ø / 12 x 12 @ 250 Ø (Standard rolls)
Round bar: 35 @ 350 Ø / 10 @ 250 Ø (Optional rolls)
Round Tubing: 60 x 2 @ 600 / 15 x 1,5 @ 200 Ø (Optional rolls)
Rectangular Tubing: 50 x 25 x 3 @ 450 Ø / 20 x 15 x 2 @ 250 Ø (Optional rolls)
Square tubing: 45 x 3 @ 600 Ø / 20 x 2 @ 300 Ø (Optional rolls)
Angle Iron (Toe out): 60 x 60 x 6 @ 650 Ø / 30 x 30 x 4 @ 350 Ø (Optional rolls)
Angle Iron (Toe in): 50 x 50 x 5 @ 550 Ø / 30 x 30 x 4 @ 350 Ø (Optional rolls)
Standard Accessories
Steel construction welded frame
3 rolls are powered
Hardened and ground shafts are made of high tensile special steel
Rolls are hardened and ground
Horizontal and vertical working position
Hardened standard rolls
Mobile control panel
3 Axis mechanical lateral angle guide rolls
Brake motor equipped for precision bending
Digital read-outs (2 pcs)
Optional Equipment
Pipe, tube and profile bending rolls
Automation with NC control
