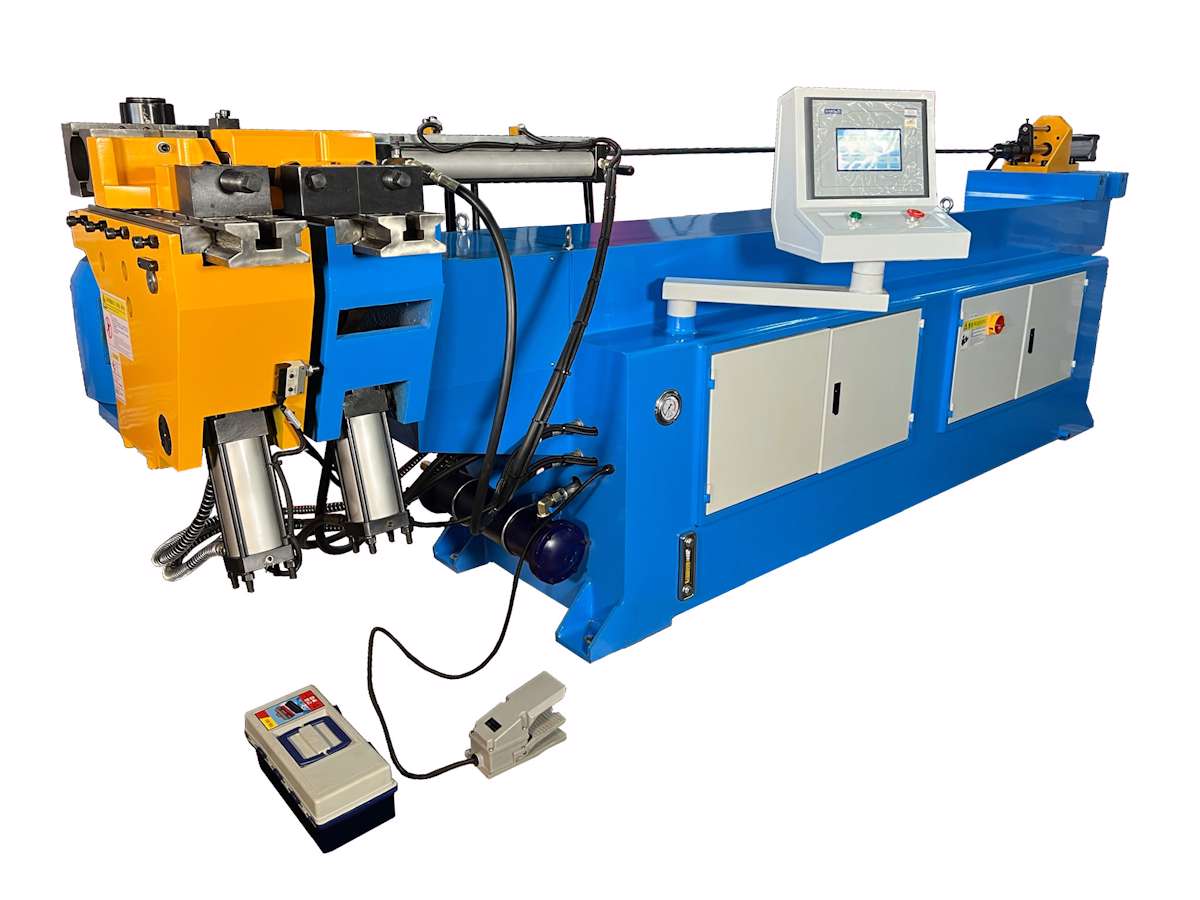

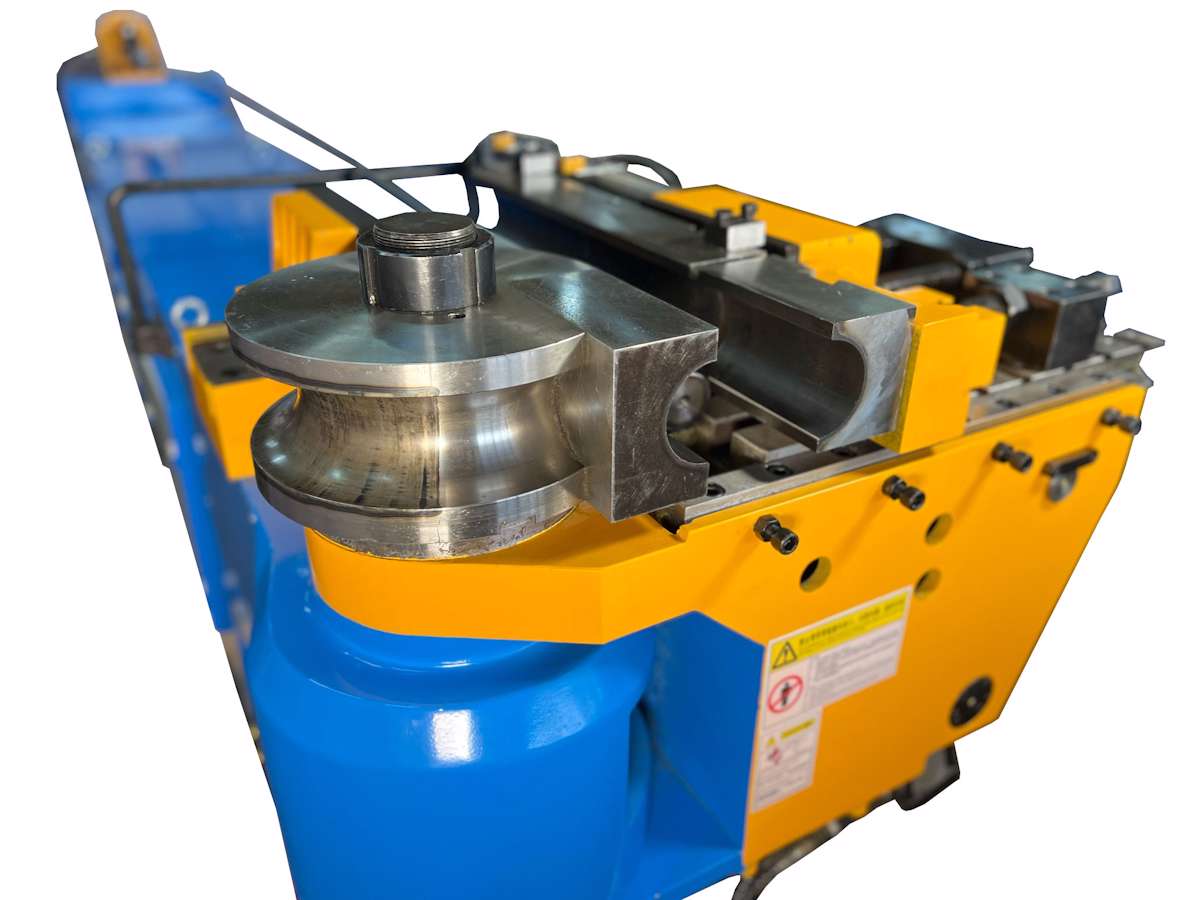

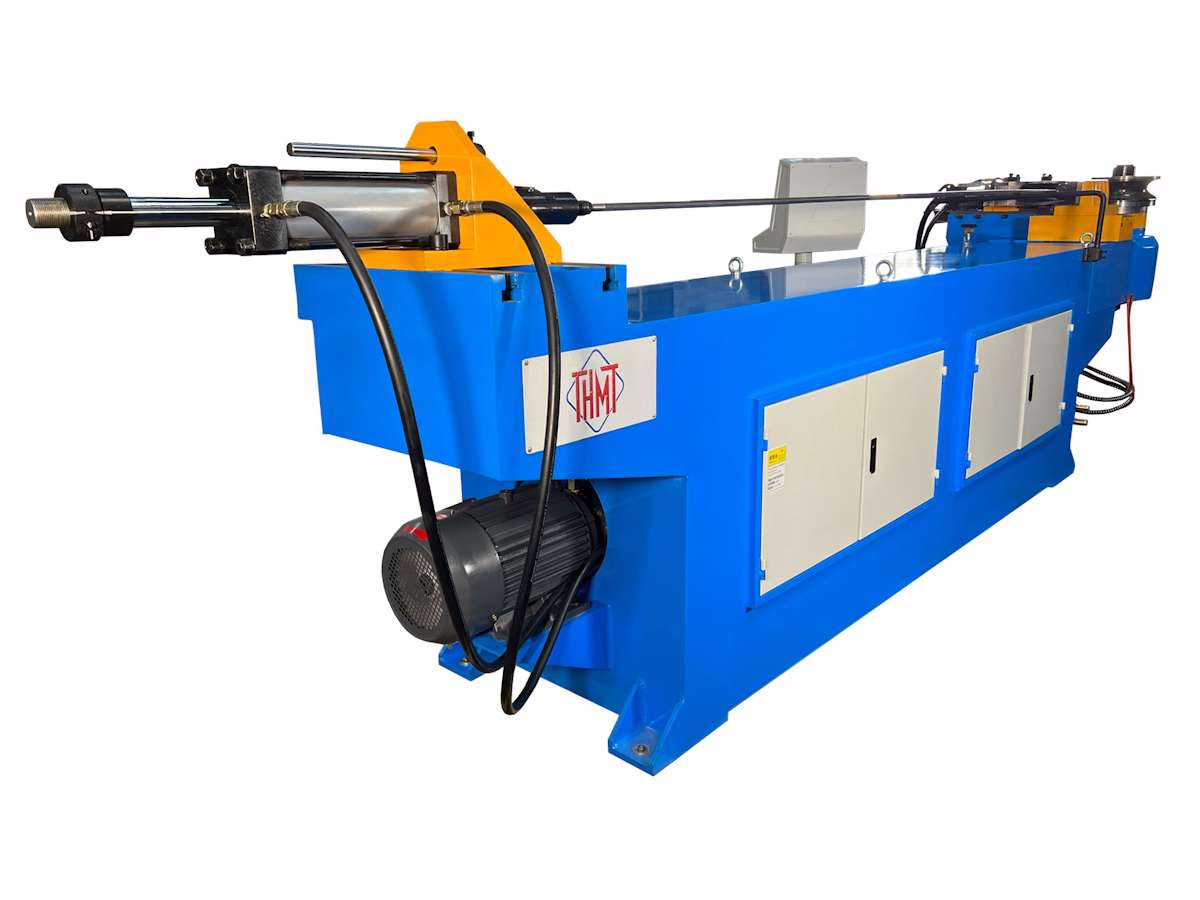

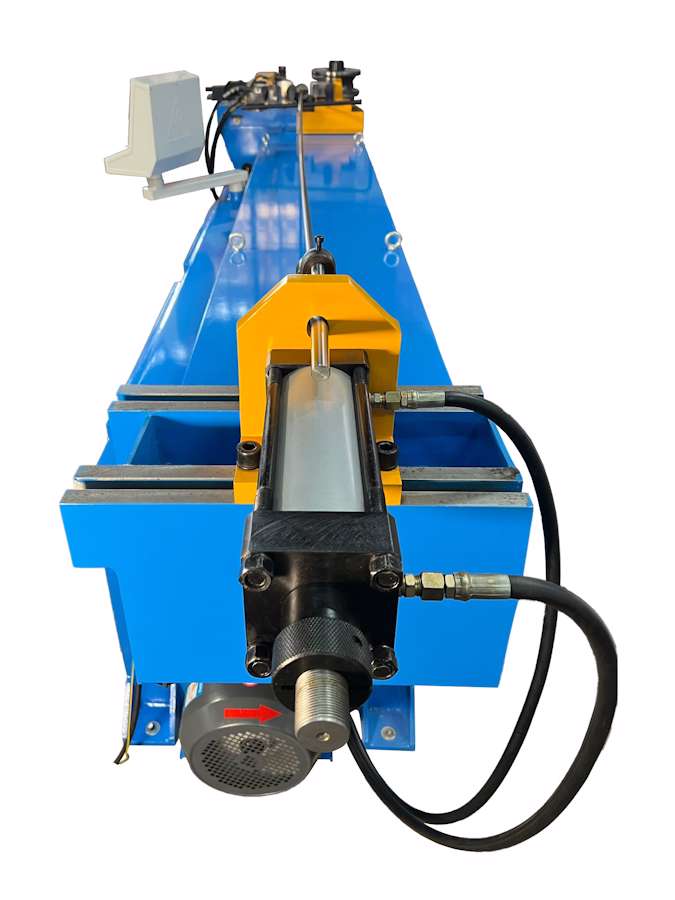

THMT DW89NC Mandrel Pipe Bender (8788)
New THMT DW89NC Mandrel Pipe Bender (8788)
Ø89 x 3, 1-axis NC
Availability: Ex-import
Price: POA

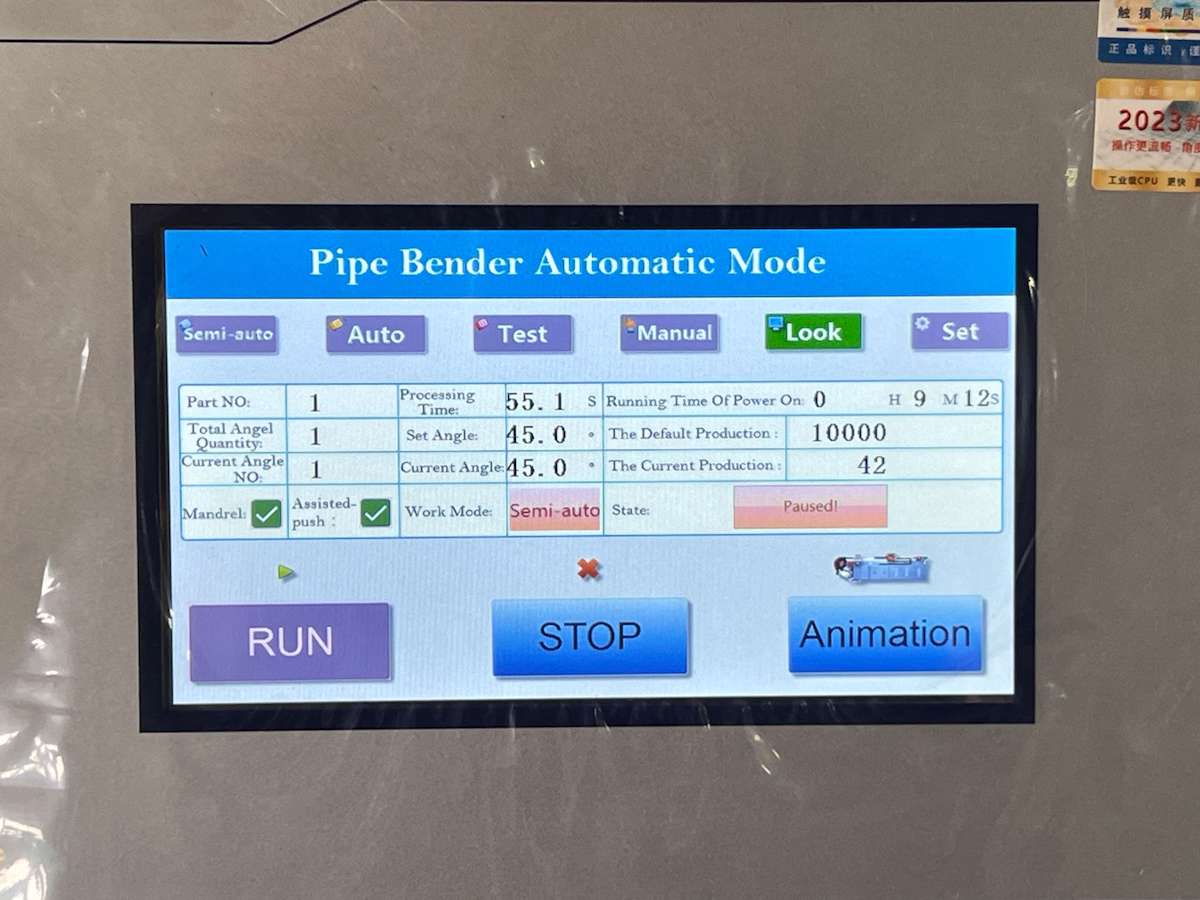

Our DW-NC 1-Axis NC tube bending machines are built for high accuracy in a production environment, equipped with touchscreen NC control offering sixteen programmable bends.
Standard Configuration:
Operation: Auto bending / Manual feeding / Manual rotation.
Single head hydraulic pipe bending machine
Max. Diameter × wall thickness (mm):: Φ89×3.0t
Max. Bending radius (mm): R350
Max. Bending angle: 185°
Standard length over mandrel (mm): 3500
Control system: NC
Max. numbers of bends: 16
Hydraulic motor power (Kw): 15
Max. System pressure (Mpa): 14
Hydraulic system control: Electromagnetic valve
Tank capacity (L): 150
Overall Dimension (mm): 470×110×145
Weight (kg): 2900
Standard Accessories:

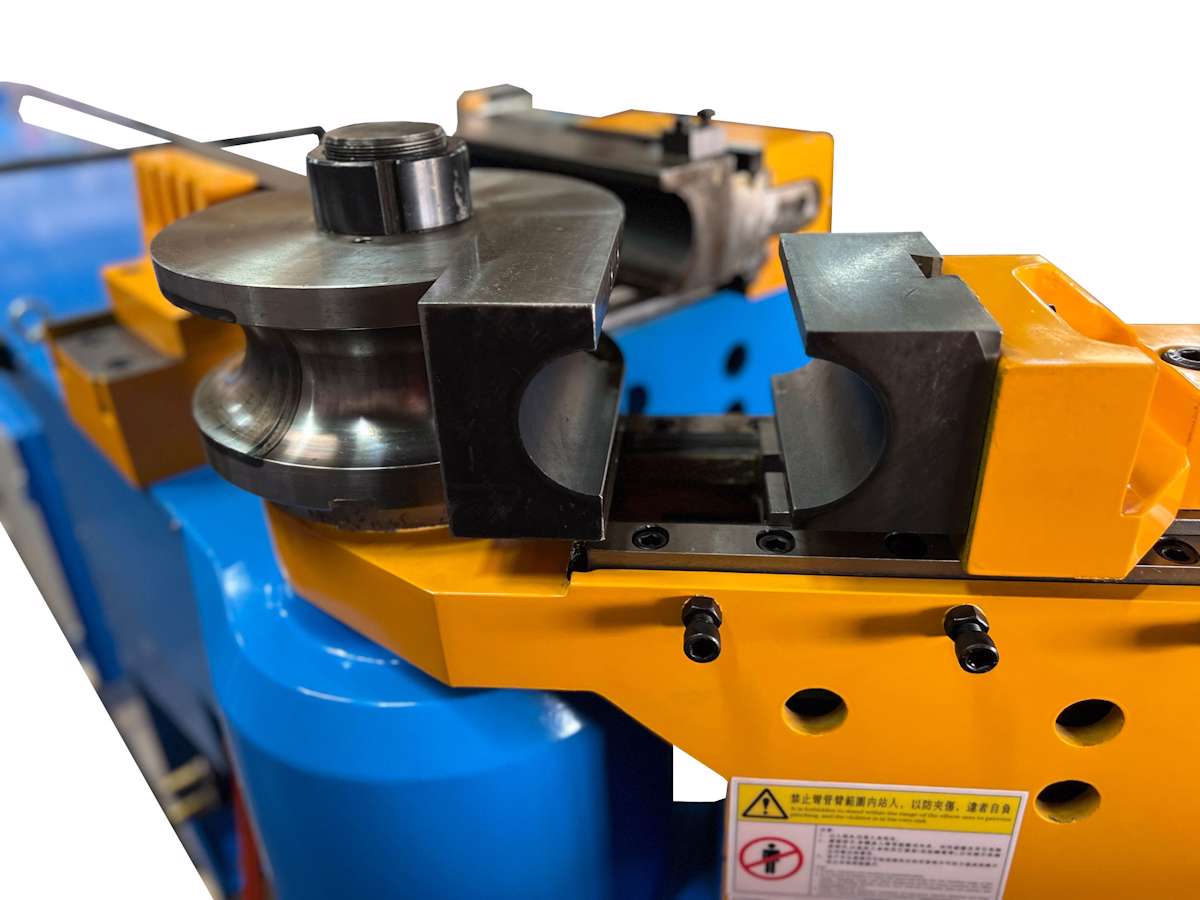

1 set of bending dies.
Optional Accessories:
Additional bending dies as per tube size and required bending radius.
Min. Bending radius (CLR) should be more than 1.8D of pipe diameter.
Max. Bending radius and length over mandrel according to customers’ requirements.
