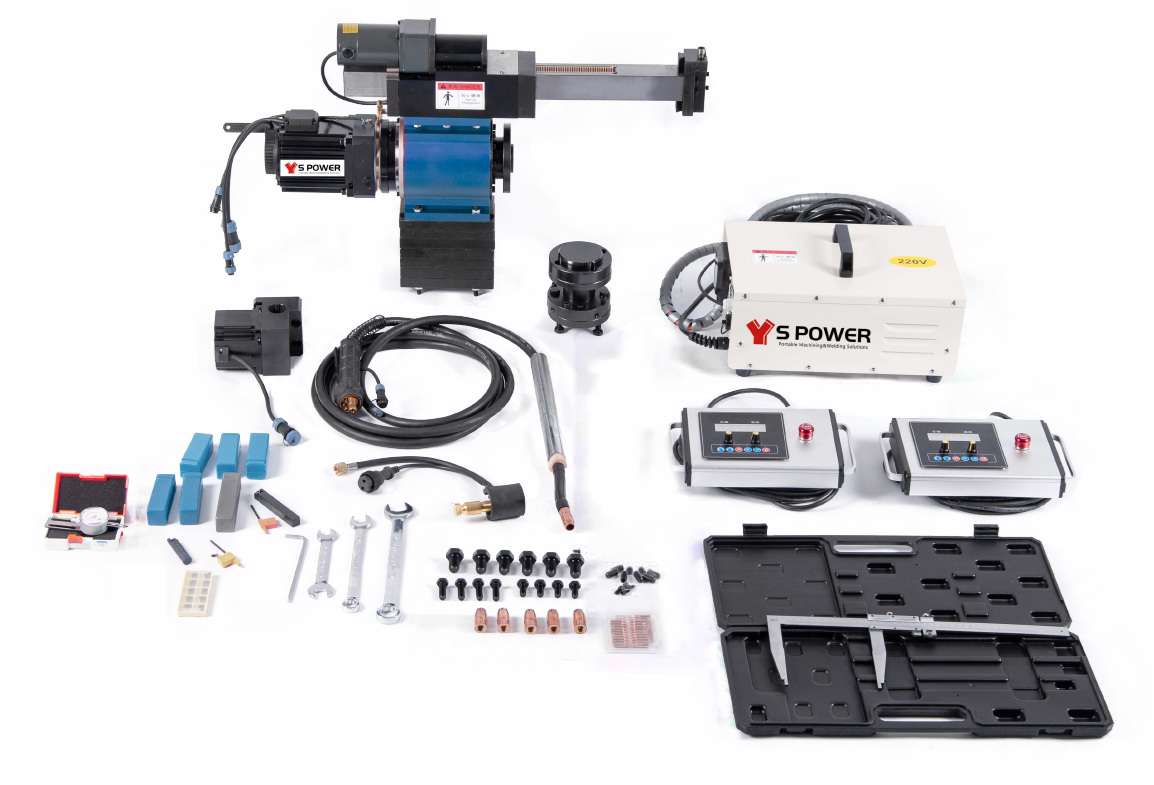

Portable shaft lathe is Portable, Easy to Installation and easy to Operate. This Powerful tool can easy carry out different shaft repair work on site. Modular design, quick assembly and disassembly. Servo motor provides reliable power. Flexible turning tool installation with shaft turning, welding and threading capabilities. Shafts can quickly be repaired on site, reducing the disassembly and transportation costs of the equipment and shorten the maintenance time. Such as construction machinery and mining machinery, transportation vehicles etc.
Features:
Shaft turning
Shaft welding
Shaft threading
Specifications:
Working range: 60-230mm
Voltage: 220V
Frequency: 50-60Hz
Max working length: 300mm
RPM: 0-150RPM
Servo motor power: 1.8kW
Torque: 52N.m
Speed mode: Stepless speed
Lathe feeding motor: 150W Brush motor
Weld feeding motor: 150W Stepper motor
Axial feeding length: <300mm
Cutting thickness:1.5mm
Surface roughness: 3.2
Ovality tolerance: 0.02mm
Taper tolerance: 200/0.03mm
Weight: 44kg
Components:
Tool holders
Axial feeding motor
14*14 Inserts holder
Axial feeding arm base
Workpiece
Axial feeding arm
Welded flange
Servo Motor
Alignment block
Gearbox
Counterweights
Gearbox housing
