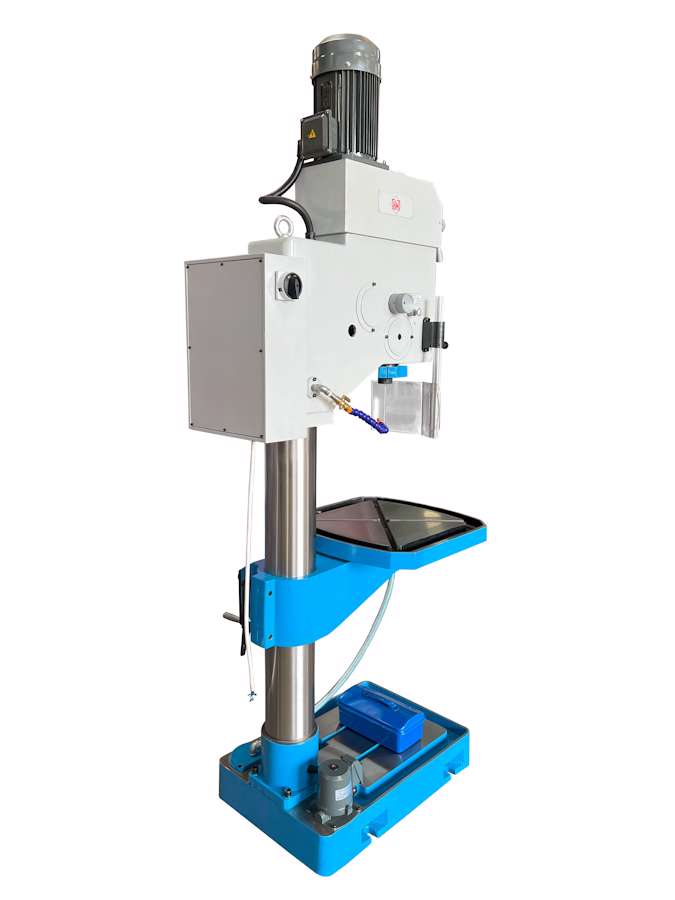

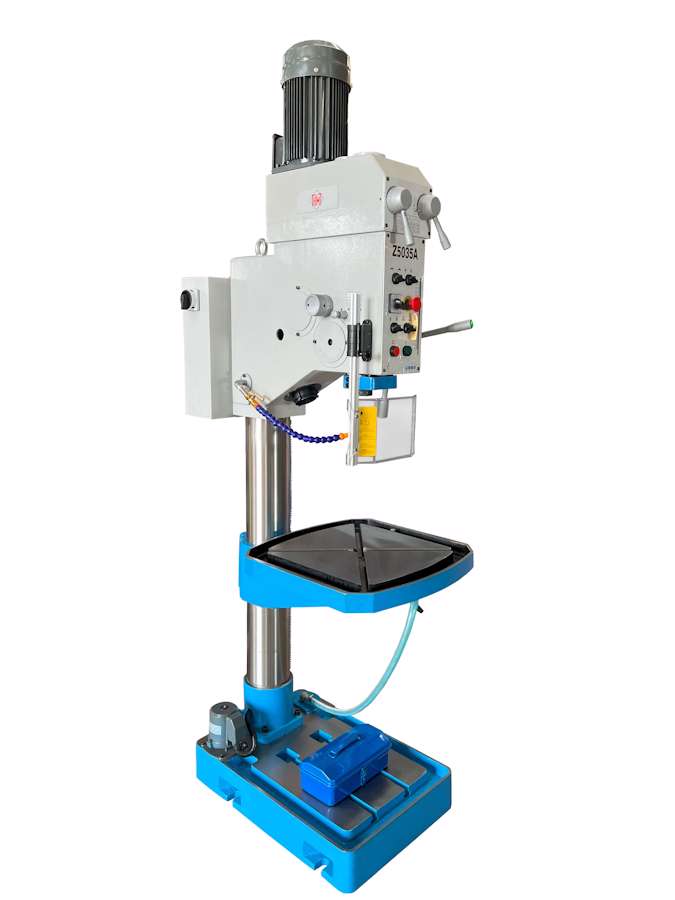

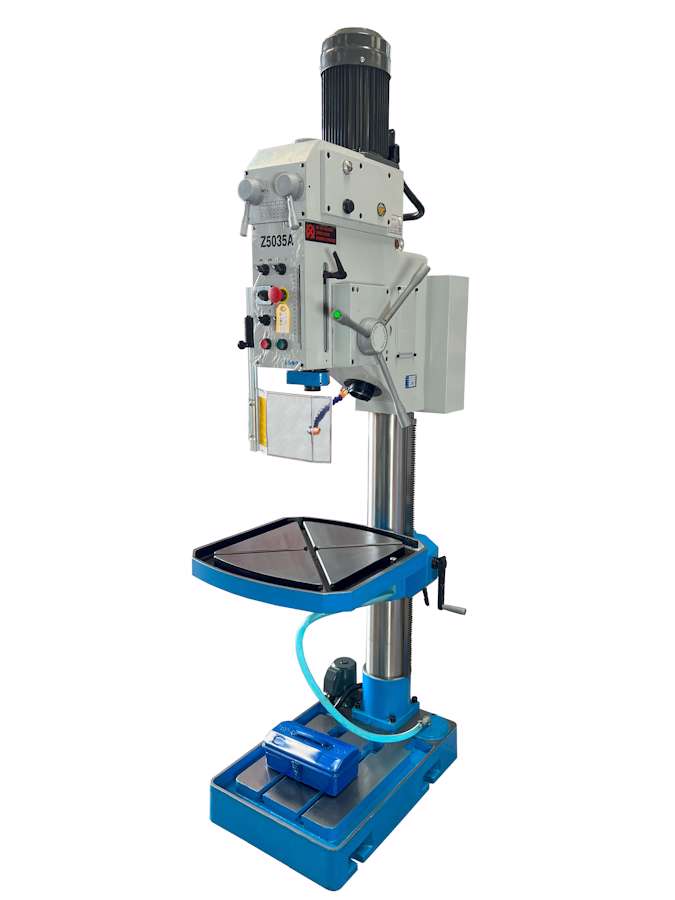

THMT Z5035A Geared Head Drilling Machine (38)
New THMT Z5035A Geared Head Drilling Machine (38)
MT4, 35mm; Auto feed, 1.5kW
Availability: In Stock (TBC)
Price: R 79 900.00 excl.
Specifications:
Max Ø Drilling: 35mm
Max Ø tapping: M24
Throat: 330mm
Daylight - table: 610mm
Daylight - base: 1150mm
Spindle travel: 150mm
Work table swivel: ±45°
Taper of spindle bore: 4 Morse
Spindle speed steps: 12 steps
Spindle speed range: 70, 105, 150, 225, 310, 390, 480, 600, 850, 1250, 1700, 2600 r/min
Spindle feed steps: 3 steps
Spindle feed range: 0.01, 0.2, 0.3 mm/r
Column Ø: 140mm

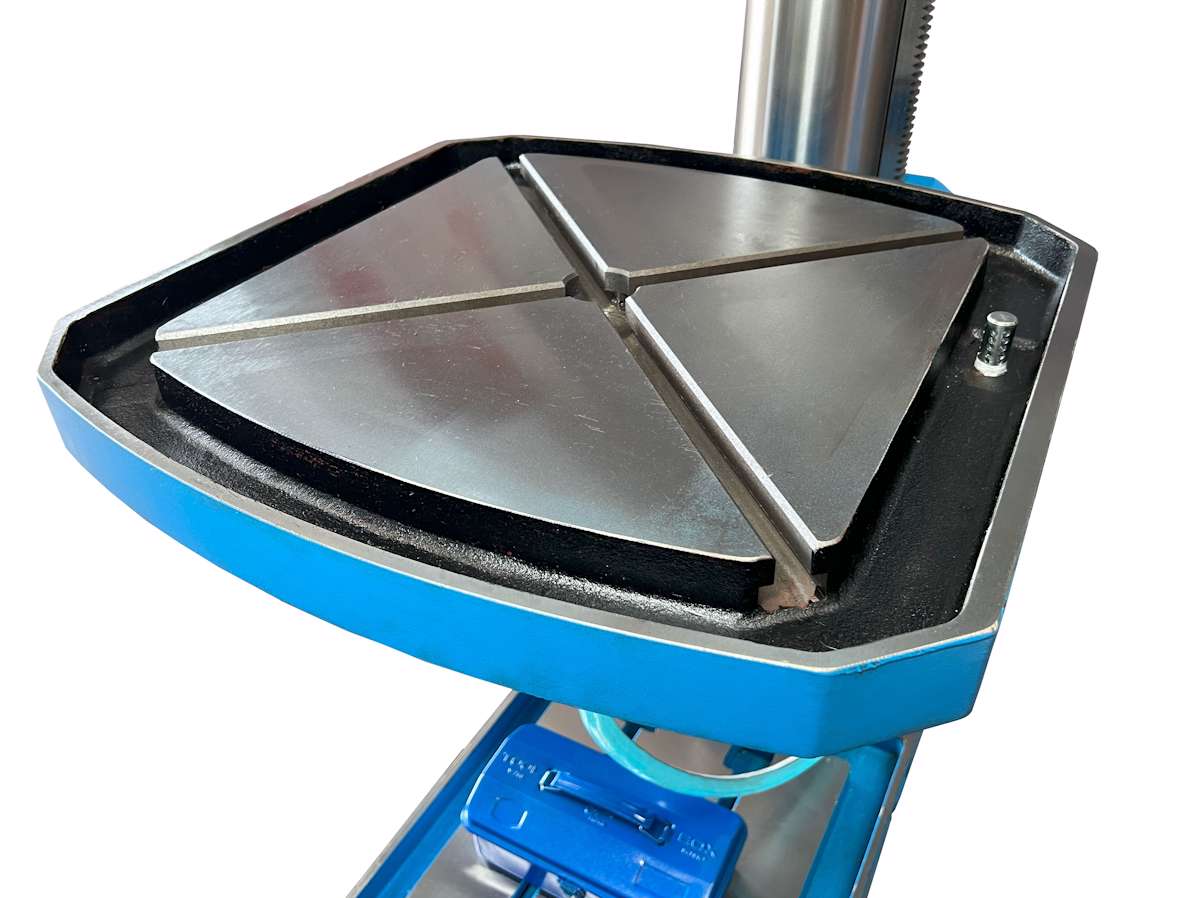

Effective working area of table: 420x420mm
Effective working area of base: 420x380mm
Work table and base T-slot: 2-14, 2-16 mm
3-phase 2-speed AC Motor: 0.85/1.5kW, 380V, 960/1450 r/min
3-phase electrical pump: 0.085kW, 380V, flow rate = 6 L/min
Electromagnetic clutch: 0.024kW, 24V
Machine dimension(LxWxH): 950x570x2220mm
Machine Weight: 730 Kg
Standard features:
Geared Head
Auto feed
Forward reverse tapping function
Coolant pump
Work light
Standard Accessories
Halogen lamp,Drill chuck, Reduction Sleeves, Arbor, Spanners
