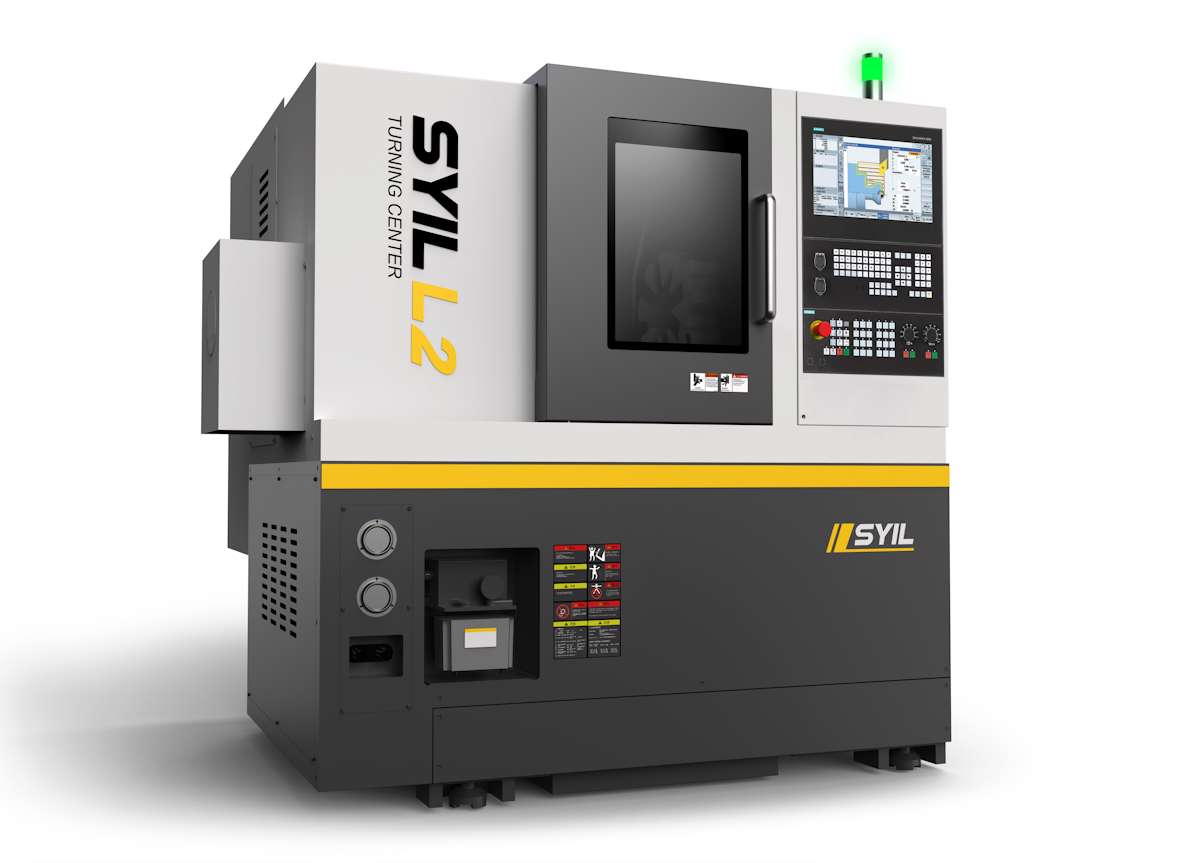

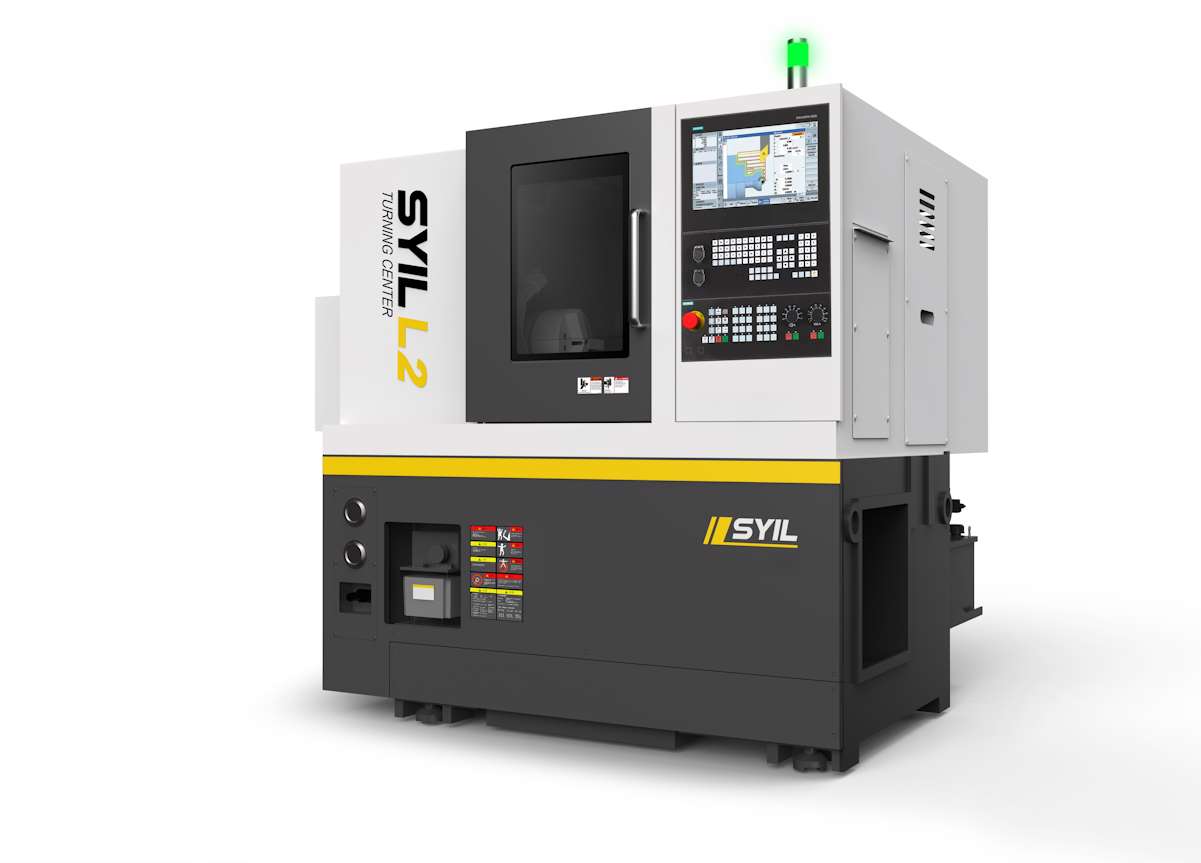

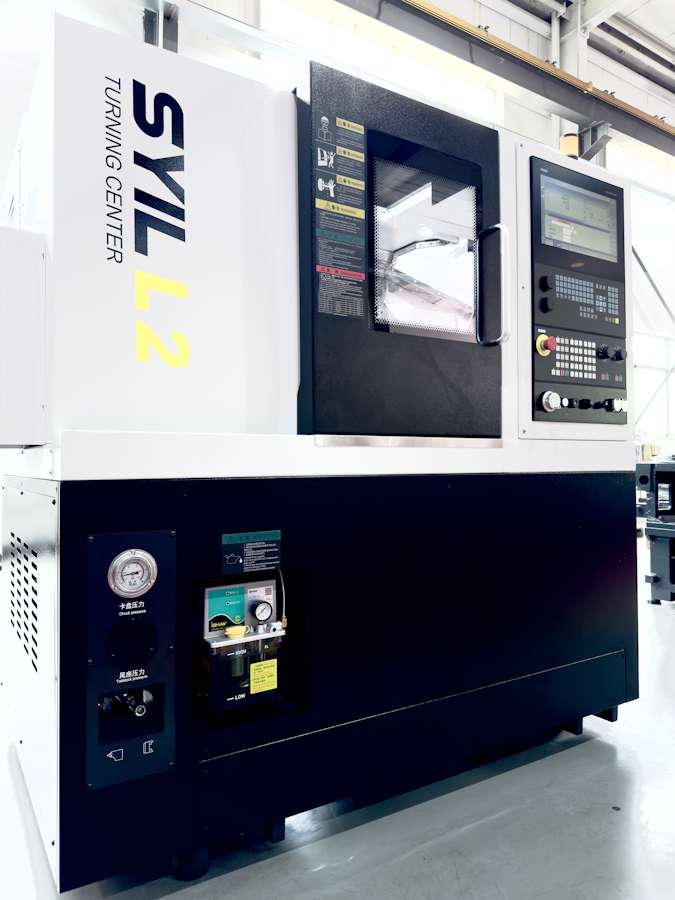

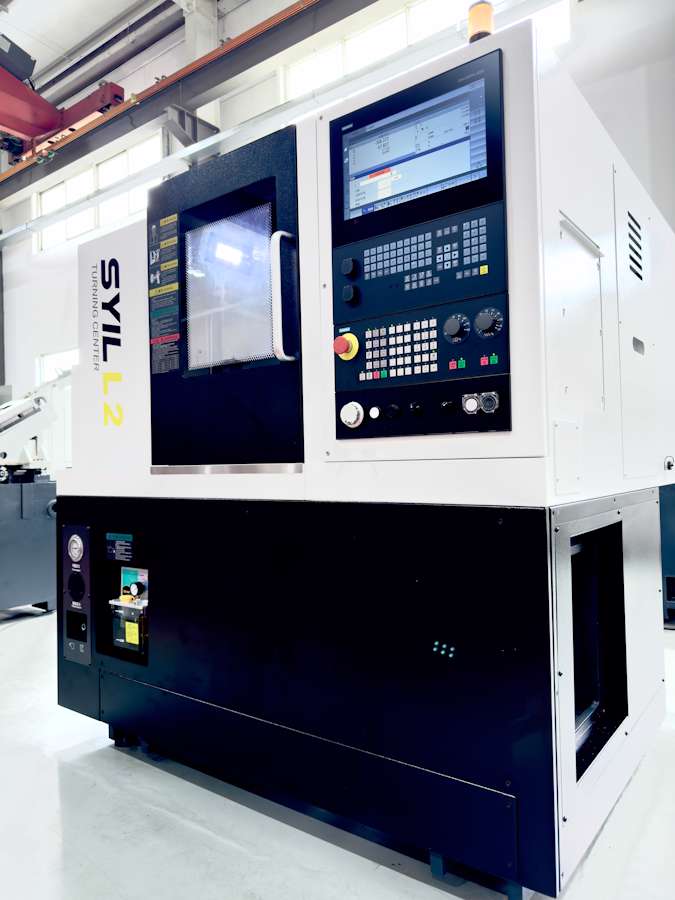

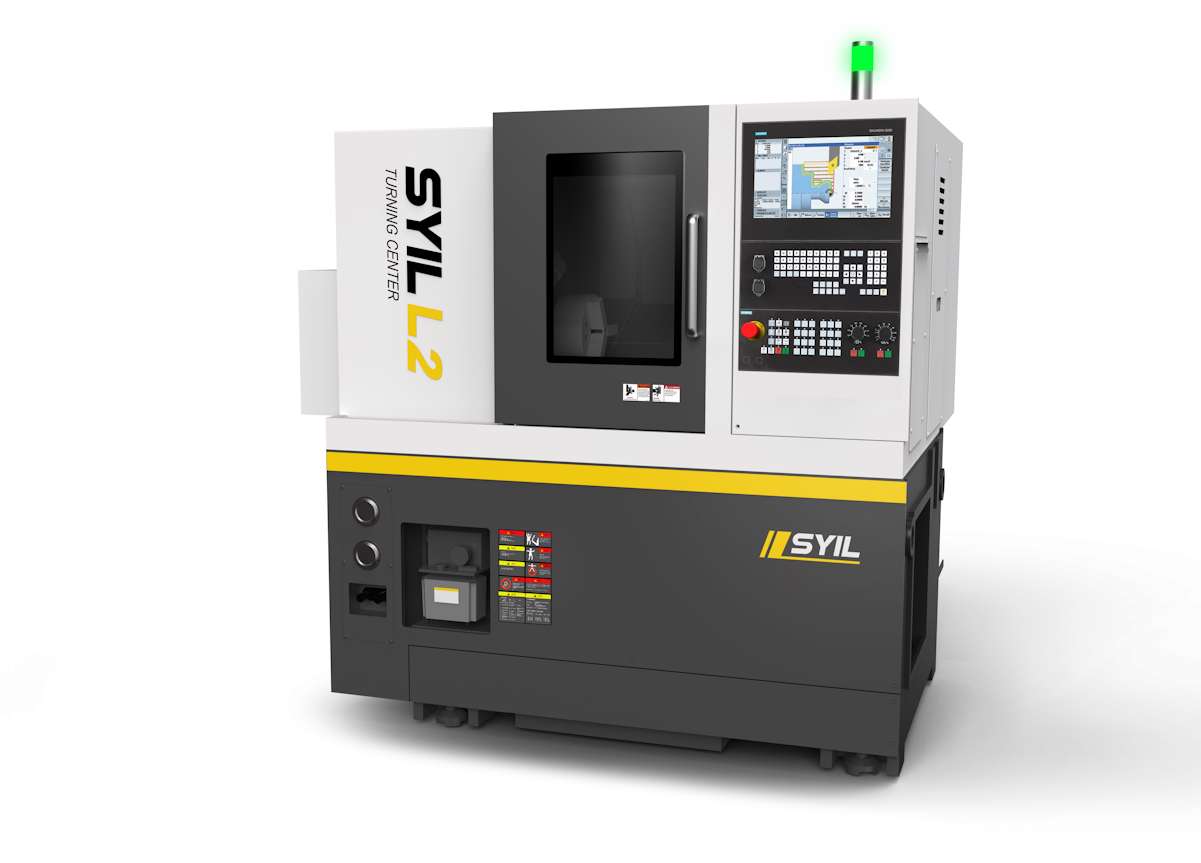

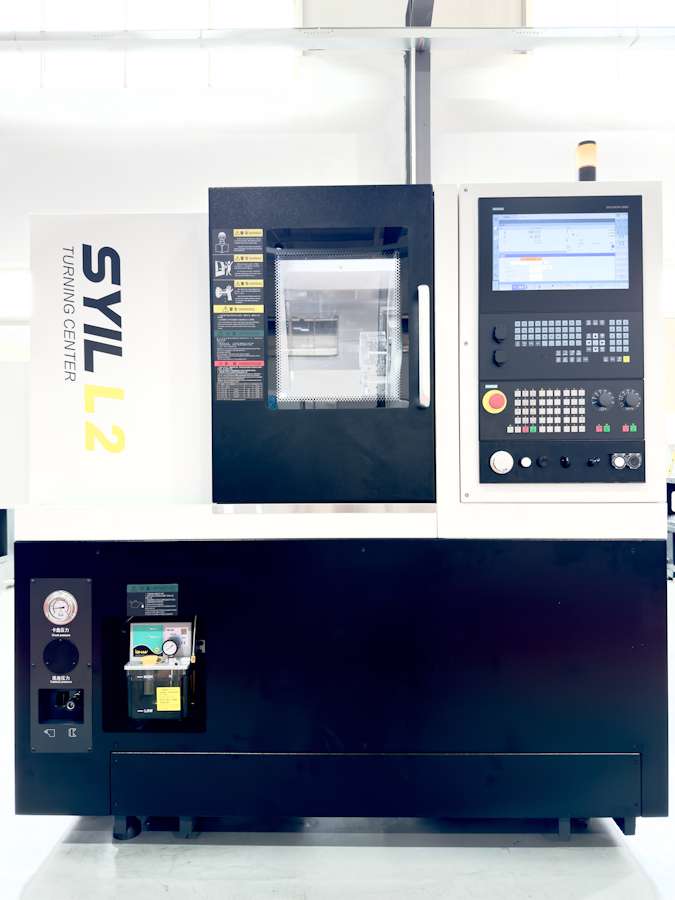

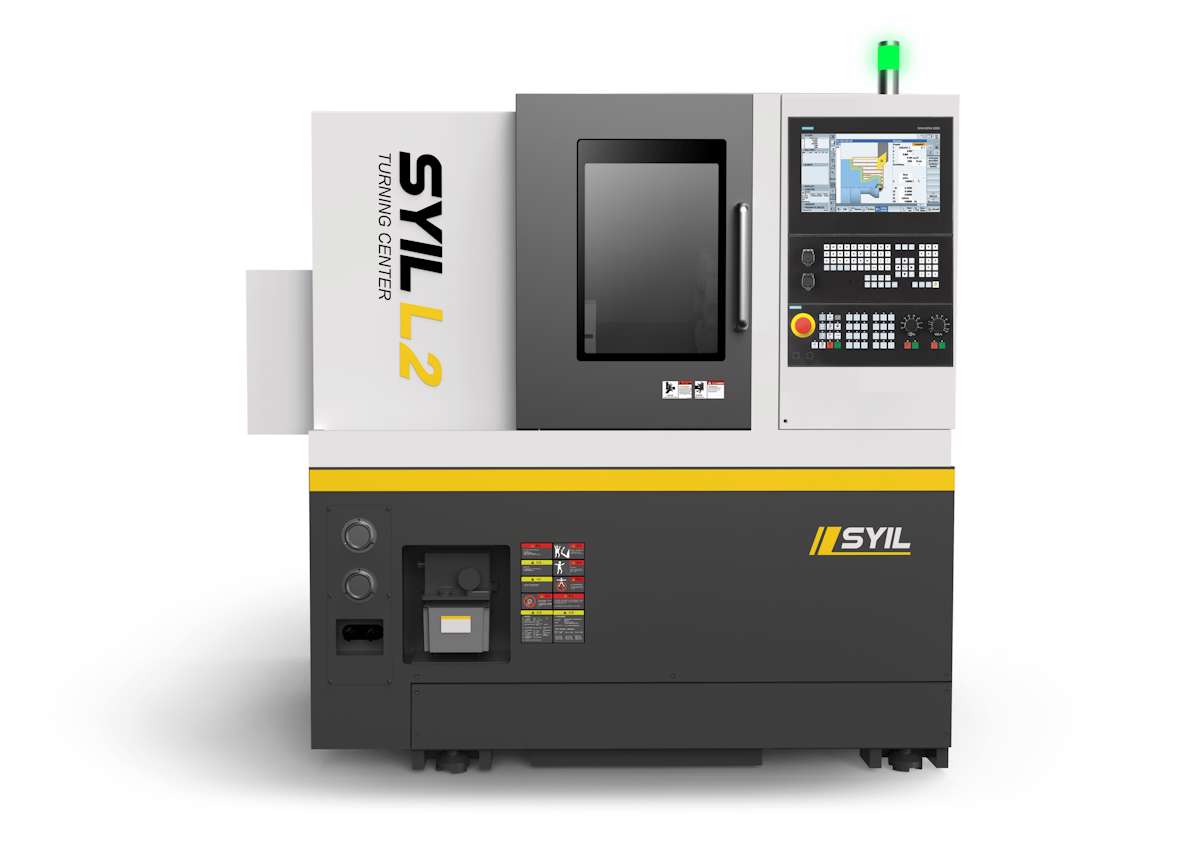

SYIL L2 8" Siemens 828D P/T/TT 2-Axis CNC Turning Centre - Slant Bed (14548)
New SYIL L2 8" Siemens 828D P/T/TT 2-Axis CNC Turning Centre - Slant Bed (14548)
bore Ø52, 15kW, Part Catcher, Tailstock, 12 Tools
Availability: Ex-import
Price: R 799 900.00 excl.
The SYIL L2 CNC lathes are designed to provide unmatched performance in small-scale production.
Standard Features:
Compact footprint

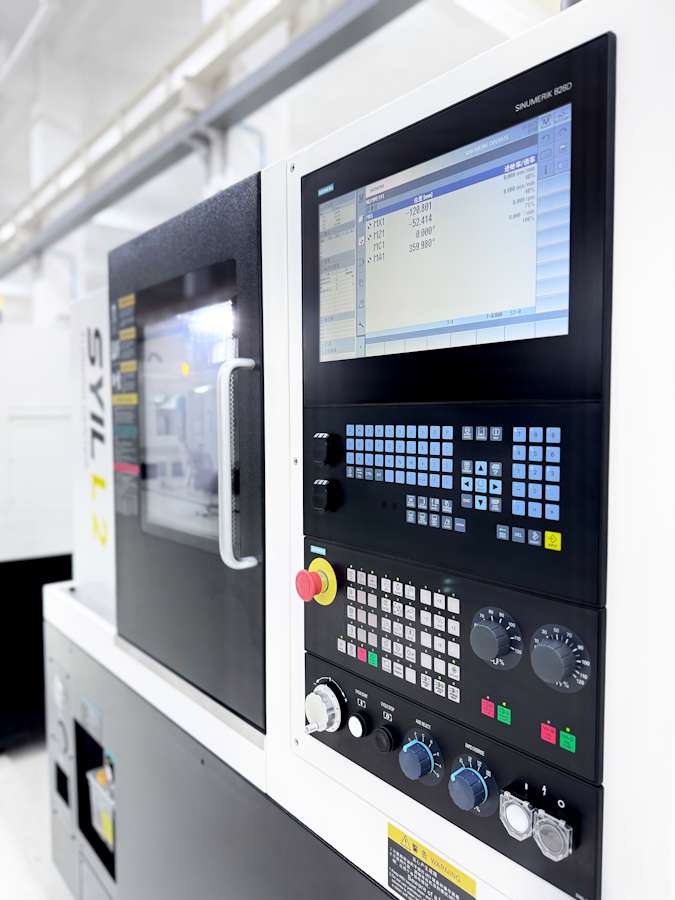

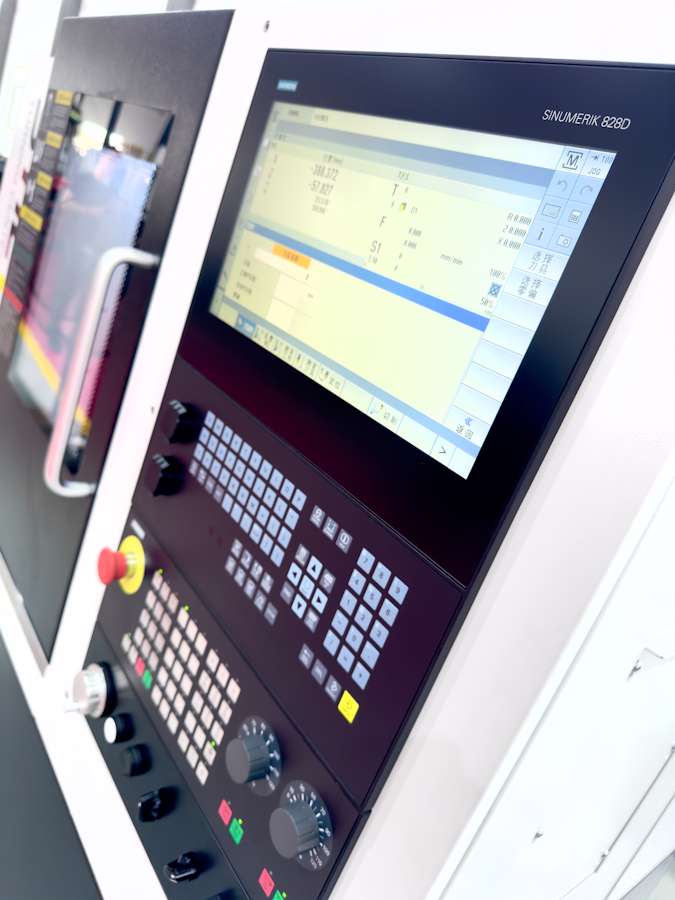

Siemens SINUMERIK 828D 15" Control

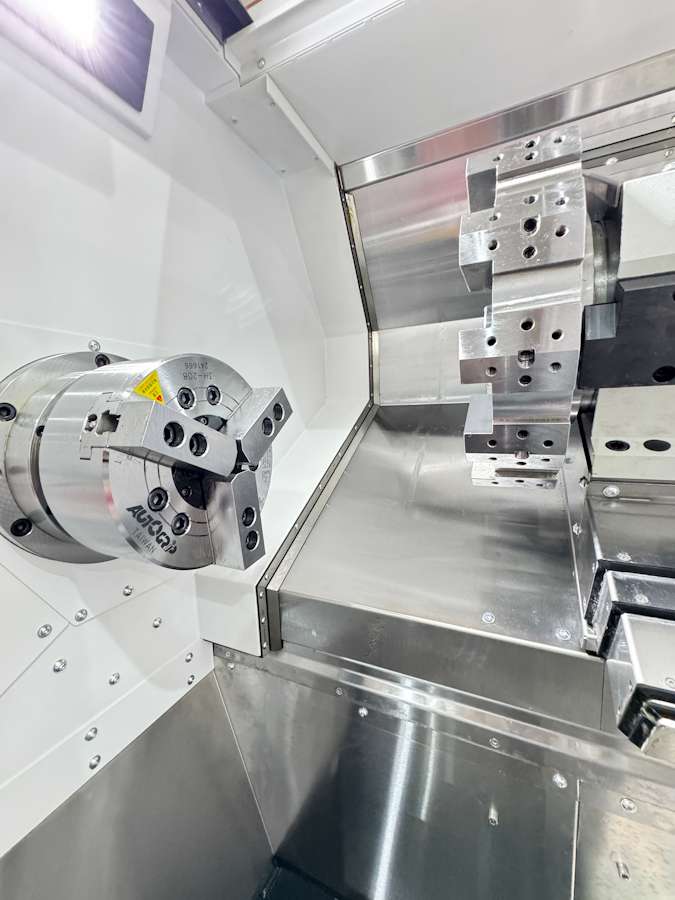

8-inch hollow hydraulic three-jaw chuck
A2-6 spindle
Maximum turning diameter of ø510 mm
Through-hole diameter of ø66 mm
12/8-position servo tool turret
High-precision ball-screw and linear guide by THK/HIWIN
4,000 RPM Spindle
8 Tools Turret
Boring Tool Holder
End Cutter Holder
Processing Capacity:
Chuck size: 8"
Maximum swing diameter over bed: ø510mm
Maximum swing diameter over carriage: ø260mm
Maximum workpiece length: 300mm
Maximum work piece diameter: ø380mm
Spindle:
Maximum speed: 4000rpm
Spindle nose: A2-6
Spindle bore diameter: ø66mm
Through spindle bore diameter: ø52mm
Spindle power: 11/15kW
Tool Holder:
Type: Servo turret
Tools: 8/12
Tool shank size: 25x25/20x20mm
Tool shank diameter: ø40/ø32mm
Travels:
X Rapid traverse: 30m/min
Z Rapid traverse: 30m/min
X Travels: 200mm
Z Travels: 360mm
Accuracy:
Finish turning cylindrical accuracy: IT6
Finish turning parts surface: Ra0.4-1.6
Finished turning parts roundness: ≤0.003mm
Position accuracy (?Ø): 0.005mm
Position accuracy (Ｚ): 0.008mm
Repeat accuracy (?Ø): 0.002mm
Repeat accuracy (Ｚ): 0.004mm
Dimensions and Weight
Dimensions (LxWxH): 1775x1600x1690mm
Net Weight: 3050kg
Included:
Parts Catcher
Hydraulic Tail Stock
12 Tools Turret
Options:
SYNTEC 22TA Control
Chip Conveyor (incl. chip pickup trolley)
Tool Setter | Renishaw
Oil Mist Collector
20KG High Pressure Water Pump
70KG High Pressure Water Pump
Bar Feeder (EL 65)
