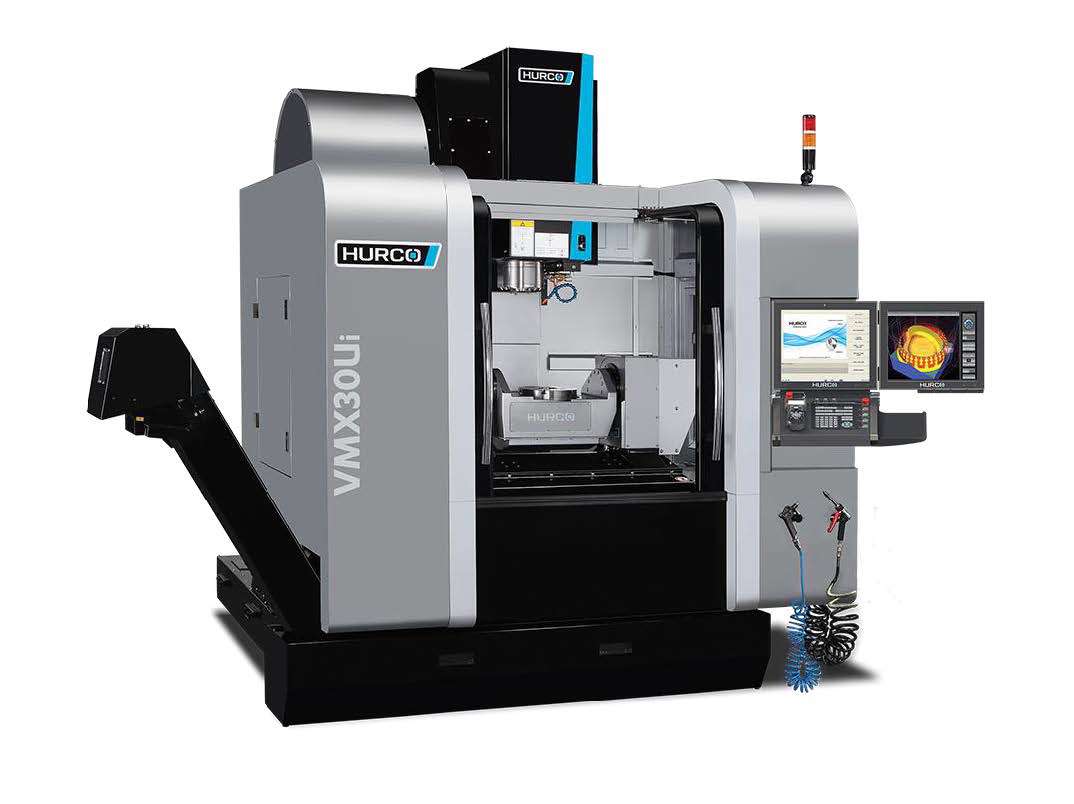

Hurco VMX30Ui XP Trunion CNC Machining Centre 5-Axis (6275)
New Hurco VMX30Ui XP Trunion CNC Machining Centre 5-Axis (6275)
BT40, Ø248, 13.4 kW, 12,000 rpm
Availability: In Stock (TBC)
Price: R 2 649 000.00 excl.
Where expert design and advanced technology meet. Our signature line of VMXUi 5 Axis XP machines take machining to the next level and deliver the highest performance capabilities to any machining application. Whether you are doing batch production or low volume work, the VMXUi XP machining centre will make you more profitable.
NEW i Features

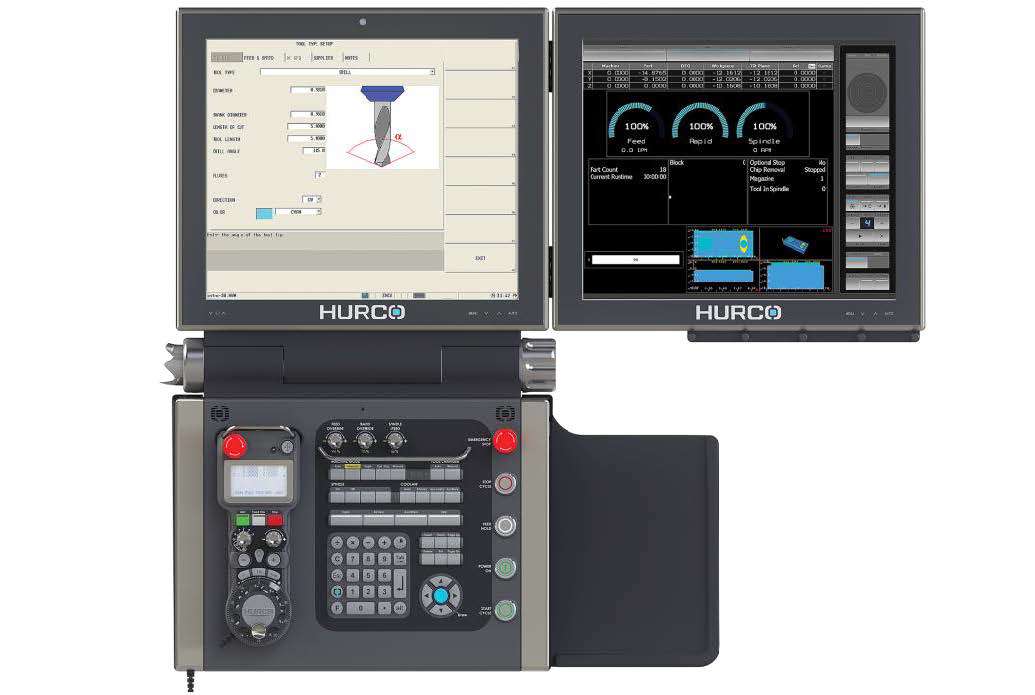

| New enhanced graphics package,1.4 x faster | Superb NEW MAX5 control |
| Ultimotion, reduces cycle time up to 30%. | Improved LED cabinet lighting |
| Enhanced Version 10 software | New solid state hard drives |
| Stunning all NEW ergonomically designed machine surround | Optional Ultimonitor incorporates Ultinet (networking) and ESF (Extended Shop Floor) capability of remote diagnostics |
Basic Machine Specifications
Capacity:
| X, Y, Z axis Travel | 762 x 508 x 520mm |
| Table Working Surface | Ø248mm |
| Table T - Slots | 6 off x 12mm @ 60° radial locations |
| Tilt Axis A | +30° / -110° |
| Rotary Axis C | 360° continuous |
| Maximum Table Load | 200 Kg |
| Spindle Nose to Table (min-max) | 90mm / 610 mm |
| Coolant capacity with conveyor | 367 litres |
Spindle:
| Spindle Taper | CAT/BT 40 Big-Plus dual contact |
| Spindle Speed | 12,000 RPM with spindle chiller |
| Spindle Motor Horsepower (1 min. rating) | 18 HP (13.4 kW) |
| Spindle Motor Torque (1 min. rating) | 214 Nm @ 600 RPM |
| Hurco machine tools require that the tool holders used must be balanced to a rating of G6.3 for up to 12,000RPM. Utilizing tooling that does not meet these specifications could affect the machine warranty. | |
Motion:
| Rapid Traverse Rate X,Y,Z / A,C | 38/38/32 m/minute 25/25 RPM |
| Cutting Feed Rate X,Y,Z | 38/38/32 m/minute |
| Positioning Accuracy Linear | 0.010mm |
| Repeatability Linear | 0.005mm |
| Positioning Accuracy Tilt & Rotary | +/- 7 arc seconds |
| Repeatability Tilt & Rotary | 7 arc seconds |
ATC
| Number of Stations | 40 |
| Tool to Tool ATC Time | 2 Seconds |
| Tool Changer Type | Electronic |
| Maximum Tool Diameter (max with adjacent sides empty) | 76mm (130mm) |
| Maximum Tool Length | 300mm |
| Maximum Tool Weight | 7 KG |
Size:
| Machine Weight | 5,280 Kg |
| Machine Shipping Weight | 5,540 Kg |
| Shipping Dimensions (W x D x H) | 2,950 x 2,300 x 2,412 mm |
| Voltage Required / Fuse rating | 3-phase 380V/415V 50 Hz/ 50 amp D rated MCCB |
| Power Rating / Full Load KVA | 25.25 KVA |
| Air Requirements | 5 CFM @ 80-100 PSI / 0.14 M3/min. @ 6-8 bar / 0.1 connected via a 12mm nylon push fit fitting |

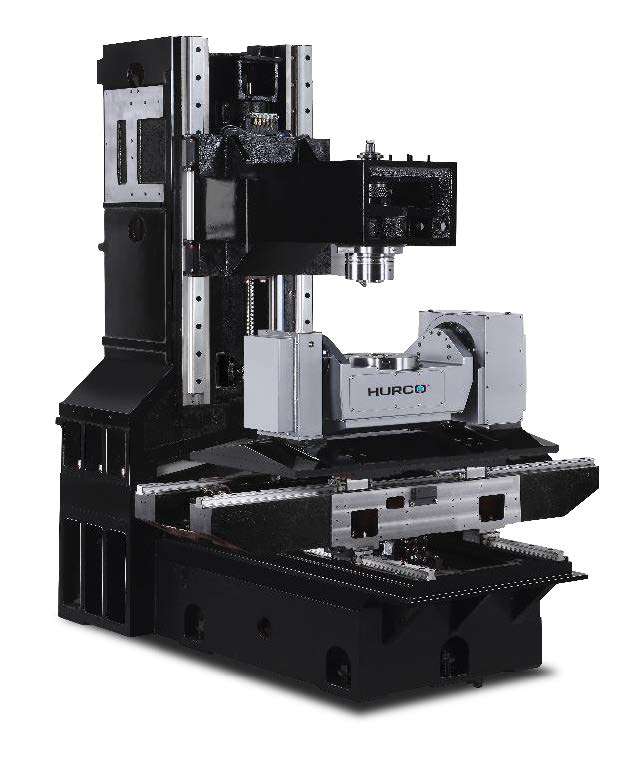

Standard Machine Features:
| Heavily Ribbed Fine-Grade Cast Iron Frame Optimized with Finite Element Analysis (FEA) | Pistol-style Coolant and Air Guns |
| Wedge-locked Heavy duty Linear Rails for X, Y & Z Axes | Metal Telescopic Way Covers |
| Roller Linear Guideways for even more rigidity | Automatic Central Lubrication System |
| Direct Drive Servos on X,Y & Z axis | Power Cabinet Heat Exchanger |
| Z axis with Regenerative Brake - No Counterbalance | Way Lube Separation System |
| Double-nut Pre-tensioned Ballscrews Anchored at Both Ends | Modular One-Piece ITX Control Rack |
| 12,000 RPM AC Spindle Motor | 2.7GHz Dual Core Processor |
| Air Purged Chrome-moly Alloy Cartridge Spindle with ABEC Class 7 Bearings | 4 GB RAM Memory |
| Yaskawa Sigma V Digital AC Servos | 128 GB Solid State Hard Drive |
| Fast 38 m/min X,Y Rapid Traverse Rates | 12 Months Parts and Labour Warranty |
| Electric Swing-arm 40 Station ATC - Random Access | Spindle chiller |
| 2 Second Tool-to-Tool ATC Time | Chip / Swarf conveyor |
| Door Safety Interlocks / ANSI B11.23 | Coolant wash-down |
| Full Enclosure with Wide Front Access and Side Access Doors | Height adjustable Winmax control |
| LED Work Light | 3-stage signal light |
| Flood Coolant System |
Standard Accessories:
Finite Element Analysis
Roller Type Linear Guideways
Double-nut Ballscrews
Spindle Cartridge
Yaskawa Sigma V Digital Drives
40 Station ATC
Flood Coolant
ITX Technology
Spindle chiller
Chip/Swarf Removal
Machine Options:
Mist Extraction Unit
Coolant Thru Spindle
Part Probing
Tool Probing
Basic Remote Jog - Standard
LCD Remote Jog (optional)
Wireless LCD Remote Jog (optional when it becomes available)
