Capacity
Round - 330mm, 45° 290mm
Square - 280x280mm, 45° 280x280mm
Rectange - 280x500mm, 45° 280x280mm
Automatic Indexing Length - 500mm per shuttle
Workbed height - 820mm
Blade
4150x27x09
Weight - 988kg
Dimensions - 2717x1879x2082
Motor - 2.2kW, 3HP

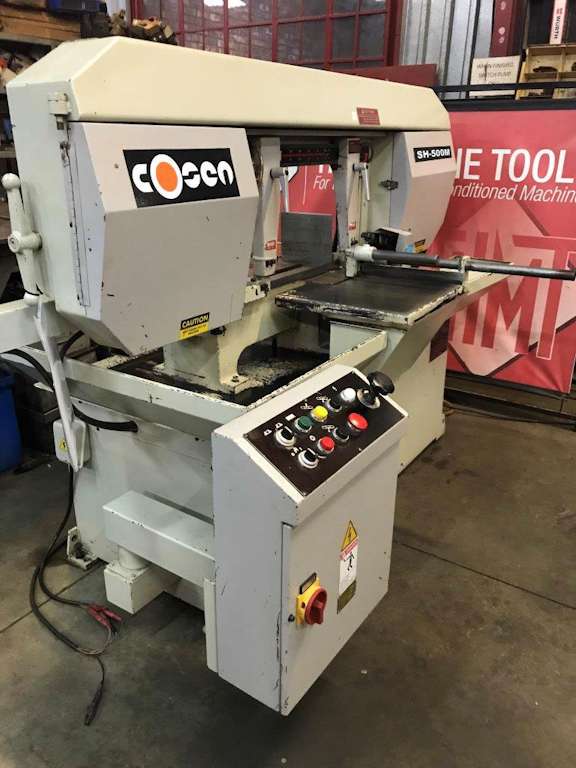

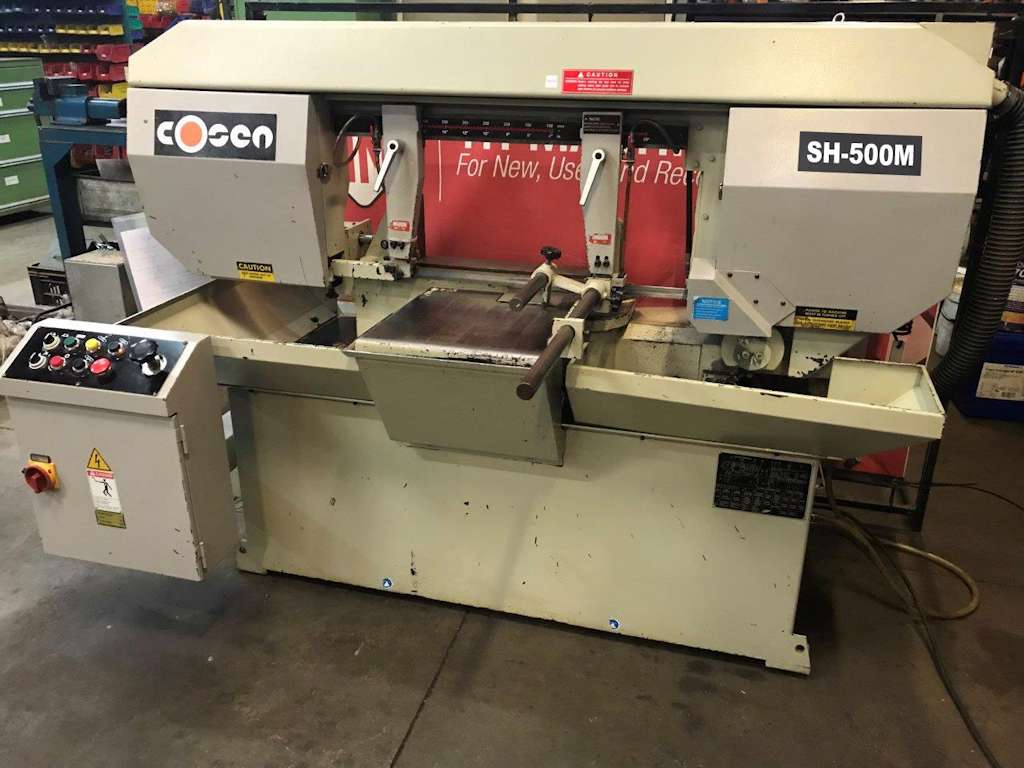

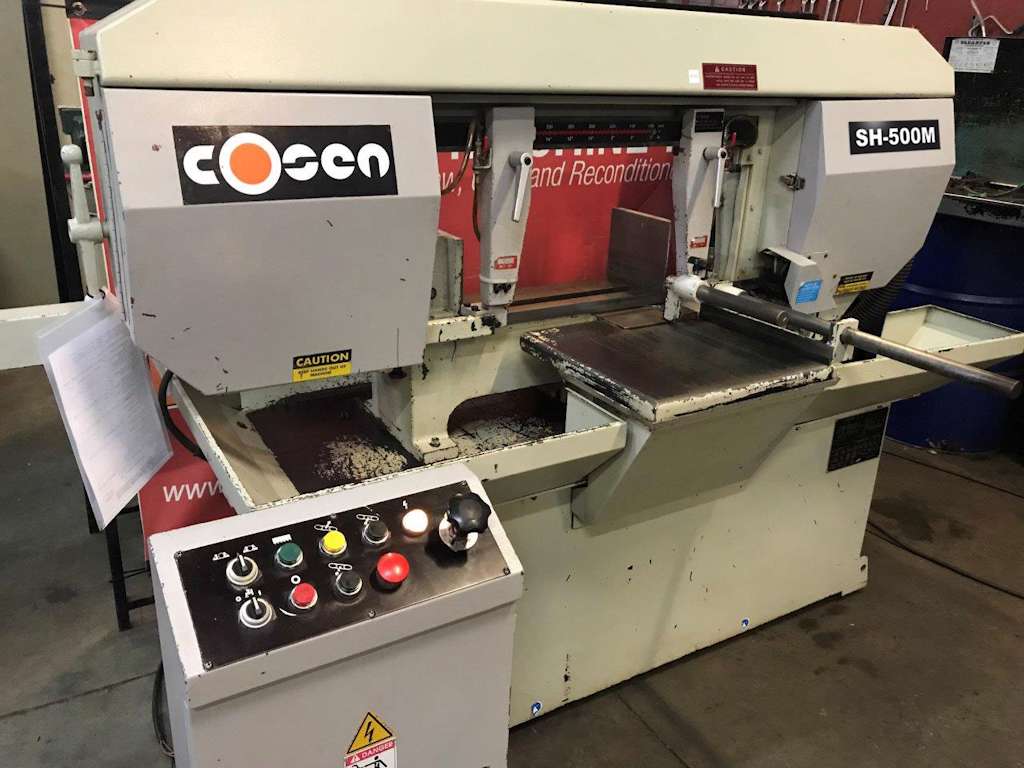

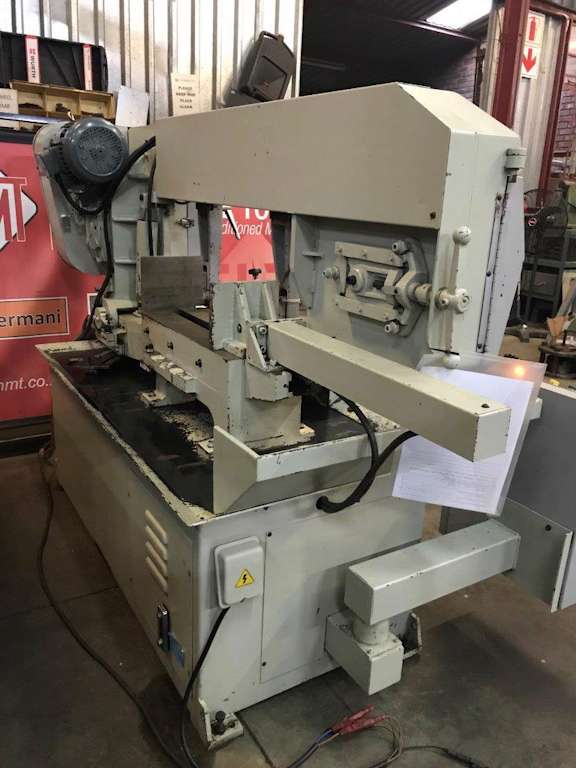

The SH-500M features hydraulic lifting of the
saw frame and full stroke hydraulic vise. These
features enable semi-automatic operation to
securely hold the work piece, cut, and return the
saw frame to a preset work height. Large, heavy duty
trunion and swivel 'n' lock mechanism
allows for up to 60 degrees of mitering capability
