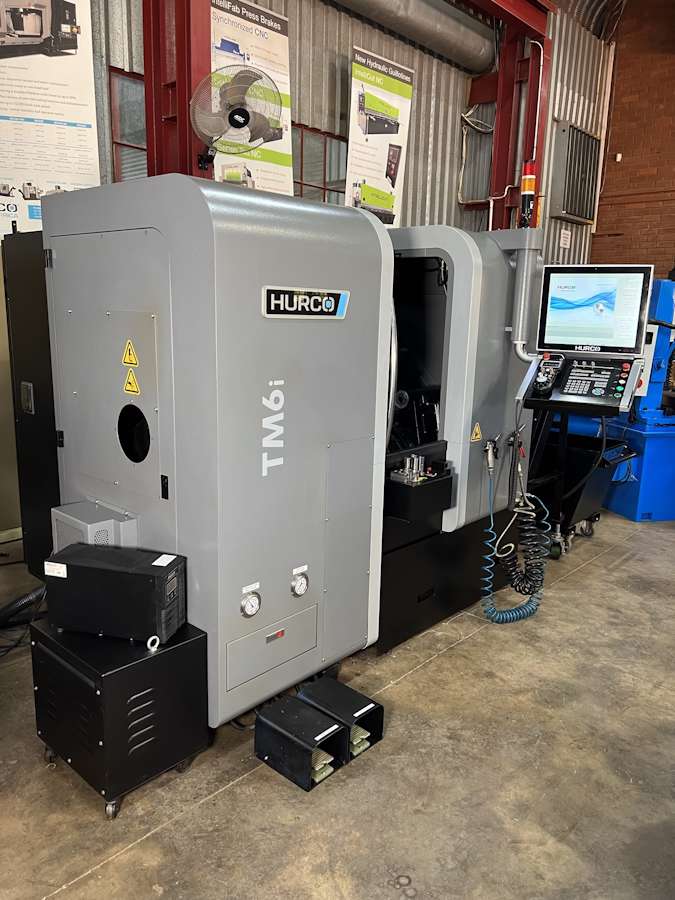

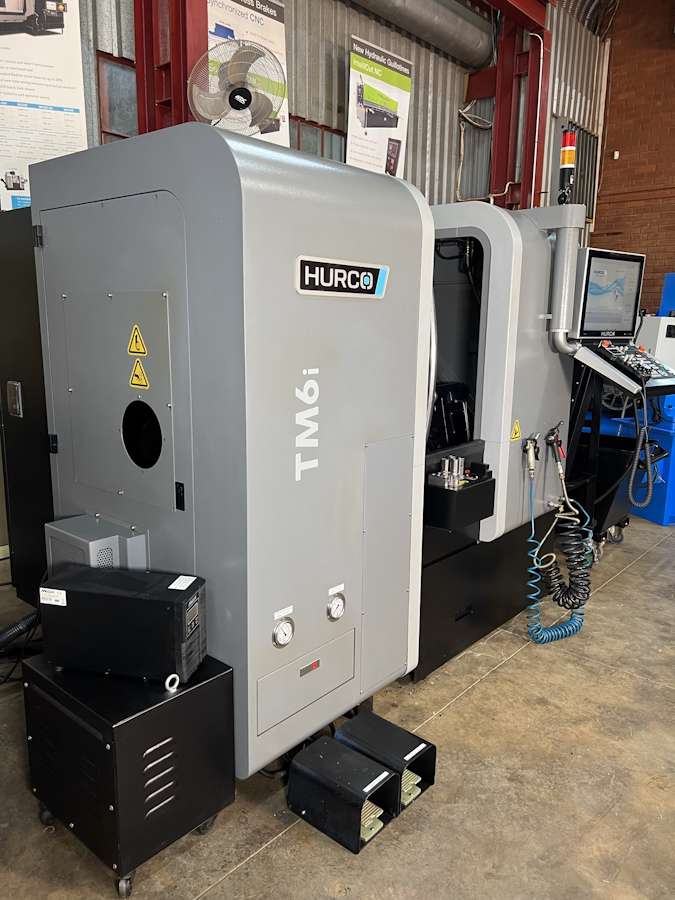

Hurco TM6i 2-Axis Slant Bed CNC Turning Centre (13231)
Used Hurco TM6i 2-Axis Slant Bed CNC Turning Centre (13231)
340 t/l, swing Ø 405, bore Ø 45, 13kW, 6,000rpm
SOLD
Capacity:
| Distance between centres | 403 mm |
| Swing over bed | Ø 405 mm |
| Swing over cross slide | Ø 240 mm |
| Maximum turning diameter | Ø 316 mm |
| Maximum turning length | 340 mm |

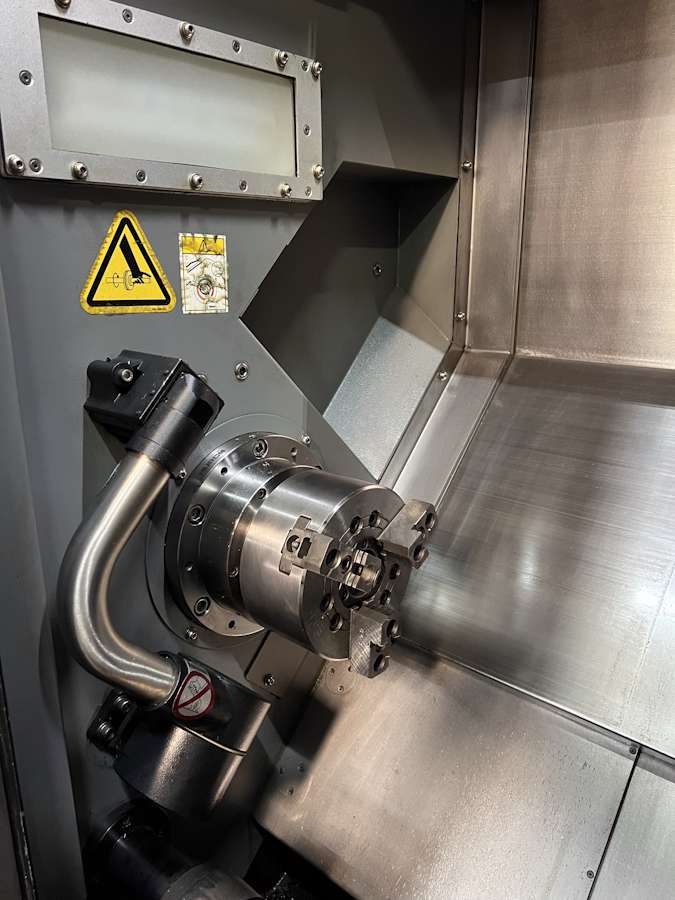

| Hydraulic 3 Jaw Chuck size | Ø 169 mm |
| Through Hole size / Maximum bar diameter | Ø 45 mm |
| Jaw Stroke | 5.5 mm |
| Gripping Range (OD of Material) | Ø15 - Ø169 mm |
| Max Gripping Force | 5,812 kgf |
| Collet chuck size /collet size | CR42A5 / D173 spring or D673 varibore collets |
| Coolant Capacity | 87 litres |
Spindle:
| Spindle Nose Type | A2-5 |
| Spindle Speed | 0 - 6,000 RPM |
| Spindle Motor Horsepower (1 min.) | 17.5HP (13 kW) |
| Spindle Motor Torque (1 min.) | 113 Nm at 1090 RPM |
| Draw Tube Diameter | Ø 45 mm |
Motion:
| Rapid Traverse Rate X, Z | 30/30 m/minute |
| X axis 45 degree incline. | 176mm slotted |
| Z axis Horizontal | 356mm |
| Positioning Accuracy | 0.010mm |
| Repeatability | 0.005mm |

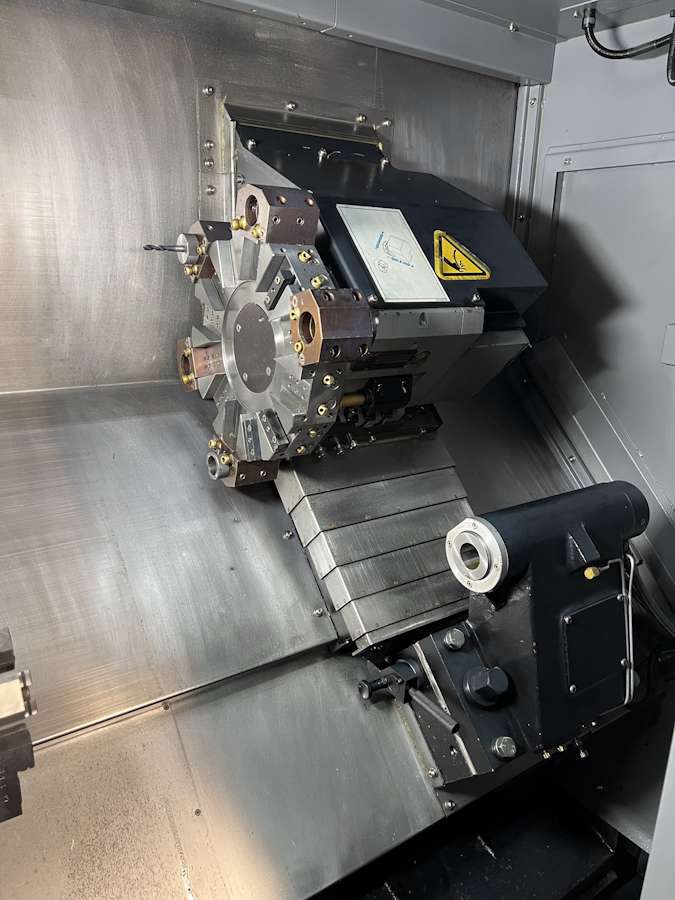

Tool Turret:
| Turret type | Slotted Disc |
| Number of Stations | 12 |
| Maximum Boring Bar Diameter | 32mm |
| Tool Shank Width | 20mm x 20mm |
| Rotation | Bi-directional |
| Indexing Repeatability | +/- 1” |
| Turret Positioning | +/-0.01mm |
| Boring Block Alignment | 0.02mm |
| Tool to tool index time ( adjacent / furthest) | 0.5 sec / 1.5 sec |
Size:
| Maximum Operating Dimensions (approx.) | 3927 x 2525 x 2144 mm |
| Machine Weight | 3,200 Kg |
| Machine Shipping Weight | 3,500 Kg |
| Shipping Dimensions (W x D x H) | 2,300 x 2,090 x 2,029 mm |
| Voltage Required / Fuse rating | 3-phase 380V/415V 50 Hz/ 25 amp D rated MCCB |
| Power Rating / Full Load KVA | 12.49 KVA |
| Air Requirements | 00 PSI / 0.14 M3/min. @ 6-8 bar / 0.1 |
Standard Machine Features:
| Heavily Ribbed Fine-Grade Cast Iron | Ansi Door Safety Switches |
| Frame Optimized with Finite Element Analysis (FEA) | Flood Coolant Assembly |
| True 45 degree slant bed | Automatic Central Lubrication System |
| Double-Nut Pre-Loaded Ballscrews Anchored on Transmission End | Modular One-Piece ITX Control Rack |
| Precision Linear Roller Rails | 2.7GHz Dual Core Processor |
| 6000 RPM Cartridge Spindle | 4 GB RAM Memory |
| Powerful HP Spindle Motors | 128 GB Solid State Hard Drive |
| A2-5 Series Spindle Nose | 12 Months Parts & Labour Warranty |
| Brushless AC Servos | Shortest Path Tool Turret Indexing |
| Fast 30 m/minute X & Z Rapid Traverse | Manual Tailstock with Programmable Quill |
| 12 tools bidirectional hydraulic turret | Air/Coolant pistol |
| Includes 6 boring blocks and 12 sets of wedge clamps along with boring block bushings, Morse taper # 2 and #3. | Text Input Capabilities |
| 0.5 Second Tool Index Time (Adjacent) | USB 2.0 Port |
| Large Work Cylinder | 3-Jaw Chuck including Hard Jaws |
| Conversational Turning Programming | Wide Enclosure Door Openings |
| Constant Surface Speed |
Standard Accessories:
Manual Tailstock with Programmable Quill
UPS - ITX backup
Chip Bin / Trolley

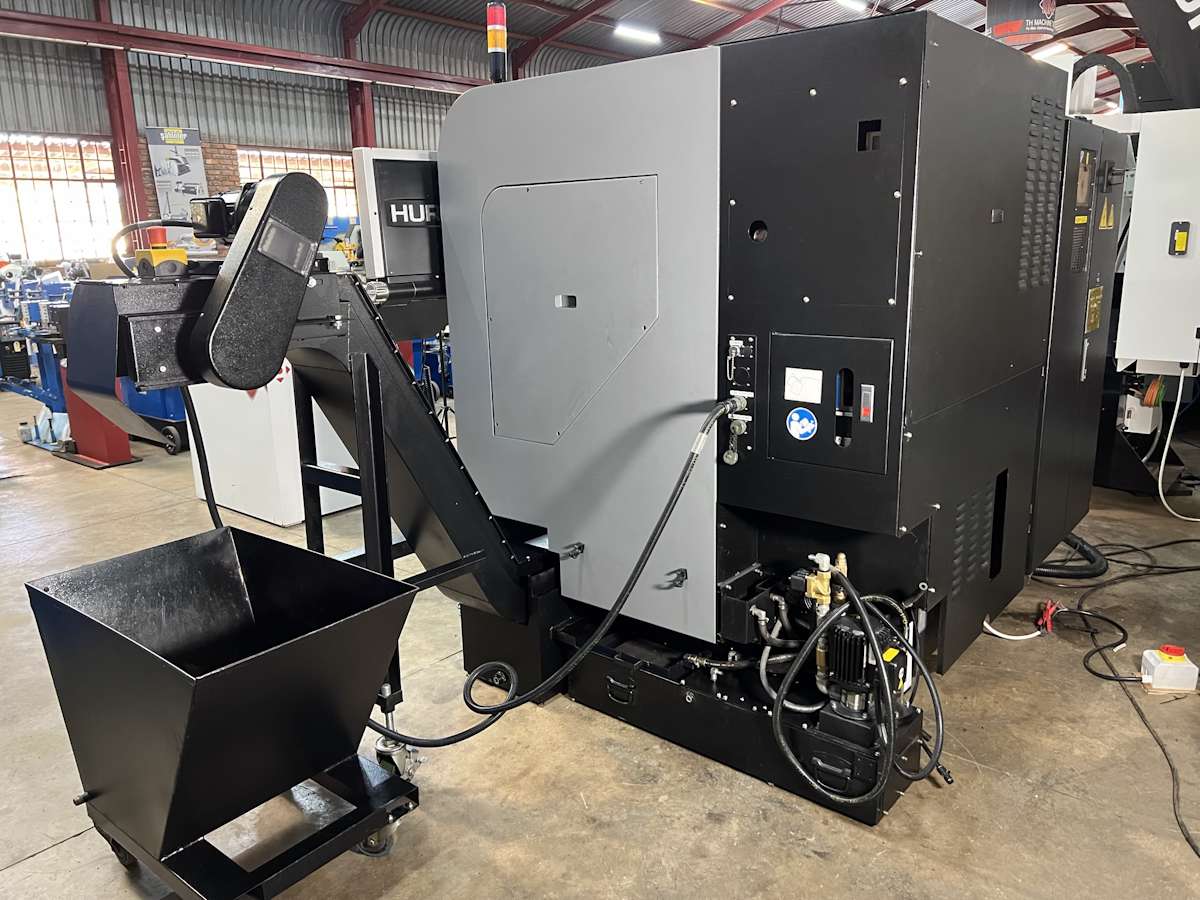

Swarf conveyor
Renishaw tool probe
Parts catcher

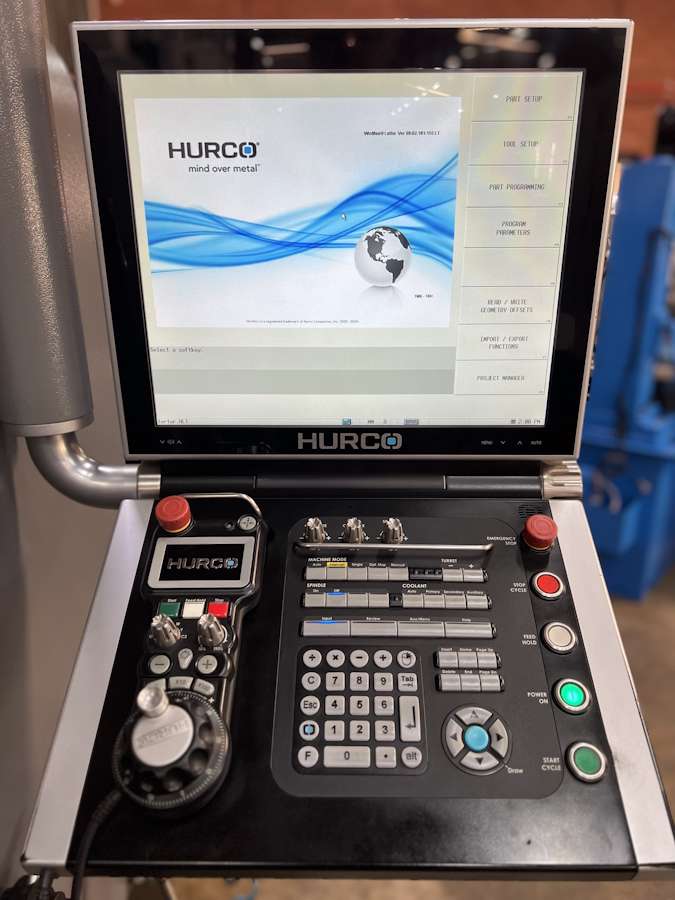

Standard Max 5 Control Features:
Touch Screen
Remote Jog
Motion Control
Advanced Verification Graphics
Ultimotion
AutoCalc
Interactive Help System
Industry Standard NC
NC Editor
Estimated Run Time
Simplified Part Setup
Easy Tool Setup
Easy Program Transfer
Data Block Search
Grooving Cycle Blocks
Custom Grooving Profiles
Bar Feed Cycle Block
External /Internal Profile Block
Thread Cycle Block
Thread Repair Cycle Block
Hole Cycle Block
Cut Off Cycle Block
Spindle Harmonic Control
