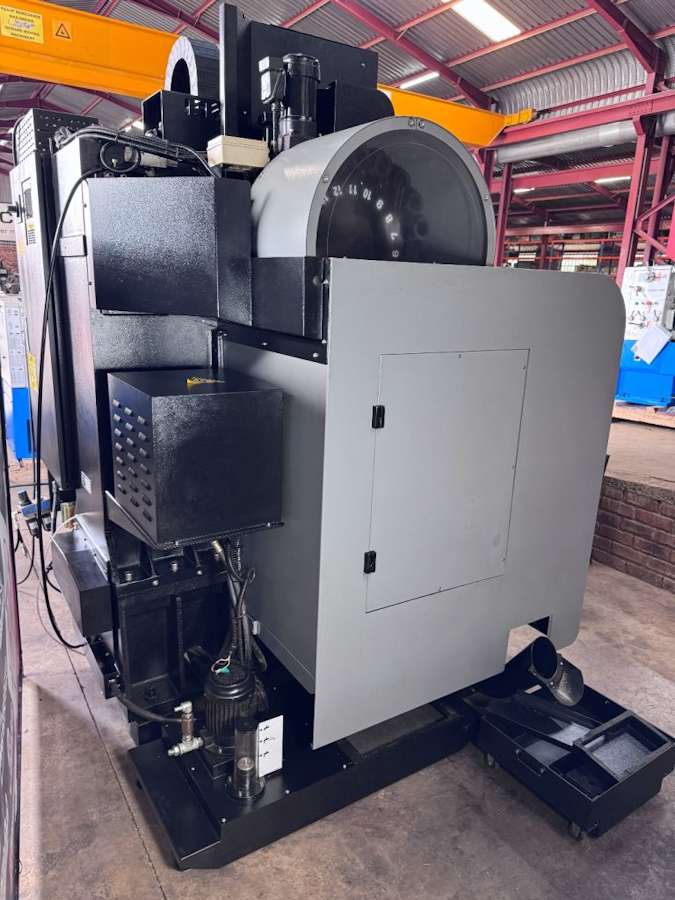

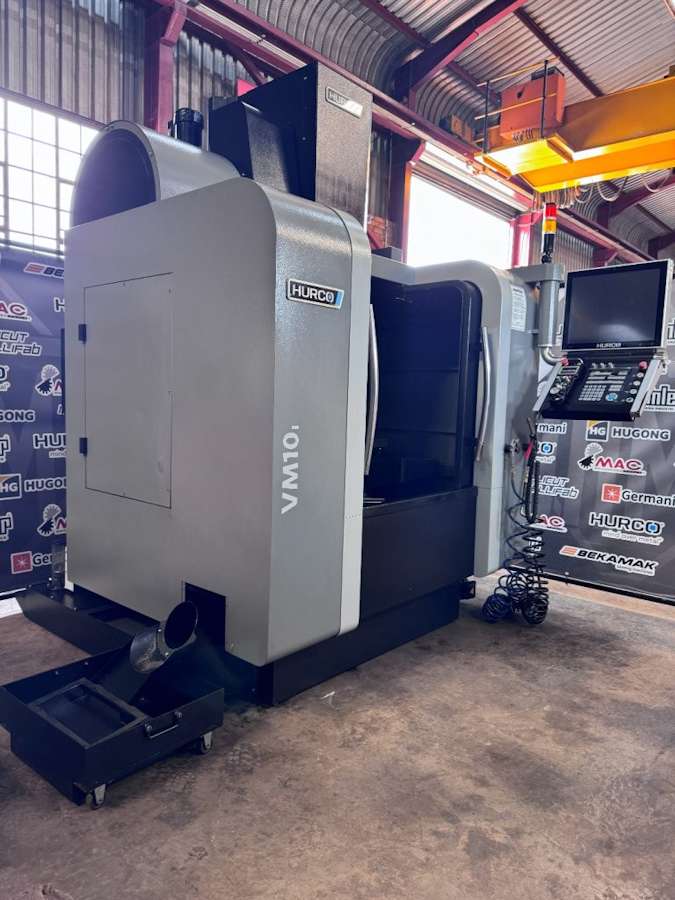

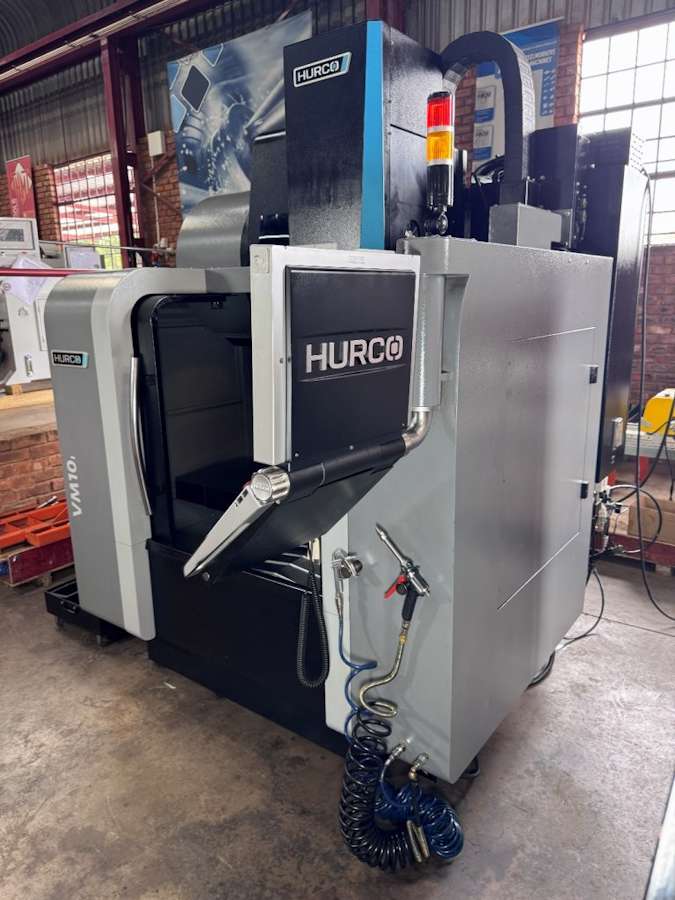

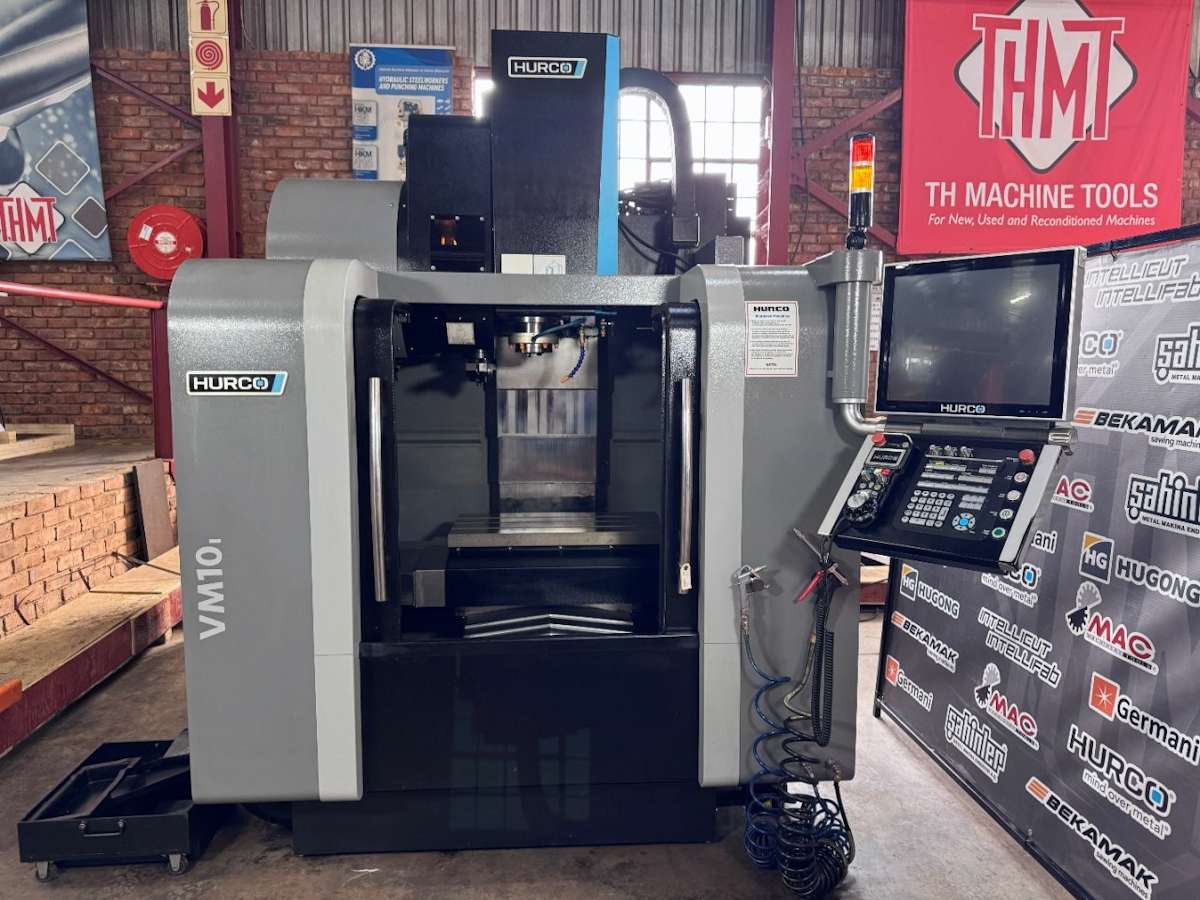

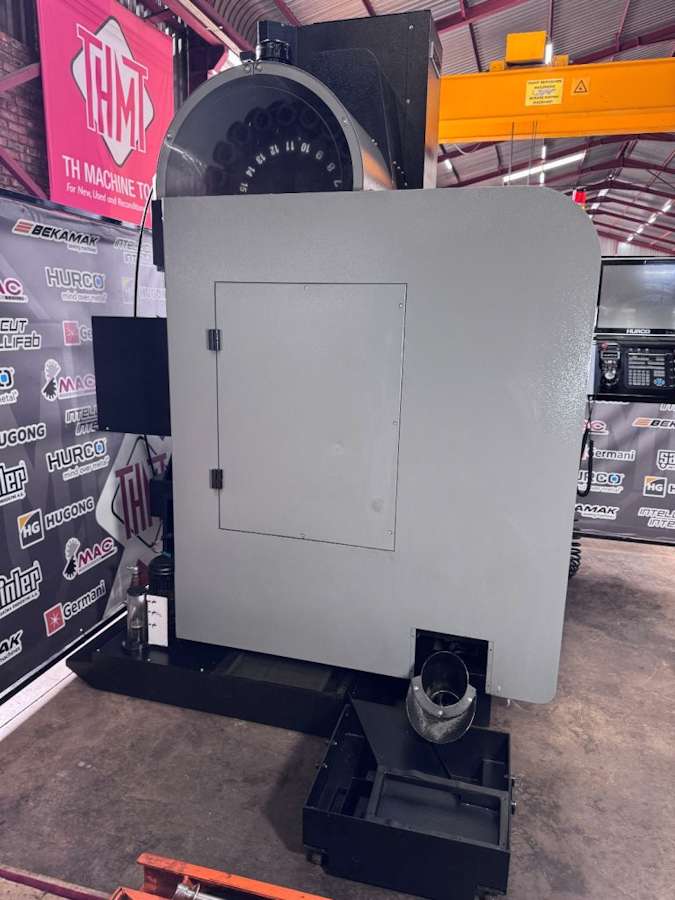

Hurco VM10i 3-Axis Vertical CNC Machining Centre 3-Axis (14581)
Used Hurco VM10i 3-Axis Vertical CNC Machining Centre 3-Axis (14581)
BT40, Bed 762 x 406, 11kW, 10,000 rpm
SOLD
Very good condition!
Year manufactured: 2015
Machine Specifications
Capacity:
| X, Y, Z axis Travel | 660 x 406 x 508mm |

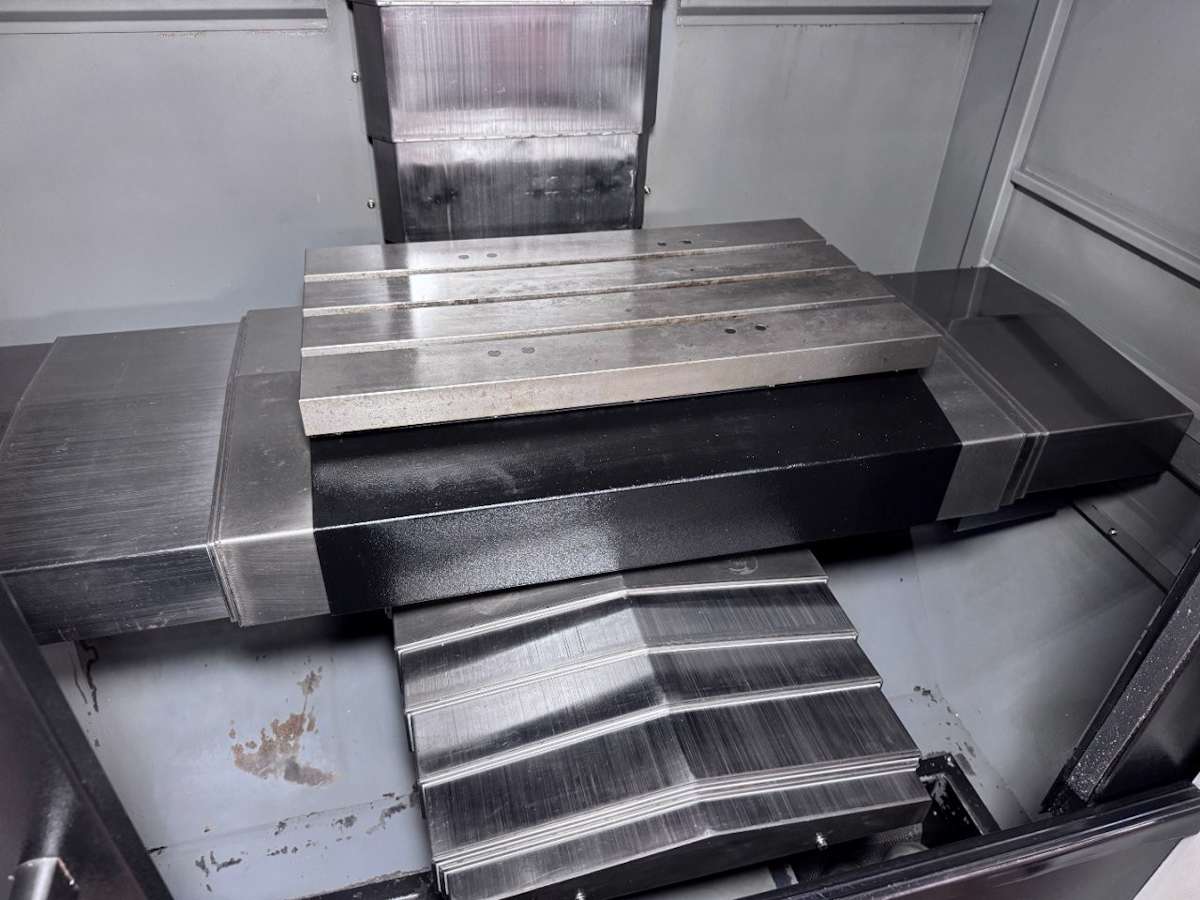

| Table Working Surface | 762 x 406mm |
| Table T - Slots | 3 off x 18mm @ 100mm centres |
| Maximum Table Load | 1,500 Kg |
| Spindle Nose to Table (min-max) | 101.6mm / 610 mm |
| Coolant capacity | 62 litres |
Spindle:
| Spindle Taper | CAT/BT/DIN 40 Big-Plus dual contact |
| Spindle Speed | 10,000 RPM |
| Spindle Motor Horsepower (1 min. rating) | 15 HP (11 kW) |
| Spindle Motor Torque (1 min. rating) | 73.6 Nm @ 1450 RPM |
Motion:
| Rapid Traverse Rate X,Y,Z | 24/24/24 m/minute |
| Cutting Feed Rate | 24/24/24 m/minute |
| Positioning Accuracy | 0.010mm |
| Repeatability | 0.005mm |
ATC
| Number of Stations | 20 |
| Tool to Tool ATC Time | 2.5 Seconds |
| Tool Changer Type | Electronic |
| Maximum Tool Diameter (max with adjacent sides empty) | 80mm (120mm) |
| Maximum Tool Length | 250mm |
| Maximum Tool Weight | 7 KG |
Size:
| Machine Weight | 2,818 Kg |
| Machine Shipping Weight | 3,018 Kg |
| Machine Shipping Dimensions (W x D x H) | 1,960 x 2,300 x 2,387 mm |
| Voltage Required / Fuse rating | 3-phase 380V/415V 50 Hz/ 32 amp D rated MCCB |
| Power Rating / Full Load KVA | 14.23 KVA |
| Air Requirements | 5 CFM @ 80-100 PSI / 0.14 M3/min. @ 6-8 bar / 0.1 connected via a 12mm nylon push fit fitting at the rear right hand corner |
